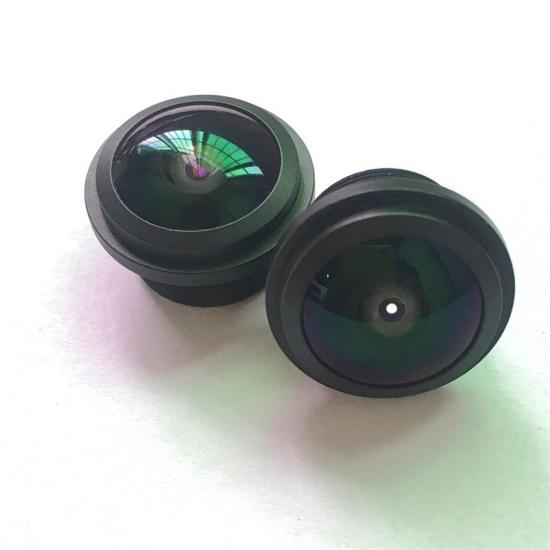

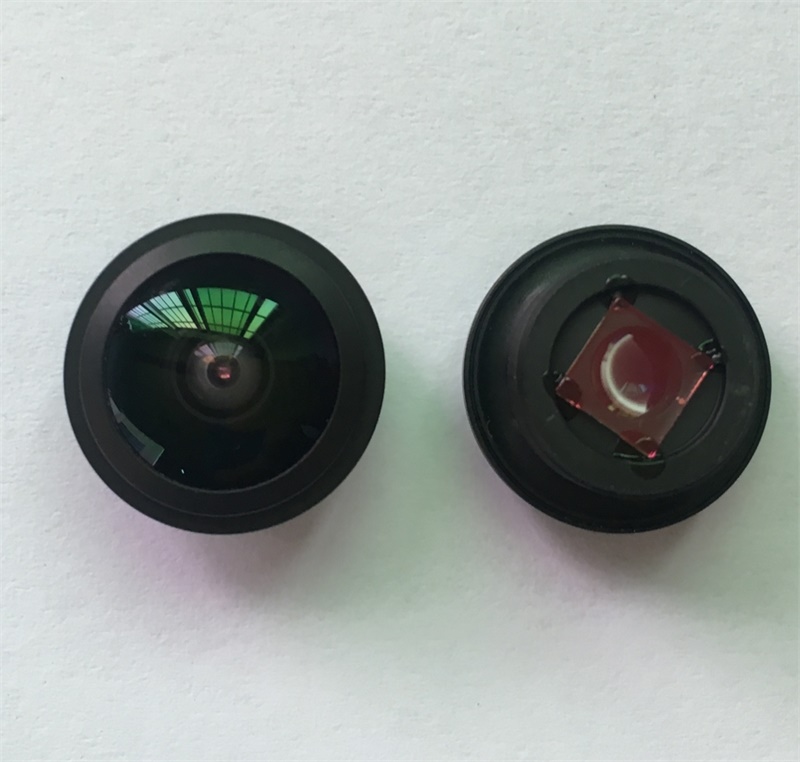

Product Name: 1/3'' IP68 1.4mm 220 degree starlight fisheye 5MP m12 car camera Vehicle lens,
automotive surround view lens
product advantage
1, Horizontal 220 degree Car Fisheye Lenses
2, 220 super Fisheye and IP67 permit it to used widely as Automobile Industry Lenses
3, Very Short TTL, Compact structure, excellent optical performance
4, Glasses material are imported from Japan
Product Specification
Technical Feature of 1.4mm Super Fisheye Lens 220
1, Effective Focal Length: 1.4mm
2, Aperture F/No: F1.9
3, Mount type: M12*P0.5
4, Matching Sensor: 1/3 IMX225+NT2431 HD
5，FOV D 220 H 220 V 130 degree
6, TTL 13mm
7, Back Focal Length: 2.16mm
8, Lens Construction: 6G+1 RF

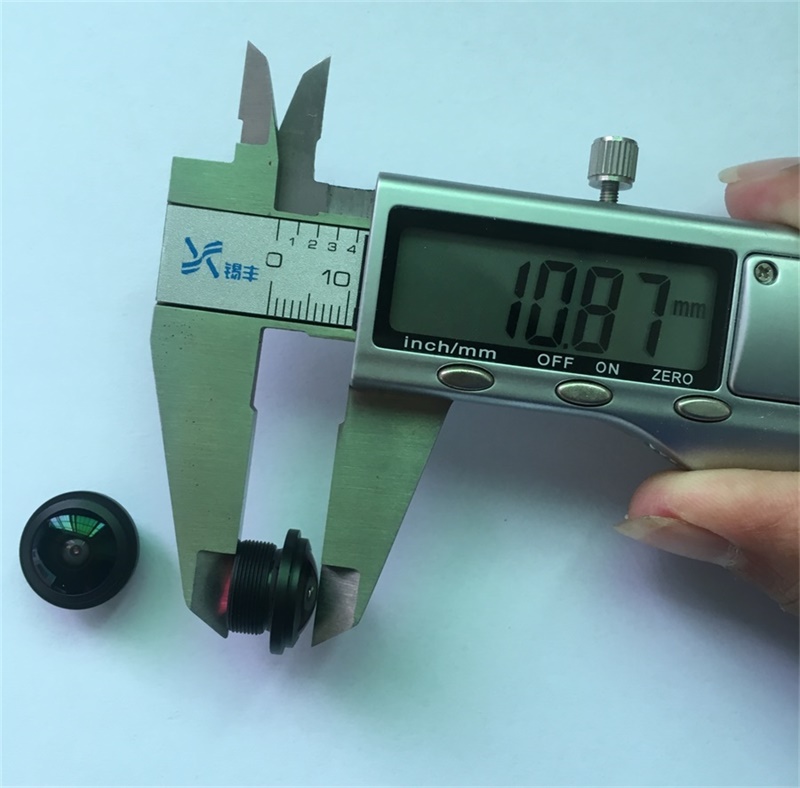

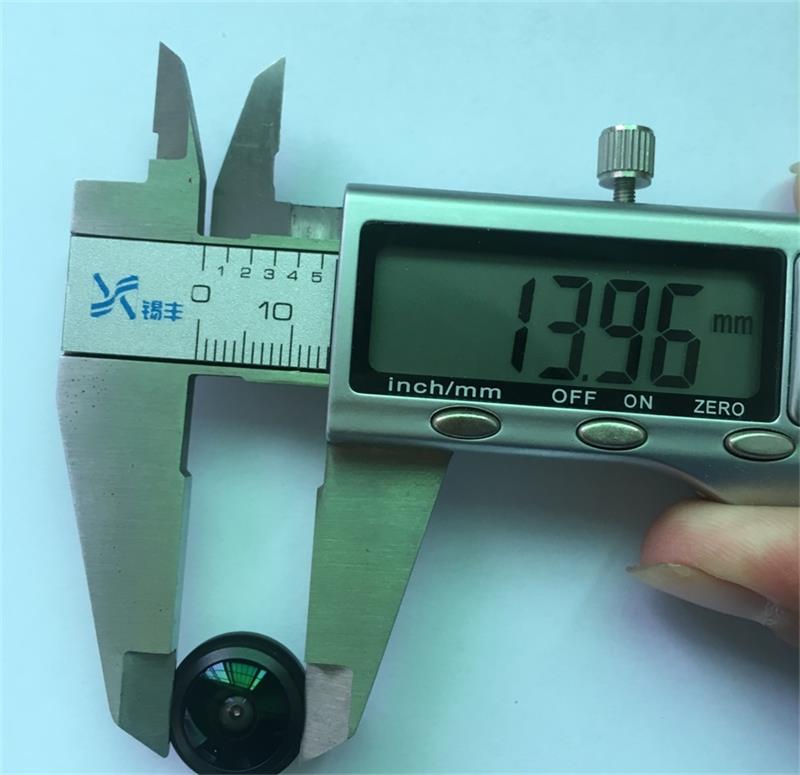

9, Dimension: 16*10.8mm
10,Optical Distortion: < 19.2%
11, Net Weight: 5 gram
12, Operating Temperature: -20 to +80
Technical datasheet of 1.4mm 220 Fisheye Lens
Product Application
Lens for car surround view camera
Lens for automotive front and rearview camera
Lens for VR/AR 360 panoramic camera
Lens for fisheye projector
lens for 360 panoramic surveillance camera
Custom-Design Lens
Dear interesting customers,
Please show and tell us your exact requirement or demand needed of your intraoral dental camera, we are open to discuss all customzied technical data include FOV, Focal lenght, low distrotion, F/No, Sensor Type etc
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly,
can communicate all problems freely and fastly
