4G 5CH Commercial Vehicle Camera DVR System With ADAS DMS BSD

ADAS function+ BSD Detection+DMS to Driver+4G GPS WIFI+ 5Channels DVR recording. All in one Vehicle Camera System For truck Fleet management

  • Item No.:

  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

  • Color:

  • Min order:

  • Shipping port:

  • Lead Time:

    7-10 days
  • Keying selling point:

    ADAS+BSD+DMS+4G+5CH DVR 5 in 1 Smart AI Vehicle DVR Camera System
  • MTF Resolution:


  • Product Detail

Product name: All in one Vehicle Smart Combo DVR For Vehicle fleet management System

Portable 4G Vehicle Camera DVR System, no need or replace traditional Mobile DVR

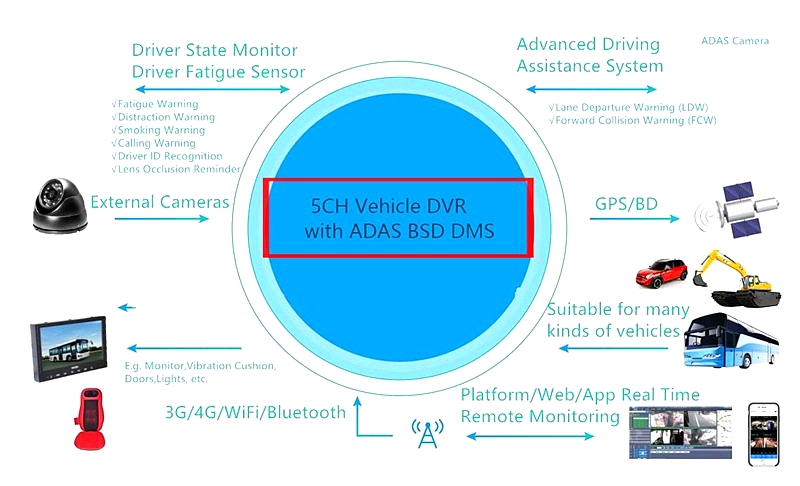

Core Function:

1, ADAS+DMS+BSD System + DVR Record+4G GPS  5 in 1, Best Aftermarket Vehicle Camera System,

good apply for truck/bus/heavy duty Fleet Management Vehicle Camera System

2, Support Smartphone APP+PC Computer Remote control real-time online Checking

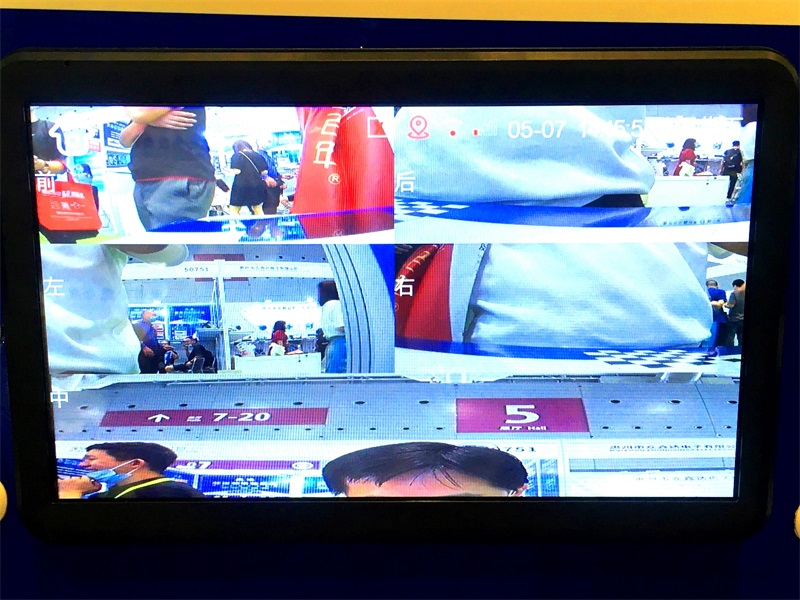

3, 5 channels video input and quad split video on 10.1 touch screen monitor display

4, Support all Vehicle Fleet Management System For Trucks and Bus include MAN, DAF,

Scania and Volvo heavy duty etc

4G Vehicle Camera Safety System

product features of 5CH Vehicle DVR System With 4G Sim Card

1. Built-in ADAS, DMS, BSD algorithm;

2. The image automatically recognizes the camera resolution and supports one-click capture function;

3. Graphical menu operation interface, support touch and voice control operation;

4, 5 channels of audio and video monitoring, support 720P/960H/D 1/CIF resolution;

5. Support TF single card storage, the maximum capacity of single card supports 256G;

6. Support intelligent power management recognition, automatic shutdown at low power, and low power consumption when the flame is turned off;

7, 9-36V DC wide voltage input professional vehicle power supply design, suitable for various car models;

8. Built-in super capacitor to avoid data loss and memory card damage due to abnormal power failure;

9. Expandable built-in GPS/Beidou, WiFi, 4G modules to achieve satellite positioning and mobile phone/computer remote monitoring functions.

10, Support Custom-made special functions or revise/adjust or add extra requirements, OEM

Or ODM and local Customized based on special vehicles, fleet management and companies

The comparison between All in one Combo DVR system with traditional Mobile DVR

Our 2021 Smart AI Combo DVR

Traditional Mobile DVR

10.1 inch Touch Screen Monitor Display

Need add or connect extra Vehicle Monitor,

Mostly monitor have no touch screen function

SD Card local video storage, support max 256GB

SD Card Mobile DVR can do same, HDD Mobile DVR, the cost is more expensive

Built-it ADAS, BSD and DMS System


Support 5 channels video input include Cab camera to monitor the driver

Support 4 channels ( 8 ch Mobile DVR more expensive cost), no 5 channels

Video playback and check,  very easy

Very difficult or take much time to make video playback

Movie/MP5/Music play relax

No movie/mp5/music

Easy Software update, the driver operate the device by touch screen easily, so is the fleet management work staff, 100% DIY

Difficulty software update, the operating of mobile dvr is very complicated/difficulty/professionally.

Support 4G Sim Card, Wifi, GPS/Beidou, real-time online monitoring on APP and PC computer, Vehicle Fleet Management System ( same function)

Support 4G Sim Card, Wifi, GPS/beidou, real-time online monitoring on APP and PC computer, Vehicle Fleet Management System ( same function)

G-Sensor, Parking Security, Connect Alarm device, Voice setting, Backup parking lines

( same function)

G-Sensor, Parking Security, Connect Alarm device, Voice setting, Backup parking lines

( same function)

The product cost and total price is affordable, easy maintenance, 100% DIY

The total cost and price include after-sale service and Maintenance charge are very expensive and high

Fleet Vehicle Camera System

What our Fleet Dashcam For Commercial Vehicles can do specially for you?   Function more than MDVR

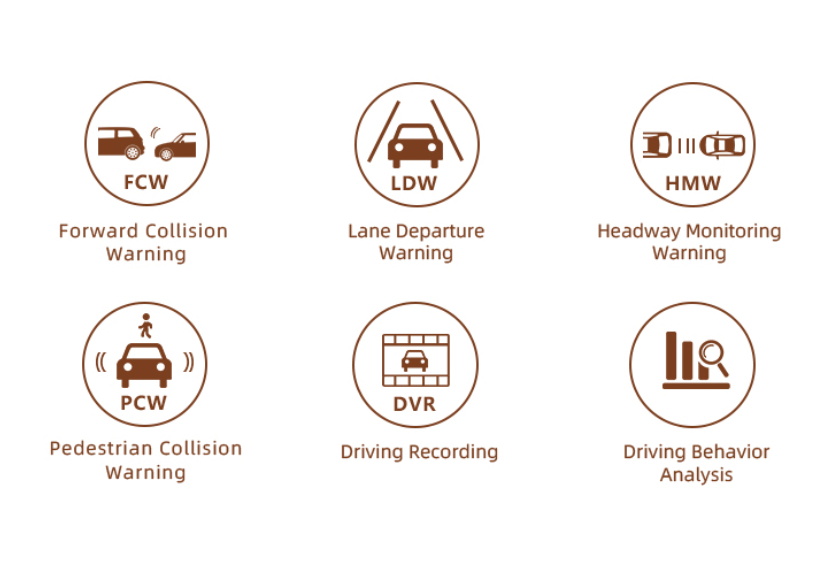

The core function of the front collision warning (FCWS): reminds the owner of the danger of collision with the vehicle in front.

The core function of the Lane Departure Warning (LDW): lane keeping, avoiding the lane line being pressed during normal driving.

Pedestrian Protection (PCW)

Pedestrian collision warning mainly detects and recognizes pedestrians on the road, measures the distance, and avoids collisions with pedestrians. Due to the greater uncertainty in human activities, there are more ways to participate in road traffic, such as riding bicycles, motorcycles, three-wheeled riding, etc., coupled with the polymorphism of pedestrians themselves, such as height, fat and thin, uneven clothing, etc. As a result, the accuracy rate of pedestrian recognition using general methods is not high, and there are more false detections and recognitions.

Adas and Vehicle DVR Function

BSD blind spot detection

Blind spot detection is aimed at vehicle detection on the part that is blocked by the A-pillars on both sides of the vehicle to avoid the driver's misjudgment of lane change because the blind spot cannot see the vehicle in the blind spot. BSD can help the driver to better observe the two vehicles. The state of the vehicle behind the side

DMS system

Specific functions of the fatigue driving early warning system DMS:

Driver swiping face authentication, driver doze detection when driving, driver yawn detection, driver smoking detection, driver driving phone call detection, driver inattention detection when driving, driver leaving post/camera occlusion detection, possible The driver wears myopia and most sunglasses

Product Specification of Fleet Vehicle Camera System

Item name

Device parameters



Size of Monitor Display

10.1 IPS touch screen

Resolution OF Monitor


Operating System

Operating language

English/Chinese or Custom-made local OSD language


ARM Cortex A7

Operating System

Embedded Linux operating system

Operating Menu/interface

Graphical menu operation interface, support touch and voice control operation

Video and Audio

Video Type


Video resolution


Video resolution when playback


Combination method


Decoding ability

4 channels 720P real-time

Video Compression format


Video Display

Support 1/2/4/5 ch video display

Audio Compression Format


Recording voice method

Synchronous recording of sound and video

Recording and playback

Video query

Search by channel and video type

Local playback

Playback by file

Video mode

Manual, alarm

Video bitrate

Full frame 4096Mbps

Audio bit rate


Storage medium

TF/Micro SD Card

Software update

Upgrade mode

Manual upgrade, automatic upgrade, remote upgrade

Upgrade method

TF card or remote upgrade


Power input

DC 9-36V

Power consumption

Standby 3mA maximum power consumption 18W

storage capacity

720P: 500MB/hour/channel; D1: 250MB/hour/channel

Operating temperature


Commercial Vehicle Camera System With ADAS DMS BSD
work 100% DIY Operation and 100% Safety System For Semi-truck, commercial truck, school Bus, Coach, Tanker

The Driver, the vehicle fleet management system in vehicle company, related working staff all can check real-time video and GPS location by using phone app, PC-computer and commercial fleet, insure 100% security safety surveillance at any time anywhere, built-up one complete and valid Vehicle Camera Safety System

5CH Vehicle DVR System With 4G

Product Application of All in one 4G Vehicle Camera Safety System

1, Scania Fleet Management, Volvo/Man/DAF/Iveco Truck/Heavy Duty Fleet management

2, Commercial Vehicles Fleet Management System For Truck

3, Truck/Bus/School Bus/Coach gps tracking fleet management

4, DIY fleet management tracking system For truck fleet management companies

5, logistics Vehicle fleet management, gps tracking fleet management solutions

6, 5CH Vehicle Camera System With 4G Sim Card Work For Semi trucks, Commercial Truck, School Bus,  Coach, Tanker truck,Transport Logistics vehicles, Trailer, VAN, Articulated dump truck, Rigid truck, Truck-trailer combination, Longer Heavier Vehicles, Bulk truck, Container- / hooklift truck,Tipper truck, trailers and towed machines, Tipper, Skip Lorry, Sweeper, Hooklift, Quarry Dumper and all other Commercial Vehicles

AI Vehicle DVR camera system application
