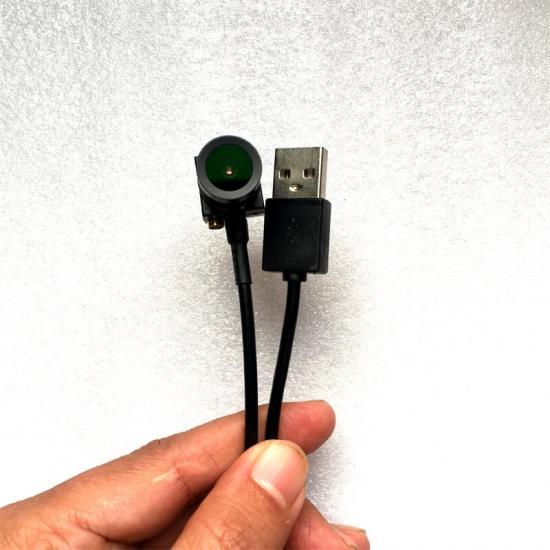

China No distortion Face Detection USB Camera Module 3MP

3MP High Resolution, less than -1% TV Distortion , Various Connectors replacement available, Live Webcam Streaming, Portable Good for Face Authentication

  • Item No.:

    USB-3mm-3MP
  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

    China
  • Min order:

    100
  • Product weight:

    43
  • Shipping port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Keying selling point:

    No distortion Face Authentication USB Camera Module
  • H.S.Code:

    90029090
  • MTF Resolution:

    3megapixels FULL HD

  • Product Detail

Product Name:  China 1080P Zero Distortion Face Recognition USB Camera Module

Product Advantage:

1, Less than -1% TV Distortion good for Flexible Zero distortion USB Camera Module and used for Face Authentication USB Camera

2, 95 degree No Distortion and 1080P Resolution USB Camera is used widely in more Industrial and Commercial Application

3, This Multifunctional High Resolution Zero No Distortion Usb Camera with High Speed USB2.0 port and Free Driver, Plug and Play, You can DIY change other M12 lens to extend more applications

4, Support Linux USB Camera System and all Windows and Apple and Andriod O/S well

Face Authentication USB Camera


Product Specifications

Product Name

Face Recognition USB Camera Module

Cmos Sensor

GalaxyCore ½.9 inch cmos low lux

Video Resolution

1920X1080, 1080P@30fps

Lens FOV

DFOV  94degree, HFOV 84 degree

Photo Pixel

3Megapixels

Photo Format

MJPG

video output

MJPG/YUY2

Lens Focal Length EFL

3mm, TV distortion less than -1%, No distortion

Lens Construction

3MP 2G5P

F/No Aperture

F2.5

AGC

OSD

Minimum illumination

0.01LUX

S/N Ratio

≥52dB

Gammar

0.45

Backlight Compensation

OSD

Shutter

30f/s

White balance

Auto

Working temperature

-10~+50℃

Power

5V

Audio Microphone

Built in Microphone, Support

System Sync

inner Sync

Power consumption

150mA

Product Size

15*15*21mm

Signal Type & Interface

usb 2.0 interface, digital Signal

Length of Cable

2Meter

System

WIN10/WIN7/WIN8/Linux/Android/Apple Mac

Actual Image for texts when it work as No Distortion Face Detection USB Camera

Face Recognition Camera

Note and remarks

1, You can change our other focal length M12 board lens include but not only 2MP Lens,

200 degree Fisheye Lens, MTV Lens, Pinhole Lens, Button Lens, Black light Night Vision F1.0 Lens,

2.8mm/4mm/6mm/8mm CCTV lens, Wide Angle Lens etc to meet your special requirement of projects

2, We can change standard USB cable into foldable adjustable Snake Pipe (shorter length)

3, its Interface connector can be changed or custom by USB Micro, BNC/AHD, OTG Type C etc

4, You are kindly advised to equip extra 3-4pcs various focal length Lens to meet various application together in your order, then you can interchange various lens freely locally, no need buy more cameras more at higher cost again

Face Recognition Usb Camera


Product Application of Zero distortion USB Camera 3MP

1, USB Document Scanner, Portable Face Recognition Camera, Iris Recognition Camera

2, Customs Board Control, Port and Boarder Control,  ATM Machine, self service terminals equipment that need Face Recognition or Face Authentication, Video conference Camera

3, Medical beauty equipment ,Voting system , medical treatment, attendance machine and

Precise Laboratory Instruments that need Low or No Distortion

Creative Usb Camera

Vehviscam USB Camera Application

(1) All-in-one machine, POS equipment, ATM Machine, Self-service terminals equipment,

     Automatic vending machine, Advertising LCD Displayer, Voting system


(2)Mobile phone (OTG/Type-C), AR/VR, Smart box, TV BOX, STB, 3D scanner,MID and Ipad,laptop/PC, Any Andriod Device.


(3)Embedded Camera Systems, Iris/Face/Fingerprints/palm prints image recognition technology,USB Document Scanner,Monitoring    3D printer,


(4)Industrial endoscopes,Industrial PC/Machine/equipments,automobile Industry, Vehicle video applications, Car Parking Security


(5) Home/Commercial/Industry security equipment,safety box, Baby Monitoring, Smarthome, Video Door Phone,attendance machine, Home/office/Street Surveillance


(6) AI intelligent machine/Systems/Terminal,Robot and machine vision, Video conference / video teaching, Scan code Terminal


(7) Laboratory Instruments, remote control monitoring, environmental monitoring, Car and boat control, oil field equipment, Assisting medical beauty treatment, Medical Diagnostic video acquisition and Precise medical instrument


Finally Goobuy Multifuntional USB Camera are ideal for Medical/ Scientific Studies,imaging applications like computer vision, factory automation, Home/office/warehouse CCTV, All in one Machine, ATM Machine, medical imaging, Industrial Security, Artificial Intelligence AI, Drone, Car Parking Security, Gaming Machines,Stereo vision, license plate reorganization,AIoT, Industrial PC, Interactive Kiosk devices and experimenters and hobbyists in industrial usage etc
