720P Aftermarket AI Blind Spot Camera BSD For Vehicle Trucks

2021 newest AI Camera with BSD,  AI BSD Camera For All Commercial Vehicle, IP68 waterproof,  720P, work with MDVR and Alarm device

  • Item No.:

  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

  • Color:

  • Goods stock:

  • Min order:

  • Shipping port:

  • Lead Time:

    7-10 days
  • Keying selling point:

    2021 unique AI Camera with BSD For all car and vehicles
  • H.S.Code:

  • MTF Resolution:

    1.3megapixels 720P HD

  • Product Detail

Product Name: 2021 newest Intelligence Smart AI Vehicle Camera with Blind Spot Detection BSD

This is an automotive AI blind spot detection camera with a built-in blind spot detection algorithm,It can detect whether people and vehicles are close to the detection area while the vehicle is running. Effectively predict the collision risk of pedestrians on the right side, and realize two-way sound and light alarms for drivers and pedestrians Avoid human and vehicle accidents to the greatest extent. Alarm protocol output via IO alarm output or serial port RS485. The device can be linked with car video recorder (M DVR) or sound and light alarm.This car camera adopts waterproof and anti-shake design, which can reach IP68 waterproof level. Mainly used in the blind spot detection of special vehicles, and provide auxiliary prompts for the driver to drive safely

Product Introduction:

Blind spot Camera,What Is Blind spot?Best Blind spot Mirrors

BSD is an automotive AI blind spot detection camera. It supports 12-24V wide voltage input and is suitable for most vehicles. It has a built-in blind spot detection algorithm. It is mainly used to detect people and vehicles approaching the detection area during vehicle driving, and effectively predict pedestrians on the right side. The danger of collision can realize two-way sound and light warning for drivers and pedestrians, avoiding pedestrian and vehicle accidents to the greatest extent. The alarm protocol can be output through IO alarm output or serial port RS485, and it can be linked with MDVR or sound and light alarm.

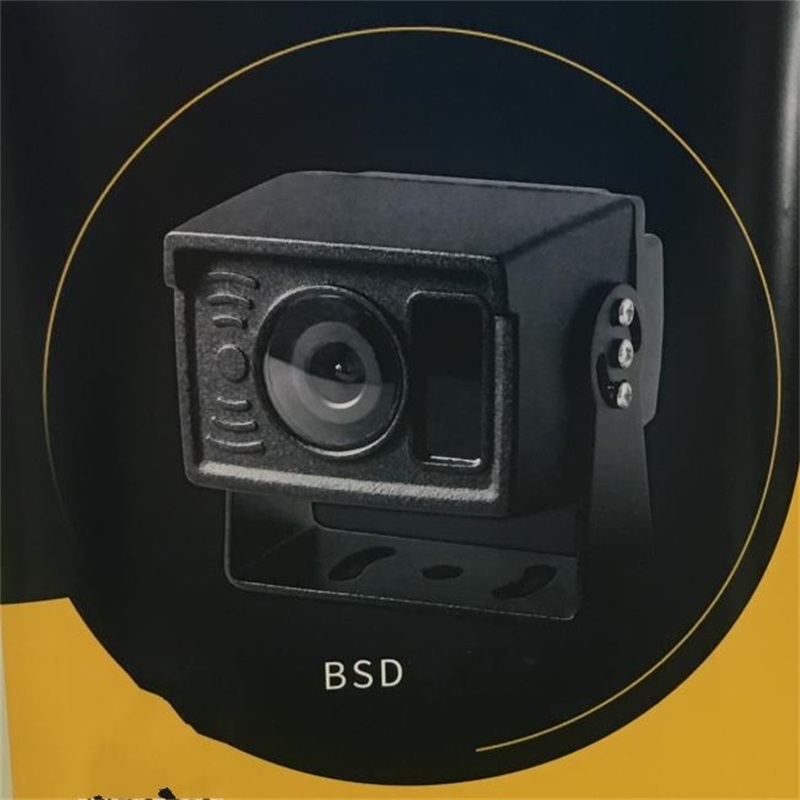

BSD Camera

Blindspot detection (BSD) is a sensor-based safety feature that detects obstacles& pedestrians around the vehicles. The blindspot is caused because of passengers sitting inside the vehicle, window pilars, incorrect arrangements of rear viewing mirrors, and headrests. The system warns the driver about any obstacle which is not in the viewing range of the driver. The warning generated can be in various forms such as vibrating of steering, a small pulsating sound inside the driver's cabin &flashing of light on the infotainment screen or on the instrument cluster. The system also provides the driver with cross- traffic alert and help to avoid the collision. BSD uses ultrasonic RADAR & camera-based technology to detect any obstacle nearing the vehicle. If the sensor detects an obstacle nearing the vehicle, it alerts the driver, if the driver fails to maintain the distance between the obstacle and vehicle, the system automatically steers the vehicle away from the approaching object.

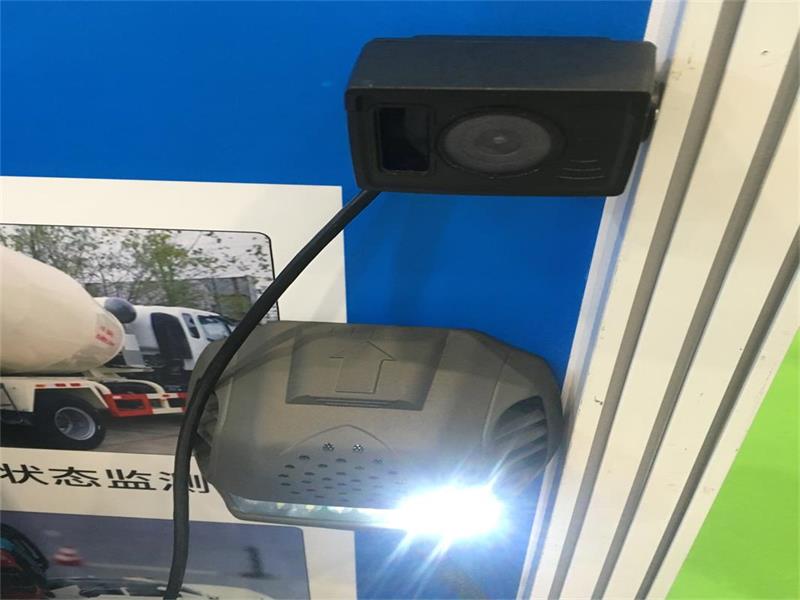

The BSD Camera connect and work with Audible Alarm and Vehicle Monitor display,  when the Pedestrian just passing by at the side,

The Audible Alarm will flashing with bright lights also send warning voice to remind the person.  see as following actual image

Product Technical specification of Aftermarket BSD Camera


BSD-360  AI Camera With BSD


ARM Cortex A7




 1/3” CMOS AHD 720P



TV Type


Effective video Resolution

  1080HX 720V

Effect photo Resolution

1.3 M pixels

Vertical sync frequency

50Hz / 60Hz

Minimum illumination


Video output

1.0vp-p, 75Ω



S/N Ratio

More than 50dB

White Balance




Optical Lens

2.8mm F = 2.0

Lens of FOV


Night Vision

Starlight Good Night Vision



Built-in program

BSD Program

Alarm Interface

1 channel IO Alarm Output5V)

Serial port


Video interface

                        4P Aviation head




DC 12V-36V Wide Voltage (±10%

Waterproof Grade


Working Temp

  40°C~70°C , RH95 MAX

Storage Temp

 30°C~80°CRH95 MAX

The BSD car camera has a waterproof and anti-shake design that can reach IP68 waterproof level. It is mainly used for blind spot detection of special vehicles to assist drivers in driving safety.

Market application: suitable for all kinds of large vehicles, can be docked with departmental standard machines, sound and light alarms

BSD Camera for truck

Product Application

1, Blind Spot Camera For Heavy Equipment, Port Harbor Crane, Tower Crane, Container Stacker Crane Equipment, Material Handler, Excavator, Wheel loader,Crusher, Off-highway truck,

Bulldozer, Vibratory Soil Compactor,Skid steer loader,Backhoe loader and other construction machinery, Telehandler,Crane Truck

2, AI Camera With BSD For Fork-lifts, Electric forklift,Reach truck,VNA Truck, Counterbalance Truck,Reach Stacker,Empty Container Handler, Sideloader,Telehandler

3, Aftermarket BSD Camera For Semi trucks, Commercial Truck,Tanker truck,Transport Logistics vehicles, Trailer, VAN,Articulated dump truck,Rigid truck, Truck-trailer combination, Longer Heavier Vehicles, Bulk truck, Container- / hooklift truck,Tipper truck, trailers and towed machines, Tipper, Skip Lorry, Sweeper,Hooklift,Quarry Dumper

Blind Spot Detection application

Questions and answer

1, Is Blind Spot Monitoring worth it?

To us, blind spot monitors make a lot of sense if you're in a big vehicle, if your car has larger-than-usual blind spots, if you can be easily distracted by kids, or if you spend a lot of time driving at high speeds on the highway.

Recently we also launch All in one DMS+BSD+DVR and AI Camera with BSD

2, Do blind spot mirrors really work?

A: Yes, they are. When you install the correct size for your side mirror and know how to use it, it will help you maintain road safety. A blind spot mirror enhances the effectiveness of a side mirror by allowing you to see the blind spots. Meanwhile if your truck or bus have been equipped with Blind Spot Camera, which will make you more release and receive related notice easier, more safety!

3, How do you check your blind spot while driving?

Anytime you're changing lanes or merging, you'll want to check for any car blind spots in your driver view first. Flip on your turn signal to let other cars know you'll be moving over, and check your rear mirrors and side car mirrors. Finally, you'll want to do a quick shoulder check one last time.Now you install our BSD Camera and connect with your Mobile DVR, You can receive alarm or voice remind fastly and easily than without

4,  When should you check your blind spots?

Check your blind spots when moving left or right - for example, when changing lanes. Also, remember to take extra care on busier roads where it's more likely that a pedestrian, cyclist or car could slip into your blind spots.

5,  What is the largest blind spot on your vehicle?

Your largest blind spots are usually located on both sides of your vehicle, towards the back — but other blind spots occur when your view is blocked by your windshield pillars, rear- or side-view mirrors, headrests, passengers, or that dining table you're transporting

6. What is a truck's blind spot called?

No Zones

A truck's blind spots are called No Zones. A No Zone is the area around the trucks where your car is no longer visible or you are so close that the truck can't stop or maneuver safely. In both cases, when you are in a No Zone you are in much greater danger of getting into a collision.

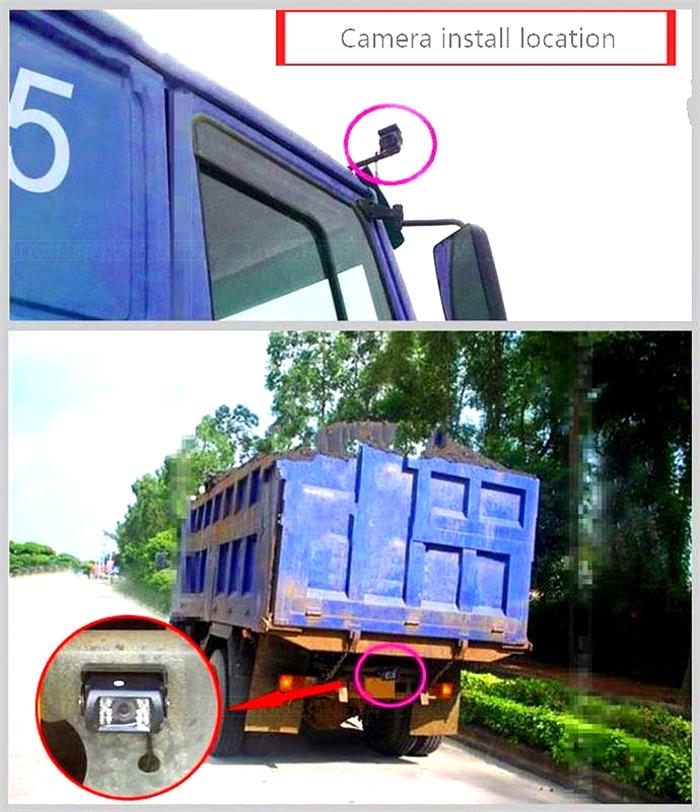

Blind Spot Camera on Vehicle
