Product name: China Factory outlet various 6mm/8mm/12mm/16mm/25mm/35mm/50mm available
6MP 1/1.8’’ Machine Vision Lenses with C-mount
Product Advantage:
1, Applied For 1/1.8" 2K/3MP/5MP/6megapixel FA camera, Industry Camera, Machine Vision Camera with C-mount
2, Use high refractive index and low dispersion precious glass, high resolution imaging optics
3, widely used in vehicle construction, Industrial Security, logistics, pharmaceuticals Production, food industry, ITS traffic monitoring etc
4, All glass + metal structure design, Multi-layer coating, 0.08% Ultra low distortion FA Lens

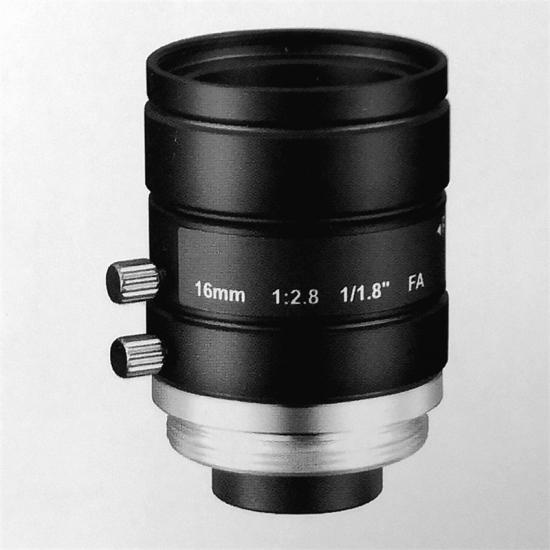

Product Specification of 16mm 1/1.8 Lens
1, Focal length: 17.1mm±5% At MOD. 15.6mm±5% At infinity.
2, Aperture F/No: F2.8-F16±10%
3, Optical back focal length (OBFL) 9.7±0.2 (in air) At MOD/ At infinity In air.Include CG
4. Flange back focal length (MBFL)
17.526mm At MOD, In air
17.526mm At infinity, In air
5. TTL: 56.73±0.2（in air）, At MOD, Include CG
50.73±0.2（in air）At infinity, Include CG
6, Max image circle：Φ9.4（MAX) 1/1.8’’ image cmos
7, Lens structure：5groups，7elements
(Indicated ifhas aspheric surface optic.)
8, Mount type：M43.5*P0.5 C mount
9, Clamp Force：60-600gf-cm
10, FOV (D/H/V) Angle of View
A1, 1/3’’ cmos D 21.1°/H 16.9 / V 12.7° At 0.4m.For 1/3”
(D：6mm，H:4.8mm，V：3.6mm) Sensor.
A2, 1/2" cmos D 28.0 / H 22.3° /V 16.9° At 0.4m.For 1/2”
(D：8mm，H:6.4mm，V：4.8mm) Sensor.
A3, 1/1.8’’ cmos D 31° / H 25.7° / V 17.5° At 0.4m.For 1/1.8”
(D：8.96mm，H:7.37mm，V：4.92mm) Sensor.
11, Optical Distortion: -0.51% at MOD, -0.08% at 0.4Meter
TV Distortion -0.06% at MOD, 0.04% at 0.4Meter
12, Relative illumination 88% At the edge of the max imagecircle
13, CRA: 4.6° At the edge of the max image circle .
14, M.O,D.: 0.1meter
15, MTF resolution: 6MP
16, SPECTRALTRANSMISSION
AT 436nm～656nmT≥85%At specific waveband
Iris operation: fixed
17, Filter Thread: M27*P0.5
18, Net Weight: 46.72g
19, HSF&safety: RoHS

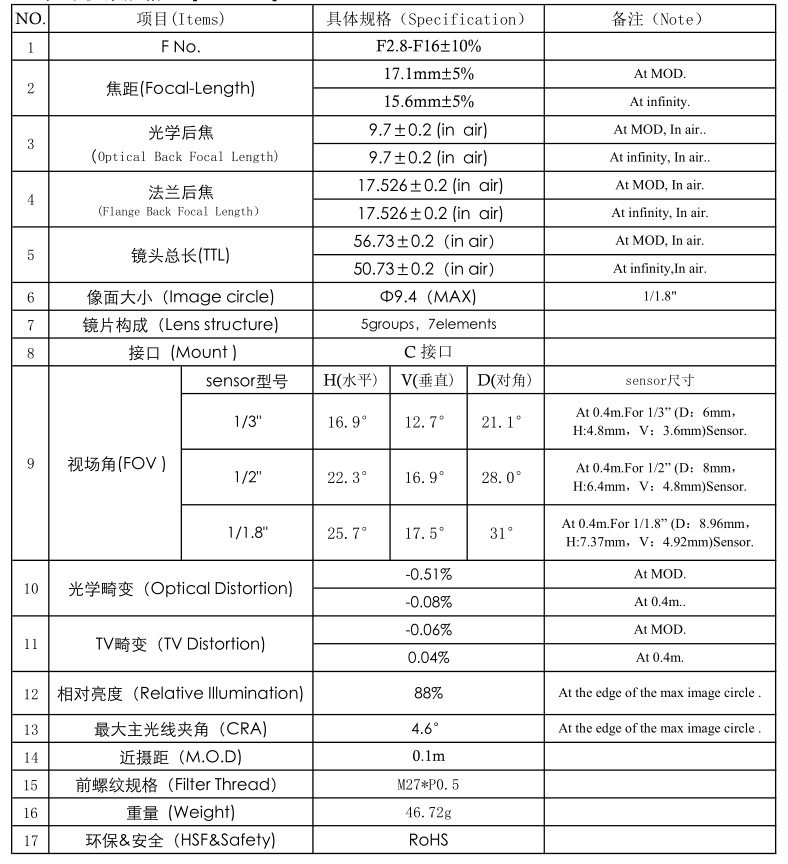

Technical datasheet of 16mm 1/1.8 inch Lens
Product Application of 6MP Machine Vision Lenses, Factory Automation FA Lens
Industrial lenses are widely used in industrial testing, automation, electronic communications, semiconductors,
biomedicine, scientific research and other fields.
1. Machine vision, chip, wafer surface inspection, QR code recognition
2. Teaching and research
3. Industrial image processing, industrial measurement, industrial monitoring, instrumentation, microscopic imaging,
4. Electronic component measurement, glass and pharmaceutical container measurement
5. Security monitoring at night/day
6. Solar panels, aerospace, national defense, criminal investigation, military industry
7, Intelligent Transportation System ITS
8. Wafer inspection, scratch inspection on semiconductor, metal, glass, film, wafer and other surfaces
9. Detection of engraved characters on metal surfaces, bearings, and beverage cans
10. Factory automated production, PCB board inspection
11. Medical beauty, medical surgery
12. Biometric technology, face recognition
13. Drug production monitoring
14. Food sorting
15. Automotive, FPC, mining
16, 6MP Industrial Lens For Machine Vision system application
About US
we are Chinese professional Industrial Lens, Glass Lens and M12 optical Lens suppliers where have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment.Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens cover Car camera Lens (Lens Automotive),CCTV Lens, Fisheye Lenses, Zero Distortion Lens, FA Industrial Lens, Machine Vision Lens, Standard M12 camera Lens, Varifocal Lenses etc,of course we provide Lens Shop Online here, Wholesale or retails or Agent and Custom Made Lense
CUSTOM-MADE INDUSTRIAL CAMERA LENS / FA LENSES
Goobuy provides a selection of various custom options for new and existing Industrial Camera Lenses. We also welcome any unique or personalized requests, new idea, new technical drawing, New Design, development, prototyping, and mass production are offered at reasonable competitive prices and fast R&D time of course reliable quality.
Customization options include, but not limited to:
Specific cmos sensor requirements, Focal Length ( fixed or Manual Zoom Varifocal) Auto DC or Fixed Iris Aperture, different angles of view FOV, infrared solutions, High/low temperature rated, MTF resolutions, Distortion, TTL, OBFL, Mount type, Focusing type, MOD, Lens Dimension, Lenses Structure etc. Welcome to send us your technical drawing or request or share more details with us to discuss then evluate it for Customization
