Product Name: All in one Multi Camera Vehicle System For Fleet Management and Vehicle Monitoring, apply for Commercial Truck and Trucker, Semi Truck etc

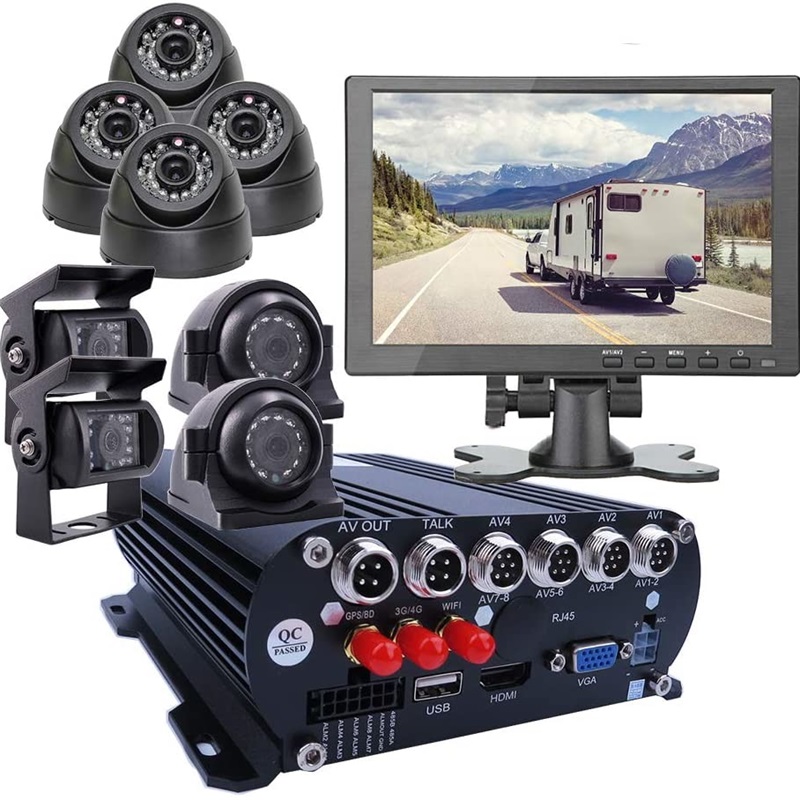

8 Channel GPS WiFi 1080P AHD HDD 8 camera vehicle dvr system, Car DVR MDVR Video Recorder Kit Remote Live View on PC Phone with 8 Mini Waterproof Cameras 10.1" Screen for Truck Van Bus RV
8-CH Mobile DVR Security Vehicle Monitoring System/Backup Camera System 10" HDMI/VGA Remote Monitor on PC Phone GPS WiFi 4G 1080P AHD Vehicle Car DVR MDVR Video Recorder with Mini Large View Angle Car Cameras for Truck/RV/Bus
Product Feature:
8CH Truck DVR Multi Camera Vehicle system with 4G GPS WIFI 1080P For Commercial Trucks
1,WIFI 4G and GPS

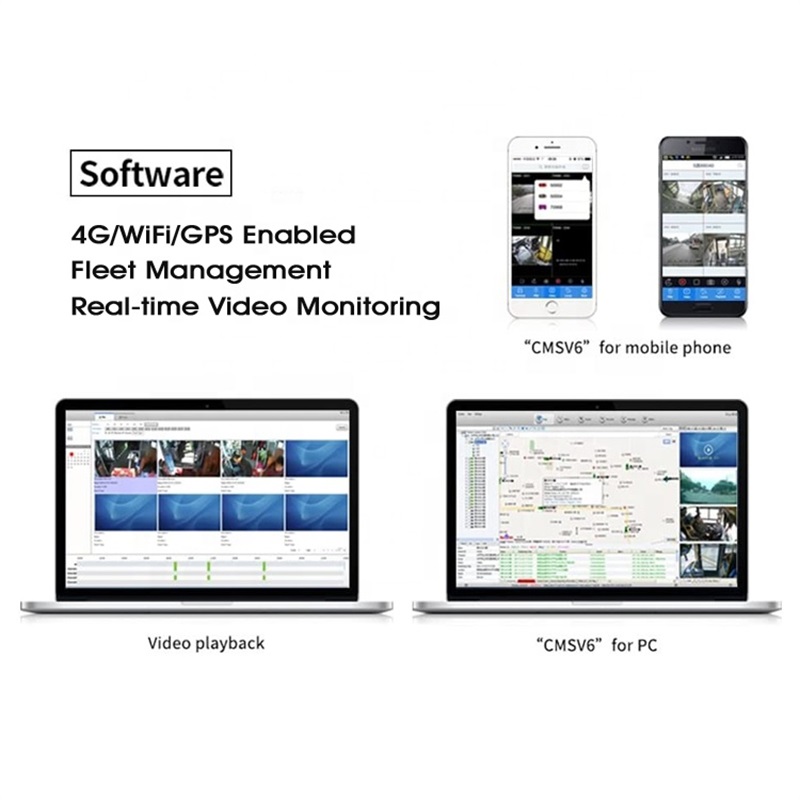

Built-in WIFI , 4G and GPS module. Easy to search and connect with wifi hotpot . support 4G SIM card. Support remtoe live view on PC, webpage and IOS/Aandroid smartphone. CMSV6 APP and BEIDOU platform. free server.

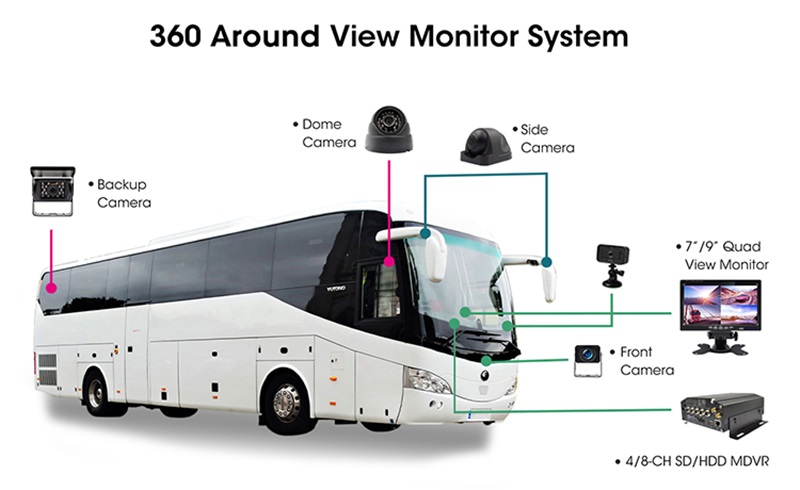

8 channels Panoramic 360 video Dash Camera with GPS For Semi Truck
2,HDMI Output MDVR with HDMI output, it can connect with TV or your monitor that has HDMI input.
3, G-sensor Built-in G-sensor module, it will record alarm video and send alarm message to CMSV6 when an crash happens
4,LOOP RECORD 8 Channel 1080P (1080N/720P /960H/D1/CIF for selection) HD real time recording, loop recording, Supports one Hard driver and 2 piece SD card. (Max.512GB x 2, 2TB HDD x1, SD and HDD are not included) Support upgrade software via USB slot. the USB slot also supports to backup videos. Support playback videos on screen. Support video searching function so that we can easily get files of a certain period.
5, Powerful System for DIY
4G+GPS+WIFI: Support ATT/T-mobile LTE. Stable 4G module for stale connection with network. Insert a SIM card, then you can remote live view on PC/Phone/Web. Perfect for fleet management.
DIY select the cameras you want. We have many model cameras for selection. Outside/Inside/Mini camera/Starlight Camera without IR etc.

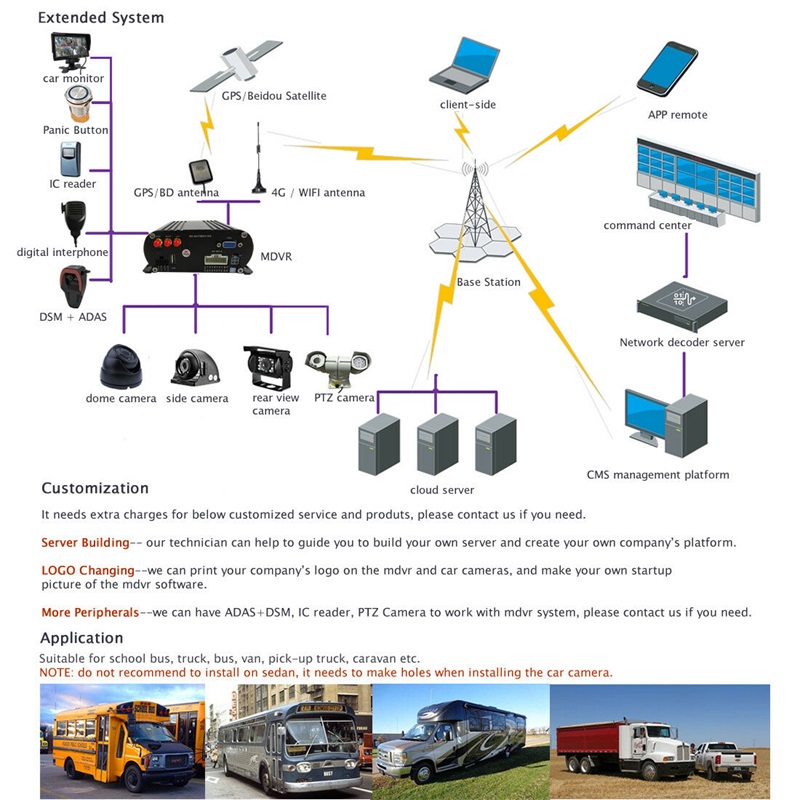

Intercom handel/ alarm button / ADAS+DMS System / Ultrasonic oil sensor etc. for selection to add with this system
6, DELAY RECORDING
it can set delayed recording and delayed power off via OSD menu. time can be setup to 24 hours.
8 channel 1080P 3G 4G Wifi Ahd Trucker Dash Cam System with 2TB HDD SSD Vehicle DVR For School Bus,Truck Vehicle Mobile DVR
Product Specification
8CH HDD MDVR With Fleet Dash Cameras Bus Trick Trailer 2T Hard Driver HDD Mobile DVR Black BOX Video Audio Recorder
|
Item name |
Technical data/specification |
|
Product Name |
8CH Commercial Truck Dash Cameras System For Fleet Management |
|
Language |
Multiple Languages Optional, Simplified Chinese/Traditional Chinese/English for Option |
|
CPU |
Hi3520DV300 |
|
Operating System |
Embedded Linux Operating System |
|
Operating Interface |
Graphical Menu Operation Interface, Support Mouse Operation |
|
cryptographic Security |
User Password, Administrator Password two-level Management |
|
TV System |
PAL/NTSC |
|
Video Compression Standard |
H.264 |
|
Image Resolution |
1080/720P/960H/D1/CIF |
|
Playback Video Resolution |
1080/720P/960H/D1/CIF |
|
Combination Modes |
Multiple Combinations |
|
Decoding Ability |
1 Channel 1080P Real-time |
|
Video Recording Quality |
Level 1 ~ 6 is Configurable |
|
Screen Display Mode |
Support Quad Screen Display |
|
Audio Compression Standard |
G.726 |
|
Audio Recording Mode |
Audio and Video Recording Synchronously |
|
Video Searching |
Search by Channel, Video Type and Alarm type |
|
Local Playback |
Single Channel, In Accordance to Time |
|
Video Recording Mode |
Trigger by Manual or Alarm |
|
Video Bit Rate |
Any One of Video Qualtity(Level1~6) Can be Chose Under Full Frame of 4096Mbps |
|
Audio Bit Rate |
8KB/S |
|
Storage Type |
Hard disk and SD:2.5 inch hard disk, up to 2TB ,2 * High-speed SDXC Cards (Support Up To 256G) |
|
upgrading mode |
Manual/Automatic/Remote Upgrade, Emergency Recovery |
|
upgrade method |
Via USB or wi-fi or SD card or SATA |
|

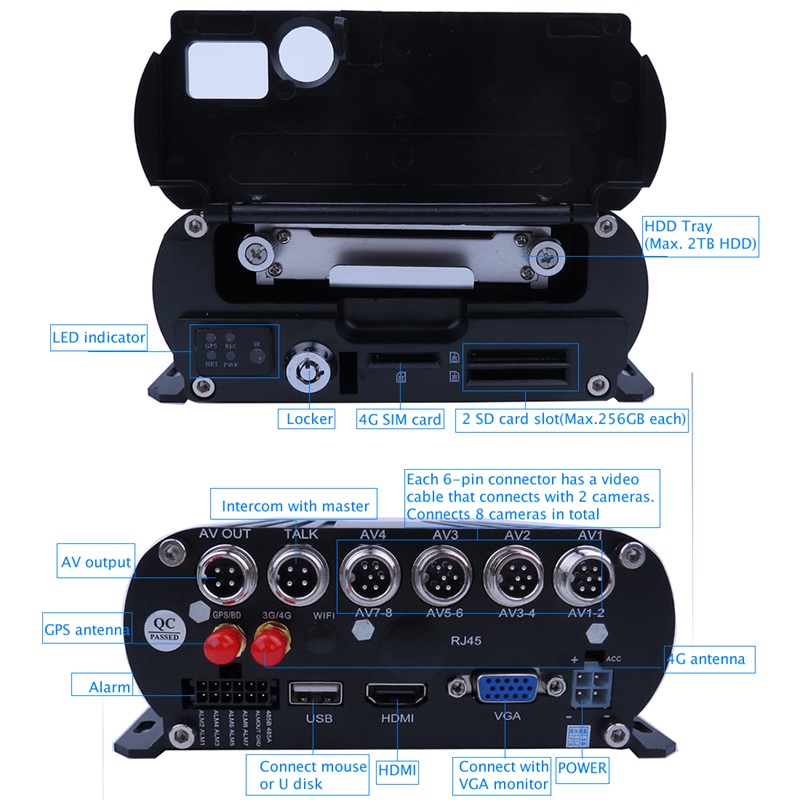

AV Input |
4 Channels Aviation Plugs Input |
|
AV output |
1 Channels Video VGA Output, 1 Channels AV Aviation Plug Output |
|
Alarm Input |
4 Channels Digital Signal Input (All 4 Channels Can be Configured to Trigger by Positive or Negative) |
|
SATA |
2.5 Inch hard disk, up to 2TB |
|
SD card |
2 * High-speed SDXC Cards (Support Up To 256G) |
|
USB Interfaces |
1 USB 2.0 (Support Mouse for All Operation) |
|
Ignition Input(voltage) |
1 Channels ACC signal |
|
|
|
|
Serial Port |
1 Channels 485 |
|
LED Indicator |
PWR/REC/4G/GPS |
|
Hard Disk Lock |
One |
|
GPS |
yes |
|
2G/3G/4G |
yes |
|
wifi |
yes |
|
Power Supply Input |
DC8V-36V |
|
Power Supply Output |
5V 300mA |
|
Power Consumption |
Standby Power Current is 3MA /Max. Power Consumption is 30W @12V 2.5A @24v 1.25A |
|
Storage Capacity |
1080p:1.5G/Hour/channel 1080N:1.2G/Hour/channel 720P:1G/Hour/channel 960H:750M/Hour/channel |
|
Operating Temperature |
-20-70℃ |
|
Product Size |
148mmx188mmx60mm |
|
Net weight |
Around 1100g |
|
Available Application |
Vehicle Fleet Camera Systems For Fleet management, in vehicle camera system |
8 Channel GPS WiFi 1080P Multi Camera Vehicle System, MDVR Video Recorder Kit For Commercial Truck Dash Camera System, Semi-Truck Fleet Managerment,
Product Application:
1, 8CH 4G Mobile DVR GPS with Dash Camera apply For Semi trucks, Commercial Truck,Tanker truck,Transport Logistics vehicles, Trailer, VAN,Articulated dump truck,Rigid truck, Truck-trailer combination, Longer Heavier Vehicles, Bulk truck, Container- / hooklift truck,Tipper truck, trailers and towed machines, Tipper, Skip Lorry, Sweeper,Hooklift,Quarry Dumper
2, GPS 4G Fleet Camera Systems are used for Commercial Truck Dash Cameras For Truckers
And all kinds of commercial vehicle monitoring system
3, Commercial Truck Dash Cameras also can be used on Off-highway truck, Garbage truck
Bulldozer, Vibratory Soil Compactor, Skid steer loader,Backhoe loader and other construction machinery, Telehandler,Crane Truck
