50mm 2/3'' 1'' 10MP Industrial Security Camera Lenses ITS C Mount

All glass + metal structure design, good high and low temperature resistance, 50mm Telephoto, 2/3’’ Format Lens, C-Mount, 10MP resolution, Industrial use

  • Item No.:

  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

  • Color:

  • Min order:

  • Shipping port:

  • Lead Time:

    7-10 days
  • H.S.Code:

  • MTF Resolution:

    10 mega pixels ULTRA 4K

  • Product Detail

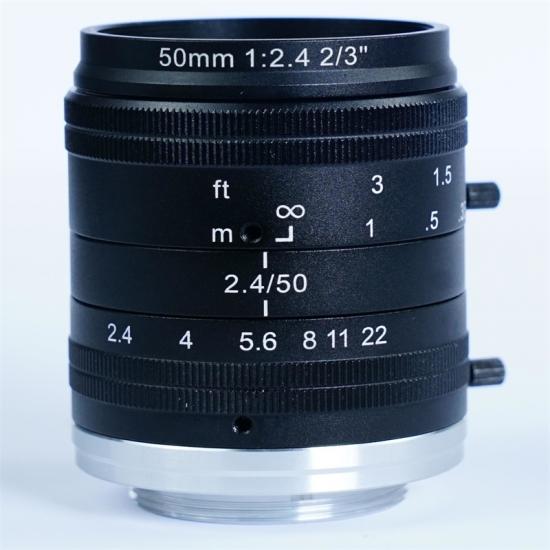

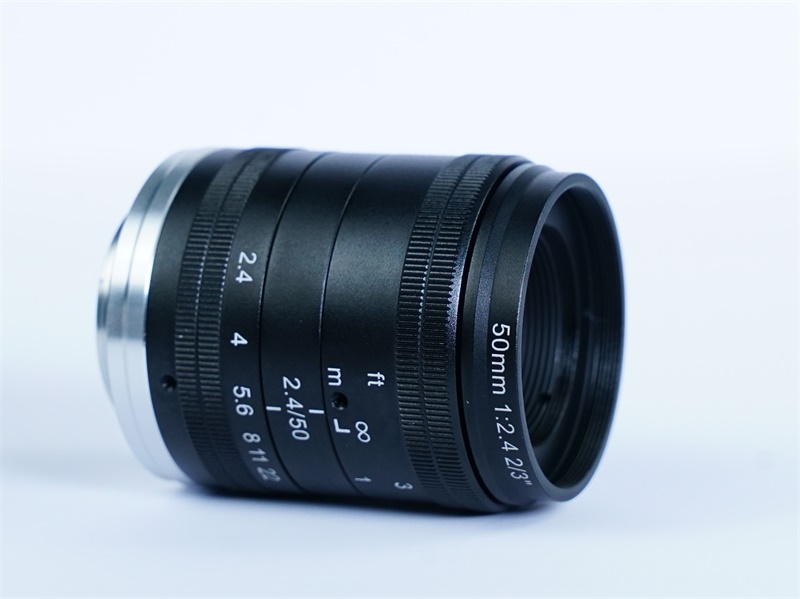

Product Name: 4K 50mm Industrial C-mount Lens Zero Distortion For ITS Camera

Product advantage:

1, Variable Aperture Lens From Large aperture F2.4 to Smallest F22 (creat good depth of Focus)

   Multi-layer coating, with higher transmittance and effective suppression of stray light

2, No/zero distortion, Telephoto 50mm 10MP, 2/3’’ Image Format Cmos, 200lp/mm high MTF

3, Applied For 2/3" 10megapixel Industrial C Mount camera and Industrial Security Camera

   This 50mm Lenses also compatible with 1 inch ITS Camera too

4, 50mm 10MP Lenses Industrial Widely used in Industrial Quality control cameras, ITS cameras, Industry cameras

for inspection and imaging processing, scientific Research, Industrial robotics, Ruggedized cameras

for security and defense, other industrial applications etc

Product technical Specification of 50mm 10MP Industrial Security Lenses

Product Model


Image Cmos Sensor Format


Photo Resolution


Focal Length



f/2.4 ~ f/22



FOV(D×H×V) Angle of View 2/3’’cmos

D12.6°/ H10.0°/ V7.5°

FOV(D×H×V) Angle of View 1/1.8’’cmos

D10.2°/ H8.28°/ V6.1°

FOV(D×H×V) Angle of View 1/2’’cmos

D9.2°/ H7.3°/ V5.5°

TV Distortion   2/3’’cmos


TV Distortion   1/1.8’’cmos


TV Distortion   1/2’’cmos




Focusing Range MOD (Minimum Object Distance)

0.25m ~

Flange Distance


Operation Mode- Focus

Manual with Lock

Operation Mode –Iris

Manual Variable

Operation Mode-zoom




Mount type

C mount

Filter Thread


External Dimensions(mm):



Full Glasses Lenses+Metal Barrel

Working temperature


Storage Temperature Range


50mm 10MP Lenses

50mm 10MP Lenses for industrial applications

Industrial camera lens applications

Industrial lenses are widely used in industrial machine vision and image processing systems such as industrial identification, industrial inspection, industrial measurement, high-precision measurement, inspection, identification, industrial monitoring, instrumentation, microscopic imaging, machine vision, 3D scanning, biometrics, etc. It is widely used in semiconductor machinery parts, scientific research, image processing, electronics, automotive medical packaging, military manufacturing and other industries

Specific applications are as follows:

Chip, wafer surface detection, one-dimensional code, two-dimensional code recognition; object surface scratches, text and other detection; metal surface, bearing, beverage cans engraved character detection; MARK point positioning; night/day safety equipment; solar panels; Semiconductor; wafer inspection; peripheral monitoring; machine vision; medical applications; biometric technology; aerial surveillance; food sorting. Application areas include surface and continuous logistics inspection, intelligent transportation systems ITS and traffic law enforcement systems, text reading, mail sorting, measurement (2D/3D), medical imaging, biometrics, and aerospace and defense.

About US

we are Chinese professional Industrial Lens, Glass Lens and M12 optical Lens suppliers where have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment.

Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens cover Car camera Lens (Lens Automotive),CCTV Lens, Fisheye Lenses, Zero Distortion Lens, FA Industrial Lens, Machine Vision Lens, Standard M12 camera Lens, Varifocal Lenses etc,of course we provide Lens Shop Online here, Wholesale or retails or Agent and Custom Made Lense

why you can consider work with us?

1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate

2, Mostly Lens have 2 year quality warranty

3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime

  include pre-sale, order, samples of course Custom-made Lenses

4, Every Quarter launch a few new Lens

5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop

6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,

Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens, FA Lens,

M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc

7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
