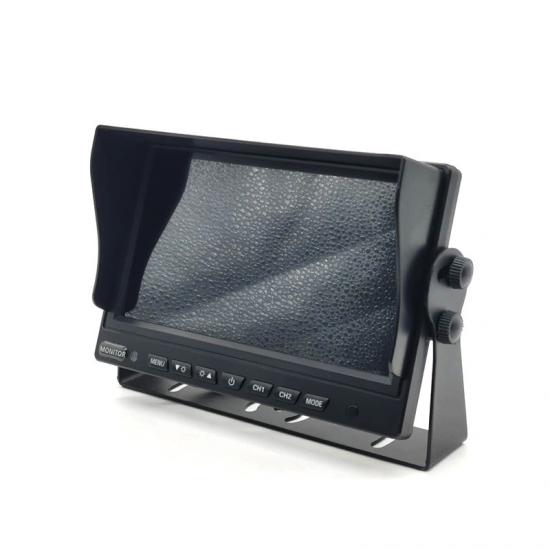

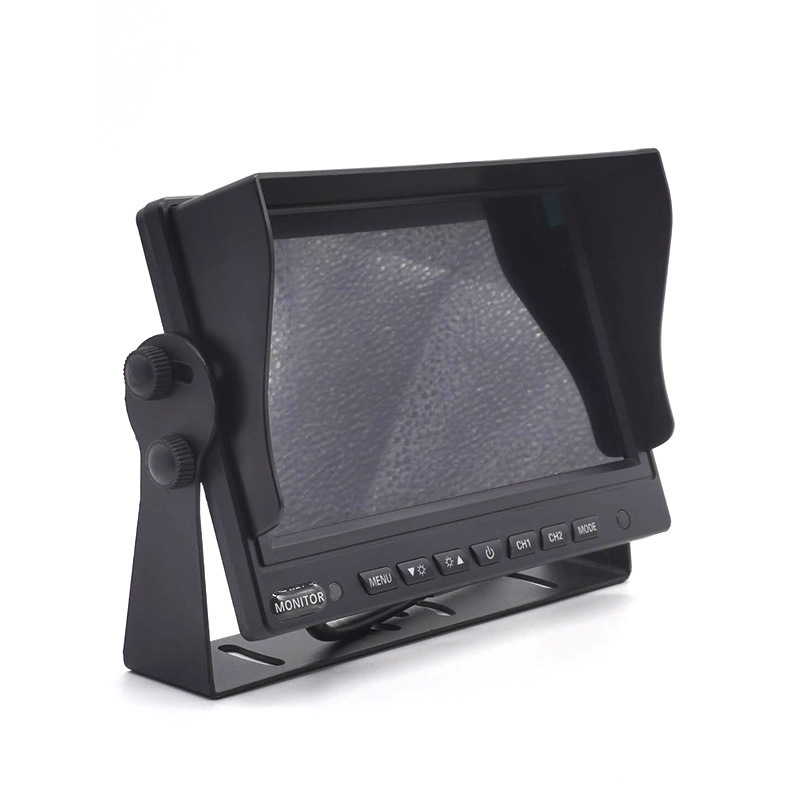

7inch 2 channels Ahd Car Monitor CVBS 1024*600

2 channels video output, support AHD720P and 1080P,  support CVBS,  HD Resolution

  • Item No.:

  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

  • Color:

  • Min order:

  • Shipping port:

  • Lead Time:

    7-10 days
  • Keying selling point:

    2 channels 7 inch AHD Car monitor
  • H.S.Code:

  • MTF Resolution:

    AHD 1024*600

  • Product Detail

Product Name:  Chinese Factory outlet 7inch 2 Channels Car Monitor For Truck Vehicles, support CVBS Video Signal too

Product Feature of AHD Monitor For Commercial Vehicles

7 Inch Car AHD DVR Quad Monitor

2 Channel AHD video input, support AHD720P/960P/1080P and CVBS Input

12-segmentation modes, 2 picture or 1 picture adjustable

2 channels independently adjust left-right up-down mirror function

2-way trigger function, With Removable Sunshade design, With Metal U Shape Bracket

Built-in lightning protection device; Monitor with reverse polarity protects;

2-way synchronous online video playback, pause, fast forward, fast backward and other operations

Parking lines adjustment, adjusting according to vehicle width

OSD menu, remote control

Compatible system: NTSC & PAL (automatically)

AHD Vehicle Monitor

Product Specification of 7 inch AHD Car Monitor

7-inch AHD high-definition display

Screen Ratio: 16:9

Resolution: 1024*R.G.B*600

Backlight brightness: LED, 500cd/㎡

Viewing angle range: up/down—180°, left/right—180°

Two-channel AHD high-definition video input, single image display

Support 720P/960P/1080P (Video compatibility: CVBS /AHD)

Automatically switch to V2 when reversing, with reversing scale line

PAL & NTSC system automatic conversion

Adapt to vehicle 12V-36V power supply, power output DC12V

Appearance color: black rubber oil

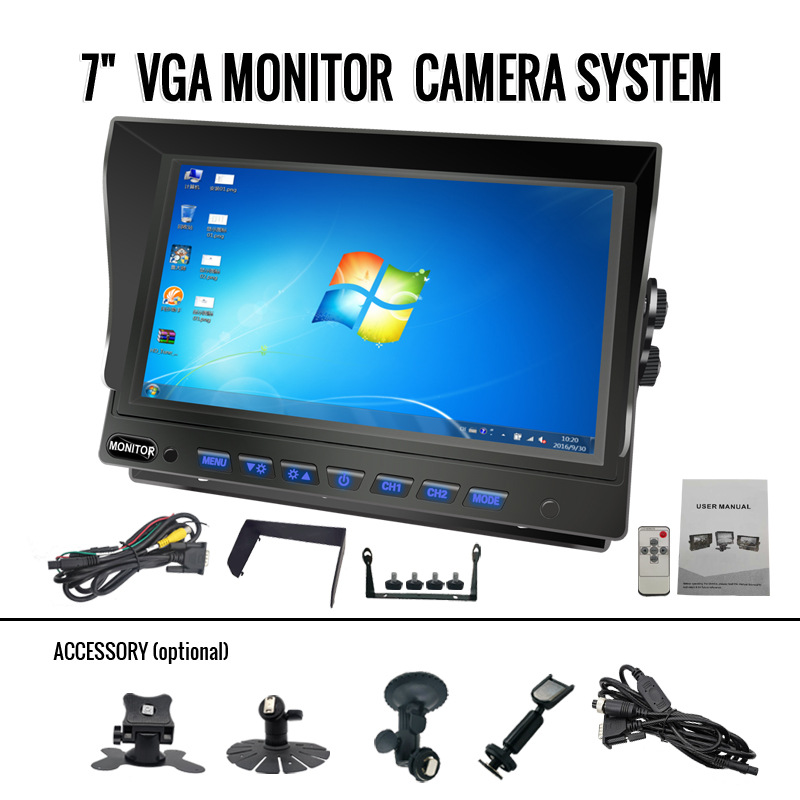

Accessories: metal U-shaped bracket, sun visor, power cord, remote control, manual

Fan type / Suction cup / Butterfly bracket / (optional)

4PIN aviation connector/RCA connector (optional)

RCA A/V connector input or 4 PIN connector for special camera (optional)

Body size: 178.5*118.5*23mm(58.5) (705AHD)


1.The AHD Truck monitor have no cameras, have to connect AHD camera for recording.

2.The monitor support AHD 720P and 1080P cameras, also support  CVBS cameras.

7 inch AHD Car Monitor

Product application

1, 7 inch AHD Car Monitor are widely used on Vehicle/truck and car and other Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo etc.

2, AHD Vehicle Monitor can connect and work with car/truck/bus rearview cameras to built up complete Semi Truck Cameras Monitoring Systems

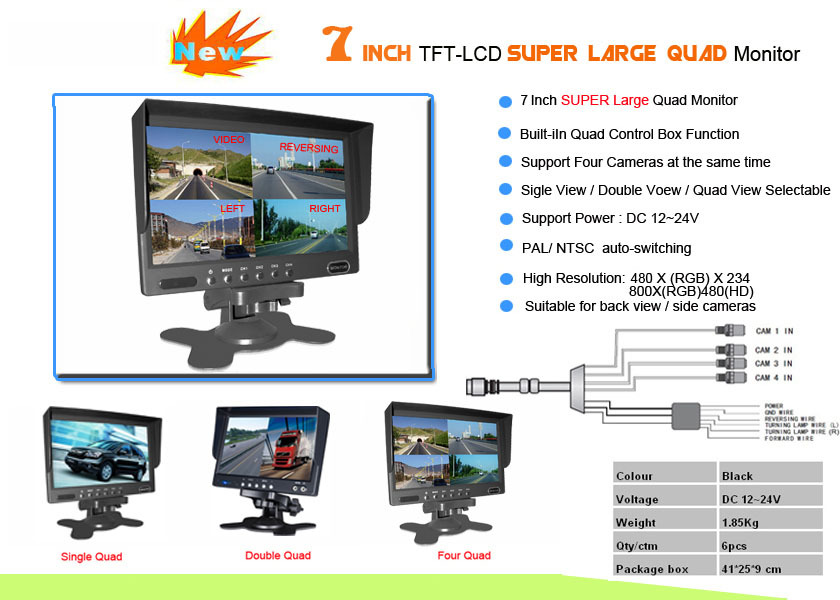

We have also 4 channels 7 inch AHD Car Monitor For Truck/Semi-Truck, School Bus,  Heavy Duty
