9 inch Quad Split 4channels Vehicle Monitor

9inch TFT IPS Display, 4 channels video, 800*480 resolution, CVBS and AHD

  • Item No.:

    M-904
  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

    China
  • Color:

    black
  • Min order:

    20
  • Product weight:

    700
  • Shipping port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Keying selling point:

    9inch Quad Split Vehicle Monitor
  • H.S.Code:

    85285910
  • MTF Resolution:

    800*480

  • Product Detail

Product name: Chinese Manufacturer of 9inch Vehicle Monitor System with 4pcs Vehicle Cameras

Product Features:

1, Four-channel video input can be applied to the connection of DVD, rear view, front view, and side view cameras. Can realize automatic switching back view and automatic wake-up function;

2, Automatic reversing switch

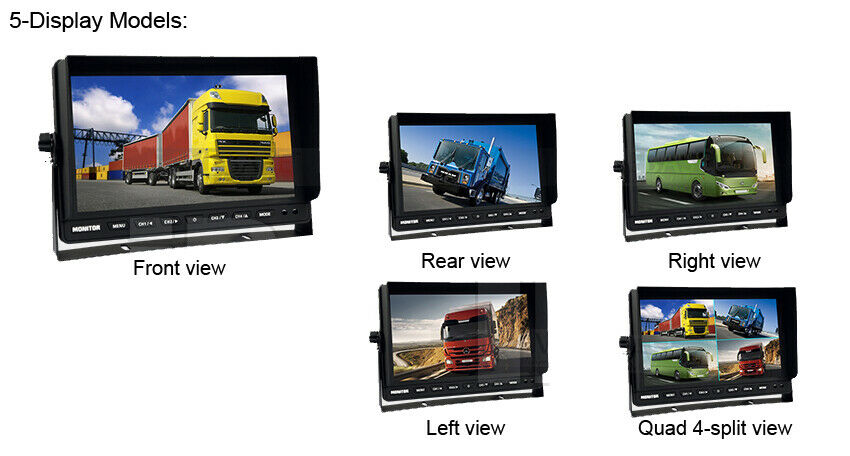

Screen mode switching: 1-2-3-4, you can switch to any of the 4 video signal channels to display at will; it can also display two pictures at the same time, or display 3 pictures at the same time, or display four pictures at the same time . Used for panoramic parking or security monitoring, bus monitoring.

    Power-on state: automatically switch to the screen displayed by the camera when reversing, and automatically switch back to the previously played screen after reversing;

    Shutdown state: automatically turn on when reversing and display the scene after the car, and automatically shut down after reversing;

3, Card-type full-function remote control, OSD full English menu;

4, Beautiful appearance, stable performance, clear image, vivid color and simple operation.

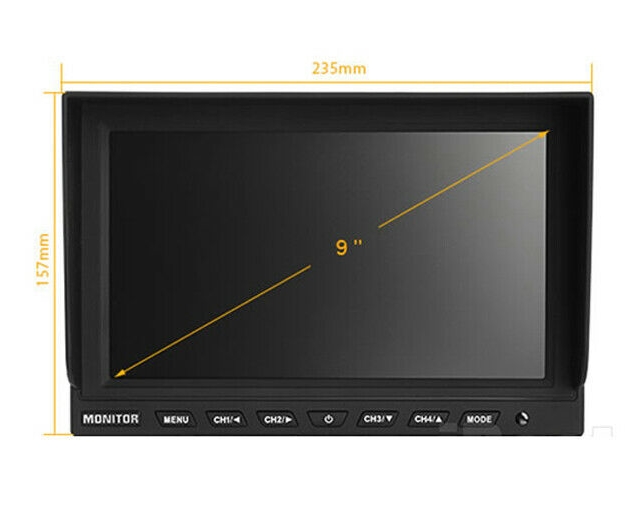

9inch 4channels Vehicle Monitor

Product Specification of 4ch Vehicle Monitor

9 inch quad split car monitor with 4 video imput for bus and truck

Item name

9inch 4channels Vehicle Monitor

Screen Ratio

16:9

Back Light Luminance

 LED, 350cd/M2

Resolution

800xRGBx480

Compatible Video system

NTSC & PAL (automatically)

OSD control

Brightness, Contrast, Saturation, Volume, TCON, Language (English, Simplified Chinese), Reversing delay, Parking Guide Line, Wifi Channel setup

Viewing angle

Hor. L(70) R(70)   Ver. UP(50) DOWN(70)

Image reversion

 UP/Down and Left/Right

Power requirement

12-24V DC

Power consumption

5W

Storage temperature

-30~80

Working temperature

-20~75

Video

Display mode can be switchedby remote control

Video Picture

1ch/2ch/3ch/4ch video available

Key color



Water plating silver(light),  Blue Screen if No Signal

Dustproof & Waterproof level

IP68

Number of Trigger and display

4 triggers

AV Inputs

4 way video input,1 way audio input

Accessories

Remote controller, Power supply cable , User manual, Bracket

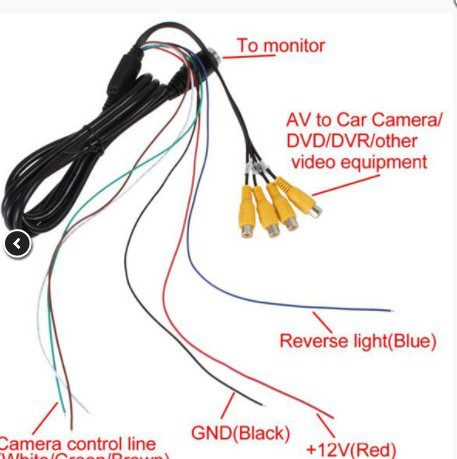

Cable For Vehicle Monitor

9inch Quad Split Vehicle Monitor

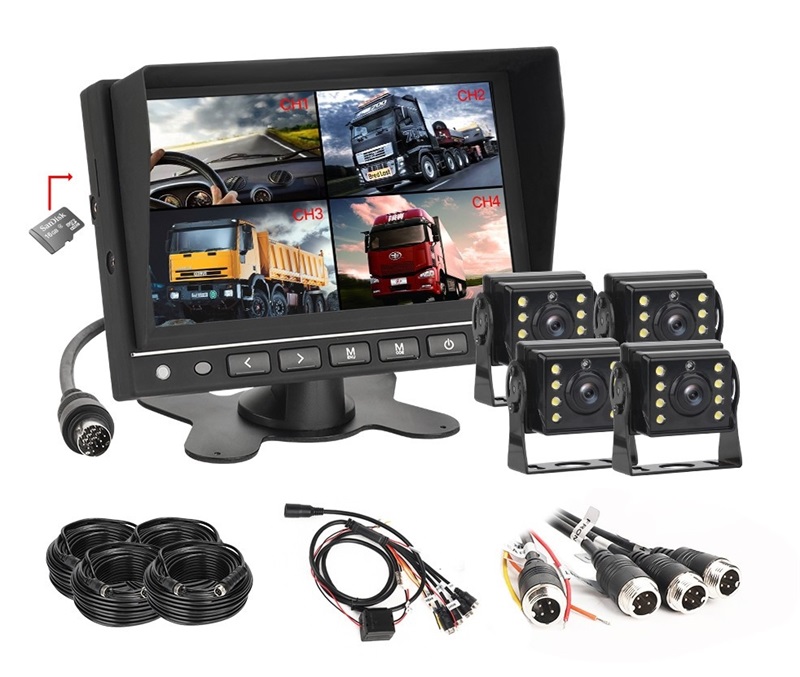

When this 9inch 4 channels vehicle monitor work and connect with 4 pcs vehicle cameras via some cable and mount, which built up one complete Vehicle Monitor System as following

Vehicle Monitor System


About us

Vehviscam Manufacture limited is one professional Vehicle Security Camera, Vehicle Monitor Camera Systems and 4.3inch/5inch/7inch/9inch/10.1inch Car Vehicle Monitors manufacturer and suppliers in Shenzhen, China. Currently we produce VGA, 800*480, 1024*600, AHD720P Vehicle Monitor with 1channesl, 2channels, 4channels and 8ch video output to meet various market demand from our customers worldwide. Please view our Car/truck/bus/vehicle monitors online carefully or tell or show us what you need if you do not find your interesting models
