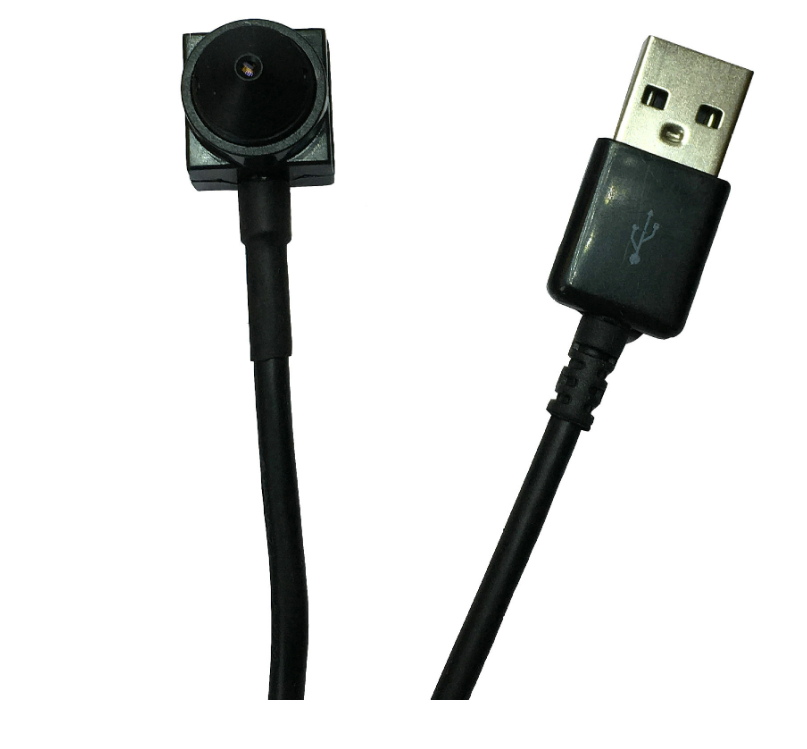

Product Name: Full HD 1080P Pinhole Embedded Vision Camera for Industrial Security
Product Advantage
1, 1080P FHD Embedded Usb Camera with Free Drive and Plug and Play, local video storage
2, Interchangeable Lens design, you can change our other board MTV/CCTV/Wide Angle Lens
3, Mini compact design apply for Embedded Camera Module in Embedded Machine/device
4, Widely used in portable Embedded Camera System, Industrial Cameras and embedded camera board with 100% DIY,
Easy Operation
Product Specifications Of 2MP Embedded Camera Board
|
Product Name |

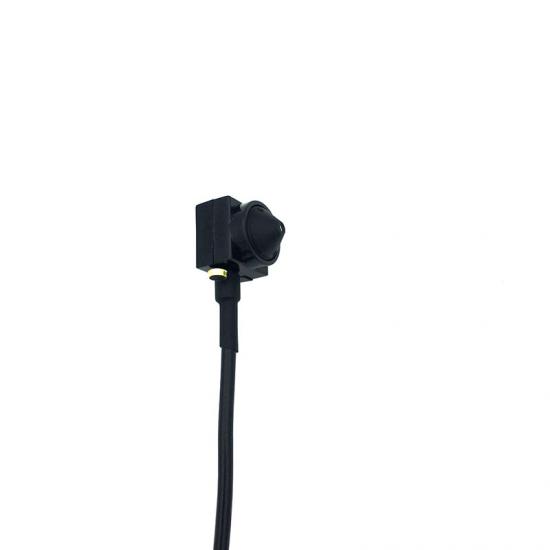

2.5mm Pinhole Embedded USB Camera |
|
Cmos Sensor |
GalaxyCore ½.9 inch cmos 0.01 low lux |
|
Video Resolution |
1920X1080, 1080P@30fps |
|
Lens FOV |
DFOV 105degree, HFOV 95degree |
|
Photo Pixel |
2 Megapixels |
|
Photo Format |
MJPG |
|
video output |
MJPG/YUY2 |
|
Lens Focal Length EFL |
2.5mm cone pinhole lens m12 |
|
Lens Construction |
2MP 1G4P |
|
F/No Aperture |
F2.0 |
|
AGC |
OSD |
|
Minimum illumination |
0.01LUX |
|
S/N Ratio |
≥52dB |
|
Gammar |
0.45 |
|
Backlight Compensation |
OSD |
|
Shutter |
30f/s |
|
White balance |
Auto |
|
Working temperature |
-10~+50℃ |
|
Power |
5V |
|
Audio Microphone |
Support, |
|
System Sync |
inner Sync |
|
Power consumption |
150mA |
|
Product Size |
15*15*10mm |
|
Signal Type & Interface |
usb 2.0 interface, digital Signal |
|

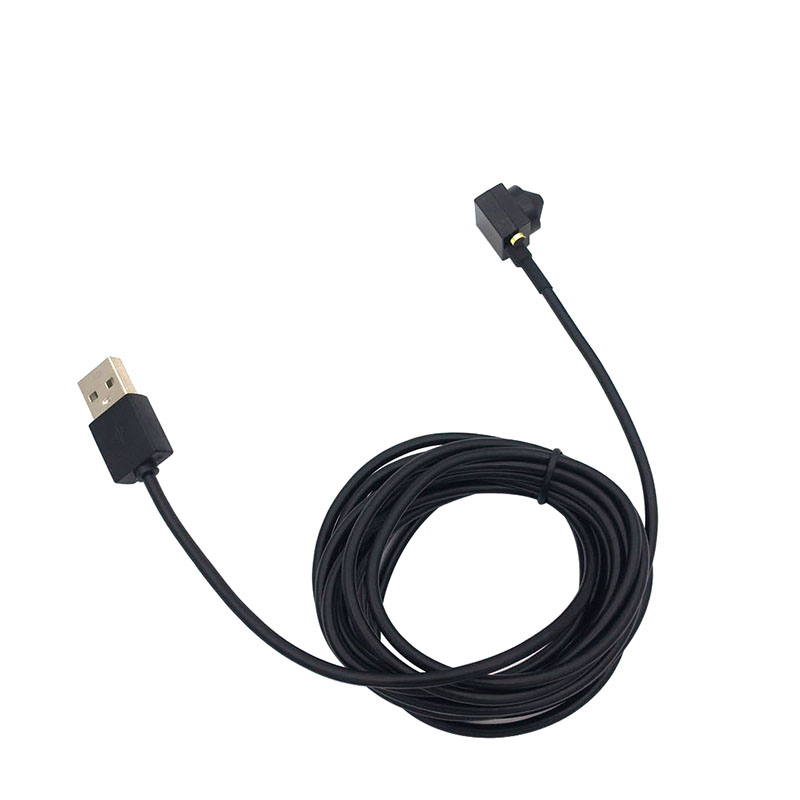

Length of Cable |
3Meter ( 1m/5m/other length available custom made) |
|
System |
WIN10/WIN7/WIN8/Linux/Android/Apple Mac |
Note & Remarks
1, You can change other types M12 lens freely, DIY interchangeable Lens design
2, We can adjust USB cable Length or change it with foldable Pipe (shorter size)
3, its Interface connector can be changed or custom by USB Micro, BNC/AHD, OTG Type C etc
4, You can add and equip extra cone pinhole Lens like 2.1mm, 1.05mm,2.8mm, 3.7mm, 6mm, 4mm, 8mm, 12mm, 16mm,21mm, 25mm, 2.3mm low distortion 120 degree, and 4.6mm non-distortion lens, 185/195/200/210/220 Degree Fisheye Lens, in your order, which will help you save more money but extend more applications easily
Product Application of Embedded Camera

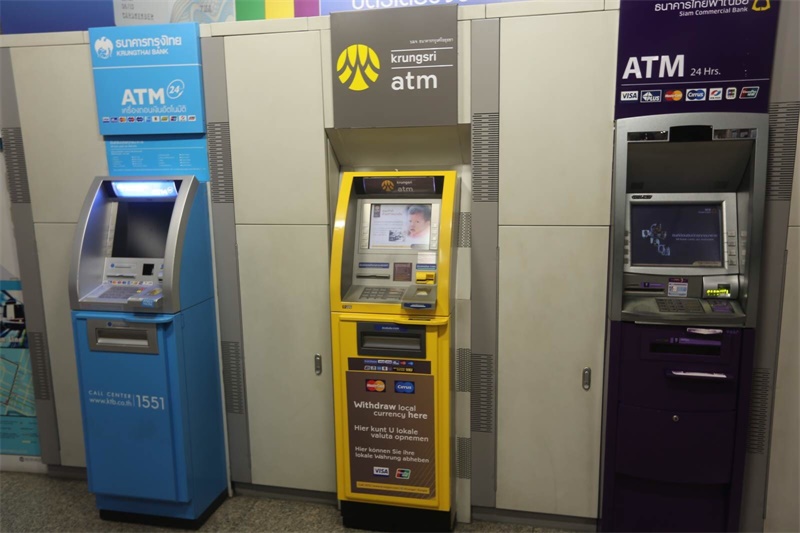

1, Bank ATM, all-in-one machine, POS equipment
2, Self service terminals equipment, Automatic Vending Machines Security
3, Any embedded camera modules systems in embedded vision kit
4, ADVERTISING LCD DISPLAYER WITH Embedded USB Camera
5, Big Machines or Equipment Device that need built-in mini pinhole Embedded version inside
6,Mini Industrial Camera / Industrial AOI / Compact Autofocus Camera/Digital Still Cameras / Biomedical Face Recognition
Fingerprint Recognition/ Microscope Photo Camera
7, Network video conference Camera, surveillance video, medical equipment, industrial equipment,
media equipment, advertising machine, ATM, smart home, POS machine, Android device
Question
What is “embedded camera meaning” and its industrial application
You can find our article name: The introduction of Embedded vision system in FAQ
You can view our article in FAQ to get and read important information of Industrial Embedded Camera too
You can read our blog to know our embedded usb camera application
More available selection
If you are looking for traditional square USB Camera Module without outer case for Industrial use Embedded application, please also consider our 8MP Autofocus Embedded Camera Module, or you visit our product groups https://www.Vehviscam/industrial-security-cameras-applications_c29 to view related USB Industrial Embedded Camera that mostly can work as compact embedded Vision Camera system, if all do not meet your requirements, please consider custom USB Camera Module ( details as following)
Custom Made Embedded USB Cameras
Currently we can provide more than 30 models portable USB Camera module for various commercial / industrial applications, our camera with DIY interchangeable Lens design.We also welcome any unique requests. R&D, Molding, development, prototyping, and mass production are offered at reasonable prices and in-time Fast Delivery. Our team work closely with each customer to assure satisfaction from start to finish. Customization options include, but are not limited to:
Specific image Cmos sensor requirements, WDR, panoramic or Wide Angle, expected Product Dimension, Dual lens, low-light low lux capturing, Lens MTF Resolution(1.3/2/3/4/5/6/8/10/12MP), Auto Focus USB Module, infrared IR solutions, high or low temperature rated, Waterproof, weatherproof, different angles of view, wire harness, cable assembly, desired power voltage, resolutions, frame rate, various USB port, etc. welcome to send us your technical drawing/diagram or share any new idea with us together for evaluation
until now 2021, we had R&D and mass production various Embedded Camera Module, Embedded Vision Camera for Machine Vision,
Pinhole Embedded Camera, Embedded Camera Board with various kinds of shape and PCBA Dimension, equipped with our own different kinds of focal length M12 lens to meet wide special demand from our Customers in the world, these Embedded Camera module include 0.3MP, 1.3MP, 2MP 1080P, 3MP, 5MP, 6MP, 8MP, 12MP, 13MP, 16MP, 720P, 1080P, Autofocus Embedded Camera,
Global Shutter Embedded Vision Camera, Low light Embedded USB Camera, Black and white USB Embedded Camera Module,
High Speed USB Embedded Vision Camera up to 120fps, 330fps, WDR USB Camera and USB3.0 Embedded Camera etc
