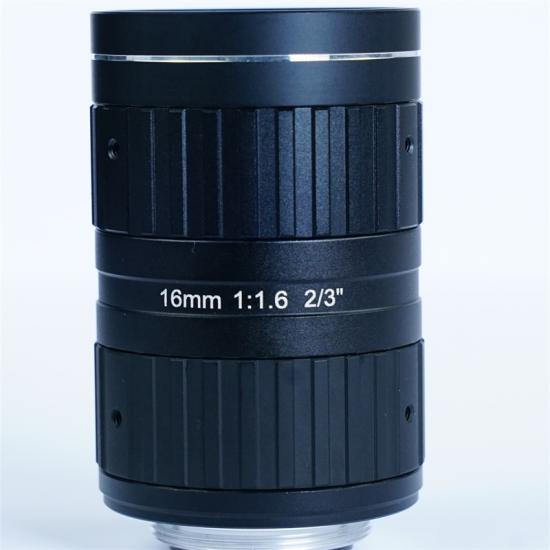

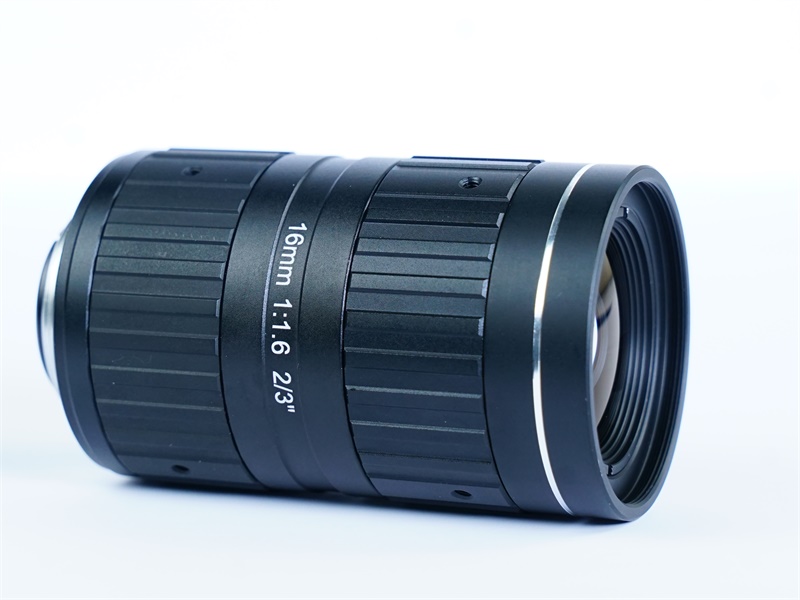

Product Name: 16mm 2/3’’ C Mount Industrial Lens No Distortion
Product advantage:
1, Variable Iris From Large aperture F1.6 to Smallest F22 (creat good depth of Focus)
2, Use high refractive index and low dispersion precious glass, high resolution imaging optics
3, All glass + metal structure design, Multi-layer coating, 0.06% ultra low distortion FA Lens
4, Top Resolution 10MP Industrial Camera Lens for 2/3’’ and 1/1.8’’industrial cameras, Japanese Glasses Materials
Product technical Specification of 2/3’’16mm C Mount Lens
|
Product Model |
NWA-23-10MP-16mm |
|
Image Cmos Sensor Format |
2/3’’ |
|
Photo Resolution |
10MP |
|
Focal Length |
16mm |
|
Aperture |
F1.6—22 |
|
OBFL |
12.4㎜ |
|
FOV(D×H×V) Angle of View 2/3’’cmos |
D37.9°/ H30.4°/ V23.2° |
|
FOV(D×H×V) Angle of View 1/2’’cmos |
D28°/ H22.6°/ V17° |
|
TV Distortion 2/3’’cmos |
0.06%@y=5.5mm |
|
TV Distortion 1/2’’cmos |
-0.05%@y=4mm |
|
MTF |
200lp/mm（2.5um） |
|
Focusing Range MOD (Minimum Object Distance) |
0.2m ~ ∞ |
|
Flange Distance |
17.526㎜ |
|
Operation Mode- Focus |
Manual with Lock |
|
Operation Mode –Iris |
Manual Variable |
|
Operation Mode-zoom |
Fixed |
|
TTL |
78mm |
|
Mount type |
C mount |
|
Filter Thread |
M34xP0.5 |
|

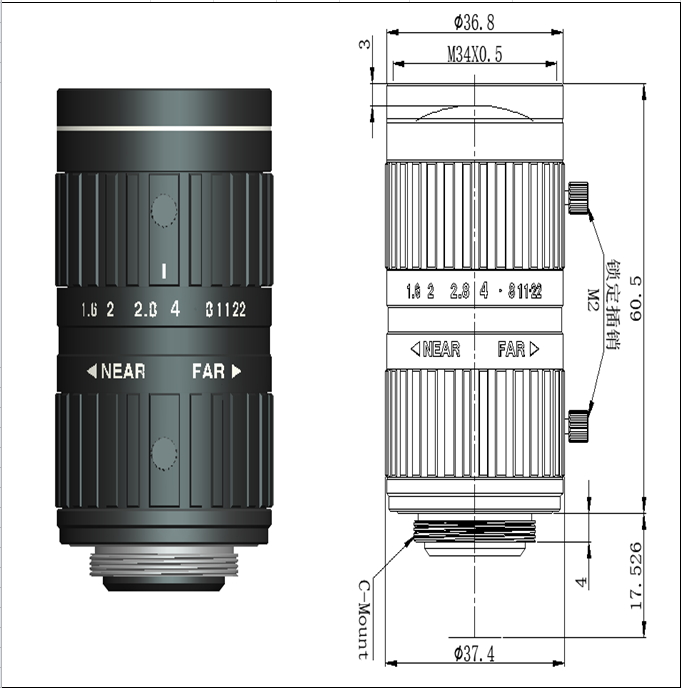

External Dimensions(mm): |
∅36.8*L60.5mm |
|
Structure |
Full Glasses Lenses+Metal Barrel |
|
Working temperature |
-10℃～+50℃ |
|
Storage Temperature Range |
-20℃～+60℃ |
Product Application of 2/3’’ Image Format Lens
Industrial camera and lens applications
Industrial cameras are suitable for fruit sorting, automobiles, pharmaceuticals, mining, PCB boards, hardware, connectors, FPC, textiles, tickets, various visual industrial inspections, digital magnifying glasses, medical research, criminal investigation and other fields. It is especially suitable for on-line inspection of the flatness and plane coplanarity of connectors, connecting terminals and IC pins. It is maturely used in various fields such as text recognition, face recognition, QR code scanning, high-speed camera, document shooting, and industrial vision inspection. Teaching and research, medical testing, etc., industrial automation, teaching and scientific research, medical care, intelligent transportation, agriculture and forestry, 3C electronics, new energy vehicles, medical equipment testing, food machinery, intelligent logistics, etc.
CUSTOM-MADE INDUSTRIAL CAMERA LENS / FA LENSES
Goobuy provides a selection of various custom options for new and existing Industrial Camera Lenses. We also welcome any unique or personalized requests, new idea, new technical drawing, New Design, development, prototyping, and mass production are offered at reasonable competitive prices and fast R&D time of course reliable quality.
Customization options include, but not limited to:
Specific cmos sensor requirements, Focal Length ( fixed or Manual Zoom Varifocal) Auto DC or Fixed Iris Aperture, different angles of view FOV, infrared solutions, High/low temperature rated, MTF resolutions, Distortion, TTL, OBFL, Mount type, Focusing type, MOD, Lens Dimension, Lenses Structure etc. Welcome to send us your technical drawing or request or share more details with us to discuss then evluate it for Customization
