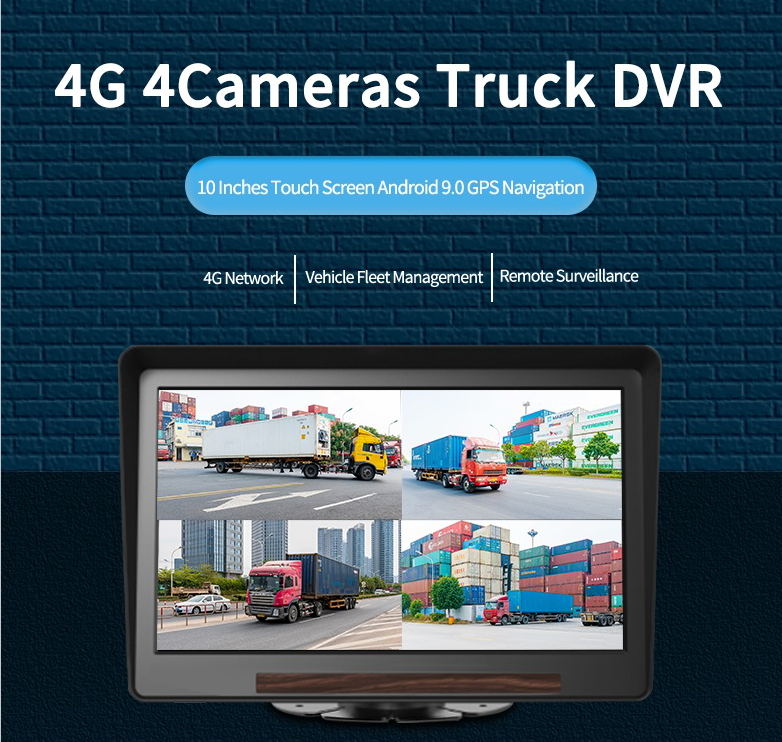

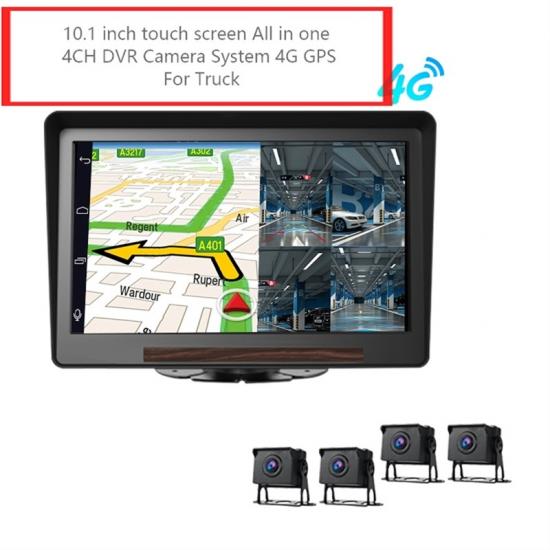

Product Name: 10.1"Touch Screen Display Android 9.0 GPS Navigation WiFi Truck DVR +4CH AHD Vehicle Camera kit, All in one Commercial Vehicle Dash Camera System With 4G SIM Card GPS WIFI APP
2021 hot sale popular multi-purpose Commercial Fleet Dash Cam system For Vehicle Fleet management
Core Function:

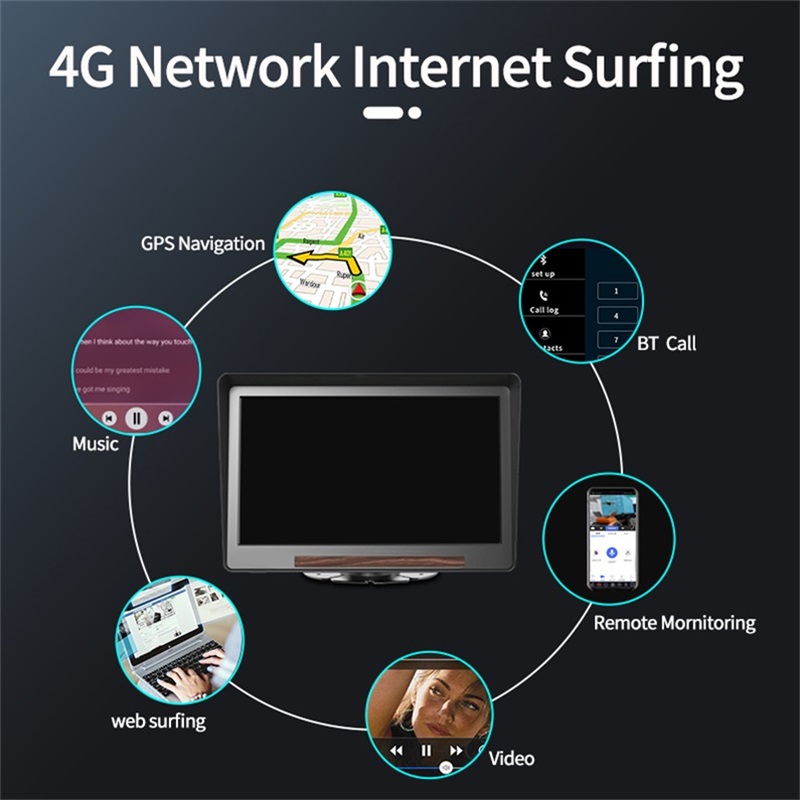

4CH 720P Video Recording, 4G Network APP real-time checking, GPS Navigation, Remote Monitoring Fleet management, TV/FM/MUSIC, 100% Touch Screen 10 inch Large Display, local Video storage
Product Features:
this Truck Camera System With 4G is one Android 9.0 OS, 4CHS video recording, GPS navigation & track, WiFi hotspot , 4G SIM card and Remote Monitor ect Multiple functions , All in One Vehicle Fleet Management Truck DVR Camera video solution. CarAssist app and CMSV6 platform are available for remote monitor and vehicle fleet monitor. and it could meet below protocol:
1. JT/T1078 "GNSS system for operating vehicles video communication protocol"
2. JT/T808 " GNSS system for operating vehicles - General specifications for vehicle terminal communication protocol and data format"
3. JT/T794-2019 "GNSS system for operating vehicles. Technical specification for vehicle terminals"
4. JT/T1076-2016 "GNSS system for operating vehicles - Technical specification for onboard video terminals"
Product Specification
|
Product Name |
4-ways 4G Dash Camera For Fleet Vehicles Combo DVR |
|
|
CPU |
AutoChip AC8257 Cortex-A53 Quad Core , 2.0GHz |
|
|
Storage |
RAM |
EMMC5.1 32GB |
|
ROM |
LPDDR4 2GB |
|
|
Display Screen |
10.1inch , resolution: 1024x600 MIPI interface |
|
|
Touch Screen |
Multiple points capacitive touch screen |
|
|
GPS |
GPS+Beidou dual mode gps location |
|
|
Operating system |
Android 9.0 |
|
|
Camera Lens |
Support 4CHS video recording ( front , right , left , and back camera AHD 720P ) |
|
|
Remote monitor |
Support Mobile APP and PC remote monitor, and vehicle fleet management |
|
|

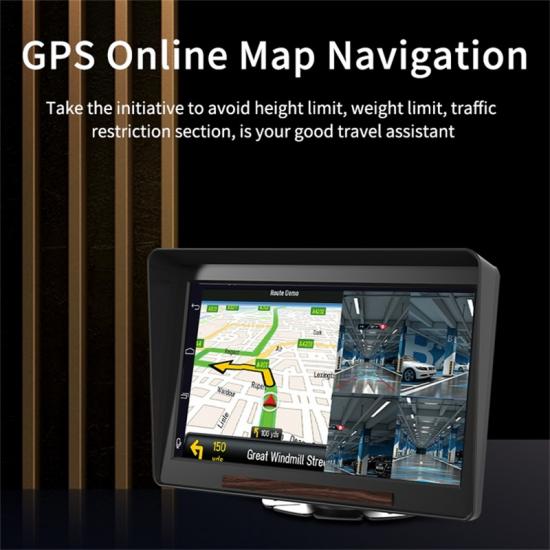

GPS Navigation |
Support Truck GPS navigation |
|
|
Network Bands |
2G GSM B5/B3/B8; |
|
|
Bluetooth |
BT4.1, support bluetooth phone call and music transfer by BT. |
|
|

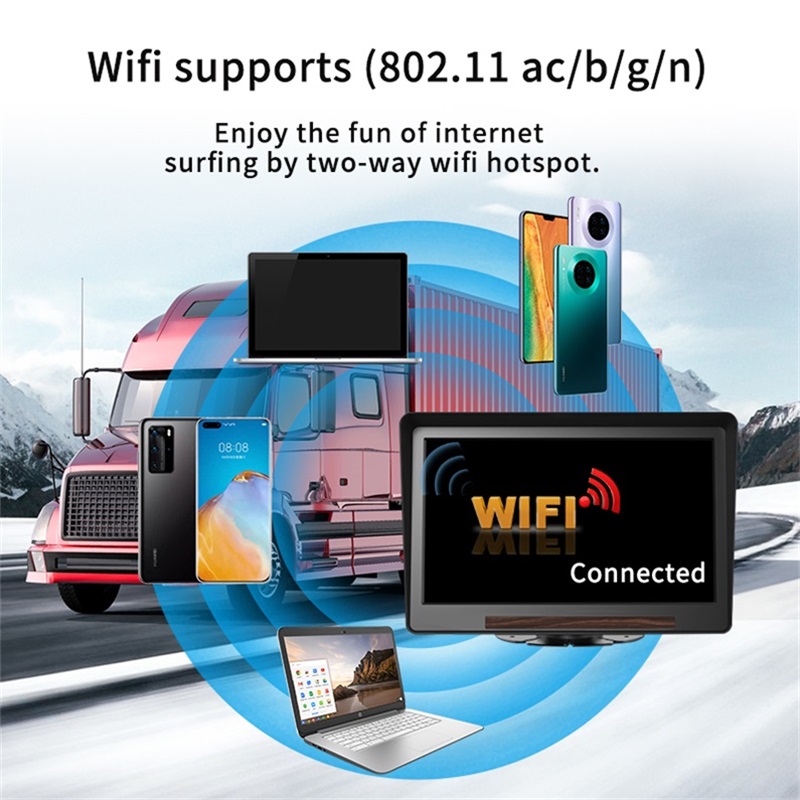

WiFi |
802.11ac/b/g/n 2.4G&5G, support WiFi hotspot. |
|
|
FM |
Support FM transmit function |
|
|
Video format |
TS |
|
|
Video compression |
H.264 |
|
|
Video Recording time |
128G card support 34 hours continuously video recording. |
|
|
G-Sensor |
3-axis G-Sensor |
|
|
USB |
MINI USB 2.0 , support OTG function |
|
|
Storage |
TF card, support Maximum 256GB micro sd card (not include) |
|
|
Software upgrade |
Upgrade by TF card, OTA online upgrade. |
|
|
Micphone |
Build in MIC-Phone Noise Reduction microphone |
|
|
Speaker |
Built-in high-fidelity 4Ω2W speaker |
|
|
Key buttons |
Reset and power button |
|
|
Serial communication |
Support 3 Channels UART port |
|
|
IO Interface |
Support 4 Channels IO inputs (turn left, turn right, brake, reverse) |
|
|
RESET |
Support |
|
|
Working Temperature |
-20~+70°C |
|
|
Storage Temperature |
-30~+80°C |
|
|
Mobile APP "CarAssist" for Android/ iOS |
||
|
Parking Monitor |
Support capture front and rear camera video and image |
|
|
Real-time preview |
Support video live preview |
|
|
Two way voice talk |
Suppore press and two way voice talking |
|
|
GPS track history |
Support GPS logger path and video synchronous playback |
|
|
Monitor and Alarm |
Support Message / photo alarm if collision happened when car parking |
|
|
Video download |
Support Point-to-point video download to the phone, don't consume internet data |
|
|
Share video to alburm |
Support car life |
|
|
CarAssist app for Android/iOS |
|
|
|
Active Security Cloud Platform "CMSV6" for Android/ iOS/ Windows |
||
|
CMSV6 license |
If need work on CMSV6 platform, need buy the CMSV6 license |
|
|
Cloud Server |
Support to connect with your cloud server |
|
|
Vehicle Fleet Management |
Yes, support Multiple vehicle video monitor and management |
|
|
Wisdom Board |
Manage the vehicle status |
|
|
Real-time preview & playback |
Support multiple device video preview and playback , download |
|
|
GPS log playback |
Support Map mode playback |
|
|
CMSV6 platform for Android / iOS / |
|
|
360 degree View Angle
You can Install the 4 cams as below diagram then you can monitor mode details around,your vehicle, even with the large truck. it also can provide the reference when backing up, no need the person's assistance any more
The Driver, the vehicle fleet management system in vehicle company, related working staff all can check real-time video and GPS location by using phone app, PC-computer and commercial fleet, insure 100% security safety surveillance at any time anywhere
Product Application:
1, company vehicle tracking spreadsheet
2, vehicle fleet management system in Logistics company
3, gps fleet management system in various kinds of truck companies
4, mobile fleet management for All kinds of Commercial Vehicles
5, 4CH Vehicle DVR Set With SIM Card work for For Semi trucks, Commercial Truck,Tanker truck,Transport Logistics vehicles, Trailer, VAN,Articulated dump truck,Rigid truck, Truck-trailer combination, Longer Heavier Vehicles, Bulk truck, Container- / hooklift truck,Tipper truck, trailers and towed machines, Tipper, Skip Lorry, Sweeper,Hooklift,Quarry Dumper
