Product name: Complete Semi Truck Camera System, 4 channels Dash Cam For Semi Truck with 10.1 inch touch screen IPS Monitor and 4pcs 1080P AHD Cameras with built-it BSD Detection Function built up ideal Truck Dash Camera Kit
4 channels touch screen 10.1 inch Truck monitor work with 4pcs AHD 1080P Vehicle Cameras built up ideal 4CH Truck DVR Camera System, This Commercial Vehicle Cameras systems apply for bus, Semi-truck DVR, truck, heavy duty, Mobile DVR Car, SUVs, Maritime Ship, Airport Vehicles, Airport Baggage Van, Delivery van Vehicle,Military vehicles, Aerial appliance / Ladder trucks, Jeep, Horse-Drawn Carriages
Product features of 4 way Wired Semi Truck Camera System
1, 1080P FULL HD Video recording, 4 way video input at same time
2, 4pcs AHD front view/back view/left view/right view driving cameras built up 360 bird view cameras.
3, 10.1 inch touch screen IPS monitor, easy operation

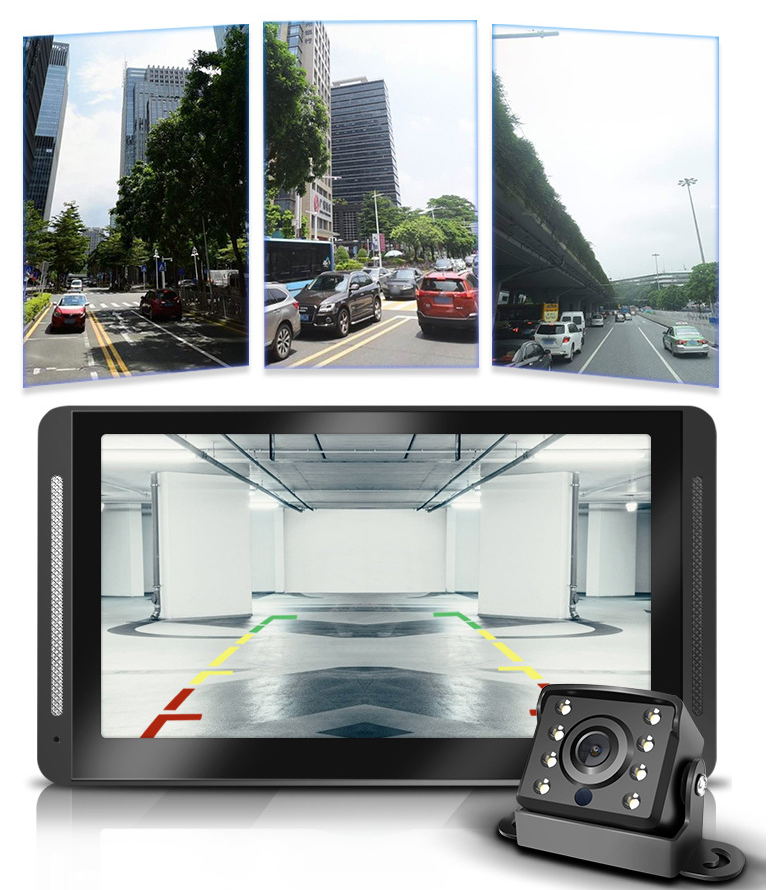

4, support RVC with Reversing Line display, parking monitoring

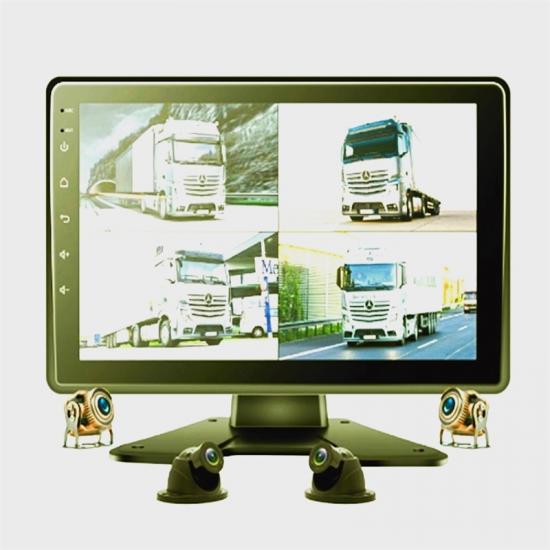

5, Quad Split screen and 4CH video display at same time
6, built-in Unique RBSD Blind Spot Detection Alert
7, support max 256GB Micro SD card local video storage, video playback
8, F1.6 starlight night vision wide angle lens IP69 waterproof
Complete 360 degree CCTV commercial vehicle camera systems as following:

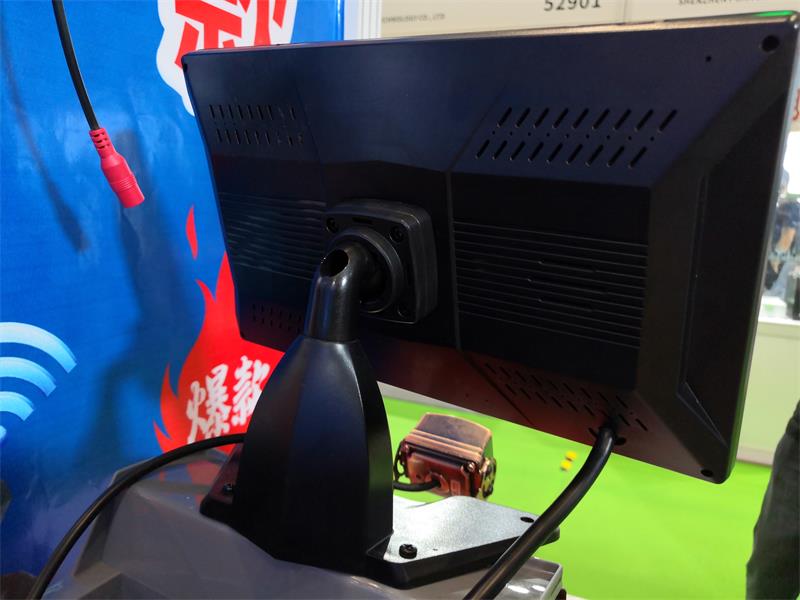

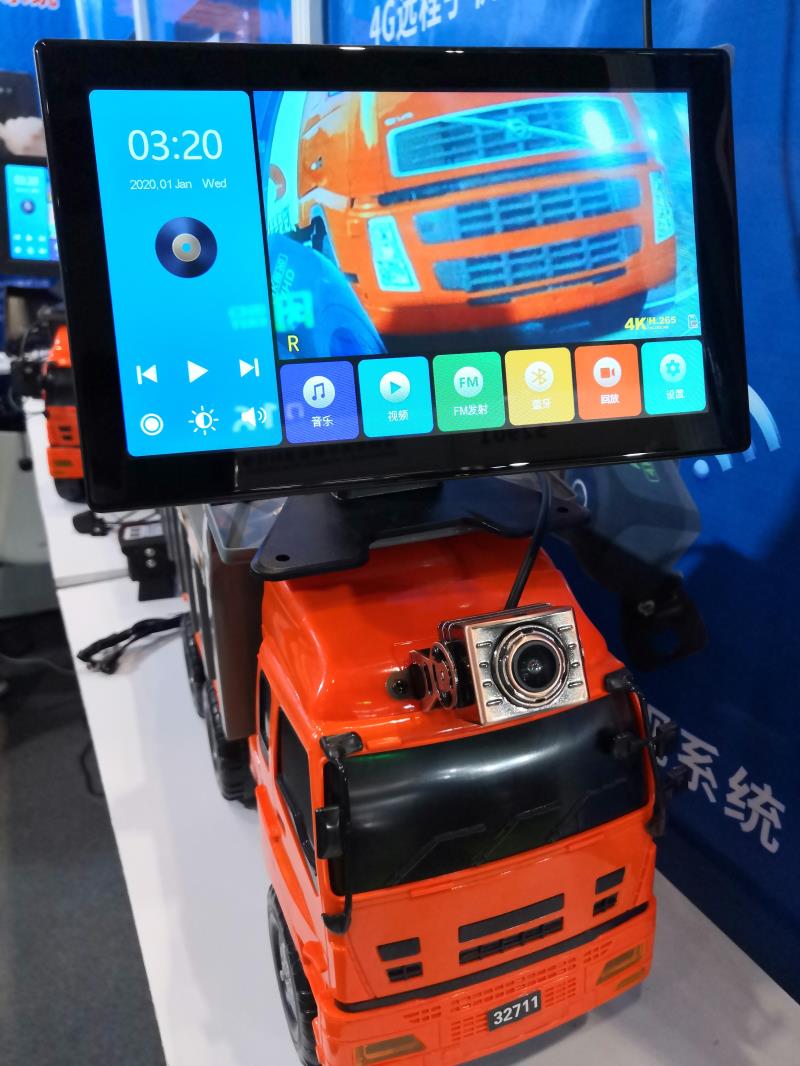

10.1 inch IPS Car Monitor display with Touch screen function

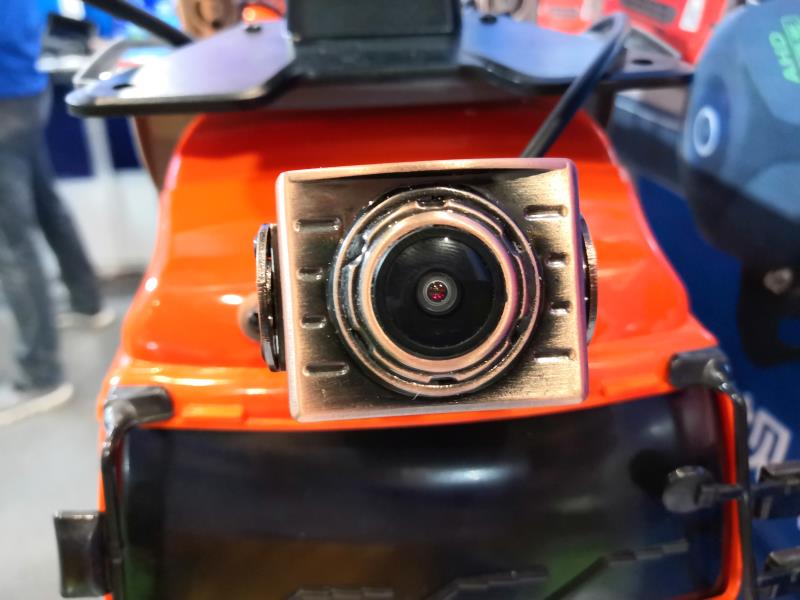

4pcs AHD Vehicle cameras, front view, back view, left side view and right side view
Built-in BSD alert in Car display screen
Holder and connecting cable for monitor and car cameras
Product specification
Truck DVR Camera System work for semi-truck, trailer, bus, heavy duty, RV, Van
Item name |
Technical Specification |
product name |
4 Channels Commercial Vehicle DVR Systems |
CPU |
Double Core AllWinner Chipset |
Cameras |
4pcs AHD camera, full starlight color, Starlight night vision |
Video pixel |
2megapixels FULL HD 1080P |
Monitor Display screen size |
10.1inch IPS |
Lens |
A+ class 6 glass high resolution wide Angle lens |
Language |
Chinese (Jane), English |
Video Format |
TS Streaming Media |
video file format |
H.265 |
trigger display |
Automatically switches to the corresponding camera view |
Video resolution |
1920*1080P@25fps |
Color Effect |
criterion |
Recording in an uninterrupted loop |
Seamless loop recording, no loss of seconds |
Switch on and off with the car |
Support car ignition boot recording flameout shutdown |
Year, month, day |
support |
RAM |
DDR3 512M |
lens Aperture |
F1.6 |
night vision function |
support |
memory card |
C10 TF card(Support high speed32GB-256GB) |
RVC ( reversing control) |
support |
Microphone |
support |
Voice Control |
support |
Built-in audio |
support |
Shrink the video |
support |
Current frequency |
50HZ/60HZ |
Power |
9-36V |
Touch operation |
support |
Cover material |
metal |
Application |
Semi-Truck, Heavy duty, trailer Truck, farm machinery, School bus, Scania Truck, Volvo |
The BSD blind spot detection system is a device based on short-range microwave radar detection technology. It is used to monitor moving objects (such as cars, motorcycles, bicycles, pedestrians) behind the blind area of the internal and external rearview mirrors, and to detect whether there are cars behind the adjacent lanes. Approaching, and whether there is a car in the blind zone of the rearview mirror, the reason why the blind spot vehicle recognition system is a good thing is because it can reduce the possibility of a collision when changing lanes while driving.
how do I check my blind spot system in this All in one Combo DVR?

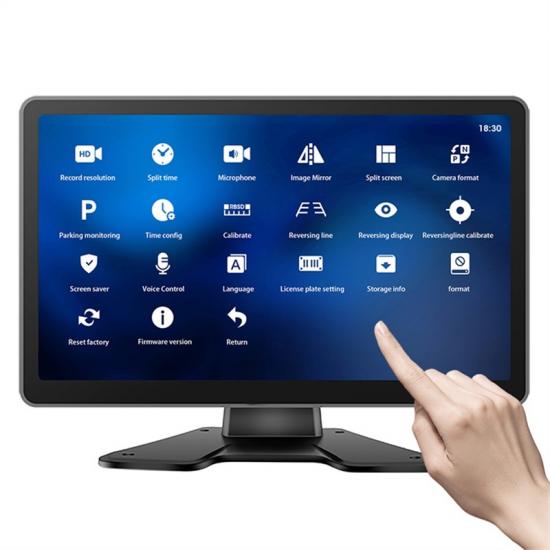

just touch the monitor and find "BSD" and operate as following
Using the rear camera matched by our company, the machine supports lane change reminder function in the left and right blind areas. When a car is detected approaching from the side, the camera in the corresponding position will appear red box and sound reminder!Please enter the RBSD calibration page before using this function. For calibration of RBSD, this function can only use the rear camera matched by our company. Replace the camera at will affect the accuracy of some RBSD functions!!
1) Park in the middle of the lane line
2) Actual height data of the camera after adjustment
3) Drag the crosshair of the picture so that the very far point is aligned with the center of the picture and the horizon is about one third of the position above.
4) Save and exit
This Truck Dash Camera Kit include as follow
All in one Combo DVR 10.1 inch touch screen monitor
User Manual
4pcs AHD Cameras (front/rear/left/right side)
Avaition Plug Extension Cable 3*5m/1*15m
Video output Cable 1pcs
Holder/bracket for Monitor
Product application
1, All kinds of 360 Panoramic commercial vehicle camera systems during driving
2, incident event data recorder Volkswagen Vehicle
3, Scania, DAF, MAN, Benz, TATRA and Volvo heavy duty truck vehicle monitoring
4,360 School bus surveillance system
5, For Passenger Bus, School Bus, City Bus, Travel bus, Coach bus, Sightseeing Bus, Airport shuttle, Autobus,
6, bmw, suvs, private car automobile Airport Vehicles, Airport Baggage Van, Delivery van Vehicle etc
7,Automotive around surround view camera monitoring system for Semi truck and trailer
8.portable 4CH Semi Truck Dash Camera Kit can work for Semi Truck, Commercial Truck, Tanker truck, Transport Logistics vehicles, Trailer, VAN, Articulated dump truck, Rigid truck, Truck-trailer combination, Longer Heavier Vehicles, Bulk truck, Container- / hooklift truck, Tipper truck,
