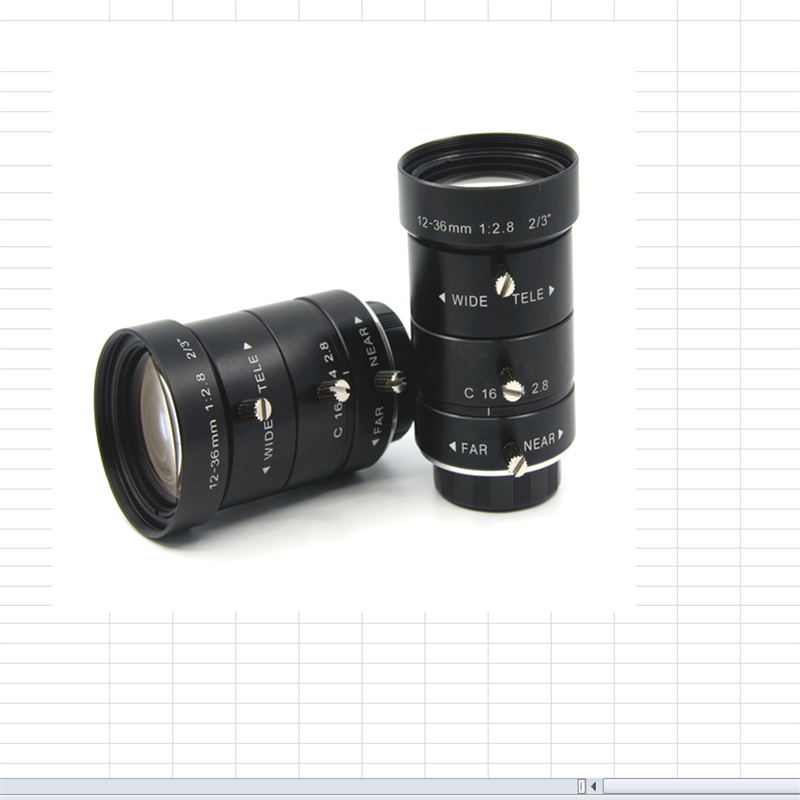

Product Name: 1080P 12-36mm Varifocal C Mount Lens For Industrial Applications
Product advantage:
1, 3X Manual Zoom, 12-36mm Variable Focus Lens C Mount For Industry Camera
2, Multi-layer coating can effectively suppress stray light and ghost images
Use high refractive index and low dispersion precious glass, high resolution imaging optics
3, Applied For 2/3" megapixel Industrial camera/Machine Vision System
4, 3X Zoom Industrial Lens is Widely used in Industrial Quality control cameras, bayonet capture ITS Camera,
Machine vision cameras, Industry Zoom cameras for inspection and imaging processing, scientific Research,
Industrial robotics, Ruggedized cameras for security and defense, other industrial or Commercial applications etc
Product technical Specification of 12-36mm Industrial Zoom Lens
|
Product Model |
NWA-12-36mm-C |
|
Image Cmos Sensor Format |
2/3"(11mm) |
|
Photo Resolution |
2MP |
|
Focal Length |
12-36mm 3X Zoom |
|
Aperture |
F2.8-C |
|
FOV(D×H×V) 2/3" cmos |
W:50.8°×41.3°×31.2° T:17.0°×13.8°×10.4° |
|
FOV(D×H×V) 1/2" cmos |
W:37.6°×30.3°×22.8 T:12.6°×10.1°×7.6° |
|
FOV(D×H×V) 1/3" cmos |
W:28.5°×22.8°×17.2° T:9.5°×7.6°×5.7° |
|
TV Distortion 2/3" cmos |
W:-3.43%@y=5.5㎜ T:2.30%@y=5.5㎜ |
|
TV Distortion 1/2" cmos |
W:-2.33%@y=4.0㎜ T:1.14%@y=4.0㎜ |
|
TV Distortion 1/3" cmos |
W:-1.42%@y=3.0㎜ T:0.62%@y=3.0㎜ |
|
Focusing Range MOD (Minimum Object Distance) |
W: 0.15m-∞ T:0.45m-∞ |
|
Object size ( at M.O.D.location) 2/3’’ |
W:167.8×132.0×97.5㎜ T:168.3×135.3×101.8㎜ |
|
Object size ( at M.O.D.location) 1/2’’ |
W:119.3×94.4×70.1㎜ T:123.2×98.7×74.2㎜ |
|
Object size ( at M.O.D.location) 1/3’’ |
W:88.3×70.1×52.3㎜ T:92.6×74.2×55.7㎜ |
|
MBFL (in air) |
W:14.36㎜ T:12.62㎜ |
|
Operation Mode- Focus |
Manual with Lock |
|
Operation Mode –Iris |
Manual Variable M-Iris |
|
Operation Mode-zoom |
Fixed |
|
TTL |
58mm |
|
Mount type |
C mount |
|
Filter Thread |
M35.5×0.5㎜ |
|
External Dimensions(mm): |
∅36*L59mm |
|
Structure |
Full Glasses Lenses+Metal Barrel |
|
Working temperature |
-20℃～+60℃ |
|
Storage Temperature Range |
-20℃～+60℃ |
|
wavelength |
420~1000nm |
|
Net Weight |
105.25g |
Product Application of 12-36mm Zoom Lens
1，Lenses For Industrial Inspection
2，Lenses for Machine Vision Applications
3，Lens for industrial photography, Industrial Security and Surveillance
4, Industrial Lenses For Image Processing
5, C-Mount Lenses for Industrial Quality Control Cameras
Application of machine vision lens, Factory Automation FA Lens
Industrial lenses are widely used in industrial testing, automation, electronic communications, semiconductors,
biomedicine, scientific research and other fields.
1. Machine vision, chip, wafer surface inspection, QR code recognition
2. Teaching and research
3. Industrial image processing, industrial measurement, industrial monitoring, instrumentation, microscopic imaging,
4. Electronic component measurement, glass and pharmaceutical container measurement
5. Security monitoring at night/day
6. Solar panels, aerospace, national defense, criminal investigation, military industry
7, Intelligent Transportation System ITS
8. Wafer inspection, scratch inspection on semiconductor, metal, glass, film, wafer and other surfaces
9.Detection of engraved characters on metal surfaces, bearings, and beverage cans
10. Factory automated production, PCB board inspection
11. Medical beauty, medical surgery
12. Biometric technology, face recognition
13. Drug production monitoring
14. Food sorting
15. Automotive, FPC, mining
