Product Name: 1/3.2’’ Sony 4K Embedded Vision Camera Module For Embedded Face recognition Camera system
without Distortion and Fast Auto Focusing
Product Advantage:
1, Sony Top anti-shake engine technology for image stabilization
2, 3mm No Distortion M12 Mount 4K 8MP Lens built up Auto Focus Embedded Camera Module
3, USB UVC support, free driver plug and play for Windows and Linux and MAC-OS universal computer and
industrial PC or Industrial equipment with UVC
4, No Distortion and Ultra 4K high resolution and one built-in Microphone Audio
5, 38*38mm Compact design and thin profile work for any embedded vision camera applications
6, Frame Rate: 15fps for 8M(3264(H)x2448(V))
Max Frame Rate: 640x480@ 120fps MJPEG

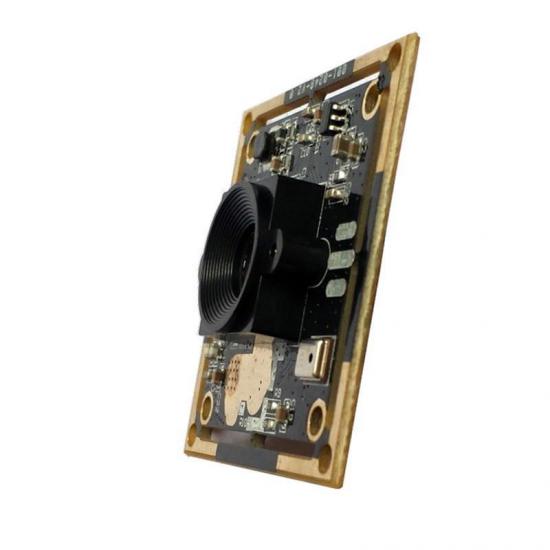

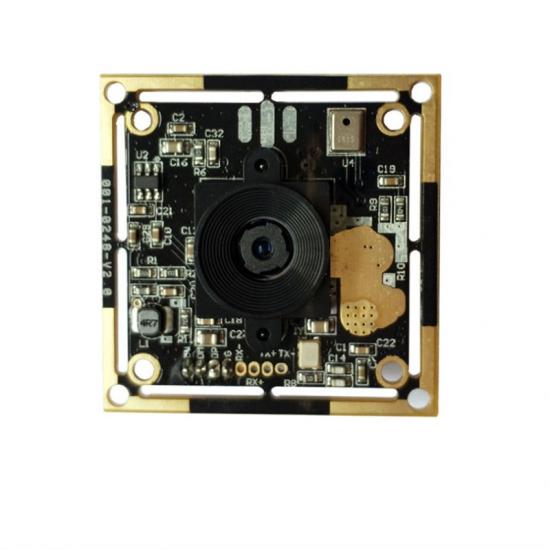

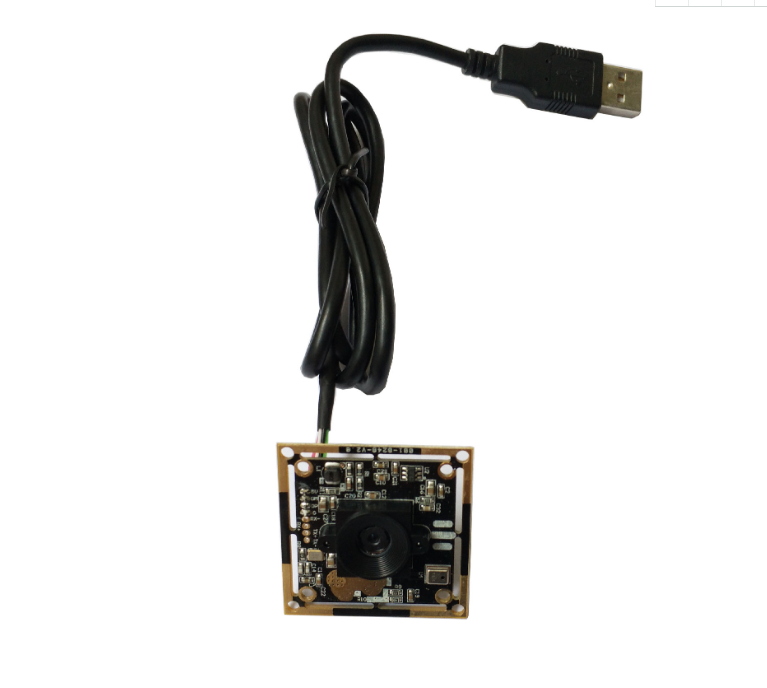

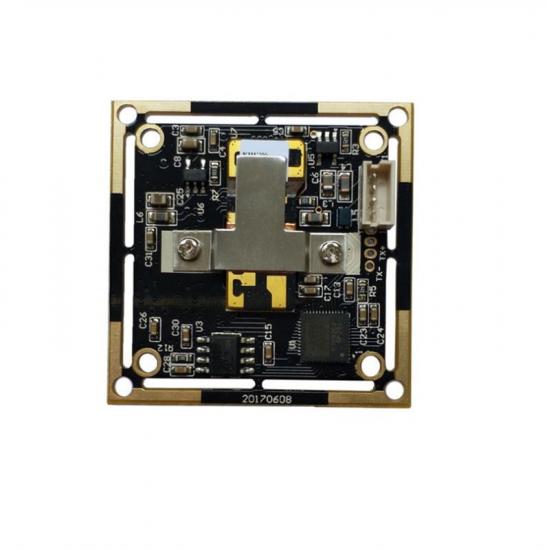

Goobuy323AF-4K is one 8MP(4K 3264x2448) Embedded USB board camera module using 1/3.2”Sony IMX179 high resolution image sensor, perfect for various high resolution industrial use application and biomedical face/fingerprint recognition and industrial microscope photo applications. As the high resolution 8M and full function support, our this Autofocus USB Camera Module is an ideal cost effective solution of high performance industrial camera especially good for some Industrial machine or equipment that need compact and Autofocus Embedded Vision Camera System and high resolution Face Reader Recognition camera. It has stanard S-mount (M12) lens holder and M12 Mount Type design which enabling our customer to choose suitable lens and any spectral filter as per their requirements.
Product specification of 4K Embedded USB Camera
|
Product Name |
Goobuy323AF-4K 8MP Embedded Camera Module |
|
Cmos Sensor |
Sony IMX179-1/3.2inch |
|
Max Resolution |
3264(H) *2448 (V) 4K@15fps |
|
Pixel Size |
1.4 µm* 1.4 µm |
|
Image area |
6.18 mm x 5.85 mm |
|
Mode of Focus |
Auto Focus |
|
Photo Resolution |
8Megapixels, ultra 4K |
|
Maximum Video imageTransfer Rate |
3264X2448 MJPEG 15fps YUY2 2fps 2592X1944 MJPEG 15fps YUY2 3fps 2048X1536 MJPEG 15fps YUY2 3fps 1920x1080@ 30fpsMJPEG / 3fps YUY2 1280x1024@ 30fps MJPEG / 3fps YUY2 1280x960@ 30fps MJPEG / 5fps YUY2 1280x720@ 60fps MJPEG / 5fps YUY2 1024 x 768@ 60fps MJPEG / 5fps YUY2 800 x 600@ 60fps MJPEG / 20fps YUY2 640x480@ 120fps MJPEG / 30fps YUY2 320x240@ 120fps MJPEG / 30fps YUY2 |
|
Output Format |
YUY2/MJPEG 30FPS |
|
Audio input |
support |
|
Object Distance |
30mm to 5m |
|
Lens technical Parameter |
M12 lenses of 1/3.2” 8M image optional |
|
Interface and drive |
USB2.0 High Speed HS/FS, USB free driver, plug and play |
|
Sensitivity |
0.65v/lux |
|
Max S/N Ratio |
34dB |
|
Protocol |
USB Video Class（UVC） |
|
AGC/AEC/AWB/ABF |
Auto |
|
AWB |
Auto, manual |
|
Auto Exposure Control (AEC) |
Support, Manual control can be customized |
|
Support OTG |
USB2.0-OTG |
|
Dynamic Range |
72.5dB |
|
Shutter |
Electronic Rolling shutter/ frame exposure |
|
Adjustable parameter |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure |
|
Low illumination |
0.1lux |
|
Mode of Power |
USB bus power, 4pin-2.0mm socket |
|
Operating Voltage |
DC5V |
|
Working currency |
150mA-240mA |
|
Length of USB Cable |
Default 1.5m(optional 2m/3m/5m) |
|
Module Board Assembly Technique
|
SMT (ROSH) |
|
Package |
CSP, Bare Die |
|
Size of Camera Module/ PCBA Dimensions |
38*38*12.5mm |
|
Certificate |
CE,RoHS,FCC |
|
Working environment |
Indoor or outdoor |
|
Operating Temperature |
-20 ~ 70°C |
|
Storage Temperature |
-20 ~ 85°C |
|
Requested/support Operating system |
Windows XP/7/8/Vista/10, Linux with UAC 2.6.26 above，Android 4.0 or above with UAC，Mac-OS X 10.4.8 or later |
|
Optional lens |
1/3.2 1.8mm/2.1/2.8/3.6/4.6/8/12/16mm/25mm |
Specifications are subject to change without notice.
Note and Remarks:
1, We can change other focal length fixed focus m12 Lens except above to meet your special demand.
2, Size of PCBA Dimension can be changed or custom too
3, some LED light to strength night vision can be added if requested
4, Some special function in software can be revised for you, SDK for second R&D available
Actual image took by this 8MP Autofocus USB Camera Module

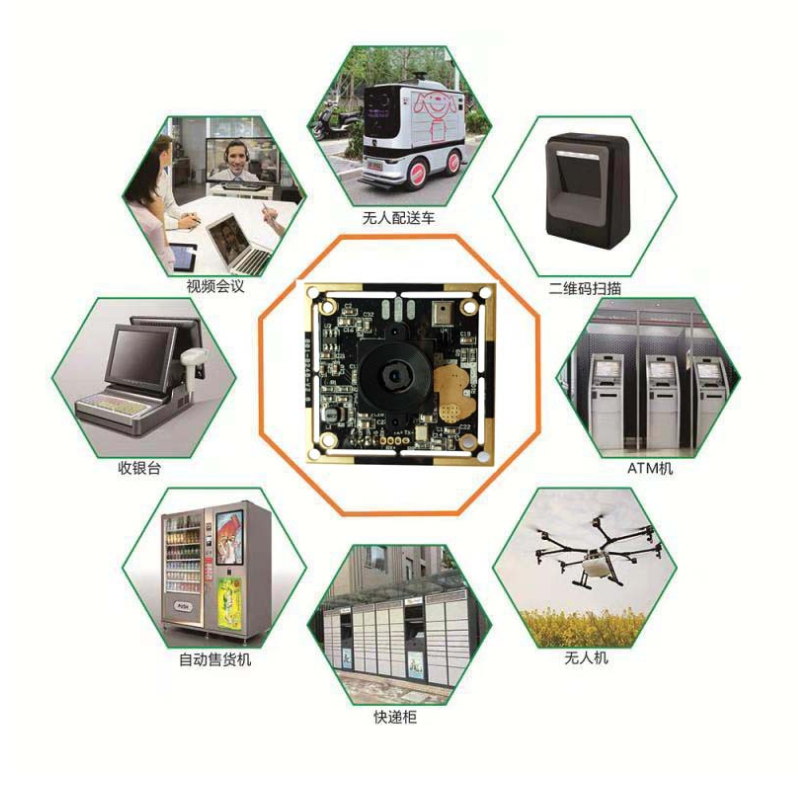

Product Application of Autofocus Embedded Camera
1, Bank ATM, all-in-one machine, POS equipment
2, Self service terminals equipment, Automatic Vending Machines Security
3, Any embedded camera modules systems in embedded vision kit
4, ADVERTISING LCD DISPLAYER WITH Embedded USB Camera
5, Big Machines or Equipment Device that need Autofocus Embedded Camera
6,Mini Industrial Camera / Industrial AOI / Compact Autofocus Camera/Digital Still Cameras / Biomedical Photography
/ Microscope Photo Camera
7, Network video conference Camera, surveillance video, medical equipment, industrial equipment,
media equipment, advertising machine, ATM, smart home, POS machine, Android device
Question
What is “embedded camera meaning” and its industrial application
You can find our article name: The introduction of Embedded vision system in FAQ
You can view our article in FAQ to get and read Sony IMX179 datasheet too
You can read our blog to know our embedded usb camera application
More available selection

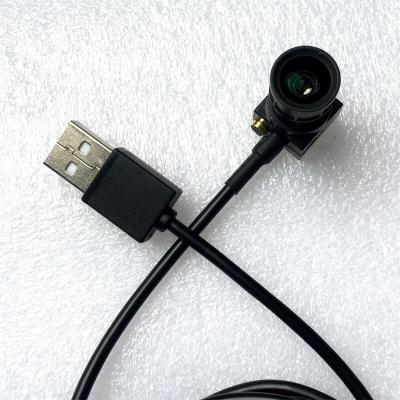

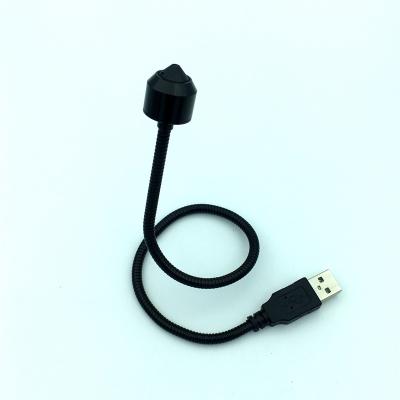

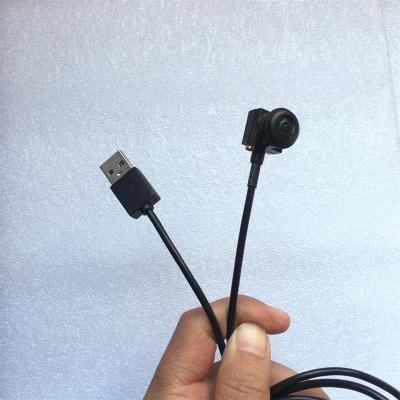

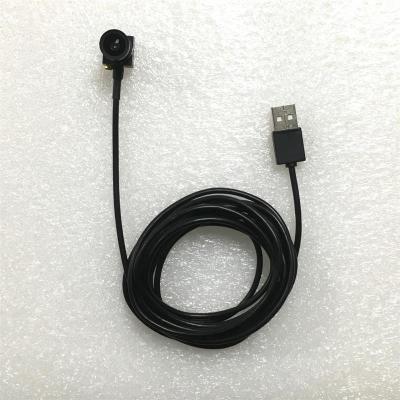

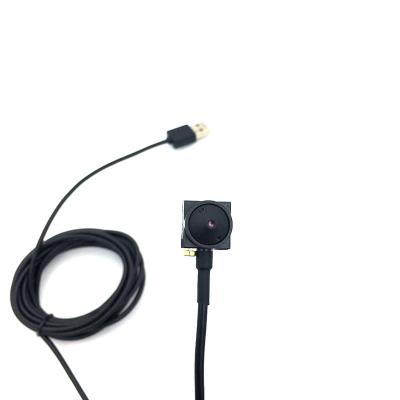

If you are looking for smaller size miniature USB Camera for Industrial use Embedded application, please also consider our another finished wide angle 2.1mm pinhole Industrial Embedded Camera or 2.5mm USB Embedded Vision Camera, or you visit our product groups https://www.Vehviscam/industrial-security-cameras-applications_c29 to view finished USB Industrial Camera that mostly can work as compact embedded Vision Camera system, if all do not meet your requirements, please consider custom USB Camera Module ( details as following)
Custom embedded camera and embedded camera module
Currently Vehviscam manufacture limited can provide more than 30 models USB Camera for various commercial / industrial applications, our camera with DIY interchangeable Lens design.We also welcome any unique requests. R&D, Molding, development, prototyping, and mass production are offered at reasonable prices and in-time Fast Delivery. Our team work closely with each customer to assure satisfaction from start to finish. Customization options include, but are not limited to:
Specific image Cmos sensor requirements, WDR, panoramic or Wide Angle, expected Product Dimension, Dual lens, low-light low lux capturing, Lens MTF Resolution(1.3/2/3/4/5/6/8/10/12MP), Auto Focus USB Module, infrared IR solutions, high or low temperature rated, Waterproof, weatherproof, different angles of view, wire harness, cable assembly, desired power voltage, resolutions, frame rate, various USB port, etc. welcome to send us your technical drawing/diagram or share any new idea with us together for evaluation
At last, we are open to discuss any new idea or request regarding creative embedded usb camera and industrial usb camera modules with you in anytime, encourage you to view our more online products and give us your feedback or comments or advice for our usb cam
