7’’ 2CH Wireless Agricultural Backup Camera Systems For Farm Machinery

2channels video input, 7 inch IPS monitor, no installment, designed For Farm Tractor and Agricultural machinery

  • Item No.:

  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

  • Color:

  • Min order:

  • Shipping port:

  • Lead Time:

    7-10 days
  • Keying selling point:

    7inch Wireless Agriculture Backup Camera System
  • H.S.Code:

  • MTF Resolution:

    CMOS 480TVL

  • Product Detail

Product Name:2CH 2.4GHz Wireless Farm Agricultural Machinery Vehicle Backup Camera System for Farm Machinery

Designed for farmers and ranchers, these wireless Agricultural Machinery camera systems can help to ensure peace of mind and the safety of your farm working. The 7inch Digital wireless camera system was specifically designed for Farm Agricultural Machinery, but can be used for any security/surveillance situation. Nowdays Wireless AG Camera System are Mostly Widely used on Combine Harvest, Cultivator, Plough, Trailer, Tractors Truck, Deutz, Yanmar, Gleaner, Steiger, Versatile etc

Agricultural Machinery Cameras

Product Features of Wireless Agriculture Cameras System

1, 7"Digital Screen Waterproof Monitor Built-in 2.4GHz Digital Wireless Receiver

And front/rearview 2 video input

2, Digital Wireless Farm Tractor Camera for Farm Agriculture Machinery

3, No backup line, unobstructed rear view

4, Comes with a car charger to get powered, no wiring trouble

5, DC 12V-24V power supply, wide compatibility for more vehicles

6, AG Camera waterproof rate is IP68. waterproof and weather resistant. It has a wide viewing angle of 120 degrees. Camera has 18 infrared lights and it make super clear night vision

7, Waterproof camera body with a sun-visor and metal  bracket. Easy to mount on any flat surface of the vehicle

8.  Super Stable Signal – Upgrade Wireless Signal, No Interference even at High-Speed Observation. Stay Smooth and Clear even if Speeds Up To 110mile. Still stays and clear even outdoor distance up to 100 meters. And no-interruption signal under 70ft on vehicle with reverse/continuous use.

2.4GHz Digital Wireless Camera Aluminum Camera IP69K Waterproof and 10G Vibration, IR LEDs for Night Vision

Wireless Farm Cameras

Product Specification:

(A) 7-inch TFT LCD Agricultural Farm Machinery Monitor:

7" Digital Screen TFT LCD Monitor with Removable Sun Visor

Built-in 2.4G digital wireless receiver module, supports single screen / double screen display

Operation Frequency:2400 ~ 2483.5MHz

Display Resolution: 800RGB(H) X 480(V) dot

Brightness (cd/m2): 350

Contrast ratio: 500:1


All-function remote controller

Power Consumption: 6W

Video: 2 video input (Front and Rearview)

Housing: ABS Plastic

Color: Black

Power Supply: DC 12V - 24V

Environment humidity:10%-90%

Working temperature:-20℃-+60℃

Wireless Farm Camera Monitor

(B) Wireless AG Camera/ Farm Tractor Camera

High-definition and 120° wide viewing angles

Support color CMOS image

Waterproof: IP67

Effective Pixels: NTSC: 648x488 pixels

Horizontal Resolution: 480 TV lines

Power Supply: DC 12V-24V

Operating Temperature:-30℃-75℃ RH95%MAX

Storge Temperature:-40℃-95℃ RH95%MAX

Metal body with bracket for easy installation

Farm CCTV Rearview Camera System for Agricultural Equipment Safety Vision

Agricultural Camera Systems

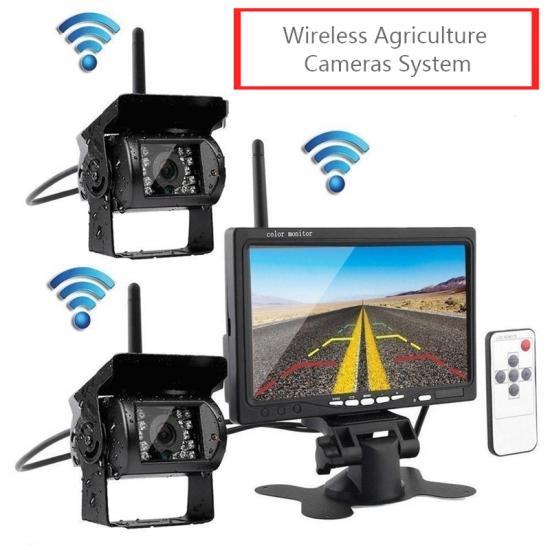

Package included:

1 x 7" Farm Camera Monitor

2 x Wireless Farm Cameras

1 x Car Charger

1 x Remote Control (battery not included)

3 x Power Cable

3 x Antennas

1 x Holder

1 x Two-sided Adhesive Tap

1 x Instructions

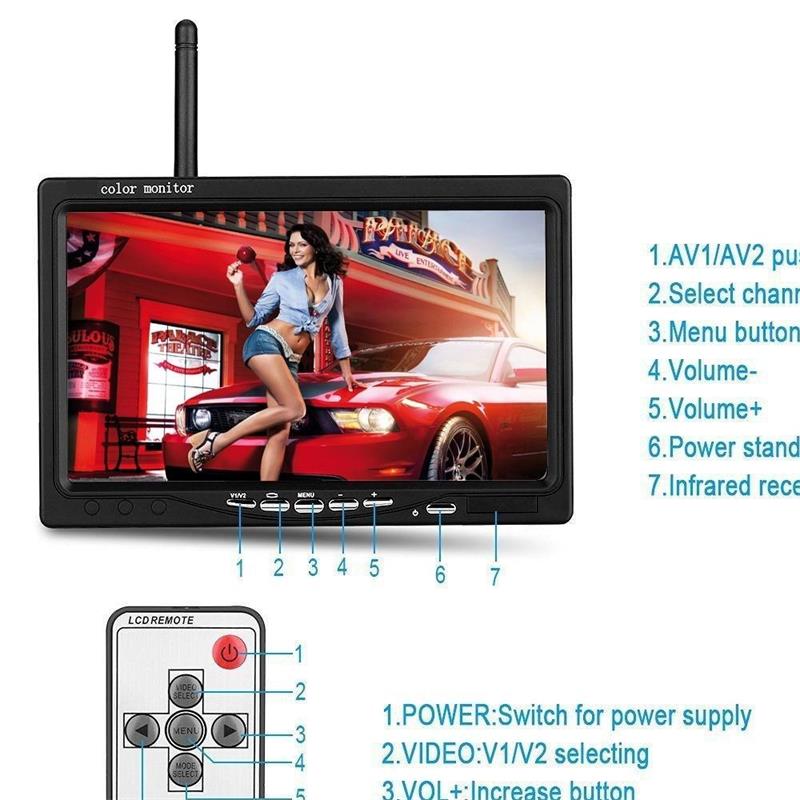

wireless farm camera monitor diagram

Wireless Farm Camera Kit

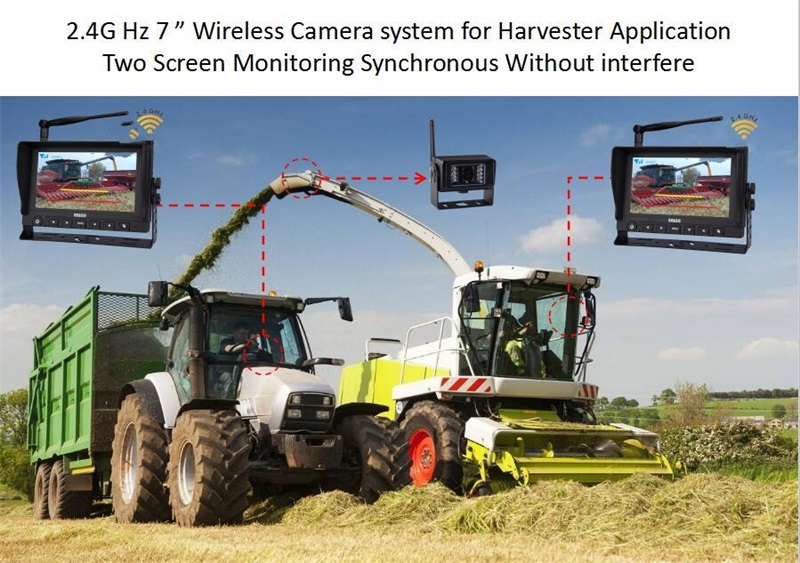

Product Application

Reversing Camera with Monitor Ideal for tractors, Agricultural and Industrial Machinery

1,This 7 inch Wireless Agricultural Camera Systems can work and equip with Farm Agriculture Machinery, Combine Harvest, Cultivator, Plough, Trailer, Tractors Truck, Barn

2, Wirless Farm Machinery Cameras can work for Tractors, Balers, Seeders, Harvesters, Pruners, Foragers, Forklifts & telehandlers, farming trucks, trailers etc

3. Agriculture Backup Camera system can work and equip on John Deere, Ford / New Holland, Case - International, Massey Ferguson, Kubota, Allis Chalmers, White / Oliver / Mpl Moline, Deutz, Yanmar, Gleaner, Steiger, Versatile, and more.

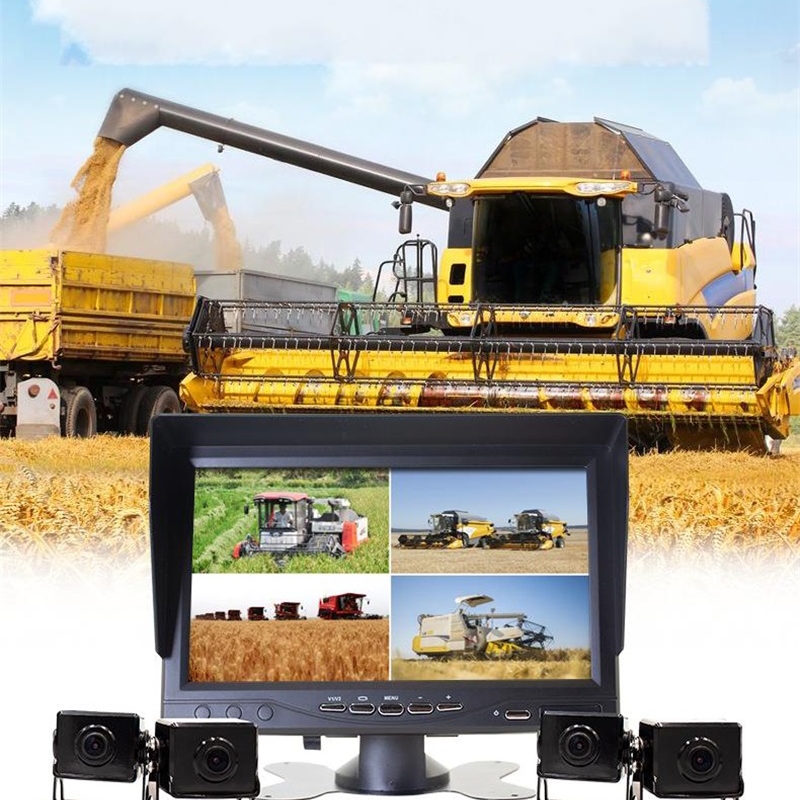

in addition we can offer wireless  and wired 4 channels Agriculture Cameras system too

4 way Agriculture Cameras system
