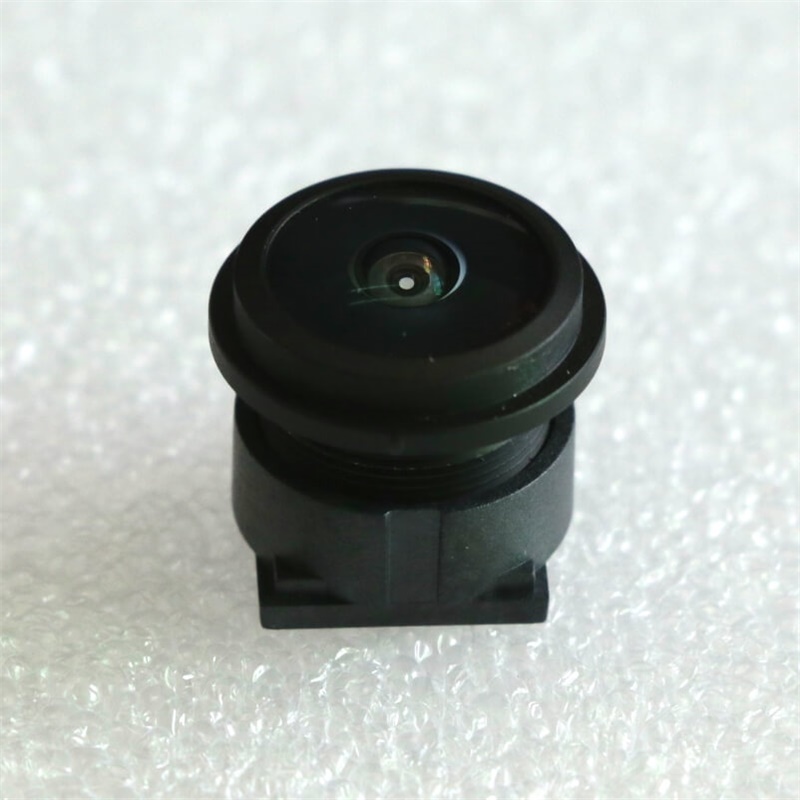

Product Name: 1/3'' 205 degree fisheye s-mount bus surround view lens for car black box and high temperature camera lens
product advantage
1, Horizontal 205 degree Super Wide Fisheye Lens
2, 205/205/166 degree perfect for Car surround view Lens
3, short TTL, Compact constructure miniature 360 Fisheye Lens
4, 205 degree meet strict car reverse view Fisheye
Product Specification
Technical feature of 1.4mm 205 degree Reverse Fisheye Lens
1,Effect Focal Length: 1.4mm
2,Back Focal Length: 3.02mm
3,Flange.Focal.Length: 2.02mm
4,Aperture F/NO: 2.3
5,Matching Sensor: 1/3"
6,HFOV: 205°
V FOV:166°
D FOV:205°
7,TV distortion: 110%
8,Thread size: M12xP0.5
9,Lens Structure: 6G
10,IR filter: 650IR
Waterproof grade: IP67
T avg>=88% @420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm
11, TTL: 13.06mm

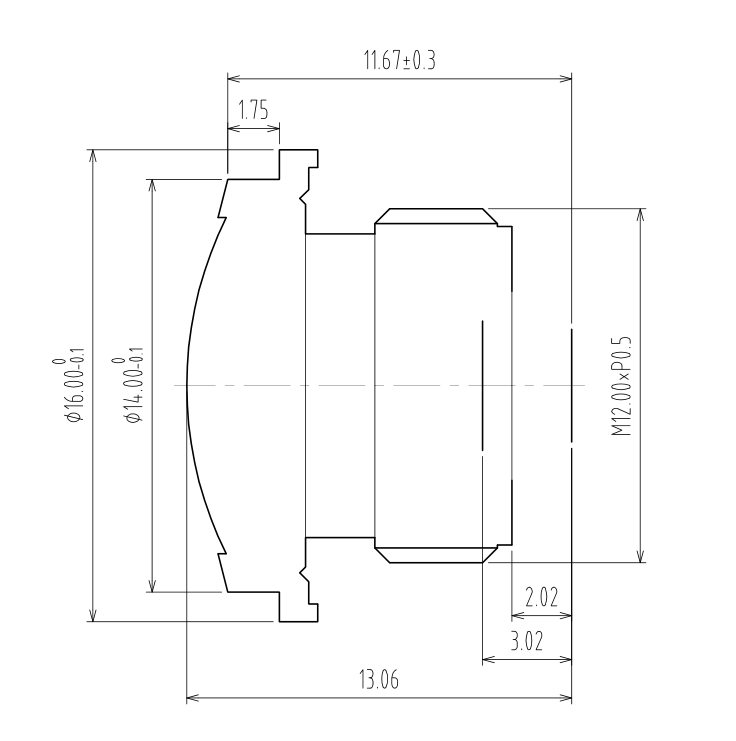

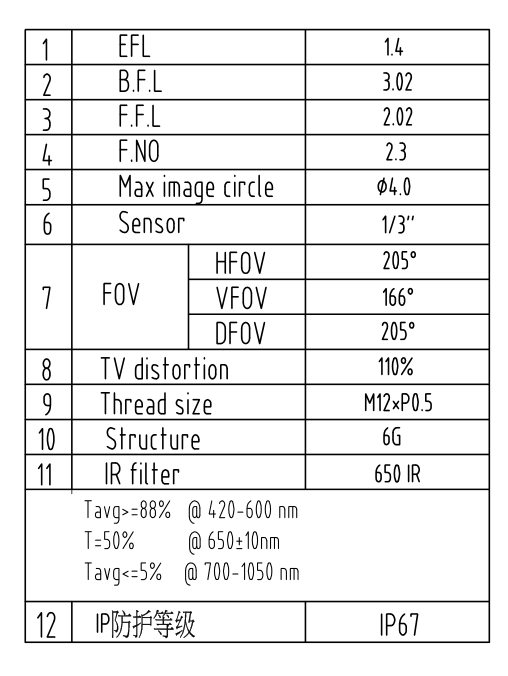

Technical Datasheet of Automotive Surround View Lens
Product Application
Lens for car surround view camera lens
Lens for automotive front and rearview camera
Lens for VR/AR 360 panoramic camera
Lens for fisheye projector
lens for 360 panoramic surveillance camera
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China.
Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera
their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too. welcome to share your lens requirement or product idea with us to discuss and proceed
