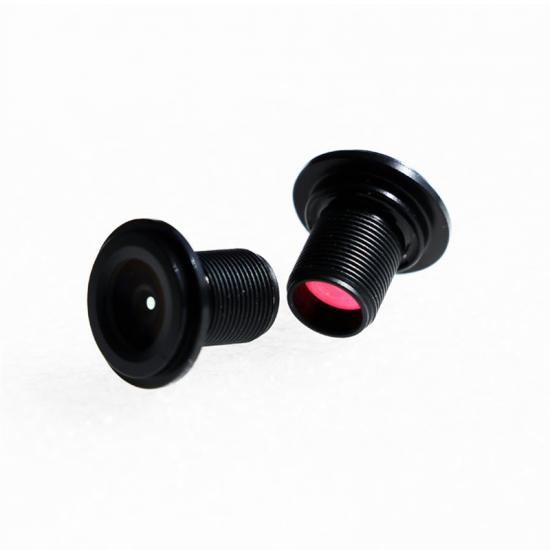

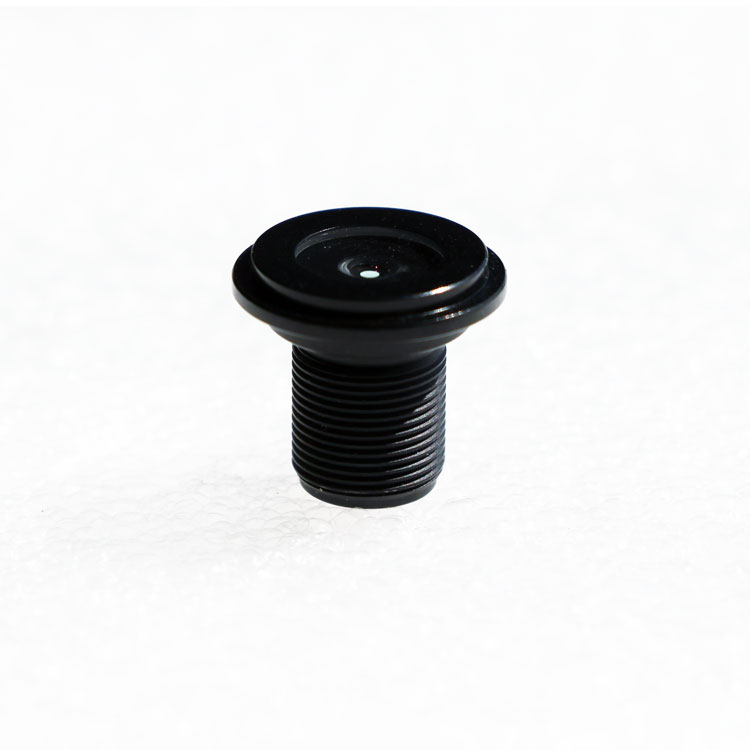

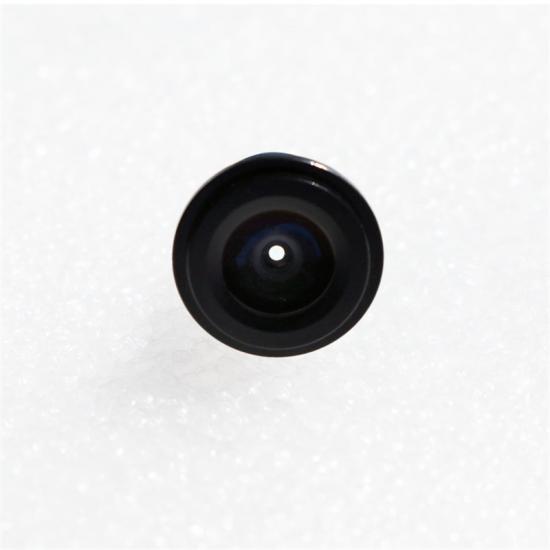

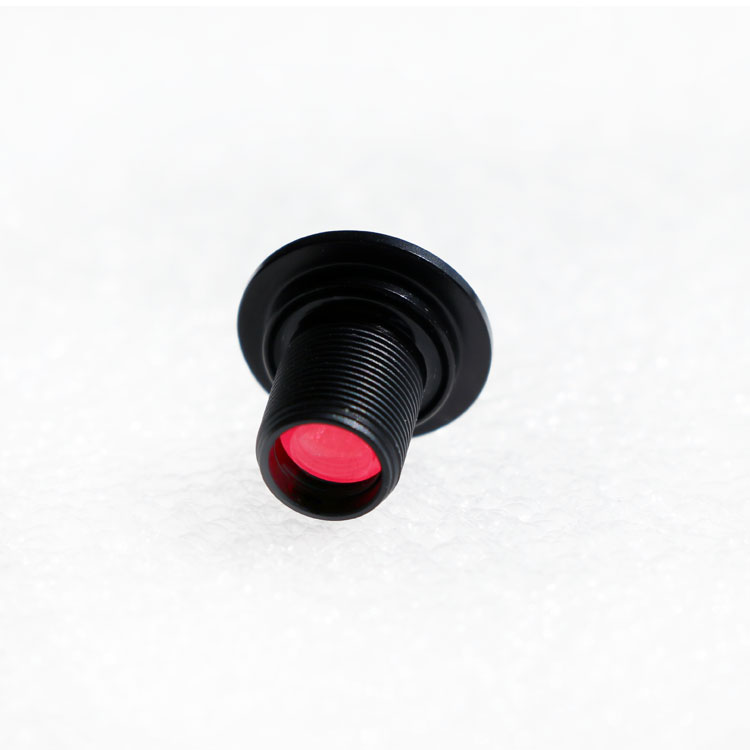

Product Name: 1/4'' OV9712 IP67 2.3mm m8 wide angle 4G Waterproof Lens FOV 124
Product Advantage
1, 1/4'' 124 degree Wide Angle Lens M8
2, IP67 waterproof good for Automotive Lenses
3, M8 Compact Design Mini Lens
4, Widely Used in Board Camera, MTV Lens, Cmos Board Module etc

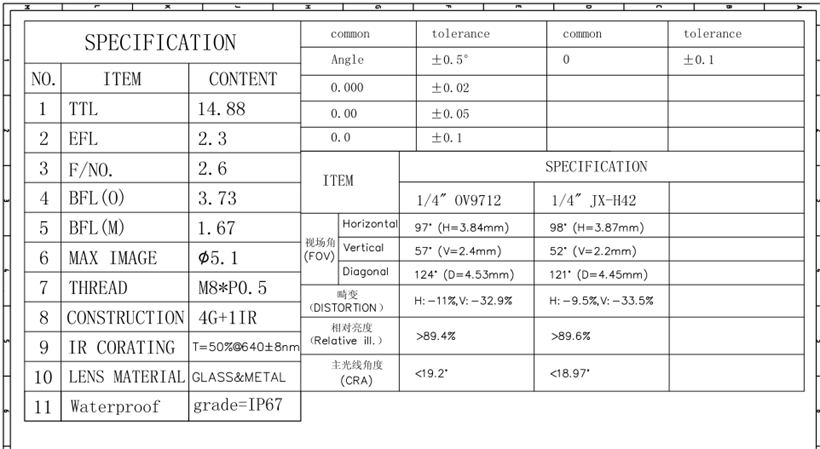

Product Specification
keying technical feature of 2.3mm M8 Lens
1,Sensor size: 1/4" CMOS SENSOR
2,matching sensor: OV9712, JX-H42
3,Focal length (EFL): 2.30mm
4,F/NO (infinite): 2.6
5,View angle (diagonal/horizontal/vertical): 124/97/ 57 degree
( wide Angle Lens 1/4 Cmos)

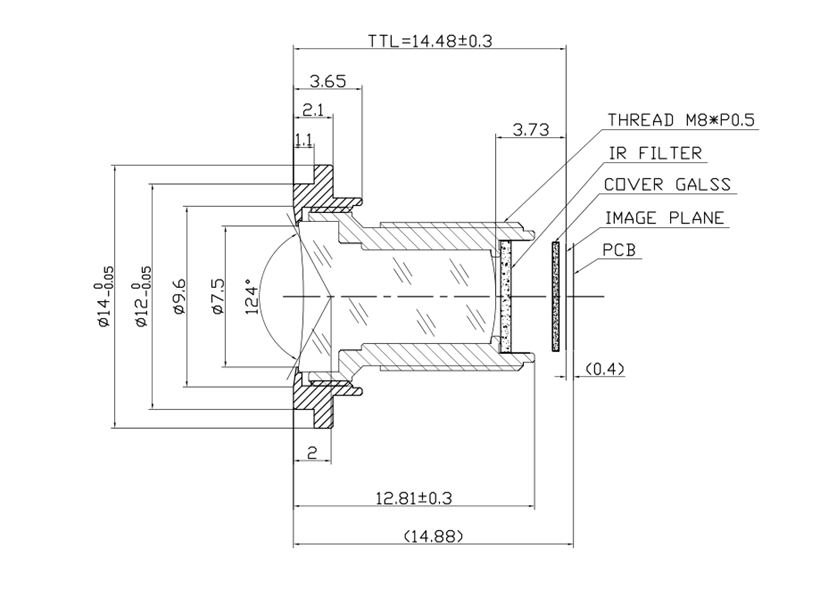

6,TTL: 14.88mm
7,TV Distortion: H -11%, V: -32.9%
8,Back focal length (OBFL): 3.73mm
9,Flange back length （MBFL): 1.67mm
10,Thread size: M8x P0.5
11,ELEMENT: 4G +IR
12,Max image circle: 5.1
13,Relative illumination: >89.4% (1/4 sensor)
14,CRA <19.2 degree (1/4 sensor)
15,Wavelength: 650nm~940nm
16,IR Coarating：T=50%@640+/-8nm
17,waterproof grade: IP67
Product Application
1, Lens for Fish eye Camera
2, Lens for Car rearview Camera, Front View Camera
3, Lens for Car Black Box, Car DVR Camera
4, Lens for mini sport action Camera
5, Lens for smart home Camera Lens
6, Lens for Drone Camera
7, Lens for Mini CCTV Camera
8, Lens for Mini video recorder
Custom Mini Lens, Customized Lenses
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China. Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,CS Mount, C mount, F mount Industrial Camera Lenses too welcome to share your lens requirement or product idea with us to discuss and proceed. thank you very much
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
Application of our goobuy lens
1. Automotive side view lens, SVS lens, DMS, Reversing lens, surround view lens, ADAS camera, front view lens,E-mirror lens，backup camera lens etc
2. Lens for automobile camera, Car recorder lens, Car DVR lens, Car Black Box lens, car dash camera lens
3. CCTV camera lens, security camera lens, IP camera lens, PTZ camera
4. Aerial Photograph drone lens, Police DVR camera,body worn camera, VR panoramic camera
5. Smart home Doorbell, lens for robot camera, gopro lens, action camera lens, DJI osmo pocket wide angle lens
6. 2D/3D barcode Scanner, dental camera lens, document scanner, medical endoscope lens,industrial endoscope Camera
7, lens for face recognition, iris acquisition, biometrics recognition, image acquisition and AI Camera Intelligent recognition
8, video conferencing camera lens, Industrial Camera, FA Lens, Machine Vision Camera
