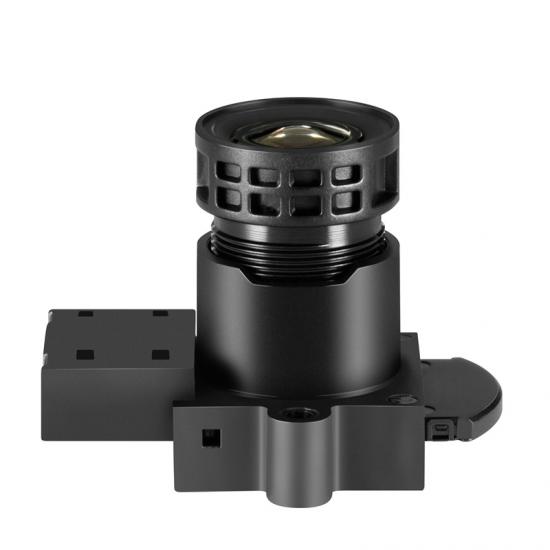

Product Name: 7mm 8MP F1.6 Aperture Fixed Iris night vision Camera Lens
Product Advantage:
1, unique 7mm Focal Length design make up market blank
2, ultra 4K 8 Megapixel cctv Lens
3, F1.6 Fixed Iris starlight Lens
4, CE and RoHS Approval, ODM or Custom made Lenses available
Product Specification

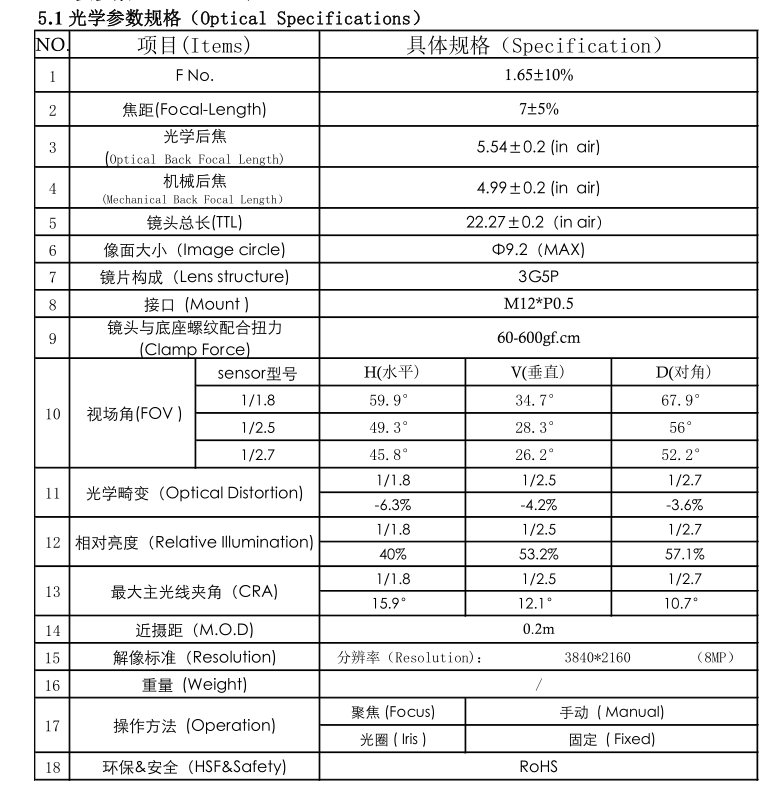

optical specification of 7mm 8 Megapixels CCTV Lens
1, Focal length: 7±5%
2, Aperture F/No: 1.65±10% F1.6 Fixed Iris CCTV Lens
3, Optical back focal length (OBFL): 5.54±0.2 (in air)
4. Mechanical back focal length (MBFL) 4.99±0.2 (in air)
5. TTL: 22.27±0.2（in air）
6, Max image circle Φ9.2（MAX)
7, Lens structure: 3G5P
8, Mount type: M12*P0.5
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V) 1/1.8 D 67.9° H 59.9° V 34.7°
11, Optical Distortion 1/1.8 -6.3%, 1/2.7 -3.6%
12, Relative illumination 1/1.8 40%, 1/2.7 57.1%
13, CRA 1/1.8 15.9°, 1/2.7 10.7°
14, M.O,D. 0.2 meter
15, MTF resolution: 3840*2160 （8MP）
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS

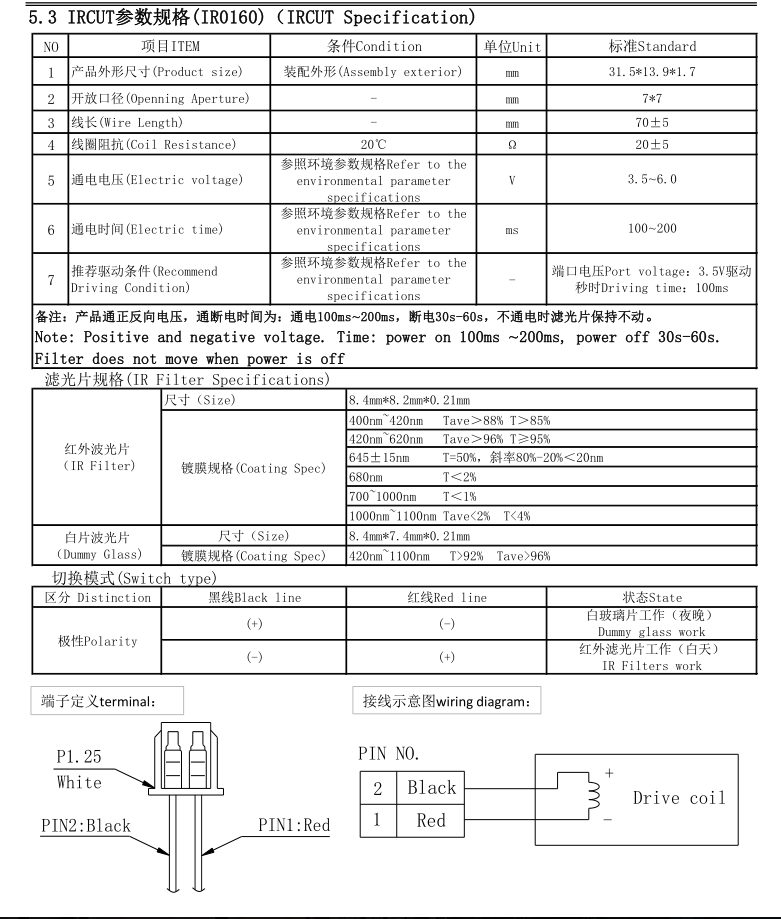

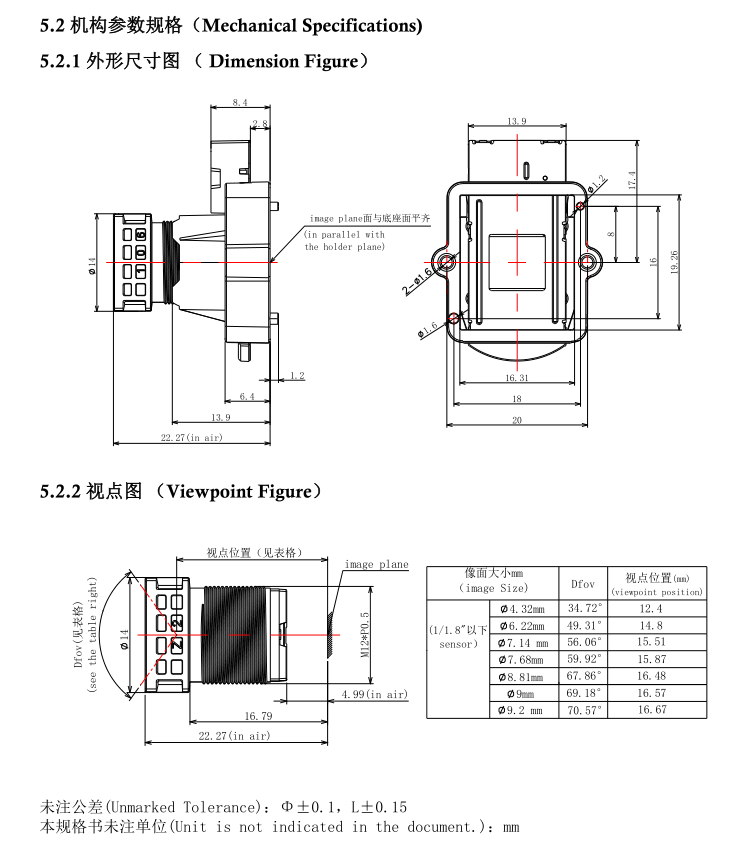

Technical Datasheet of 7mm Lens F1.6
Lens Application
1, CCTV Camera Lens, Starlight Camera Lens
2, Surveillance camera, Wireless security Camera
3，IP Network Camera, POE Camera, SDI camera
4, Bullet Camera, Dome Camera, AHD Camera
5, Wifi Camera, VR 360 Wifi Camera, Bulb Wifi Camera
6, Night Camera, Night Vision Camera
7, Floodlight Camera, Indoor/ourdoor Camera
8, Security Smart Home Camera
9, 4G/ Solar Panel/ Battery Camera
10, Wifi door Phone Camera, doorBell Camera, USB WebCam,
11, Baby Monitor,Video Recorder
12, Lens for Hikivision and Dahua Camera
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
