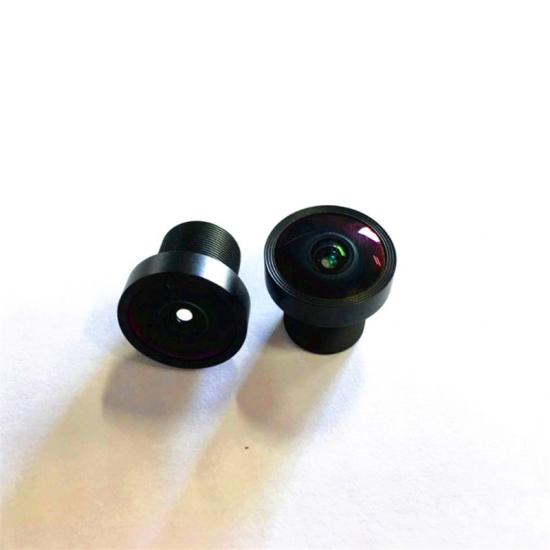

Product Name: 1/1.8'' imx178 4mm m12 4K Camera Lens, 16MP High Resolution Lens
Product Advantage
1, Ultra 4K 135 degree Wide Angle Lens for Action Camera and Drone Camera
2, 16 Megapixel high resolution Sharpest Camera Lens
3, 1/1.8 IMX 178 big format 4mm 4K Camera Lens
4, Widely used in multiple field ( see as following)
Product Specification:
keying technical feature of 16MP action camera lens

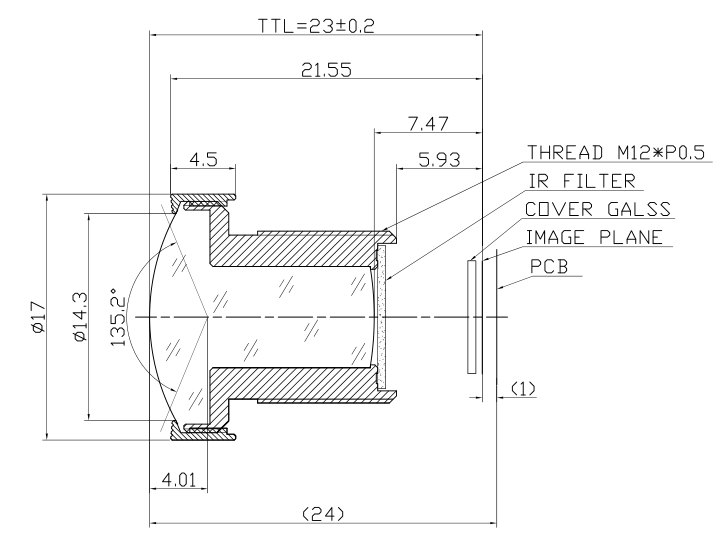

1，TTL： 23mm
2, EFFECT Focal length：4.0mm
3, Aperture F/No: 2.0
4, Optical Back Focal Length：7.47mm
5, Mechnical Back Focal Length：5.93mm
6, Max image circle： 10.3
7, FOV (D/H/V)： 135.2/110.4/72.6 degree
(1/1.8 IMX178 Cmos)
8, TV Distortion: H:-14.8%, V:-35%
9, Relative illumination: >65%
10, CRA: <14.86 degree
11, mount type: M12*P0.5
12, Lens construction: Glass&IR E
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H
17, Effective Resolution: 16 Megapixels Ultra 4K

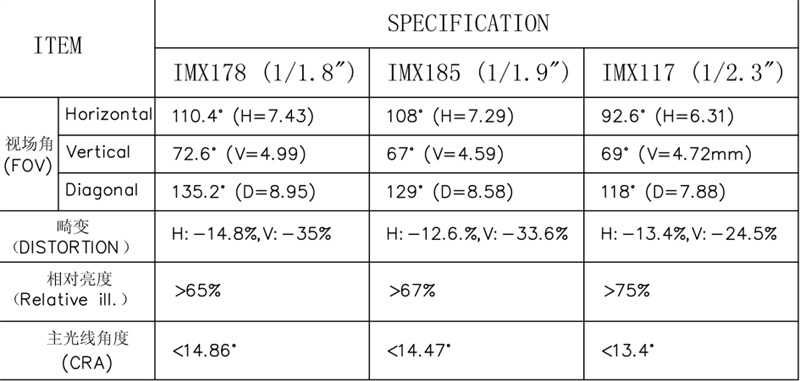

Keying technical datasheet of 4mm 16MP Drone Lens
Product Application
Lens for Car dash DVR camera
Lens for 4K FPV DJI drone camera
Lens for 4K sport action camera gopro
Lens for Smart Home camera
Lens for Video Conference Camera
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
