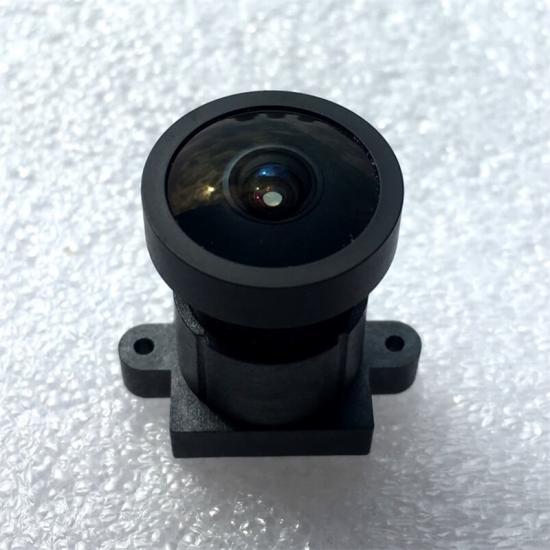

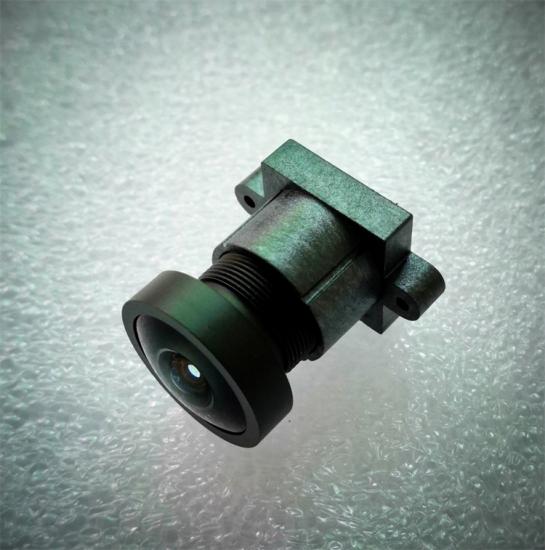

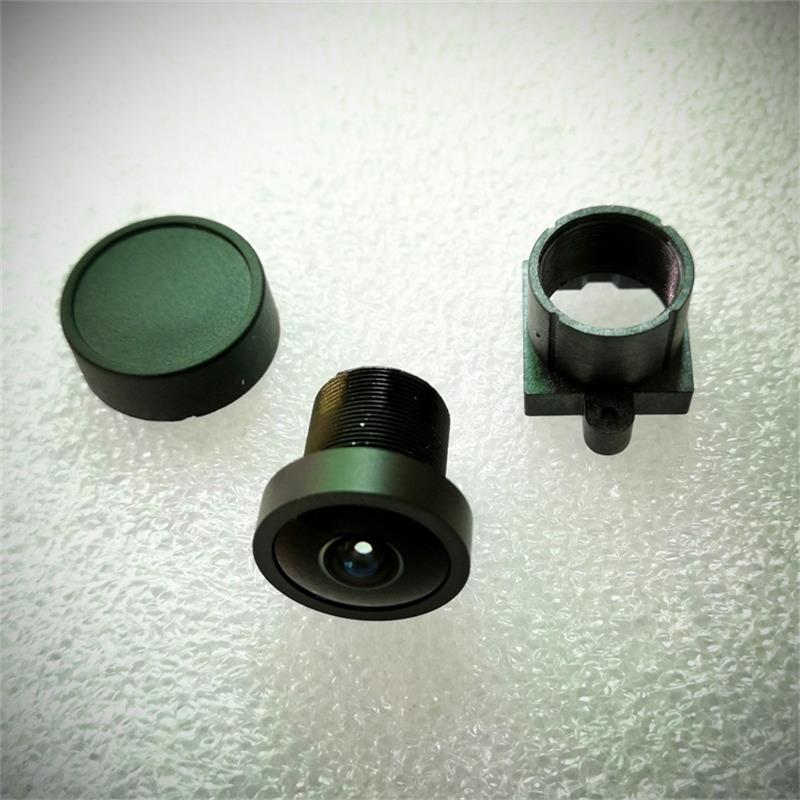

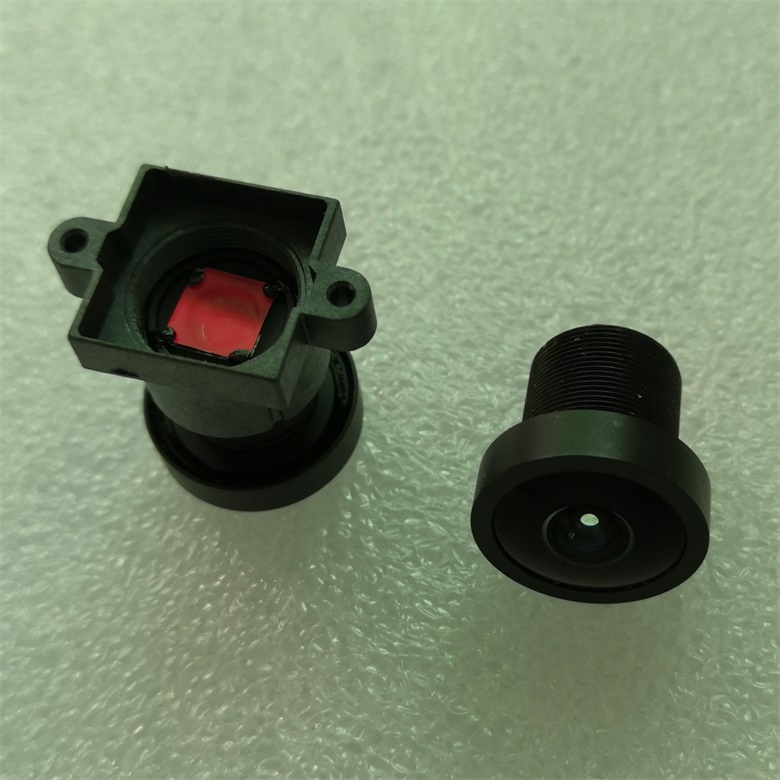

Product Name: 4K Ultra Lens for action camera Gopro
Product Advantage:
1, 16 Megapixels resolution 4K Ultra Lens
2, work with 1/2.3'' sony IMX078 cmos sensor insure top quality image and video
3, 141 degree Wide Angle lens used for gopro, sport Camera Lens and AR Lens
4, acceptable 15% distortion， Japanese imported glasses materials
Product Specification

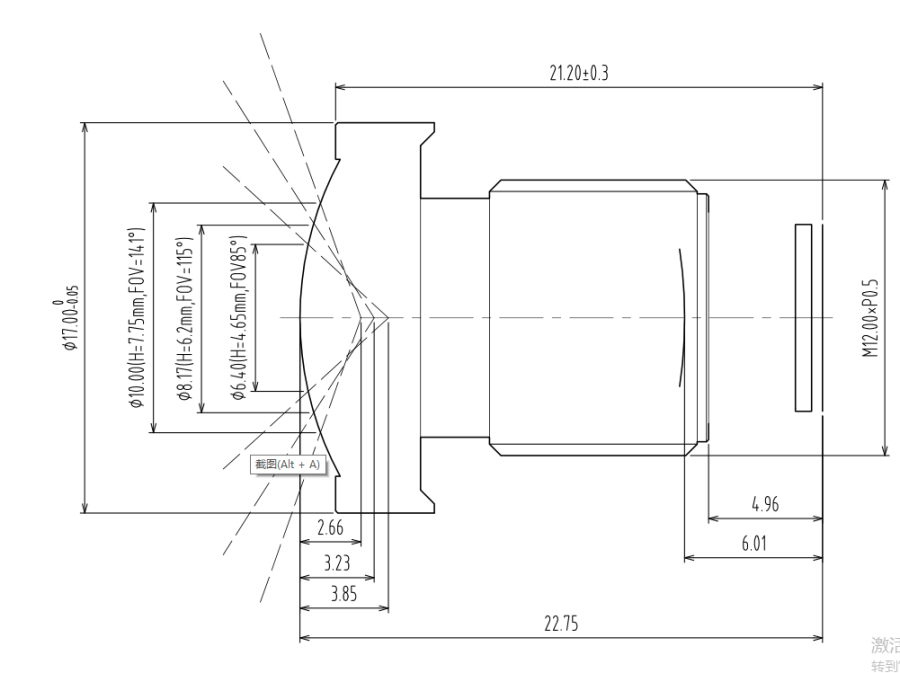

Technical Feature of 3.1mm 4K Wide Angle Lenses
1,Effect Focal Length: 3.10mm
2,Back Focal Length: 6.01 mm
3,Flange.Focal.Length: 4.96mm
4,Aperture F/NO: 2.60
5,Matching Sensor: 1/2.3'' sony imxO78
6,MTF Resolution: 16Megapixel Lens
7,HFOV: 115(y=6.2mm)
VFOV: 85(y=4.65mm)
DFOV: 141(y=7.75mm)
8,TV distortion: 15%
9,Thread size: M12xP0.5
10,Lens Structure: 7G full glass
11,IR filter: 650IR
T avg>=88% @420-600nm
T=50% ①650±10mm
Ta vgc<=5% @700-1050nm

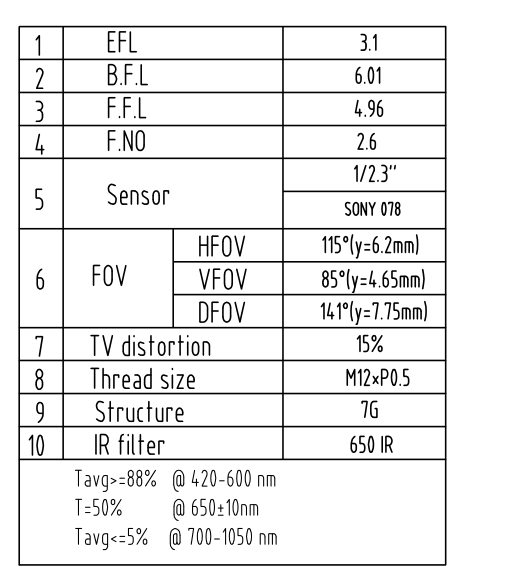

technical datasheet of 3.1mm Gopro Lens
Product Application
Lens for 4K FPV DJI drone camera
Lens for 4K sport action camera
Lens for 4K cctv camera
Lens for Car DVR driving recorder
Lens for VR/AR 360 panoramic camera
