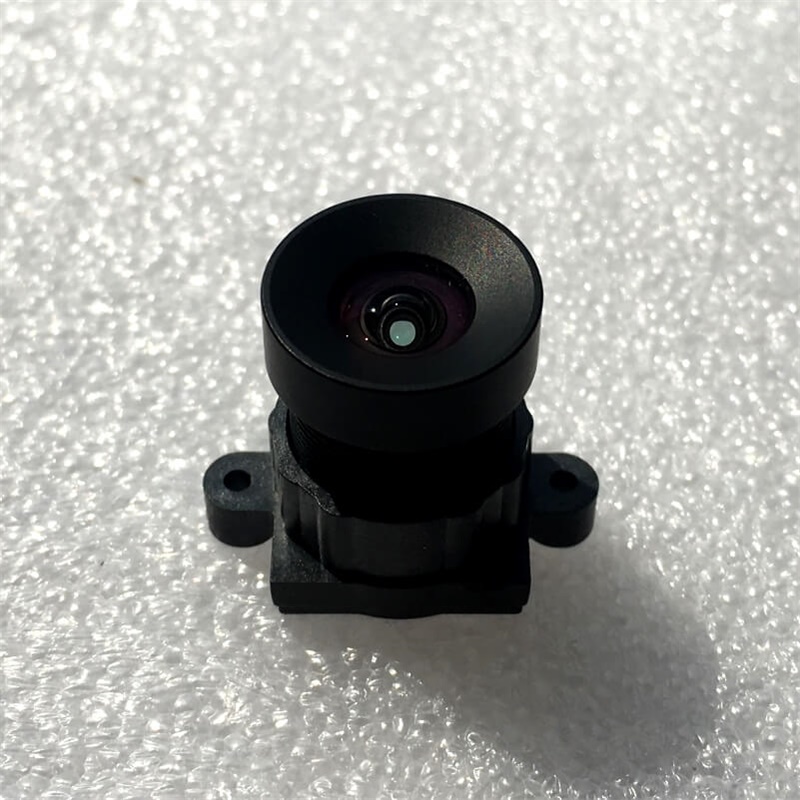

Product Name: 1/3'' 3.0mm face reader facial recognition camera 0.9% low distortion m12 lens for car ADAS DMS
Product Advantage
1, short TTL M12 Zero Distortion Lens
2, Less than 1% optical distortion ideal for driver status monitoring system
3, Horizontal 86 degree good for in car cabin camera lens
4, Lenses materials are imported from Japan
Product Specificaiton
Technical Feature of 3mm Low Distortion M12 Lens
1,Effect Focal Length: 3.00mm
2,Back Focal Length: 3.46mm
3,Flange.Focal.Length：2.05mm
4,Aperture F/NO：2.5
5,Matching Sensor：1/2.7", 1/3"
6,HFOV 86° 76°
VFOV 55° 60°
DFOV 95° 89°
7,TV distortion： 1% 0.9%
8,Thread size： M12xP0.5
9,Lens Structure： 2GP
10,IR filter 650IR
T avg>=88% Q420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm
11, TTL: 14.89mm

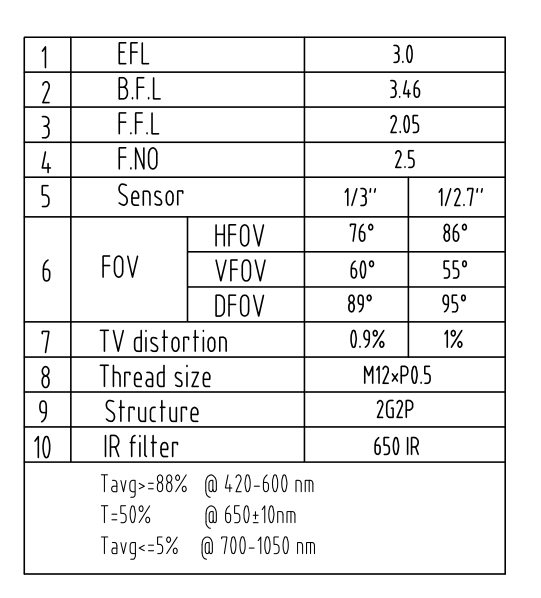

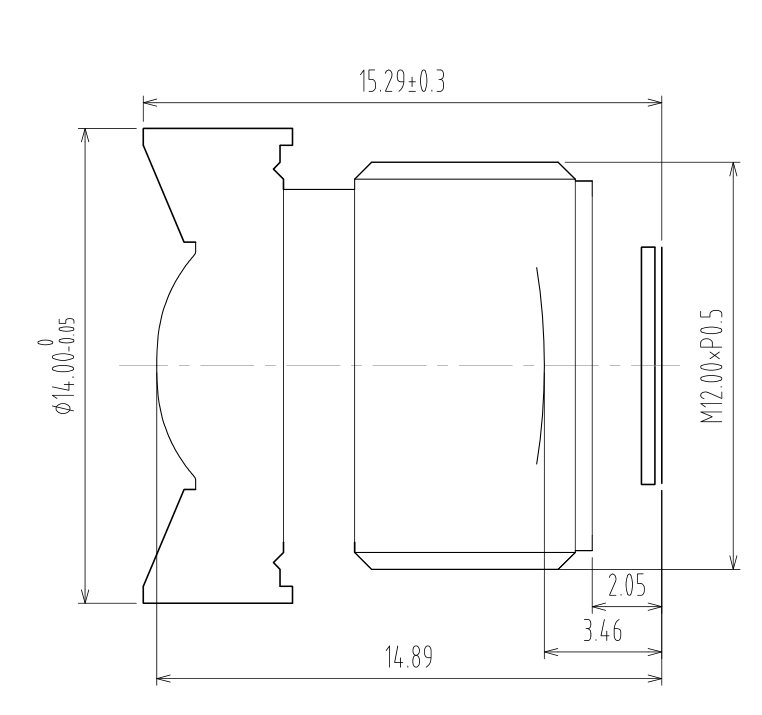

Technical datasheet of 3mm Zero Distortion m12 Lens
Product Application
lens for automotive DMS ( driver monitoring system) camera
lens for video conferencing camera low distortion
lens for face recognition camera
lens for face reader
lens for any camera no distorion needed
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China
Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,
Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens
Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera
their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,
CS Mount, C mount, F mount Industrial Camera Lenses too
welcome to share your lens requirement or product idea with us to discuss and proceed
thank you very much
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
Application of our goobuy lens
1. Automotive side view lens, SVS lens, DMS, Reversing lens, surround view lens, ADAS camera, front view lens,E-mirror lens，backup camera lens etc
2. Lens for automobile camera, Car recorder lens, Car DVR lens, Car Black Box lens, car dash camera lens
3. CCTV camera lens, security camera lens, IP camera lens, PTZ camera
4. Aerial Photograph drone lens, Police DVR camera,body worn camera, VR panoramic camera
5. Smart home Doorbell, lens for robot camera, gopro lens, action camera lens, DJI osmo pocket wide angle lens
6. 2D/3D barcode Scanner, dental camera lens, document scanner, medical endoscope lens,industrial endoscope Camera
7, lens for face recognition, iris acquisition, biometrics recognition, image acquisition and AI Camera Intelligent recognition
8, video conferencing camera lens, Industrial Camera, FA Lens, Machine Vision Camera
Intelligent recognition, Gao Paiyi, face recognition, iris acquisition, biometrics, video conferencing, image acquisition, industrial identification, visual positioning, scanner, machine vision, smart logistics, anti-fatigue driving,car assisted driving, 3D modeling
