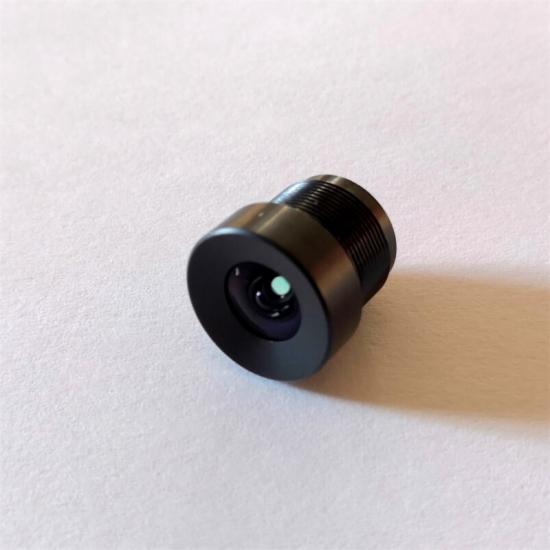

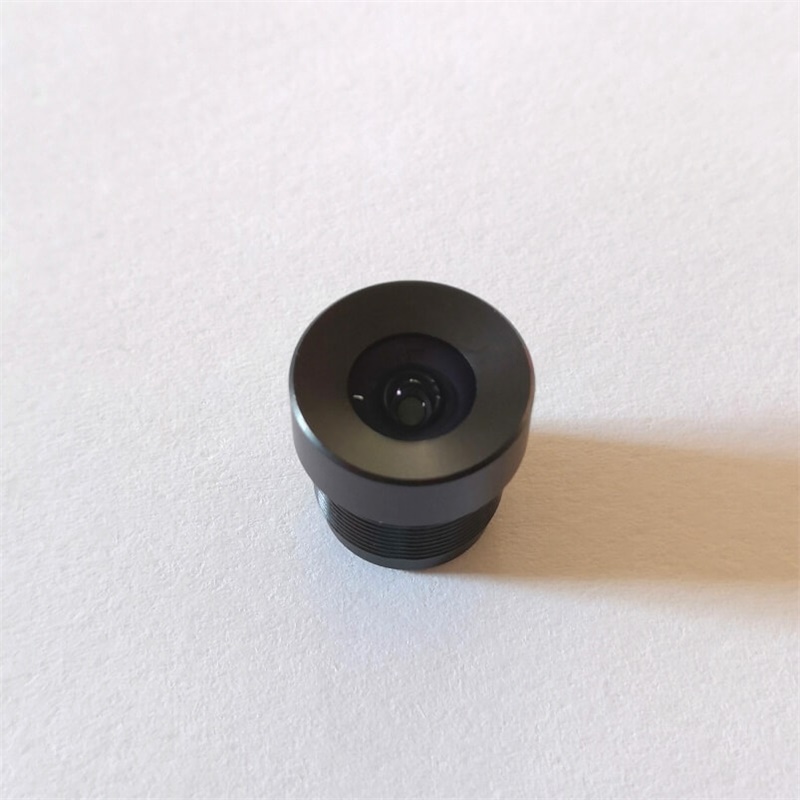

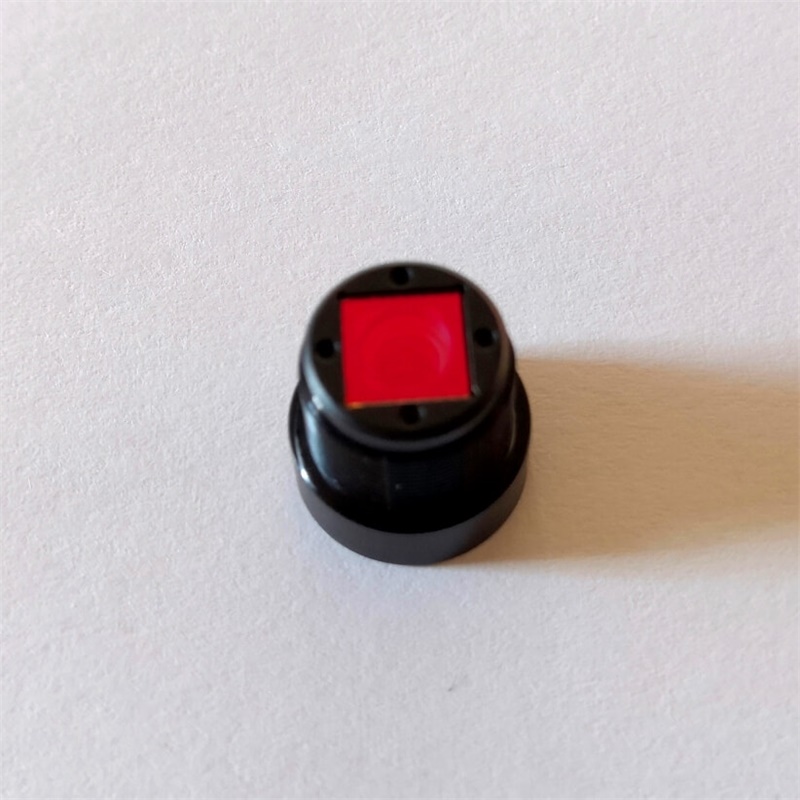

Product Name: 1/3 sensor 3mm F2.4 1080P CCTV Face reader Camera Lens No Distortion
Product Advantage:
1, less than 1% Low Distortion Wide Angle Lens
2, ideal for CCTV Face Recognition Lens
3, ideal for portable document scanner no distortion
4, Remove and correct unexpected spherical aberration by using asperical Lenses
Product Specification
Technical Feature of 3.0mm M12 Distortionless Lense
1,Lens Construction: 1G3P+IR
2,Sensor Format: 1/4'' cmos sensor
Horizontal 2028 Pixels
Vertical 1536 Pixels
3, Sensor Pixel Size
Hortizontal 2.2um
Vertical 2.2um
3,Light Source Range 420-680m,
4, Effect Focal Length 3mm
5, Aperture F/No: 2.4
6, TTL: 15.81mm
7, MBFL: 2.55mm Inclu 0.3mm IRF and 0.4mm Cover Glass
8，View Angle FOV
Horizontal: 71.26 degree (Image Height:2.25mm)
Vertical: 58.36 degree (Image Height:1.69mm)
Diagonal: 85.78 degree (Image Height: 2.82mm)
9, MTF Resolution
On Axis Center 227 LP/MM
80% Field 227 LP/MM
10, Optical Distortion -0.75%
11, TV Distortion H-0.7%, V-0.42%
12, Ref Relative illumnation: 63.16%
13, CRA (chief Ray Angle) <19.62%
14, Max Image Circle: 6.0
15, Mount type: M12*P0.5

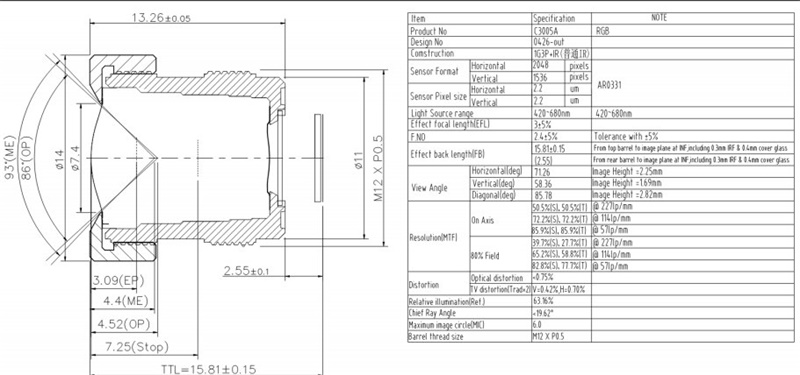

Technical datasheet of 3mm CCTV Face Recognition Lens
Product Application
1，Lens for CCTV Face recognition Camera
2, Lens for Document Scanner
3, Lens for portable handheld Scanner
4, Lens for Facial reader
5, Lens for Car ADAS Camera, DMS Camera
6, Lens for Cabin Camera in Car
7, Lens for high-speed photographic apparatus
Custom Design Lenses
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device, we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
