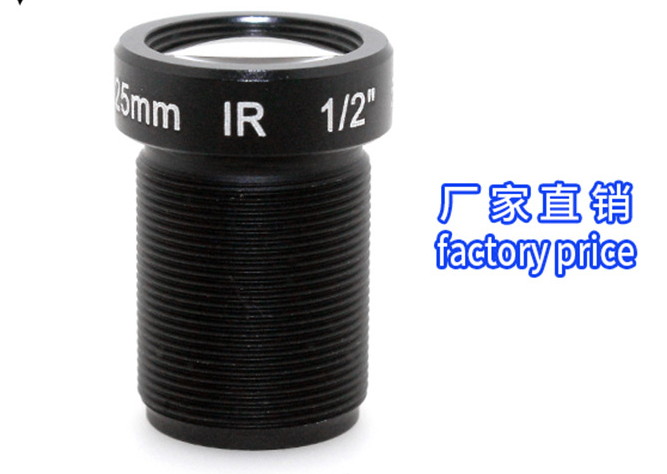

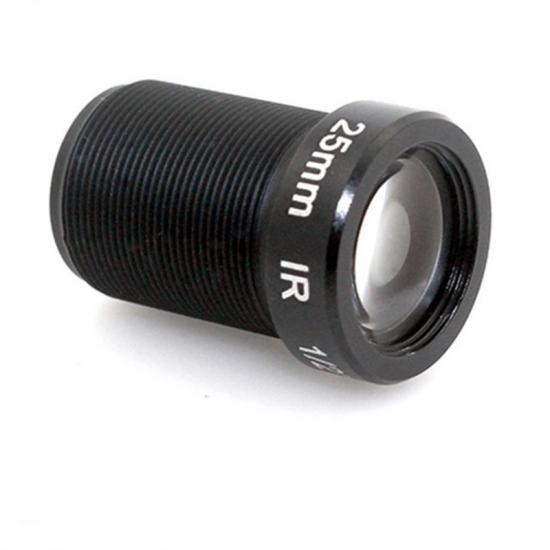

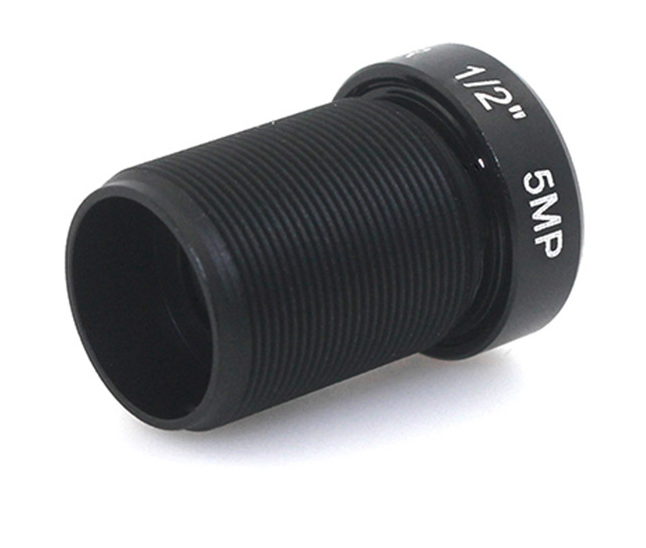

Product Name: Large Format 1/2 inch Cmos 25mm Telephoto Lenses
Product Advantage:
1, 25mm Camera Lens used for ITS and telescope
2, barrel made of aluminum alloy raw material, surface oxidized, All black Design
3, Remove and correct unexpected spherical aberration by using asperical Lenses
Product Specification
Technical Feature of 25mm 5MP M12 Lens
1, MTF Resolution: 5 Megapixels
2, Focal Length: 25mm
3, Aperture F/No: F2.4
4, Field Angle D/H/V
1/2'' Cmos 18.8/15.04/11.28 degree
1/3'' Cmos 13.8/11/8.3 degree
1/4'' Cmos 10.3/8.24/6.18 degree
5,Optical Distortion: 1/2 cmos -1%
1/3 cmos -0.55%, 1/4'' -0.32%
6,M.O.D: 0.3 Meter
7,Dimension: C14*19.9mm
8, Net Weight: 5gram
9， OBFL: 11.5mm
10, MBFL: 6.1mm
11, IR Correction: Yes
12, Operation of Iris: Fixed Iris
13, Working Temperature: -20 to +60 degree
14, TTL: 19.9mm
25mm CCTV Lens Application
1, Lens for telephoto Camera
2, Lens for security Camera
3, Lens for ITS Lens
4, Lens for surveillance camera
5, Lens for telescope
6, Lens for Forest Camera
where you can use our other goobuy Lens?
1. Automotive side view lens, SVS lens, DMS, Reversing lens, surround view lens, ADAS camera, front view lens,E-mirror lens，
backup camera lens etc
2. Lens for automobile camera, Car recorder lens, Car DVR lens, Car Black Box lens, car dash camera lens
3. CCTV camera lens, security camera lens, IP camera lens, PTZ camera
4. Aerial Photograph drone lens, Police DVR camera,body worn camera, VR panoramic camera
5. Smart home Doorbell, lens for robot camera, gopro lens, action camera lens, DJI osmo pocket wide angle lens
6. 2D/3D barcode Scanner, dental camera lens, document scanner, medical endoscope lens,industrial endoscope Camera
7, lens for face recognition, iris acquisition, biometrics recognition, image acquisition and AI Camera Intelligent recognition
8, video conferencing camera lens, Industrial Camera, FA Lens, Machine Vision Camera
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
About US
we are Chinese professional Plastic Lens, Glass Lens and other optical Lens suppliers where have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment.
Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.
Main Lens cover Car camera Lens (Lens Automotive),CCTV Lens, Fisheye Lenses, Zero Distortion Lens, Pinhole Lens, Standard M12 camera Lens, Varifocal Lenses etc. of course we provide Lens Shop Online here, Wholesale or retails or Agent and Custom Made Lense
