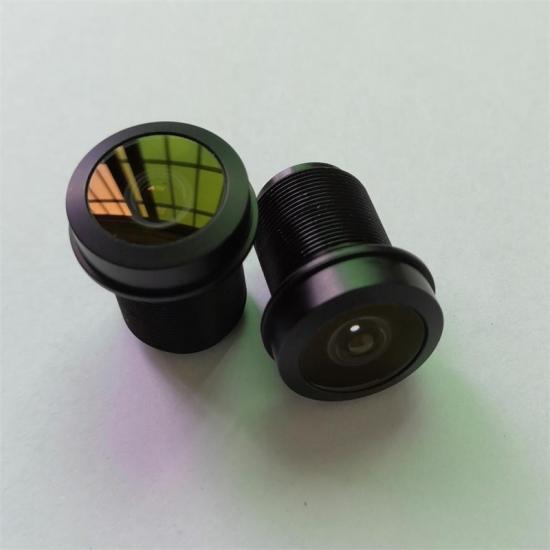

Product Name: 1/2'' os08a10 6mm DMS face reader Driver Status Monitor Camera Lens 1% low distorion ADAS 1/2.3''
Product Advantage
1,6mm Low distortion good for Car ADAS, DMS/ Driver Status Monitor Lens
2,meanwhile used for Face Recognition Camera Lens
3,CE and RoHS Approval, ODM or Custom made Lenses available
4，It Apply Intelligent recognition, Face recognition, Iris Acquisition,Biometrics Recognition, Vide conerencing Camera, Anti-Fatigue driving monitor,Car ADAS, Document scanner, Image Acquisition etc
product Specification：
keying technical feature of 6mm Car Adas Camera Module Lens, Face Reader Lens
1，TTL: 16.73mm
2, EFFECT Focal length: 6mm
3, Aperture F/No: 2.4
4, Optical Back Focal Length: 7.86mm
5, Mechnical Back Focal Length: 5.06mm
6, Max image circle: 9.7
7, FOV (D/H/V): 48.1/38.5/29 degree
(1/4 OV8858 Cmos Sensor)
8, Optical Distortion: H:-1.96%, V:-3.45%
( very low distortion)
9, Relative illumination: >91%
10, CRA: <8.35 degree

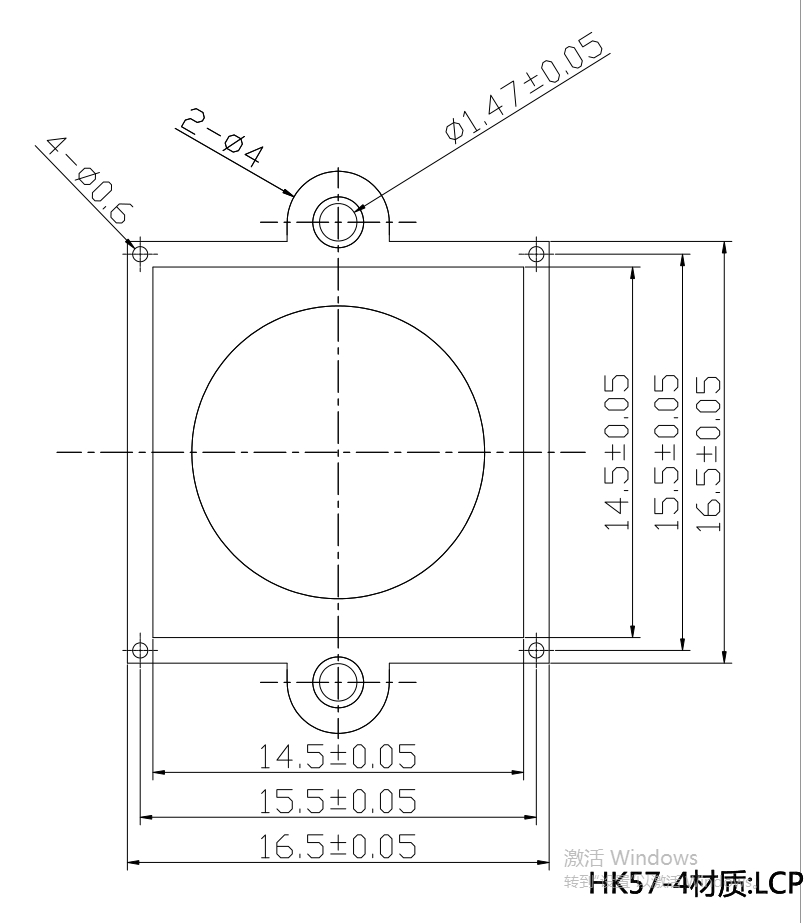

11, mount type: M12*P0.5
12, Lens construction: 6G+1IR Full Glasses
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H
17, Unit Net weight: 5 gram
18, MTF resolution: Center 200Lp/mm, 0.7Area 160Lp/mm 5Megapixels

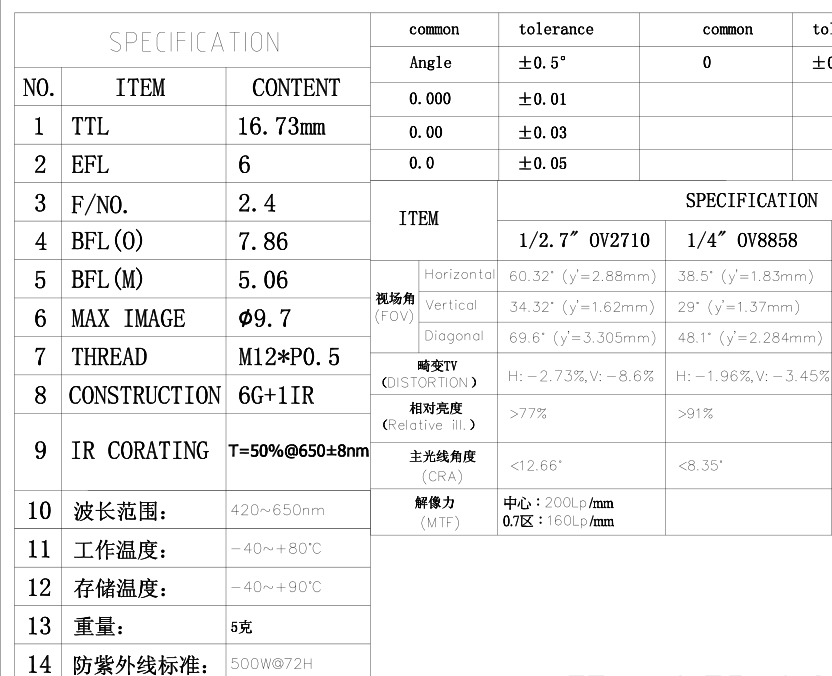

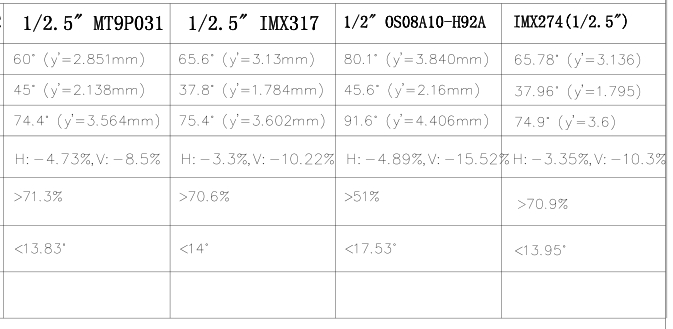

Keying technical datasheet of 6mm Lens for Car ADAS Camera
Product Application
lens for in-car driver monitoring DMS camera
lens for in car cabin camera
lens for Adas Camera Module
lens for face recognition camera, face reader
lens for any camera no distorion needed
Custom Camera Lens
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device,we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
