3MP 180 Degree Fisheye Lens USB Camera OV2710

HFOV 180 degree Ultra Wide Angle, 2MP video recording

Multifunctional application, interchangeable Lens design


  • Item No.:

    USB-1.5mm-3MP
  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

    China
  • Min order:

    100
  • Shipping port:

    Shenzhen
  • Lead Time:

    7 days
  • Keying selling point:

    180 degree Fisheye Lens 1080P USB Cameras

  • Product Detail

Product Name: 180 degree Fisheye Lens Ultra Wide Angle FULL HD 1080P USB Cameras with 0.01 low lux good night vision

Product Advantage

1, Horizontal 180 degree Fisheye Image and Video, USB Fisheye Camera

2, 1080P FHD Video output and connect with any device with USB interface

3, 0.01Low lux, low light starlight Cmos sensor insure good night vision too

4, ODM DIY Fisheye Webcam with Interchangeable lens available design to

   extend More various commercial and industrial Application too

5, Compact Mini Design, Free drive, Plug and play, Hands free filming

6, Can change into Type-C, USB Micro, AHD/BNC Analog Signal interface

Fisheye Lens Usb Webcam


Product Specifications Of 180 degree USB Cameras

Product Name

Fisheye USB Camera

Cmos Sensor

OV2710 Sensor low lux 0.01

Video Resolution

1920X1080, 1080P@30fps

Lens FOV

180 degree Super Fisheye Lens

Photo Pixel

3Megapixels

Photo Format

MJPG

video output

MJPG/YUY2

Lens Focal Length EFL

1.5mm  180° Fisheye Lens

Lens Construction

6G+IR

F/No Aperture

F2.0

AGC

OSD

Minimum illumination

0.01 LUX

S/N Ratio

≥52dB

Gammar

0.45

Backlight Compensation

OSD

Shutter

30f/s

White balance

Auto

Working temperature

-10~+50℃

Power

5V

Audio Microphone

Built in Microphone, Support

System Sync

internal

Power consumption

150mA

Product Size

15*15*10mm

Signal Type & Interface

usb 2.0 interface, digital Signal

Length of Cable

3 Meter standard1m or other size available

System

WIN10/WIN7/WIN8/Linux/Android/Apple Mac

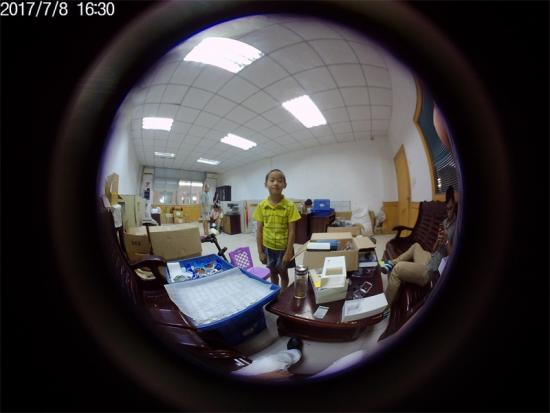

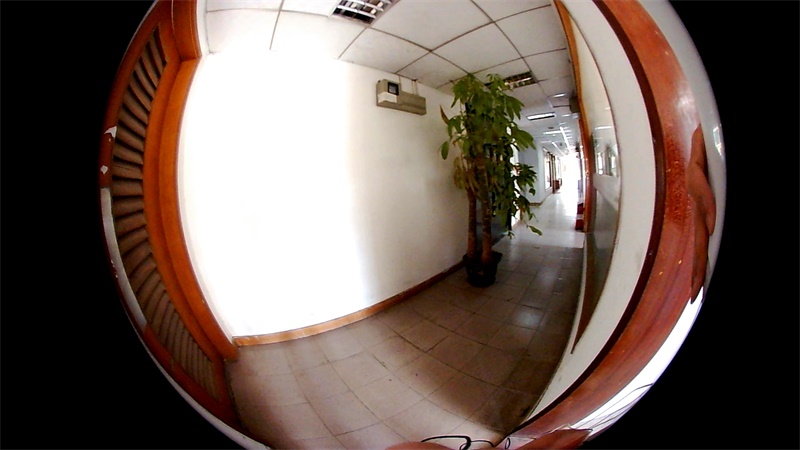

Actual Image/video screenshot of Fisheye Lens Usb Webcam

180 Fisheye USB Camera image

Note & Remarks

1, You can change our other focal length M12 board lens include but not only 3.7mm pinhole,  2.1mm wide angle,

2.8mm wide angle, 16mm Telephoto, 25mm Telephoto, 5MP CCTV Lens, Low distortion Lens, No distortion Lens,

220 degree Ultra Fisheye Lens, Black light F1.0 Lens, 4mm/6mm/8mm CCTV lens, Pinhole Lens and button Lens etc

to meet your special requirement of projects

2, We can change standard USB cable into foldable adjustable Pipe (shorter length)

3, its Interface connector can be changed or custom by USB Micro, BNC/AHD, OTG Type C etc

4, You are kindly advised to equip 3-4 various focal length Lens to meet various application together in your order,

then you can interchange various lens freely locally, no need buy more cameras more at higher cost again

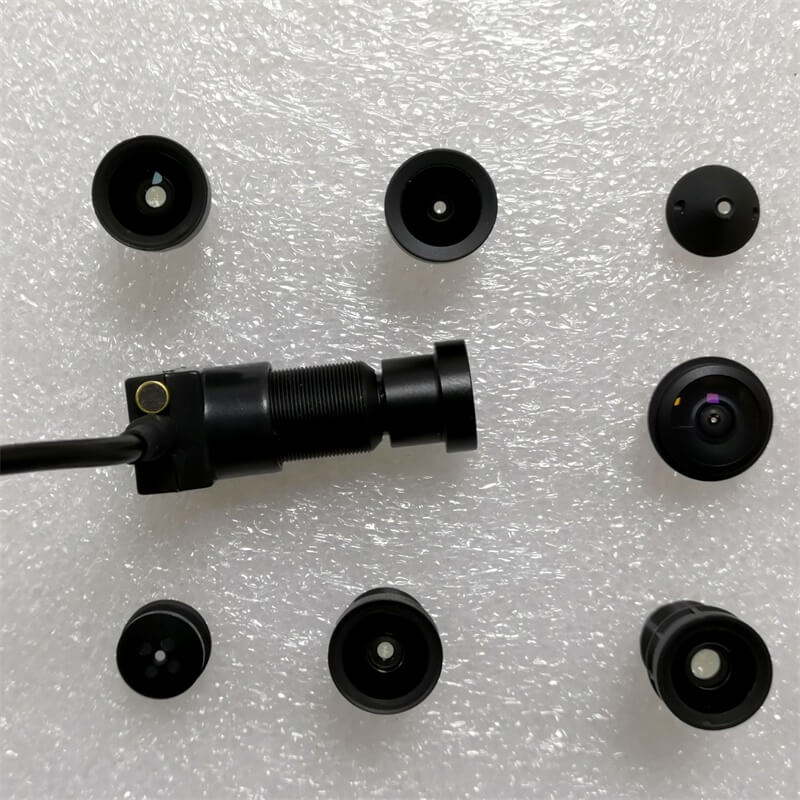

You can DIY change following various focal length M12 Lens to effect multi-function and various applications to save cost

Fisheye Webcam

Product Application

1. 360 Degree Monitor industrial Equipments/machines/device (Machine Vision)

2. 360 Panoramic Airplane Security, 360 degree Gas station Security,360 Farm monitoring, Forest Monitoring,

Dangerous environmental monitoring, etc.

3. Wide Angle USB Security Camera, warehouse CCTV, Car Parking Security

4. automobile Industry, Vehicle video applications


OEM/ODM Custom-Made USB Cameras

Currently we can provide more than 10 models USB Camera for various commercial / industrial applications, our camera with DIY interchangeable Lens design, so you can choose and change our other optical lens models online to meet your special requirement for more projects or business.In addition, we can R&D more advanced 4K USB Cameras or other bigger size Cmos sensor or other OV or Sony Cmos USB Camera ( other interface connectors available) , welcome to tell us more details then discuss together


P.S. We supply Sony CCD Camera and OTG Camera for Andriod Phone too
