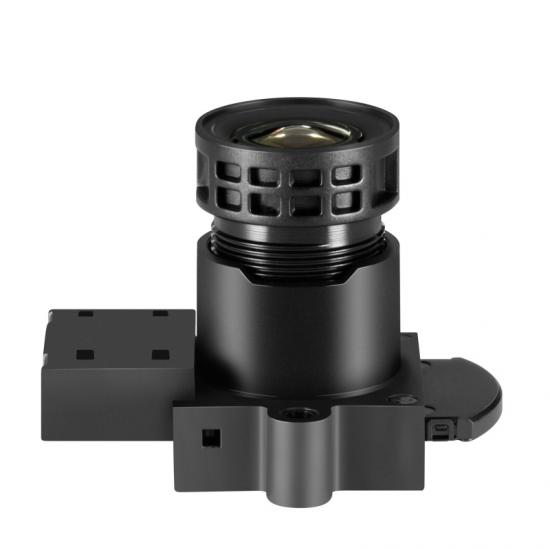

Product name: 4.22mm m16 lens mount 4K 8MP 1/1.8'' superstar black light cctv F1.0 Lens (2.8mm equivalent)
Product Advantage
1, Wide Angle Lens reach 134 degree
2, F1.0 big aperture perfect for Night Camera Lens
3, 8MP 4K high resolution and F1.0 Night Vision Lens For Camera
4, Remove and correct unexpected spherical aberration by using asperical Lenses
Product Specification

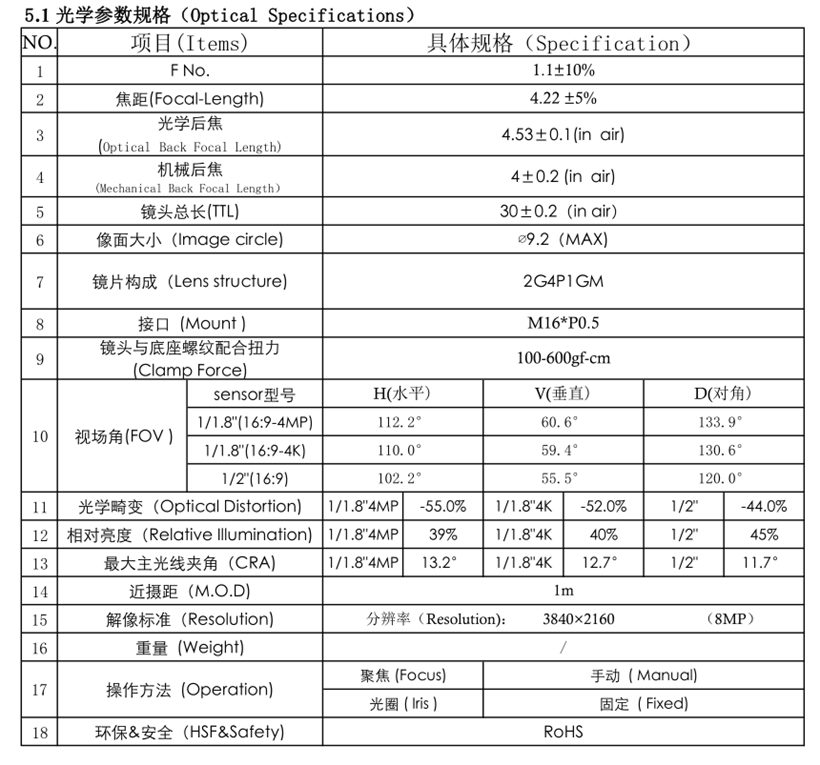

optical specification of 4.22mm m16 F1.0 Black Light Lens
1, Focal length: 4.22 ±5%
2, Aperture F/No: 1.0±10%Black light / super starlight visible
3, Optical back focal length (OBFL): 4.53±0.1(in air)
4. Mechanical back focal length (MBFL) :4±0.2 (in air)
5. TTL: 30±0.2（in air）
6, Max image circle: ∅9.2（MAX)
7, Lens structure: 2G4P1GM
8, Mount type: M16*P0.5
9, Clamp Force: 100-600gf-cm
10, FOV (D/H/V)1/1.8"(16:9-4MP)
D 133.9°/ H 112.2° / V 60.6°
11, Optical Distortion 1/1.8"4MP-55.0%, 1/2"-44.0%
12, Relative illumination 1/1.8"4MP39% , 1/2"45%
13, CRA: 1/1.8"4MP13.2°, 1/2"11.7°
14, M.O,D.1 meter
15, MTF resolution 3840×2160 （8MP）
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS
Technical Datasheet of 4K Night Vision Lens For Camera
Product Application
1, Lens for Night Cameras, Night Vision Cameras
2, Lens for Night Vision CCTV Security Camera，
3, Lens for Black Light F1.0 Surveillance Cameras
3, Lens for Professional IP Camera
4, Lens for Truck Camera, Bus Camera, Trailer Camera
5, Lens for Starlight Video Camera
6, Lens for Automobile Camera
7, Lens for Wifi Door phone Camera
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval. Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc. of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
