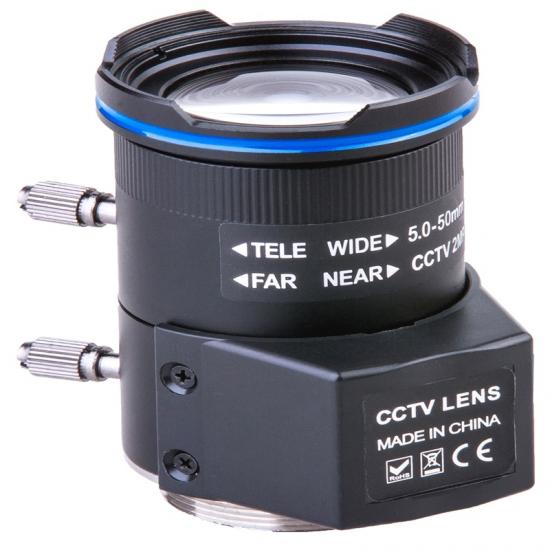

Product name: 5 50mm Varifocal Lens with DC IRIS CS Mount For CCTV Zoom Camera
Product Advantage:
1, 5-50mm Manual Focus Varifocal lens CS Mount
2, Support Auto Iris, Automatic electronic shutter function
3, 2K resolution and 10X Vari-focal Lens For Zoom Camera CCTV Night Cameras
Product Specification:

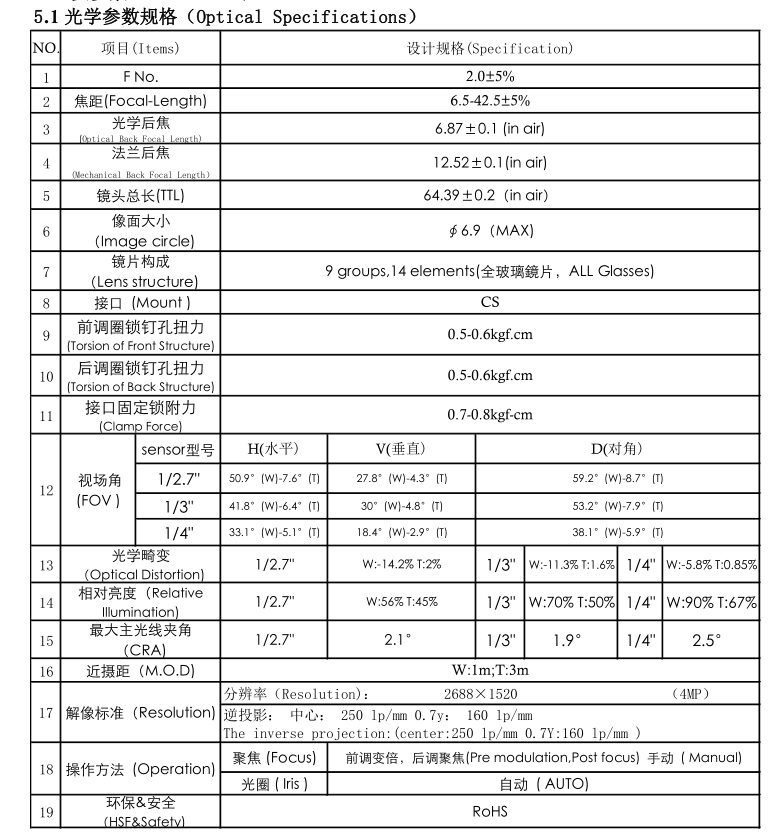

optical specification of manual focus 5-50mm Varifocal Lens
1, Focal length: 6.5-42.5±5%
2, Aperture F/No: 2.0±5%
3, Optical back focal length (OBFL): 6.87±0.1 (in air)
4. Flange back focal length (MBFL): 12.52±0.1(in air)
5. TTL: 64.39±0.2（in air）
6, Max image circle: ∮6.9（MAX)
7, Lens structure: 9 groups,14 elements(ALL Glasses)
8, Mount type : CS mount
9, Clamp Force: 0.7-0.8kgf-cm
Torsion of Front Structure 0.5-0.6kgf.cm
Torsion of Back Structure 0.5-0.6kgf.cm
10, FOV (D/H/V) 1/2.7"
HFOV 50.9°(W)-7.6°(T),
VFOV 27.8°(W)-4.3°(T)
DFOV 59.2°(W)-8.7°(T)
11, Optical Distortion 1/2.7"W:-14.2% T:2%,
1/4", W:-5.8% T:0.85%
12, Relative illumination 1/2.7"W:56% T:45%,
1/4"W:90% T:67%
13, CRA 1/2.7"2.1°, 1/4"2.5°
14, M.O,D.W: 1m;T:3m
15, MTF resolution 2688×1520 （4MP）
The inverse projection:(center:250 lp/mm 0.7Y:160 lp/mm )
16, Zoom operation: manual,
Focus operation: Pre modulation,
Post focus, manual

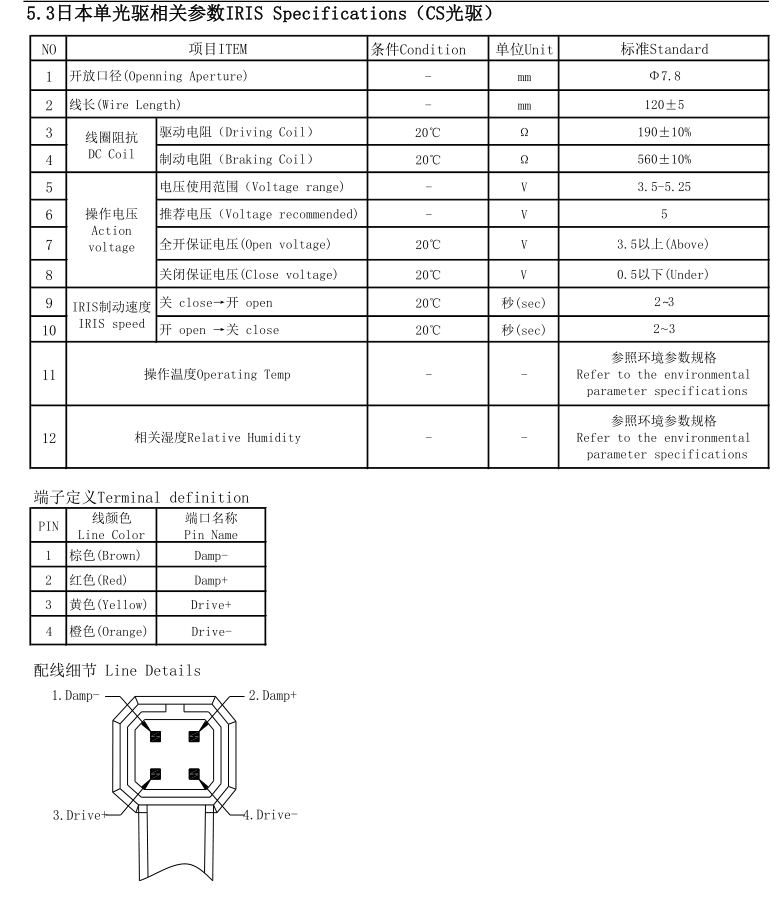

Iris operation: Auto DC iris Lens
17, HSF&safety: RoHS

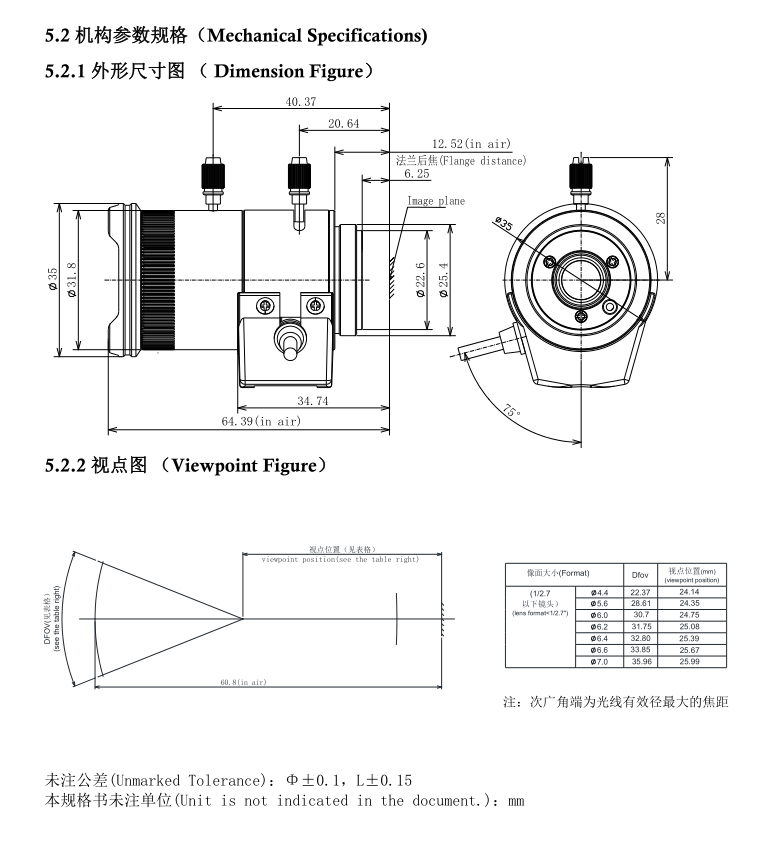

Technical datasheet of 5-50mm Varifocal Lens
Product Application of 10X Zoom Varifocal Lenses
1, Lens for Varifocal CCTV Camera
2, Lens for Mini High Speed Camera
3, Lens for Outdoor PTZ Camera
4, Lens for Varifocal IP Network Camera
5, Lens for CCTV Dome Zoom Camera
6,Lens for Vari-Focal Surveillance camera
7, Lens for Night Vision Camera, Lens for CCTV Night Cameras
8, Lens for Motorized AHD Camera
10X Optical Zoom and from Wide 5mm to 50mm Telephoto large varifocal range work with cctv varifocal camera perfectly,
you can manual focus any focal length that you want according to actual security conditions to insure best CCTV Monitoring
in addition, we have also motorized 5 50mm 10X Varifocal Lens for sale
here https://www.Vehviscam/5-50mm-10x-varifocal-motorized-zoom-lens-4mp_p126.html
