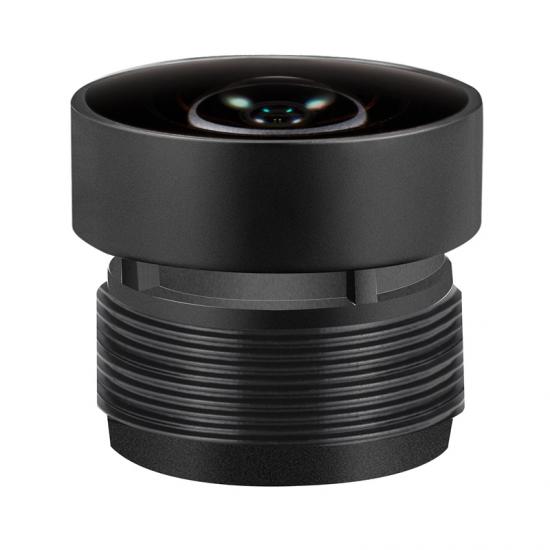

Product Name: 2MP 2.2mm mini M8 Lens used for FPV drone camera
Product Advantage:
1, 190 Degree Fisheye Lens for UAV, DJI Drone, FPV Camera
2, M8 Compact structure, 2MP 1080P Video
3, All Lens will be free from maintenance within Quality warranty period ( 2 years)
Product Specification

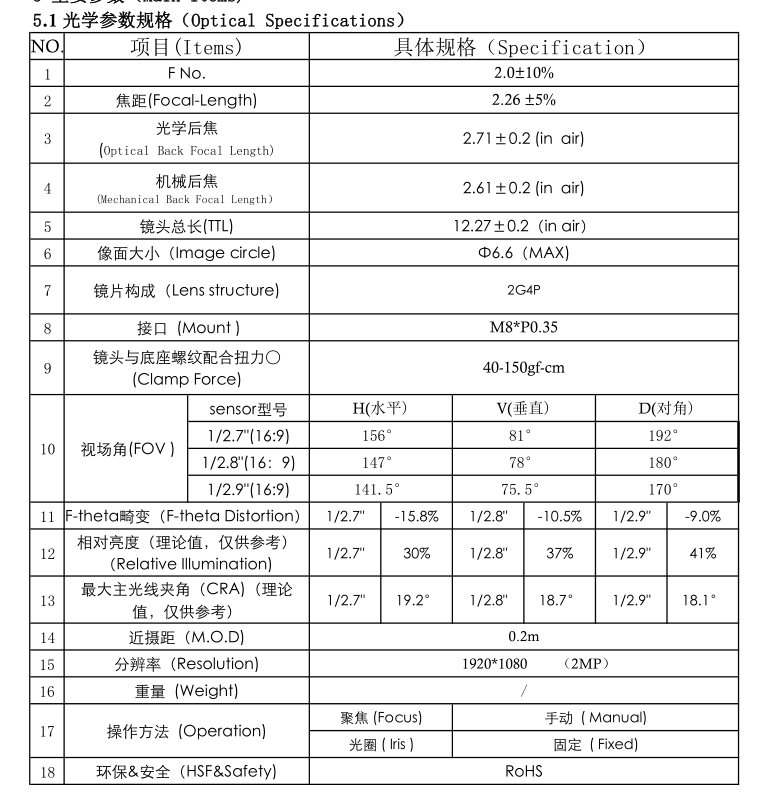

optical specification of 2.2mm M8 Fisheye Lens 190 degree
1, Focal length: 2.26 ±5%
2, Aperture F/No: 2.0±10%
3, Optical back focal length (OBFL): 2.71±0.2 (in air)
4. Mechanical back focal length (MBFL): 2.61±0.2 (in air)
5. TTL: 12.27±0.2（in air）
6, Max image circle: Φ6.6（MAX)
7, Lens structure: 2G4P
8, Mount type: M8*P0.35
9, Clamp Force: 40-150gf-cm
10, FOV (D/H/V): 1/2.7"(16:9) D192°, H156° V 81°
11, Optical Distortion/F-theta Distortion
1/2.7" -15.8%, 1/2.9" -9.0%
12, Relative illumination 1/2.7" 30%, 30% 41%
13, CRA 1/2.7" 19.2°, 1/2.9" 18.1°
14, M.O,D. 0.2 meter
15, MTF resolution: 1920*1080 （2MP）
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS

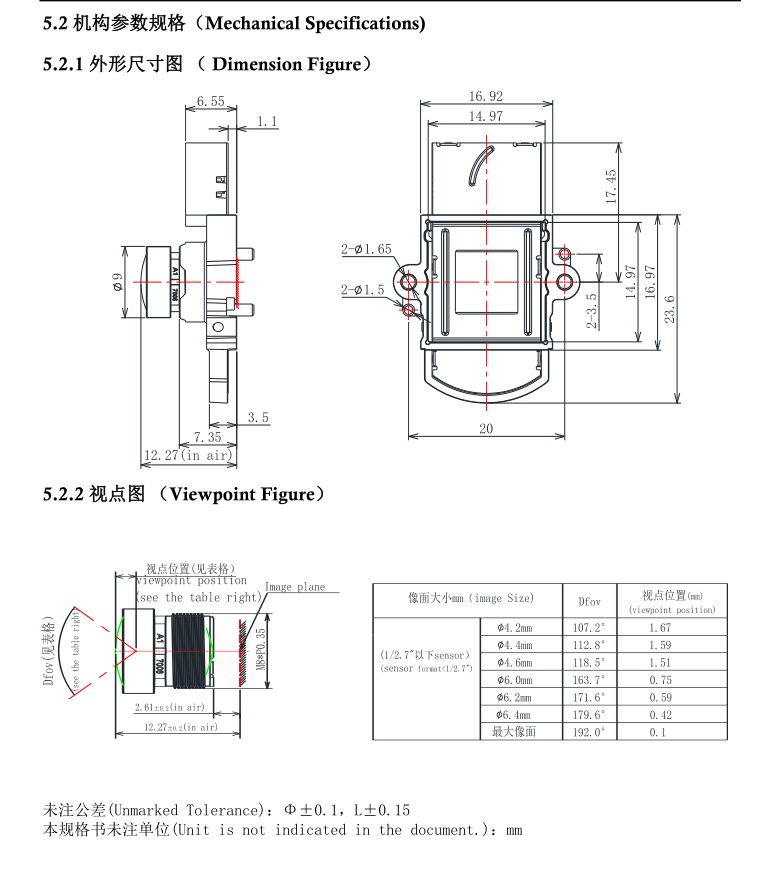

Technical Datasheet of 2.2mm M8 Fisheye Lens For Camera Drone
Lens Application
1, CCTV Camera Lens, Starlight Camera Lens
2, Surveillance camera, Wireless security Camera
3，IP Network Camera, POE Camera, SDI camera
4, Bullet Camera, Dome Camera, AHD Camera
5, Wifi Camera, VR 360 Wifi Camera, Bulb Wifi Camera
6, Night Camera, Night Vision Camera
7, Floodlight Camera, Indoor/ourdoor Camera
8, Security Smart Home Camera
9, 4G/ Solar Panel/ Battery Camera
10, Wifi door Phone Camera, doorBell Camera, USB WebCam,
11, Baby Monitor,Video Recorder
12, Lens for Hikivision and Dahua Camera
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
Custom Fisheye Lenses Lens
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens.
Please show and tell us your exact requirement or demand needed of your Camera or related product device,we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
