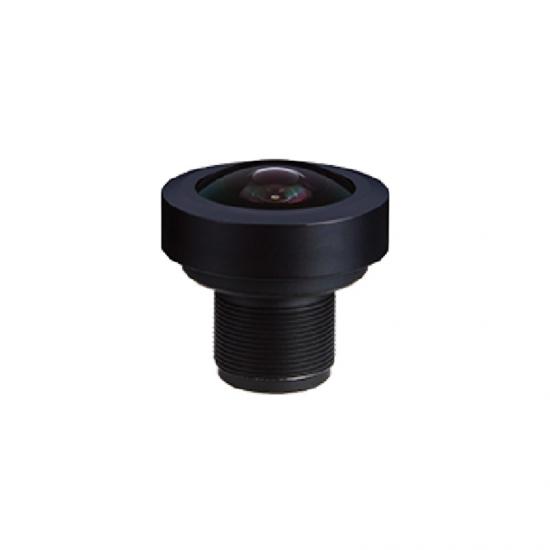

Product Name: 190 degree 1.5mm 4K 8mp fisheye lens 9G optical m12 lenses F1.8
Product Advantage:
1, Full 9G Glass lenses insure top quality video and photo resolution
2, 190 degree fisheye lens for projector
3, 4K and large format 1/2.3’’ cmos good as Lens for Robot Camera
4, Remove and correct unexpected spherical aberration by using asperical Lenses
5, 8MP high resolution good used for automobile industry lenses too
Product Specification

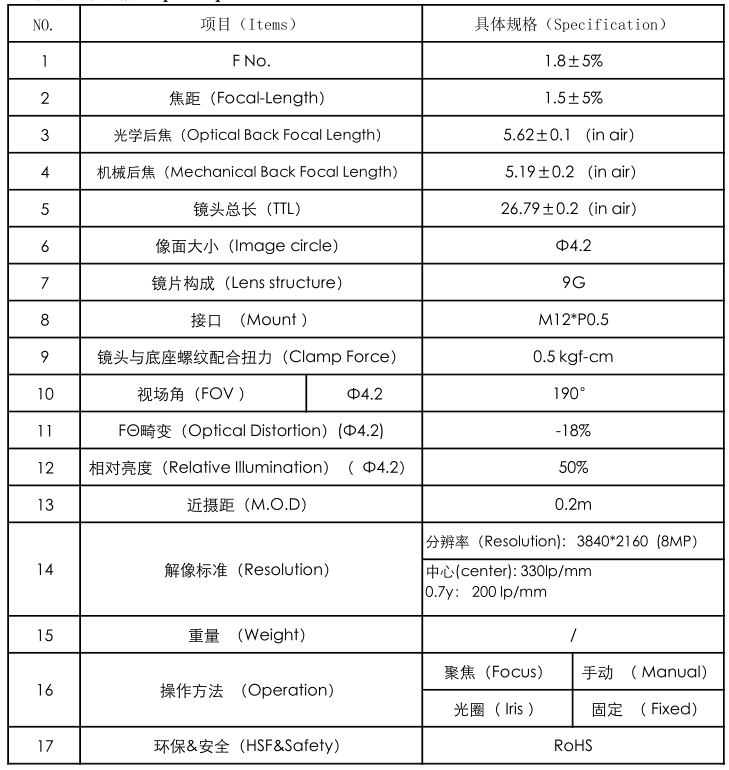

optical specification of 1.5mm 4K fisheye Projector Lens
1, Focal length: 1.5±5%
2, Aperture F/No: 1.8±5%

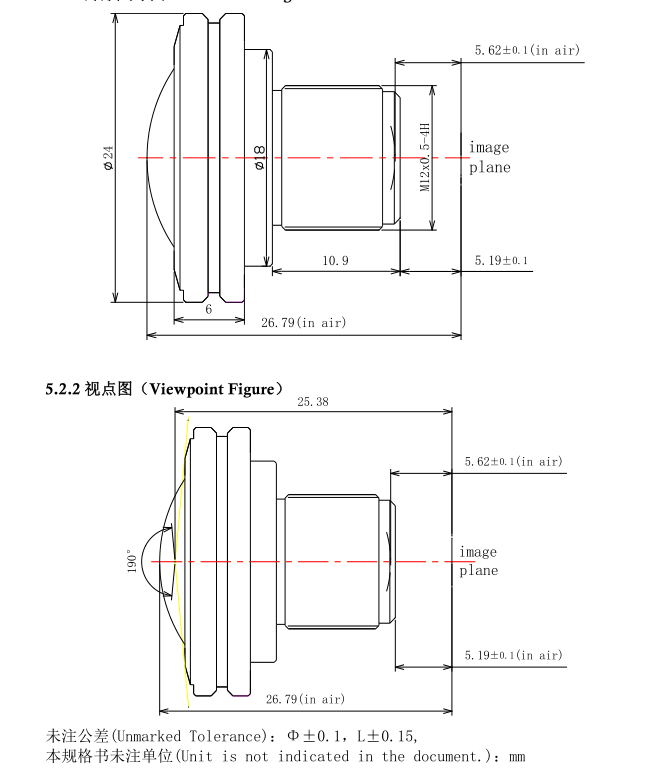

3, Optical back focal length (OBFL): 5.62±0.1 （in air）
4. Mechanical back focal length (MBFL): 5.19±0.2 （in air）
5. TTL: 26.79±0.2（in air）
6, Max image circle: Φ4.2
7, Lens structure: 9G
8, Mount type: M12*P0.5
9, Clamp Force: 0.5 kgf-cm
10, FOV (D/H/V): Φ4.2190°
11, Optical Distortion: Φ4.2-18%
12, Relative illumination: Φ4.250%
13, CRA
14, M.O,D.: 0.2 meter

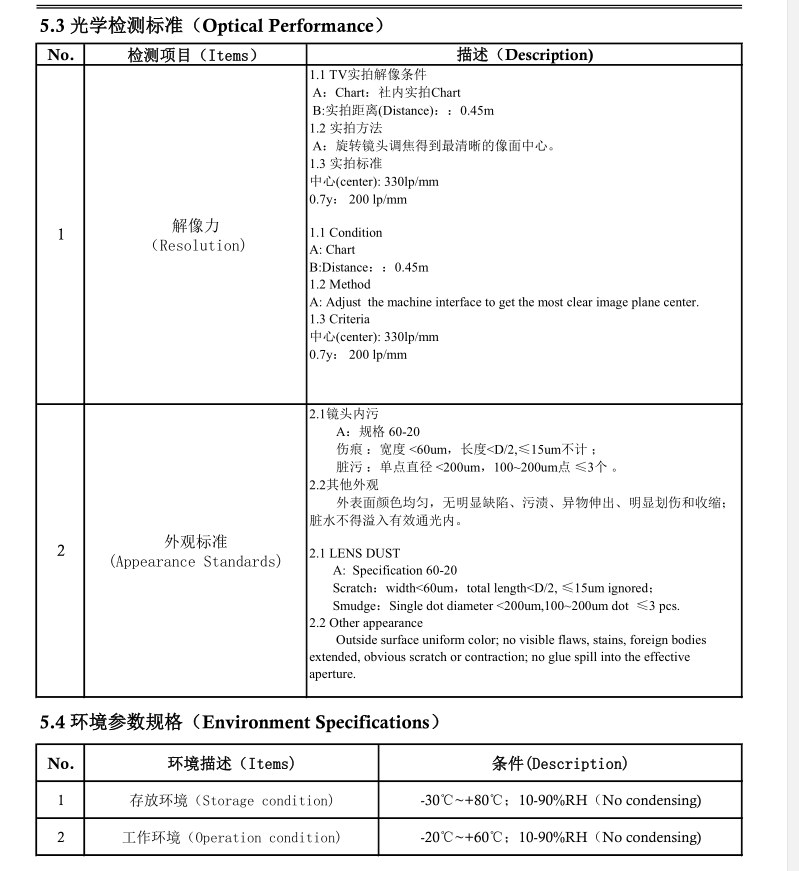

15, MTF resolution 3840*2160 (8MP）
center: 330lp/mm0.7y： 200 lp/mm
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS
Product Application
Lens for car surround view camera lens
Lens for automotive rearview camera
Lens for VR/AR 360 panoramic camera
Lens for Fisheye Projector
lens for 360° cctv surveillance camera
lens for industrial Robots Camera
Custom Fisheye Lenses
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China.Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens,Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera.their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
