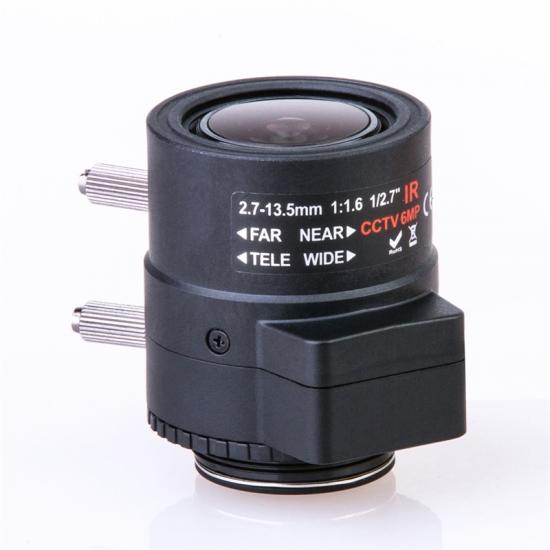

Product Name:5X zoom 4MP 2.7-13.5mm CS mount manual focus security varifocal lens
Product Advantage:
1, 5X Optical Zoom Manual Focusing CS Zoom Lens for Night Vision Camera
2, Sharp excellent Optical Performance up to 4 Megapixel
3, Fixed Iris insure reliable Aperture light enter
4, 2.7-13.5mm Wide Angle CS Mount for Varifocal Lens CCTV Camera
Product Specification

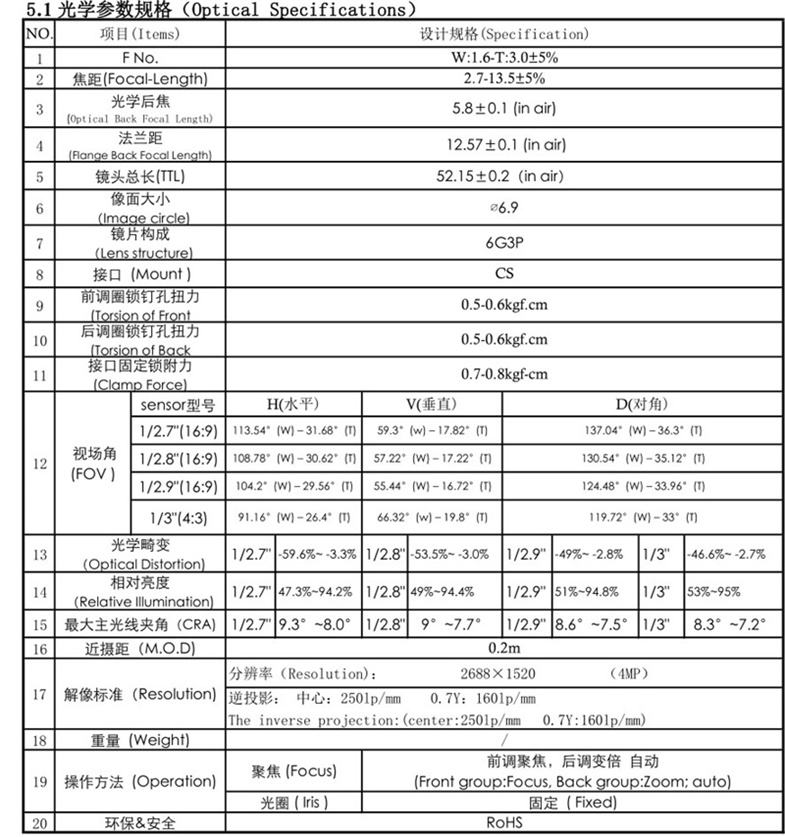

optical specification of CS 2.7-13.5mm zoom lens
1, Focal length： 2.7-13.5±5%
2, Aperture F/No: W: 1.6-T:3.0±5%
3, Optical back focal length (OBFL)：5.8±0.1 (in air)

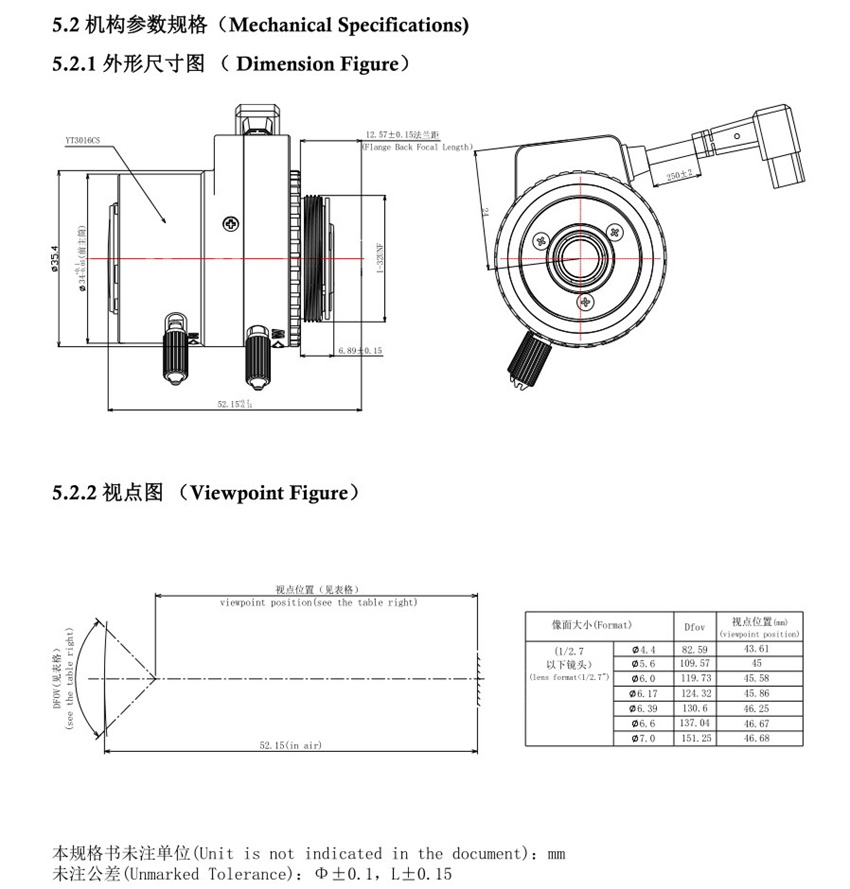

4. Flange back focal length (MBFL)：12.57±0.1 (in air)
5. TTL：52.15±0.2mm（in air）
6, Max image circle：∅6.9
7, Lens structure：6G3P
8, Mount type：CS mount
9, Torsion of Front 0.5-0.6kgf.cm
Torsion of Back 0.5-0.6kgf.cm
Clamp Force 0.7-0.8kgf-cm
10, FOV (D/H/V) 1/2.7"(16:9)
HFOV 113.54°(W)﹣31.68°(T)
VFOV 59.3°(w)﹣17.82°(T)
DFOV 137.04°(W)﹣36.3°(T)
11, Optical Distortion 1/2.7" -59.6%~ -3.3%,
1/3" -46.6%~ -2.7%
12, Relative illumination 1/2.7" 47.3%~94.2%
13, CRA 1/2.7" 9.3°~8.0°,
1/3" 8.3°~7.2°
14, M.O,D. 0.2 meter

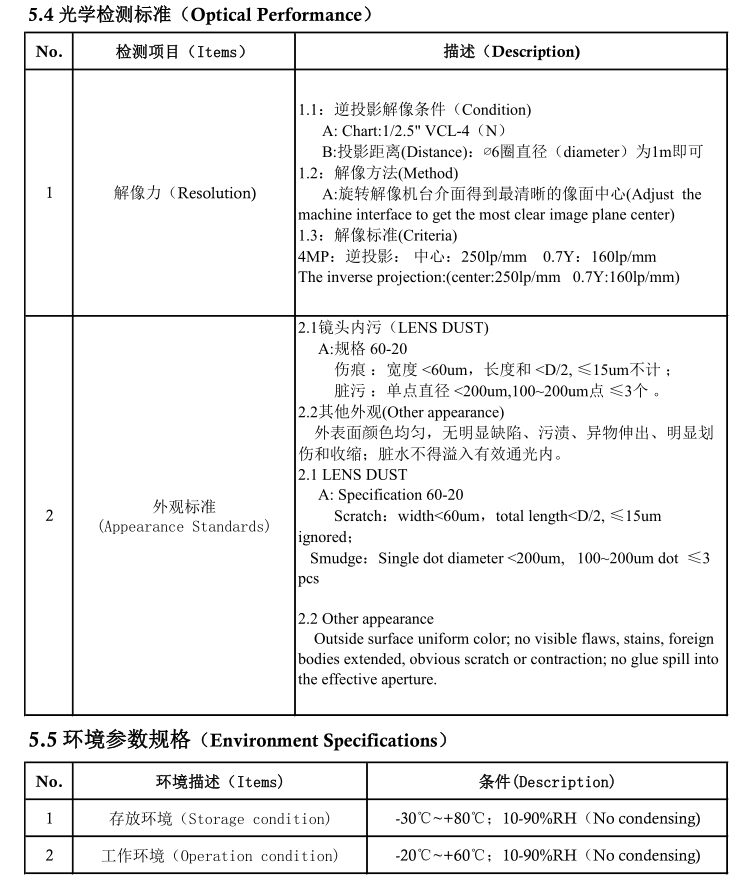

15, MTF resolution: 2688×1520 （4MP）
The inverse projection:(center:250lp/mm 0.7Y:160lp/mm)
16, Zoom operation: Auto,
Focus operation: Manual,
Iris operation: fixed
Front group: Focus,
Back group: Zoom; auto
17, HSF&safety: RoHS
Product Application
1, Varifocal CCTV Camera
2, Mini High Speed Camera
3, Outdoor PTZ Camera
4, Varifocal IP Network Camera
5, CCTV Dome Zoom Camera
6，Vari-Focal Surveillance camera
7, Night Vision Camera, CCTV Night Cameras
8, AHD Camera
