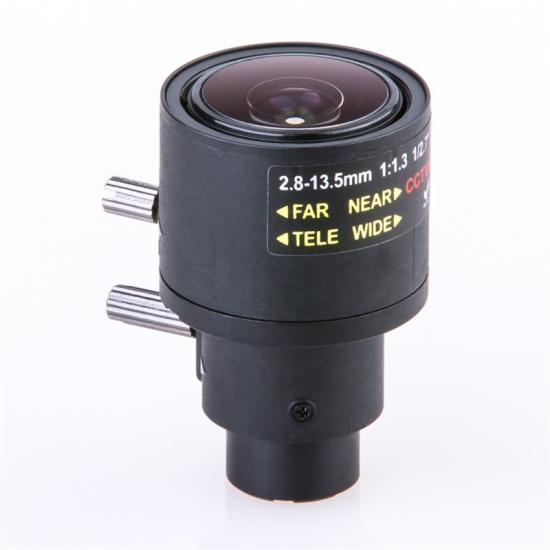

Product name: 5X zoom 2.8-13.5mm 1/2.7'' 1080P Manual Zoom Lens, cctv motorized varifocal lens
Product Advantage
1， Horizontal 106 degree Wide Angle Zoom Lens
2， 5X Optical Zoom with DC Iris F1.6-3.3 Variable Aperture Lens for PTZ camera
3， Remove and correct unexpected spherical aberration by using asperical Lenses
4， 1080P high resolution F1.6 starlight good used for Night Vision Camera Security
Product Specification

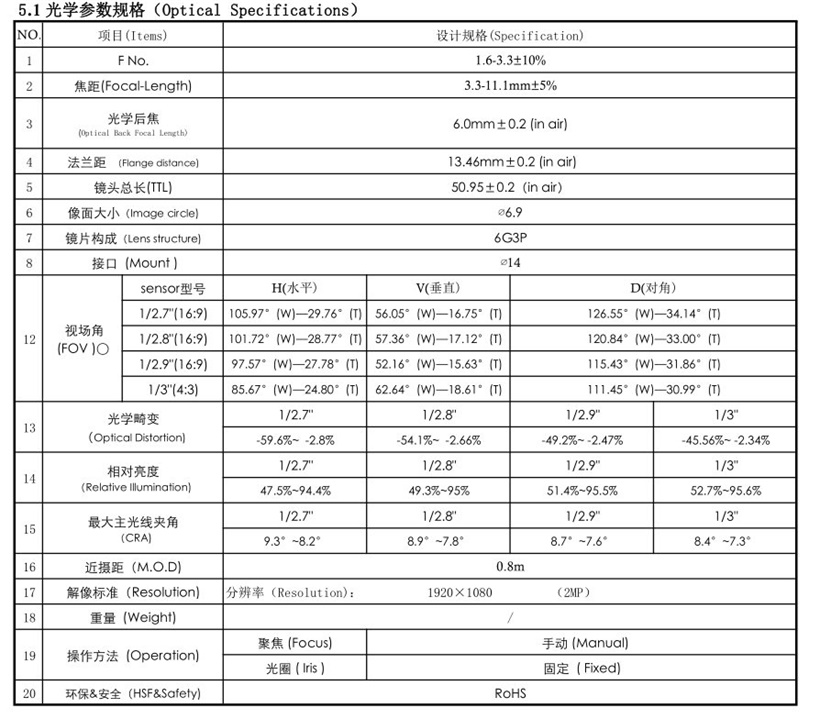

optical specification of 2.8-13.5mm cctv zoom lens
1, Focal length: 3.3-11.1mm±5%
2, Aperture F/No: 1.6-3.3±10%
3, Optical back focal length (OBFL): 6.0mm±0.2 (in air)

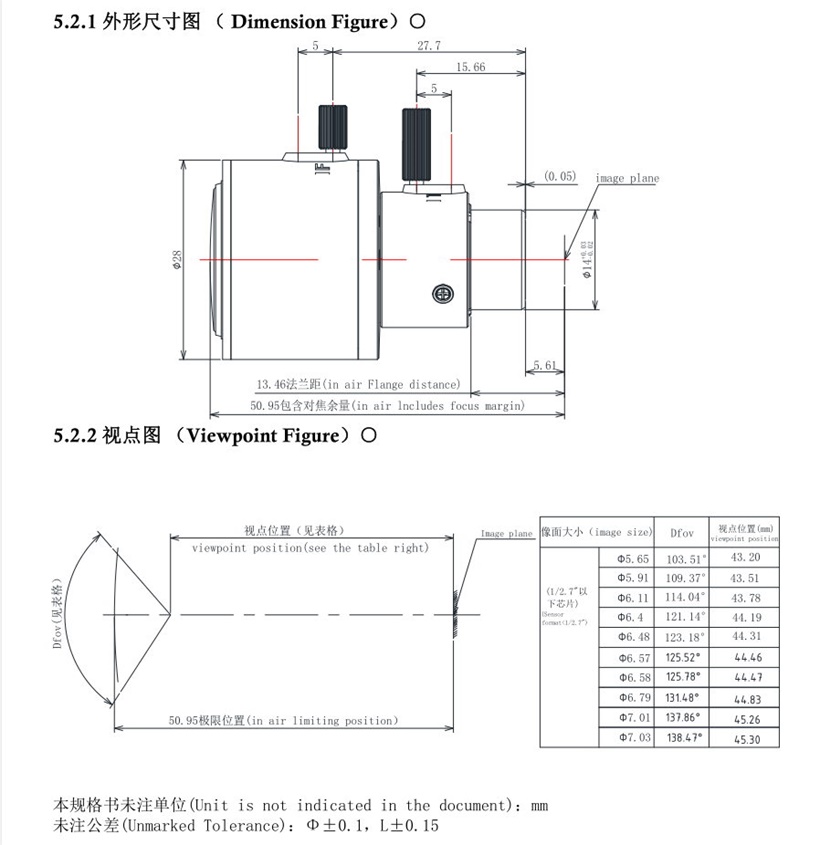

4. Flange back focal length (MBFL): 13.46mm±0.2 (in air)
5. TTL: 50.95±0.2（in air）
6, Max image circle: ∅6.9
7, Lens structure: 6G3P
8, Mount type: ∅14
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V)1/2.7"(16:9)
HFOV 105.97°(W)—29.76°(T)
VFOV 56.05°(W)—16.75°(T)
DFOV 126.55°(W)—34.14°(T)
11, Optical Distortion 1/2.7"-59.6%~ -2.8%,
1/3"-45.56%~ -2.34%
12, Relative illumination 1/2.7"47.5%~94.4%,
1/3"52.7%~95.6%
13, CRA : 1/2.7"9.3°~8.2°,
1/3"8.4°~7.3°
14, M.O,D.: 0.8 meter

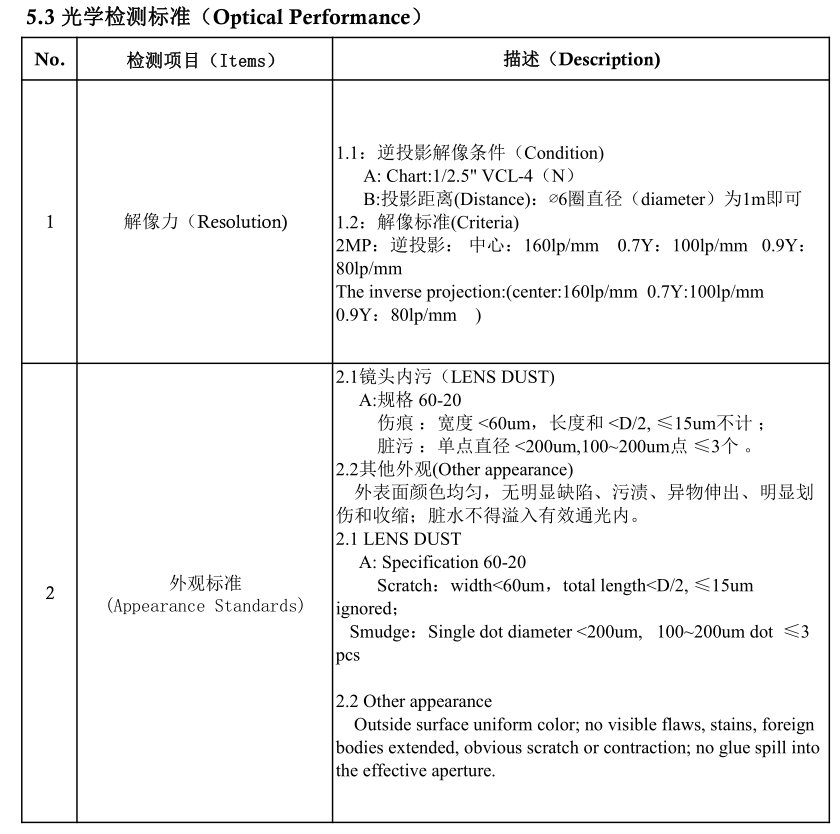

15, MTF resolution: 1920×1080 （2MP）
16, Zoom operation: Manual
Iris operation: Fixed
17, HSF&safety: RoHS
Technical datasheet of Manual Zoom Lens, 2.8-13.5mm Wide Zoom Lens
Product Application
1, Varifocal CCTV Camera
2, Mini High Speed Camera
3, Outdoor PTZ Camera
4, Varifocal IP Network Camera
5, CCTV Dome Zoom Camera
6，Vari-Focal Surveillance camera
7, Night Vision Camera, CCTV Night Cameras
8, Motorized AHD Camera
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers
that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop
Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.
Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc. of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
