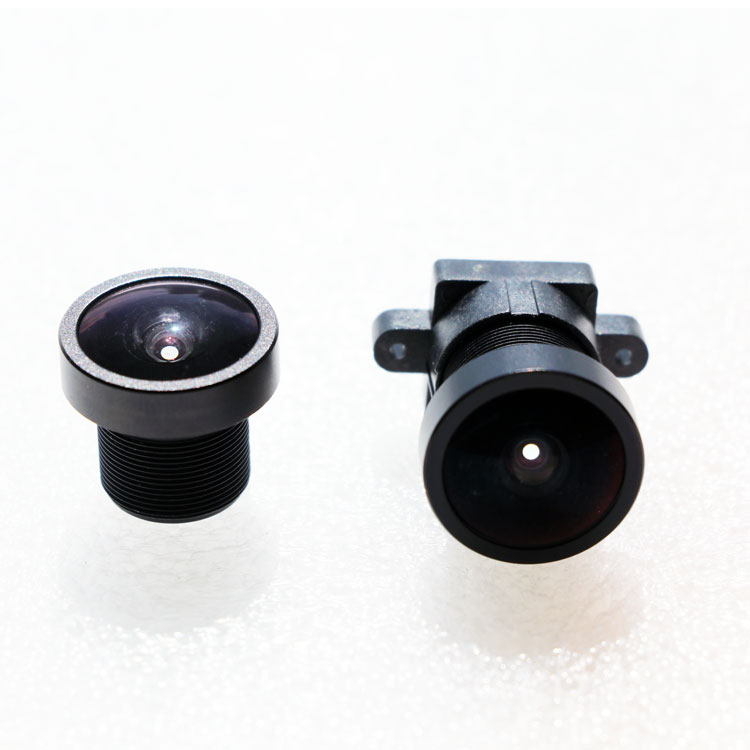

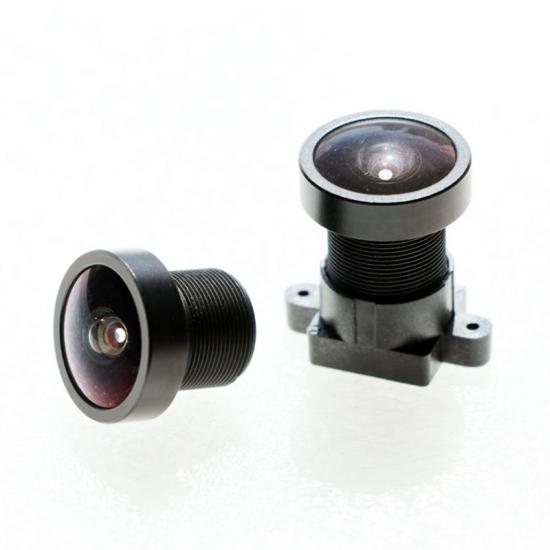

Product Name: OV2710 2.85mm 6G 5 Megapixels m12 DFOV 138 degree Car Black Box Camera Lens and car DVR Lens
Product Advantage
1, 2.85mm unique Customized Lens
2, Widely used as Automobile Industry Lenses
3. Japanese Glass elements bring excellent Optional image and video
4, All Lens will be free from maintenance within Quality warranty period ( 2 years)

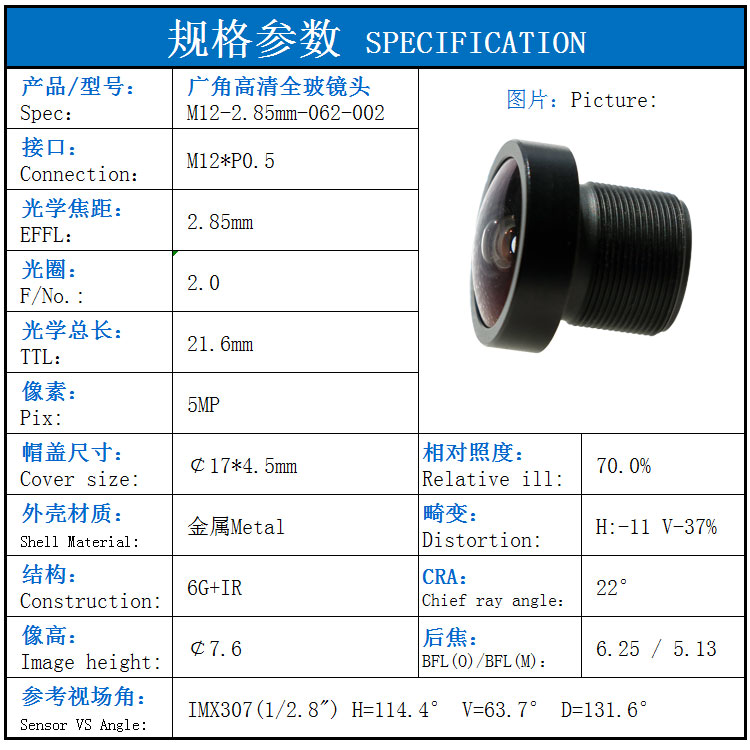

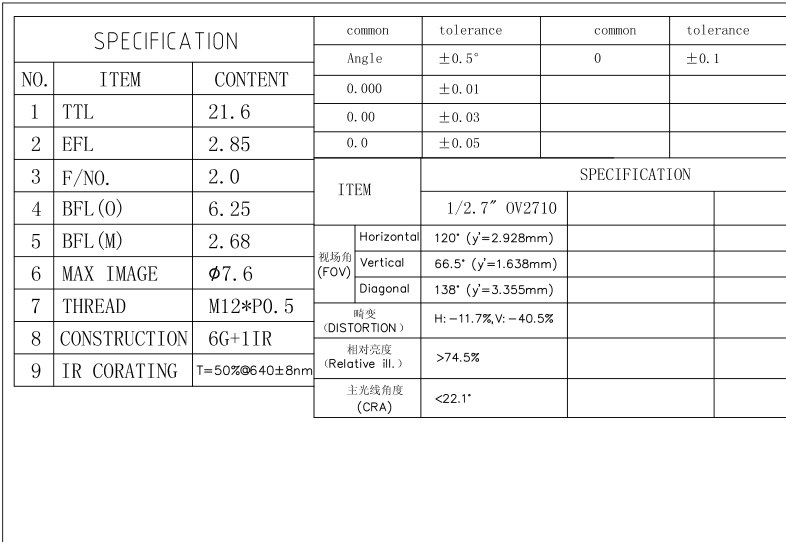

Product Specification
keying technical feature of 6G 2.85mm Car Camera Lens
1,Sensor size: 1/2.7" OV2710 inch CMOS SENSOR
2,matching sensor: OV4689, AR0330, OV2710
3,Focal length (EFL): 2.85mm
4,F/NO (infinite): 2.0
5,View angle (diagonal/horizontal/vertical): 138/120/ 66.5 degree

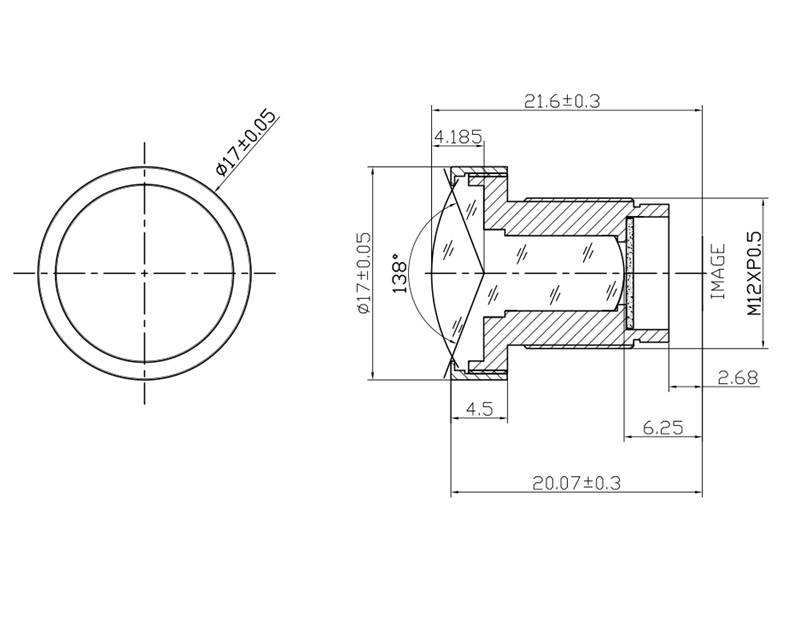

6,TTL: 21.6mm
7,TV Distortion: <10%
8,Back focal length (MBFL）: 2.68mm
9,Optical back focal length: 6.25mm

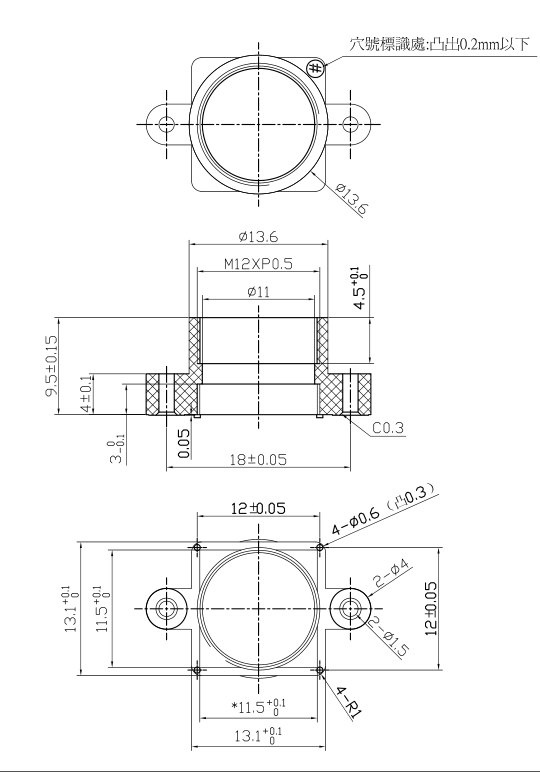

10,Thread size: M12x P0.5
11,ELEMENT: 6G +IR Glass Lens
12,Max image circle: 7.6
13,Relative illumination >74.5% (1/2.7 sensor)
14,CRA <22.1 degree (1/2.7 sensor)
15, IR Coating: T=50%@650+/-8nm
2.85mm M12 Lens Application
1,Lens for Car Camera
2,Lens for Automobile Camera
3,Lens for Car Black Box, Dash Camera, Car DVR Camera
4,Lens for Car backup Camera, Rearview Camera, front View Camera
5,Lens for Automotive Camera DMS,ADAS Camera
6,Lens for Smart Home Camera
Application of our goobuy lens
1. Automotive side view lens, SVS lens, DMS, Reversing lens, surround view lens, ADAS camera, front view lens,
E-mirror lens，backup camera lens etc
2. Lens for automobile camera, Car recorder lens, Car DVR lens, Car Black Box lens, car dash camera lens
3. CCTV camera lens, security camera lens, IP camera lens, PTZ camera
4. Aerial Photograph drone lens, Police DVR camera,body worn camera, VR panoramic camera
5. Smart home Doorbell, lens for robot camera, gopro lens, action camera lens, DJI osmo pocket wide angle lens
6. 2D/3D barcode Scanner, dental camera lens, document scanner, medical endoscope lens,industrial endoscope Camera
7, lens for face recognition, iris acquisition, biometrics recognition, image acquisition and AI Camera Intelligent recognition
8, video conferencing camera lens, Industrial Camera, FA Lens, Machine Vision Camera
