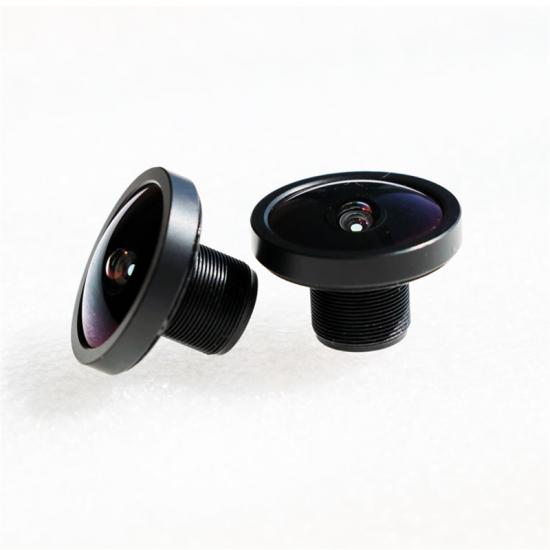

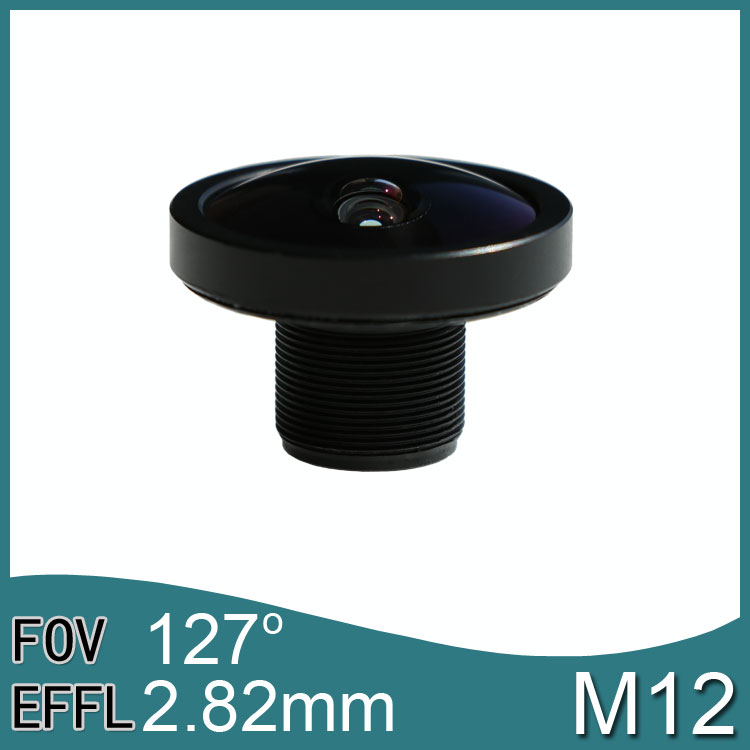

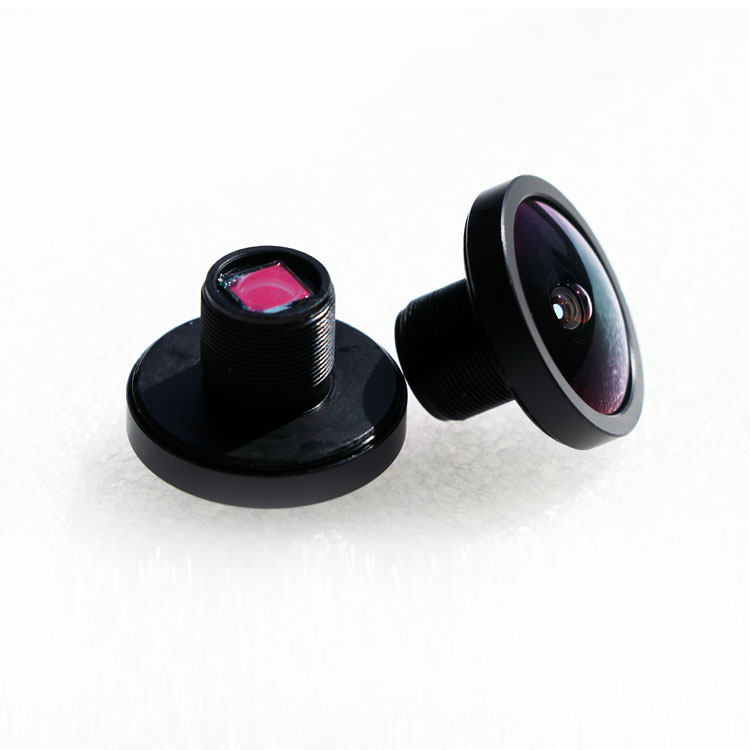

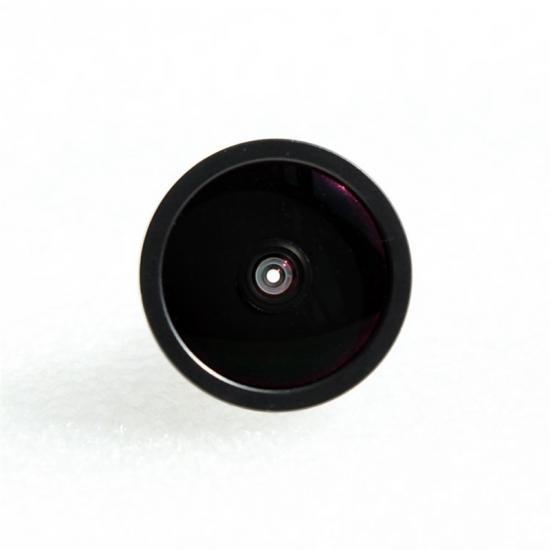

Product Name: 1/2.7'' OV2710 2.82mm 5MP 6G m12 lens HFOV 120 degree OV4689 AR0330
Product Advantage:
1, Unique 2.82mm Customized Lens
2, Custom made Lenses, unique or new Custom Lens are welcome
3, Used in Board Camera, MTV Lens, Cmos Board Module etc
Production Specification
keying technical feature of fixed focal length 2.82mm Customized Lens
1，TTL: 23.25mm
2, EFFECT Focal length: 2.82mm ( fixed focal length m12)
3, Aperture F/No: 2.4
4, Optical Back Focal Length: 6.25mm
5, Mechnical Back Focal Length: 5.13mm
6, Max image circle: 7.6
7, FOV (D/H/V): 127.2/105/69.2 ( 1/3" AR0330)
8, Optical Distortion: H:-13.19%, V:-30.7%
9, Relative illumination: >80%
10, CRA: <20.54%
11, mount type: M12*P0.5
12, Lens construction: 6G+1IR
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H

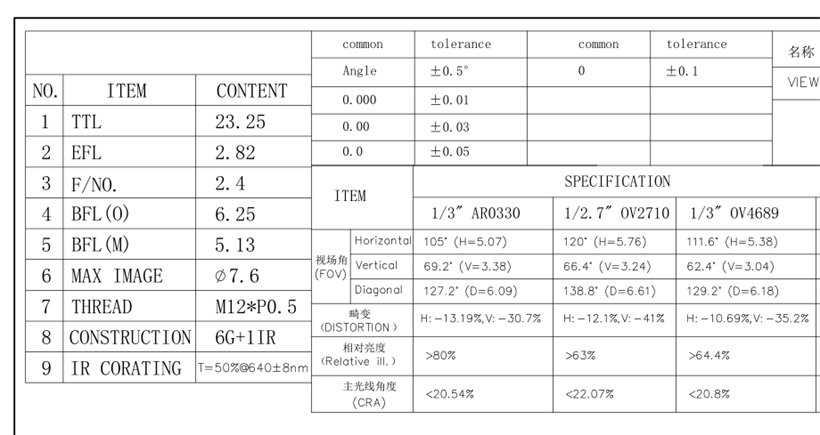

Technical Datasheet of Custom Wide Angle Lens
Product Application
lens for IP network camera
lens for CCTV security camera
lens for car rearview camera
lens for 1080P car dash camera DVR
lens for smart home camera
Custom Camera Lens
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device,we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
