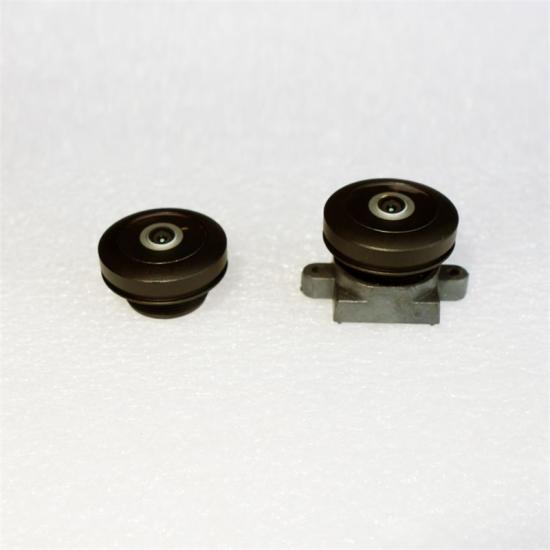

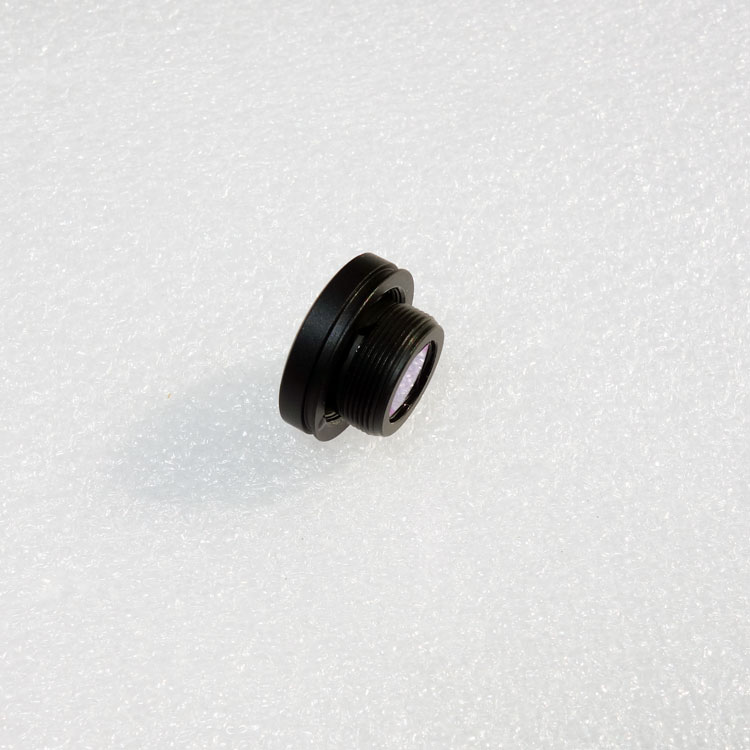

Product Name: 1/2.5'' 1.08mm 206/206/206 degree cctv Camera S Mount Fisheye Lenses M12 5MP
Product Advantage:
1, Ultra M12 Cctv Fisheye Lens
2, All Angles are 206 degree when working with OV4689
3, Customized Lens Fisheye
4, Custom-made Fish Eye Lenses, Fisheye Lens Manufacturer
Product Specifcation
keying technical feature of 1.08mm S Mount Fisheye Lens
1，TTL: 12mm
2, EFFECT Focal length: 1.08mm very short focal length Lens
3, Aperture F/No: 2.2
4, Optical Back Focal Length: 2.22mm
5, Mechnical Back Focal Length: 1.23mm
6, Max image circle: 2.9
7, FOV (D/H/V): 206/206/206 degree 1/3 OV4689 cmos
8, Optical Distortion: -117.7%
9, Relative illumination: >67.7%
10, CRA: <20.26 degree
11, mount type: M12*P0.5
12, Lens construction: Glass&IR
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H
17, MTF Resolution: 5 Megapixels

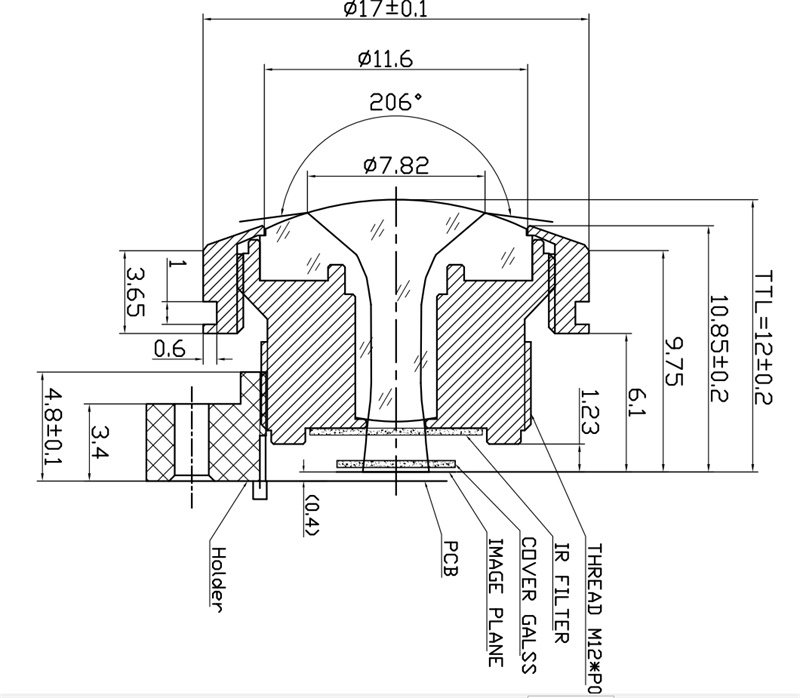

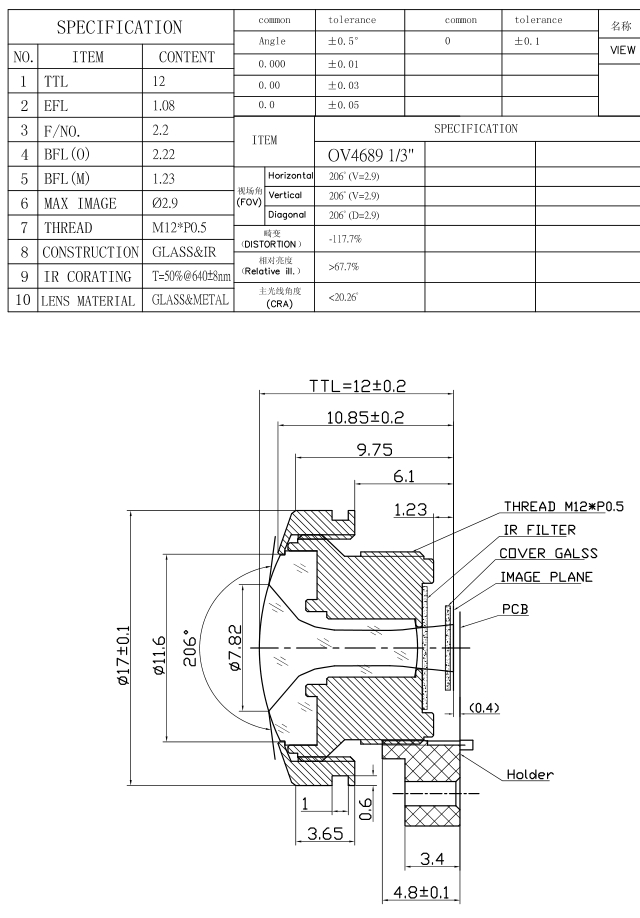

Technical datasheet of M12 Fisheye Lens
Custom Fisheye Lenses
in addition, we also manufacture other very short focal length fisheye Lens and Panoramic Camera Lens as follow
1.00mm, 0.95mm, 2.33mm 180 degree fisheye, 1.4mm 230 degree fisheye lens,1.39mm 185 degree fisheye lens, 1.3mm 220 degree fisheye lens, 1.44mm fisheye lens, 1.78mm fisheye lens, 1.5mm 190 degree fisheye Lens,1.8mm 200 degree fisheye Lens, 1.7mm 210 degree fisheye lens. we are professional fisheye lens manufacturer in Shenzhen, China!
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
