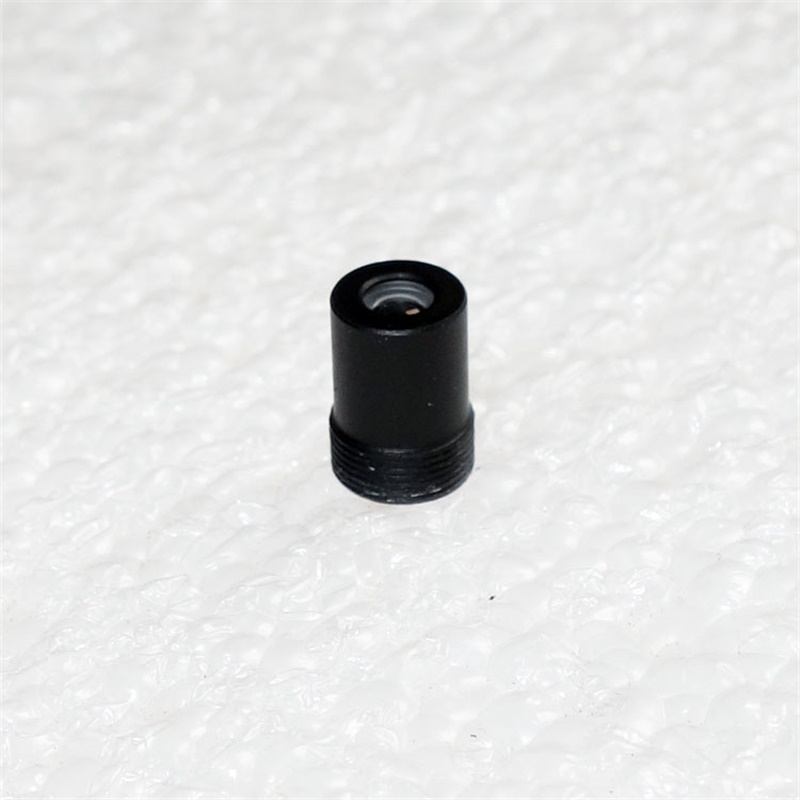

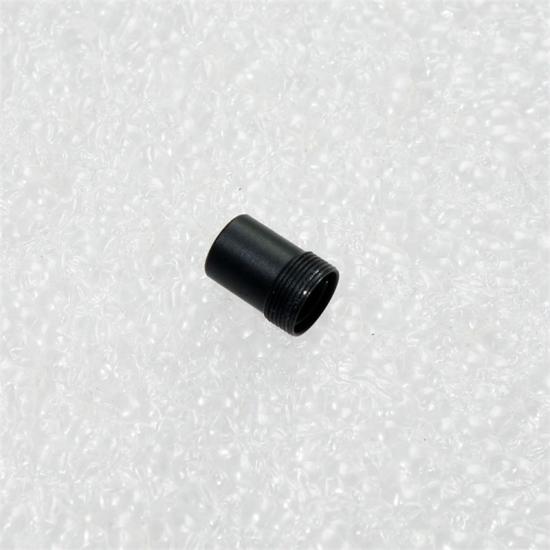

Product Name: 4.5mm Low distortion M6 CCD Barcode Lens
Product advantage
1, professional customized Barcode Scanner Lens
2, F9.0 Lens creat great depth of Field DOF
3, 5G Full Glasses lease, materials are imported from Japan
4, less than 2% distortion, M6 compact constructure, 1080P resolution
5，M6 Pinhole Camera Lens With Lowest Aperture, work with 1/4'' or 1/5'' OV Cmos sensor Camera Module,
creat best Barcode Lens Lens Assemblies
Product Specification
Technical Feature of 4.5mm Barcode Scanner Lenses
1,Effective Focal Length: 4.5mm
2,Matching Cmos Sensor: 1/4 inch
3,Aperture F/No：9.0 Small Aperture Lens
4,MBFL: 1.8mm
5,DFOV: 51 degree (2Y=4.6)
6,TV Distortion: Less than 2%
7,RELATIVE ILLUMINATION: >60%
8,CAR ( CHIEF RAY ANGLE) < 20%
9,MAX IMAGE CIRCLE: 5.2
10,LENS CONSTRUCTION: 5G+IR Filter
11, IR FILTER SPEC
T=50% @650+/- 10nm
12,Mount Type: m6*P0.35
13,TTL:9.9mm

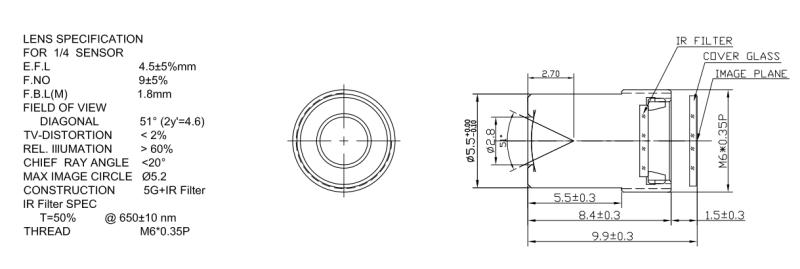

Technical datasheet of Office Scanner Lens QR
Product Application
1, CCD Barcode Scanner Lens
2, Portable Mini hand Document Scanner Lens
3, 2D/3D QR Lens Scanner
4, Lens for camera that need good depth of Field
5, Lens for camera that need small Aperture
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
