Product name: 2.39mm M5.5*P0.35 pinhole Camera Lens just 1% TV Distortion 8*8 Lens holder short TTL
product advantage

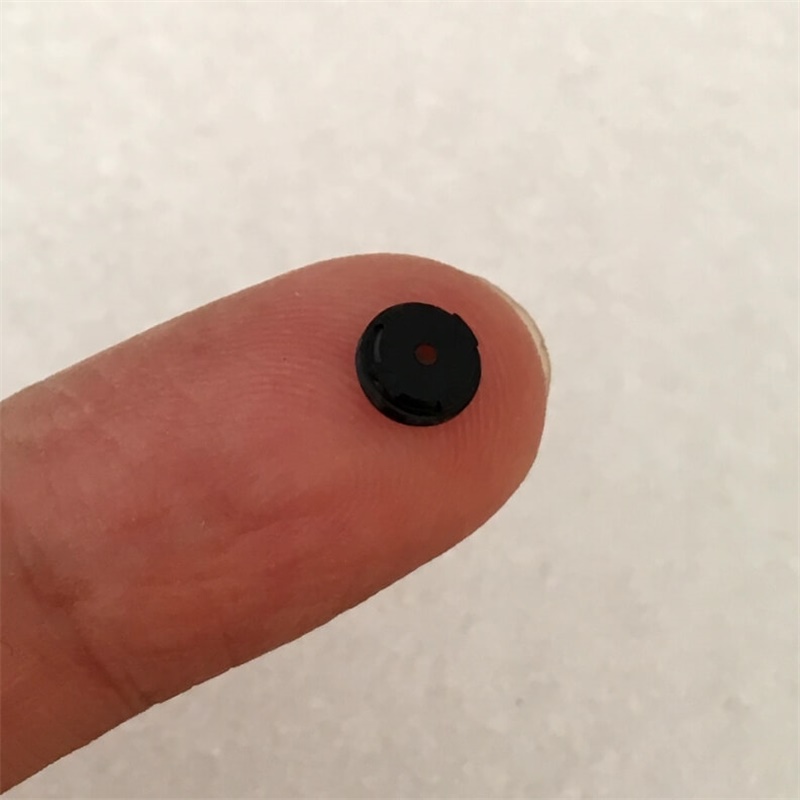

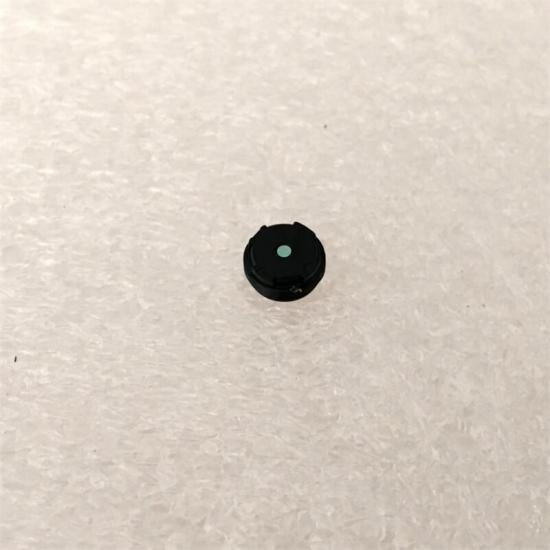

1. miniature M5.5 Pinhole Lens
2, very low distortion, very short TTL, Ultra miniature Lenses
3, work well with 1/4'' OV7725 camera module
4, All plastics materials are imported from Japan
5, Low distortion, sharp image
Product Specification

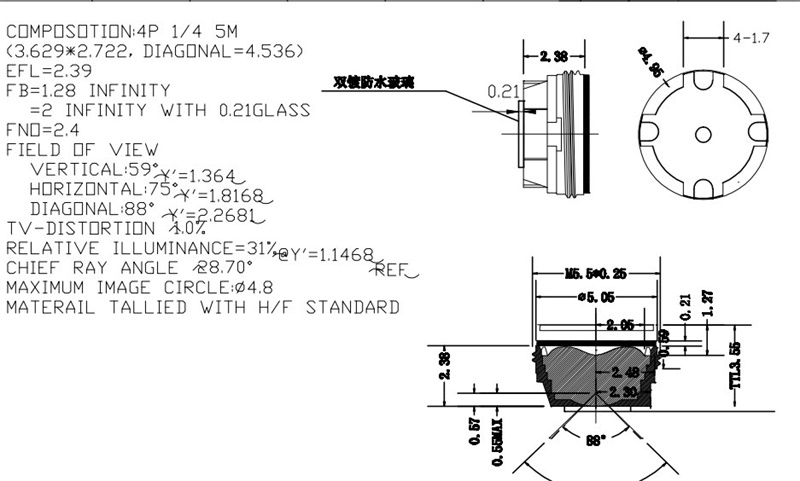

Main technical specification
1,matching cmos sensor 1/4 OV7725
2,Effective focal length 2.39
3,double coating film & waterproof glass surface
MATE RAIL TALLIED WITH H/F STANDARD
4,FB=1.28 INFINITY
=2 INFINITY WITH 0.21 GLASS
5,Aperture F/No=2.4
6,FIELD OF VIEW (FOV)
VERTICAL：59 degree (Y=1.364)
HORIZONTAL：75°(Y=1.8168)
DIAGONAL：88°
7,TV-DISTORTION: 1%
8,RELATIVE ILLUMINANCE =31% @Y'=1.1468
9,CHIEF RAY ANGLE CRA < 28.70°
10,MAXIMUM IMAGE CIRCLE ：C4.8
11,Lens constructure：4P
(3.629*2.722， DIAGONAL=4.536)
12, TTL: 3.55mm
13,Mount type: M5.5*P0.25

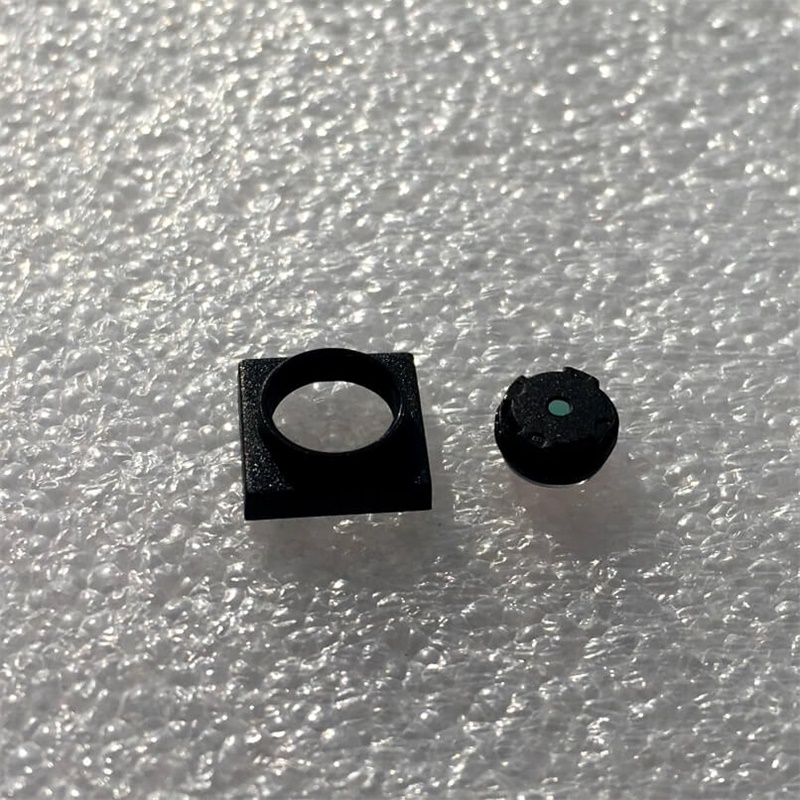

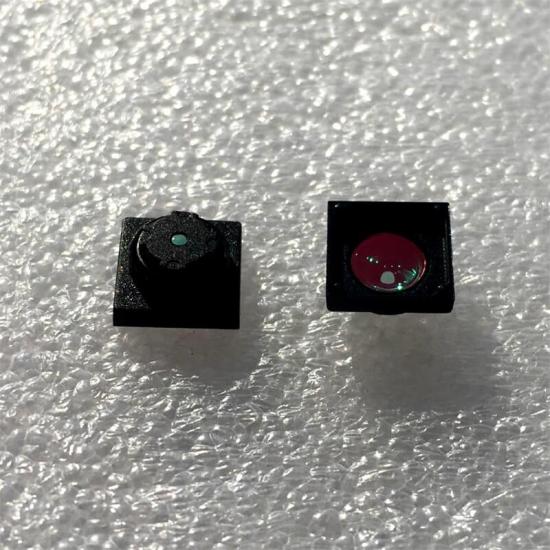

14,size of lens holder 8*8mm
Product Application
1, Lens for Barcode Scanner
2, Lens for dental Camera
3, Lens for 2D/3D Scanner Reader
4, Lens for endoscope Camera
5, Lens for Pinhole Camera
6, Lens for Biometrics equipment
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop
Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.
Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc
of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom
