Product Name:

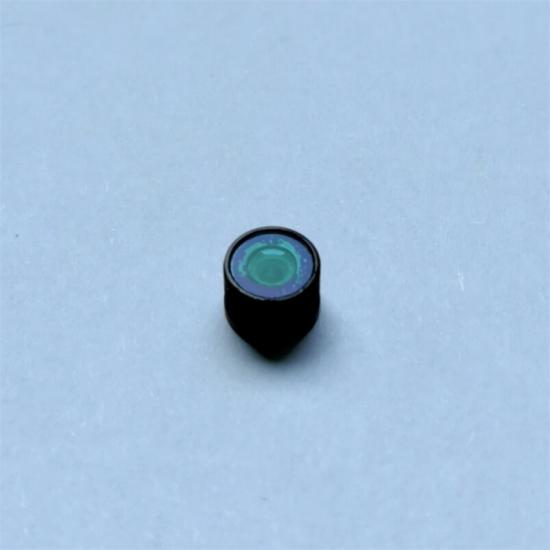

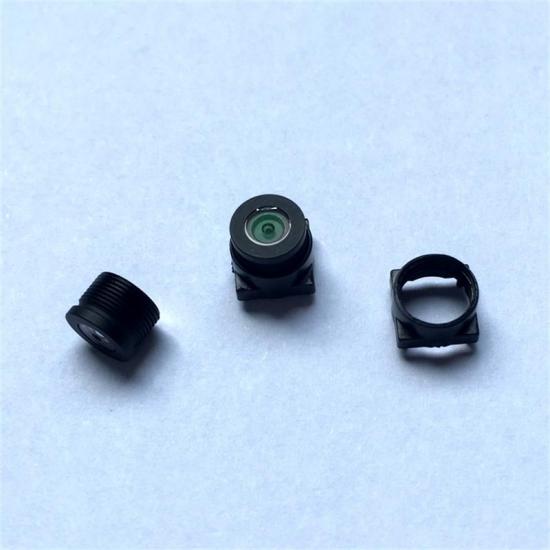

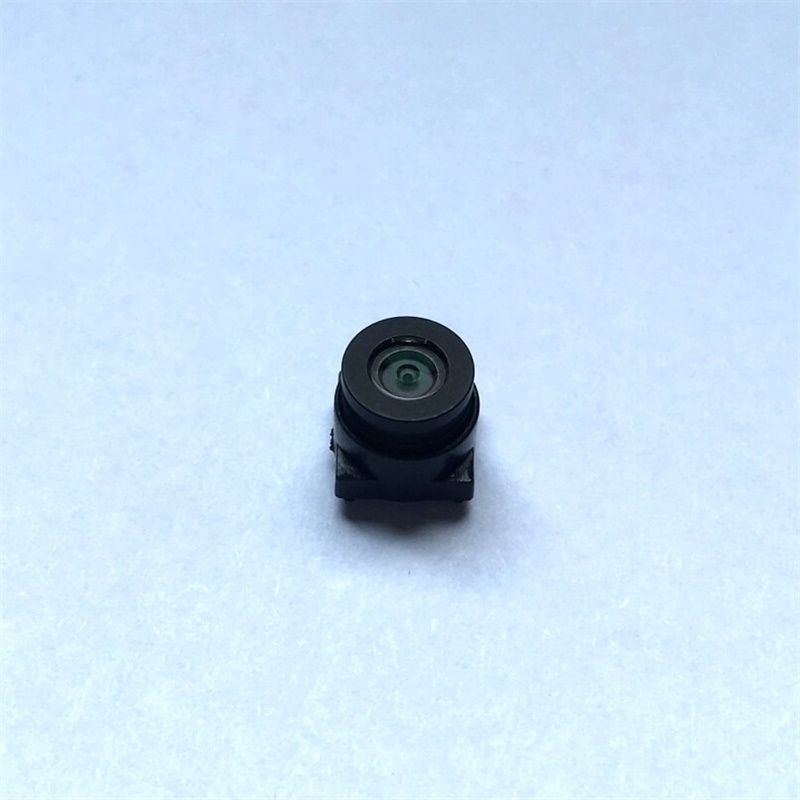

1/7.5'' 0.83mm m6*p0.35 OV7251 pinhole wide angle lens 1/10'' GC032A for medical endoscope camera OV7750
Product Advantage:
1, Super Short TTL just 5mm for Endoscope Camera Lens
2，Work well with 1/7.5 OV7750 and 1/10 Galaxycore Cmos
3, 174 degree Ultra Wide Angle Lens m6
4, Japanese Top quality imported Plastic elements
Product Specification
keying technical feature of 0.83mm wide angle m6 pinhole lens
1，TTL: 5.0mm
2, EFFECT Focal length: 0.83mm
3, Aperture F/No: 2.6
4, OBFL: 1.02mm
5, MBFL: 0.52mm
6, Max image circle: 2.4
7, FOV (D/H/V): 111.6/86.39/64.8 (1/10 GC032A),
174/132/98 ( 1/7.5 OV7251 sensor)
8, Optical Distortion: H:-11.89%, V -22% ( GC032A),
H: -23.1%, V:-47.5% (OV7251)
9, Relative illumination: >44$
10, CRA: <20.47
11, mount type: m6*p0.35
12, Lens construction: 1G3P+1IR
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to 80
15, storage temperature: -40 to 90
16, ultraviolet-proof standard: 500w@72H

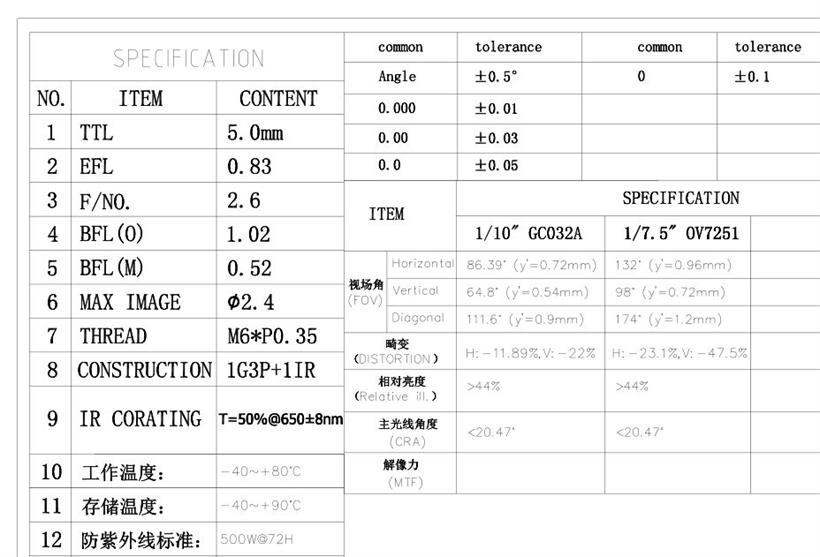

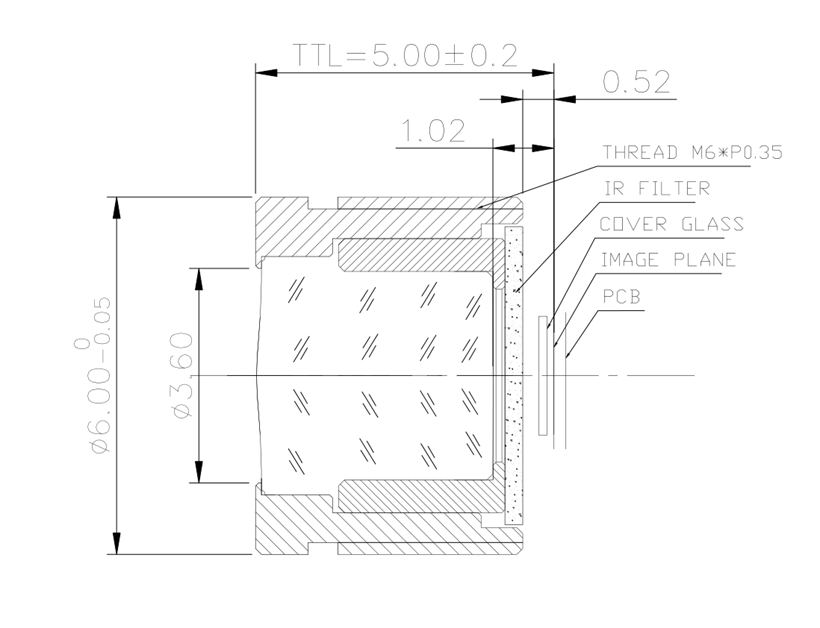

Technical Datasheet of M6 OV7251 Lens
Product Application
Lens for Dental Camera, Oral camera
Lens for portable Endoscope Camera
Lens for medical Endoscope Camera
Lens for Barcode Reader
Lens for industrial endoscope Camera
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Custom Pinhole Lens, Custom Design M6 Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China, Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera, their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too
welcome to share your lens requirement or product idea with us to discuss and proceed, thank you very much
