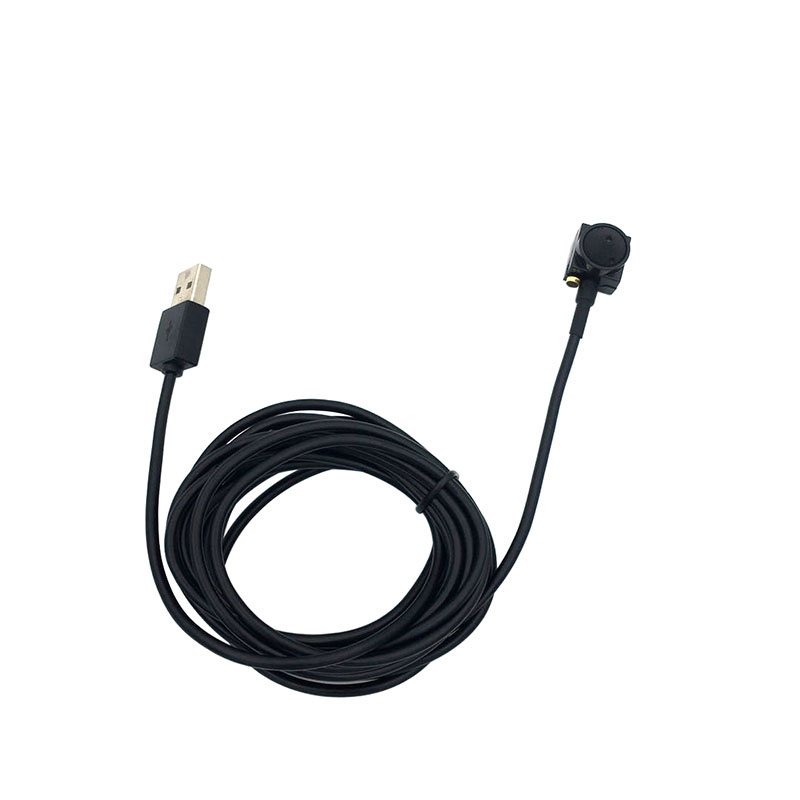

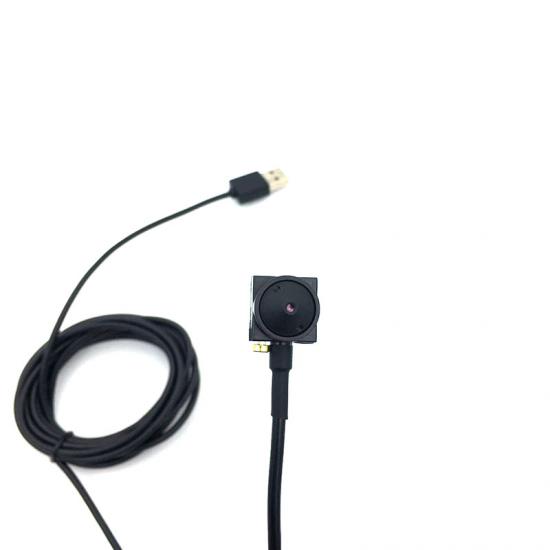

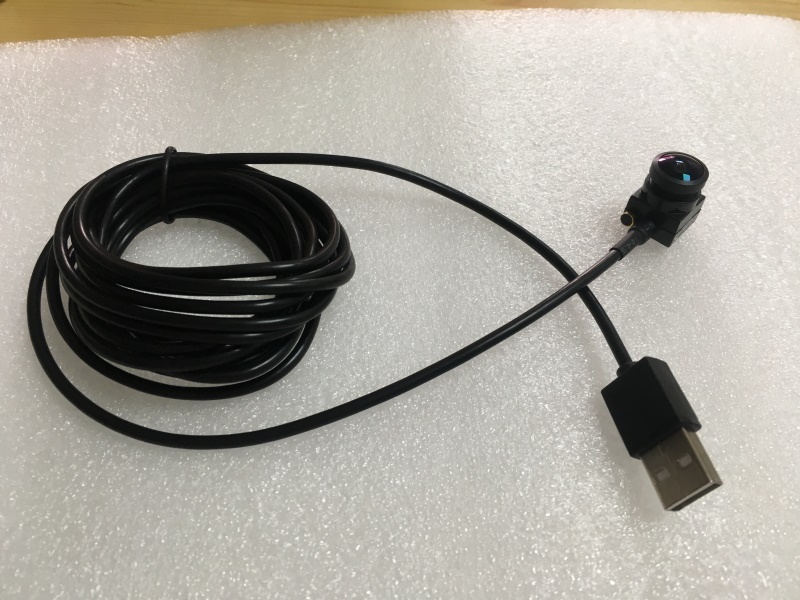

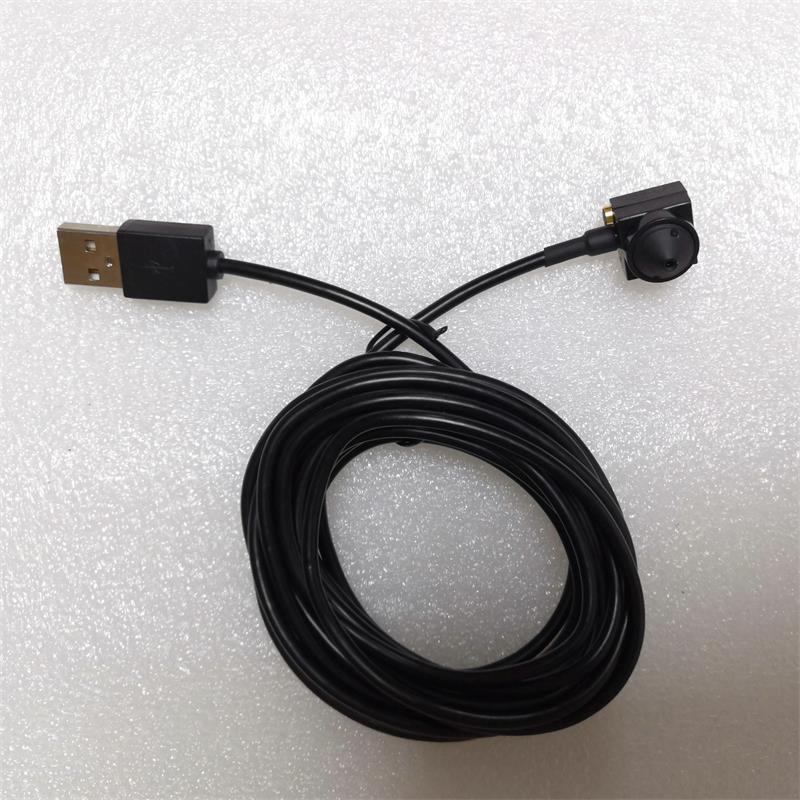

Product Name: 3.7mm Low Lux Low Light Good Night Vision Galaxycore USB pinhole Camera with interchangeable Lens for Home CCTV and Industrial Security,
2MP GC2053 USB Camera
Product Advantage:
1, Micro Cone Pinhole 3.7mm Fixed Focal Length Lens CCTV Camera with USB2.0 port
2, Interchangeable Lens design, you can change our other board MTV/CCTV/Wide Angle Lens
3, Support Linux USB Camera System and all Windows and Apple and Andriod O/S well
4, High Speed USB2.0 Camera with interchangeable Lens design available
Product Specifications Of Linux USB Camera with Galaxycore GC2053 low lux Sensor
|
Product Name |
GC2053 USB Pinhole Camera |
|
Cmos Sensor |
GalaxyCore ½.9 inch cmos low lux |
|
Video Resolution |
1920X1080, 1080P@30fps |
|
Lens FOV |
DFOV 92degree, HFOV 80degree |
|
Photo Pixel |
3Megapixels |
|
Photo Format |
MJPG |
|
video output |
MJPG/YUY2 |
|
Lens Focal Length EFL |
3.7mm cone pinhole lens m12 |
|
Lens Construction |
3MP 1G4P |
|
F/No Aperture |
F2.0 |
|
AGC |
OSD |
|
Minimum illumination |
0.001LUX |
|
S/N Ratio |
≥52dB |
|
Gammar |
0.45 |
|
Backlight Compensation |
OSD |
|
Shutter |
30f/s |
|
White balance |
Auto |
|
Working temperature |
-10~+50℃ |
|
Power |
5V |
|
Audio Microphone |
Support, USB Camera with Microphone |
|
System Sync |
inner Sync |
|
Power consumption |
150mA |
|
Product Size |
15*15*21mm |
|
Signal Type & Interface |
usb 2.0 interface, digital Signal |
|
Length of Cable |
3Meter ( 1m/5m/other length available custom made) |
|
System |
WIN10/WIN7/WIN8/Linux/Android/Apple Mac |
Note & Remarks
1, You can change other types M12 lens freely, DIY interchangeable Lens design
2, We can adjust USB cable Length or change it with foldable Pipe (shorter size)
3, its Interface connector can be changed or custom by USB Micro, BNC/AHD, OTG Type C etc
4, You can add and equip extra cone pinhole Lens like 2.1mm, 2.5mm,2.8mm, 6mm, 8mm, 10mm, 12mm, 15mm,
25mm, button Lens etc in your order, which will help you save more money but extend more applications easily
Product Application of Miniature Pinhole USB Camera
1, Bank ATM, all-in-one machine, POS equipment
2, Self service terminals equipment, Home video surveillance system
3, Night Camera for Car parking Monitor, Car Night Camera
4, ADVERTISING LCD DISPLAYER
You can change other MTV Board lens as following, 100% DIY easily locally to extend various application, the following is 220 degree Fisheye Lens
OEM/ODM Various USB Cameras
Currently we can provide more than 10 models USB Camera for various commercial / industrial applications, our camera with DIY interchangeable Lens design, so you can choose and change our other optical lens models online to meet your special requirement for more projects or business.In addition, we can R&D more advanced 4K USB Cameras or other bigger size Cmos sensor or other OV or Sony Cmos USB Camera ( other interface connectors available) , welcome to tell us more details then discuss together
P.S. We supply Sony CCD Camera and OTG Camera for Andriod Phone too
You Can view our real video recording from this USB Pinhole Camera as follow, of course on youtube too
