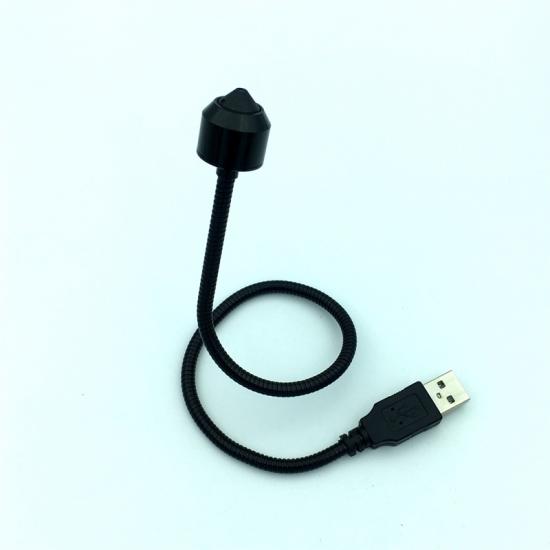

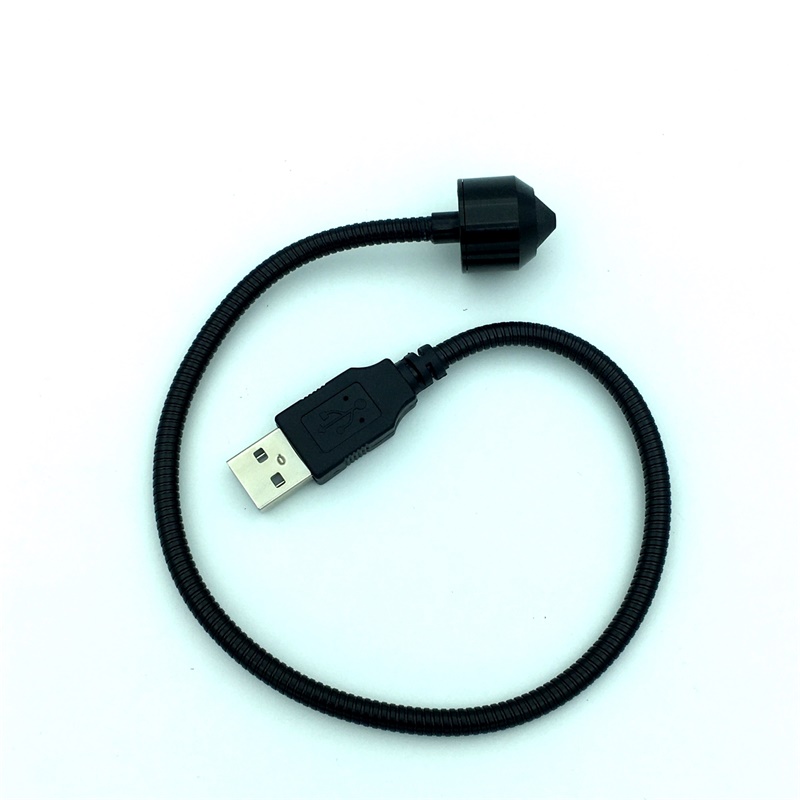

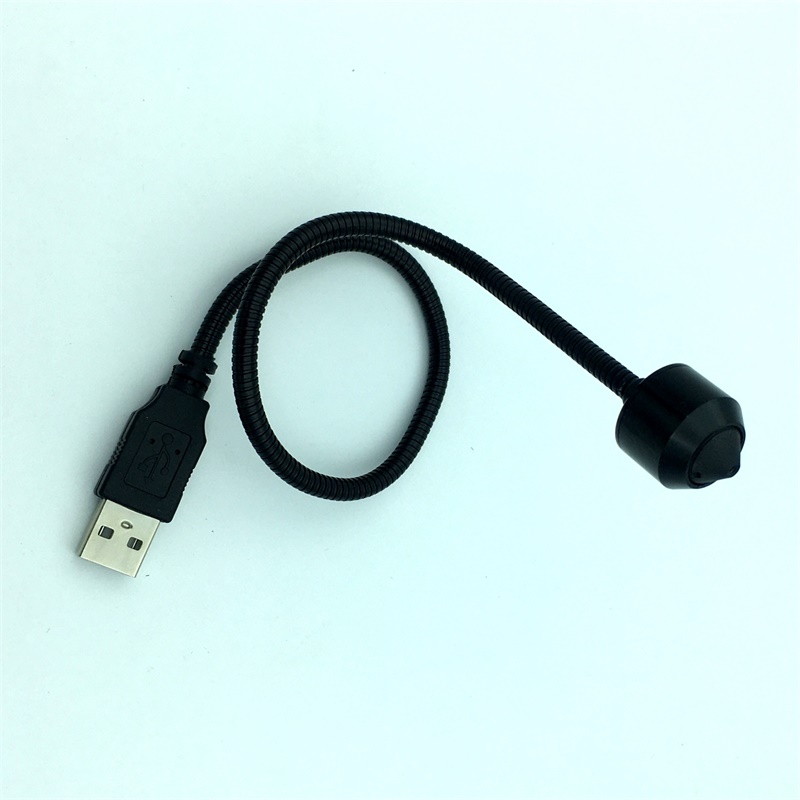

Product Name: 3.7mm Pinhole USB Camera Webcam with Foldable and Rotating Pipe,
USB Snake Camera for various application
Product Advantage
1, Micro Cone Pinhole 3.7mm Lens CCTV Camera ( 2.1mm, 2.5mm, 2.8mm, 6mm, 8mm 10mm, 15mm pinhole lens M12 available optional
2, Interchangeable Lens design, you can change our other board MTV/CCTV/Wide Angle Lens
3, Support Linux USB2.0 System and all Windows and Apple and Andriod O/S well
4, Foldable Metal Pipe and Metal lens Holder, Plastic Square Lens Holder available
Product Specifications Of Pinhole USB Camera
|
Product Name |
Foldable 2MP Metal USB Camera |
|
Cmos Sensor |
GalaxyCore ½.9 inch cmos low lux |
|
Video Resolution |
1920X1080, 1080P@30fps |
|
Lens FOV |
DFOV 92degree, HFOV 80degree |
|
Photo Pixel |
3Megapixels |
|
Photo Format |
MJPG |
|
video output |
MJPG/YUY2 |
|
Lens Focal Length EFL |
3.7mm cone pinhole lens m12 |
|
Lens Construction |
3MP 1G4P |
|
F/No Aperture |
F2.0 |
|
AGC |
OSD |
|
Minimum illumination |
0.001LUX |
|
S/N Ratio |
≥52dB |
|
Gammar |
0.45 |
|
Backlight Compensation |
OSD |
|
Shutter |
30f/s |
|
White balance |
Auto |
|
Working temperature |
-10~+50℃ |
|
Power |
5V |
|
Audio Microphone |
Do not support, square lens holder support Micro |
|
System Sync |
inner Sync |
|
Power consumption |
150mA |
|
Product Size |
15*15*21mm |
|
Signal Type & Interface |
usb 2.0 interface, digital Signal |
|
Length of Cable |
30cm |
|
System |
WIN10/WIN7/WIN8/Linux/Android/Apple Mac |
Note & Remarks
1, You can change other types M12 lens freely, DIY interchangeable Lens design
2, We can adjust USB cable Length or change it with foldable Pipe (shorter size)
3, its Interface connector can be changed or custom by USB Micro, BNC/AHD, OTG Type C etc
4, You can add and equip extra cone pinhole Lens like 2.1mm, 2.5mm,2.8mm, 6mm, 8mm, 10mm, 12mm, 15mm, 25mm, button Lens etc in your order, which will help you save more money but extend more applications easily
Product Application
1, Bank ATM, all-in-one machine, POS equipment
2, Self service terminals equipment, Home video surveillance system
3, Night Camera for Car parking Monitor, Car Night Camera
4, ADVERTISING LCD DISPLAYER, Industrial USB Camera for Industrial Security

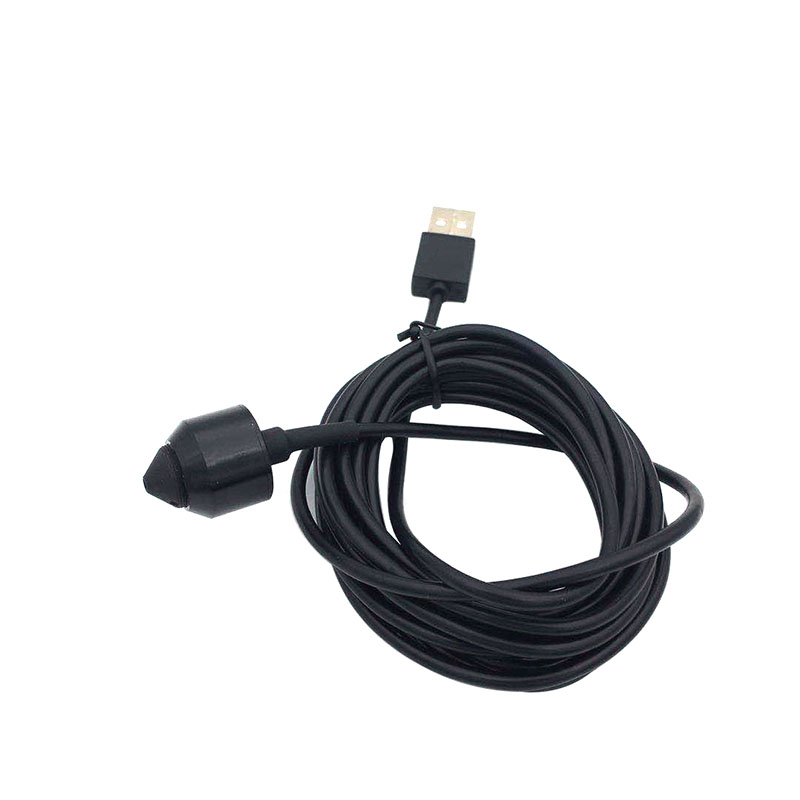

our normal 3Meter USB Pinhole Camera with pinhole lens available
Actual Image shot took by this Pinhole USB Camera 2020/12
OEM/ODM Custom-Made Industrial USB Cameras
Currently we can provide more than 10 models USB Camera for various commercial / industrial applications, our camera with DIY interchangeable Lens design, so you can choose and change our other optical lens models online to meet your special requirement for more projects or business.In addition, we can R&D more advanced 4K USB Cameras or other bigger size Cmos sensor or other OV or Sony Cmos USB Camera ( other interface connectors available) , welcome to tell us more details then discuss together
P.S. We supply Sony CCD Camera and OTG Camera for Andriod Phone too
