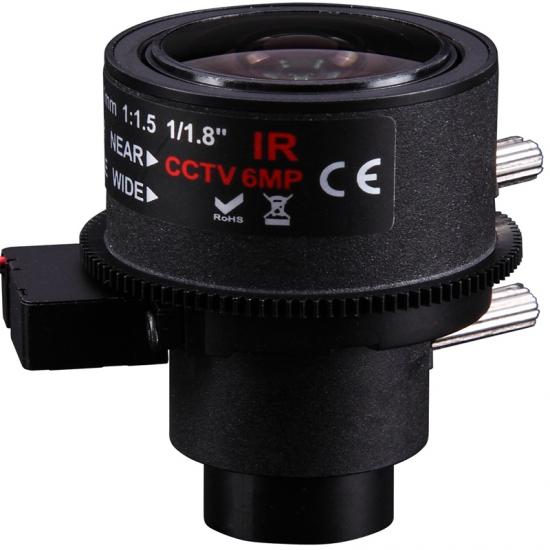

Product Name：1/1.8'' cmos 3.6-11mm 3X Varifocal Lens Glasses
Product Advantage:
1, Low cost and cheap price for 3X Varifocal Lens
2, Full 10pcs Glasses Lenses design bring perfect optical performance
3, Support 3MP 1/1.8” PTZ camera， F1.5 Fixed Aperture Zoom Lens
Product specification

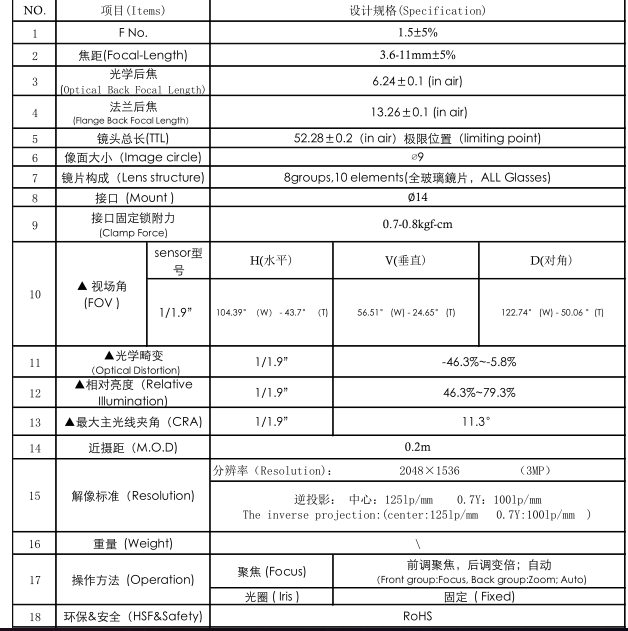

optical specification of 3.6-11mm varifocal lens D14
1, Focal length: 3.6-11mm±5%
2, Aperture F/No: 1.5±5% Fixed Iris, no vary
3, Optical back focal length (OBFL): 6.24±0.1 (in air)

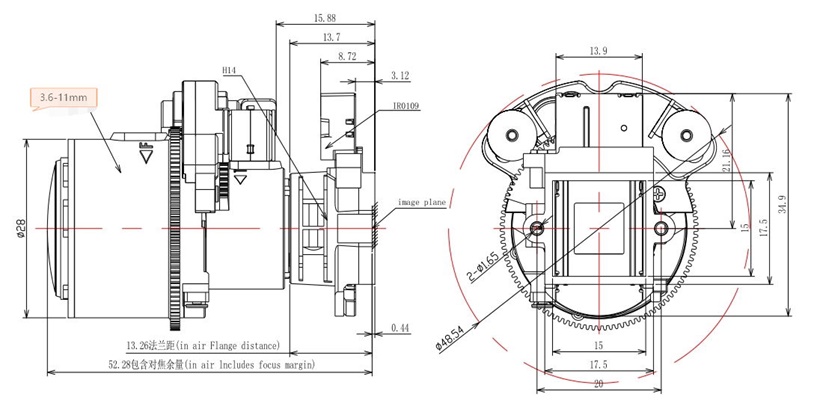

4. Flange back focal length (MBFL): 13.26±0.1 (in air)
5. TTL: 52.28±0.2（in air）（limiting point)
6, Max image circle: ∅9
7, Lens structure: 8groups,10 elements(ALL Glasses)
8, Mount type：∅14
9, Clamp Force 0.7-0.8kgf-cm
10, FOV (D/H/V)1/1.9”
HFOV 104.39°（W） - 43.7°（T)
VFOV 56.51° (W) - 24.65° (T)
DFOV 122.74° (W) - 50.06 °(T)
11, Optical Distortion 1/1.9”-46.3%~-5.8%
12, Relative illumination 1/1.9”46.3%~79.3%
13, CRA 1/1.9”11.3°
14, M.O,D.: 0.2meter
15, MTF resolution: 2048×1536 （3MP）

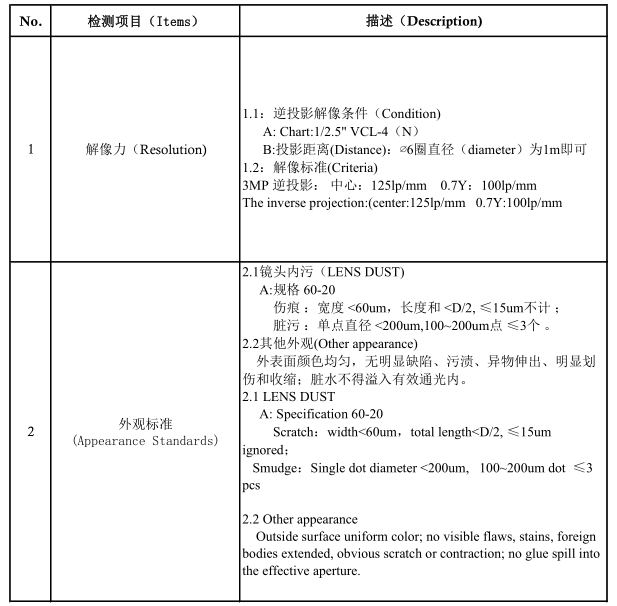

The inverse projection:(center:125lp/mm 0.7Y:100lp/mm )
16, Focus operation: Front group:Focus,

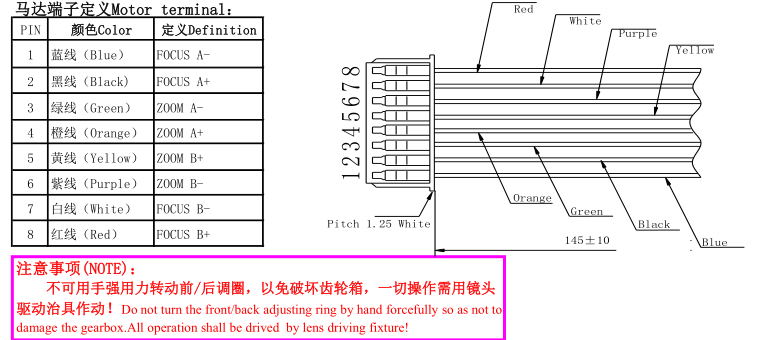

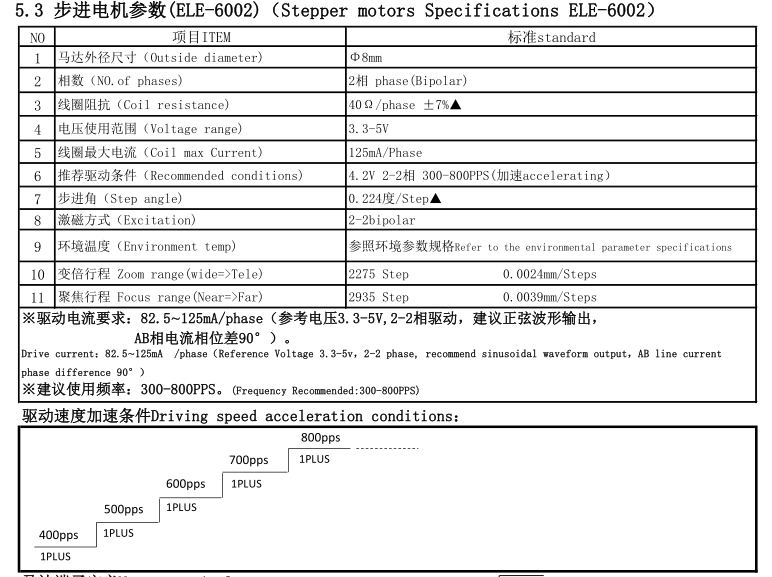

Back group:Zoom; Auto
Iris operation: Fixed
17, HSF&safety: RoHS
Technical Datasheet of 3X Varifocal Lens Price
Product Application
1, Varifocal CCTV Camera
2, Mini High Speed Camera
3, Outdoor PTZ Camera
4, IP Camera Zoom Lens
5, CCTV Dome Zoom Camera
6，Vari-Focal Surveillance camera
7, Night Vision Camera, CCTV Night Cameras
8, AHD Camera, bullet Camera
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
