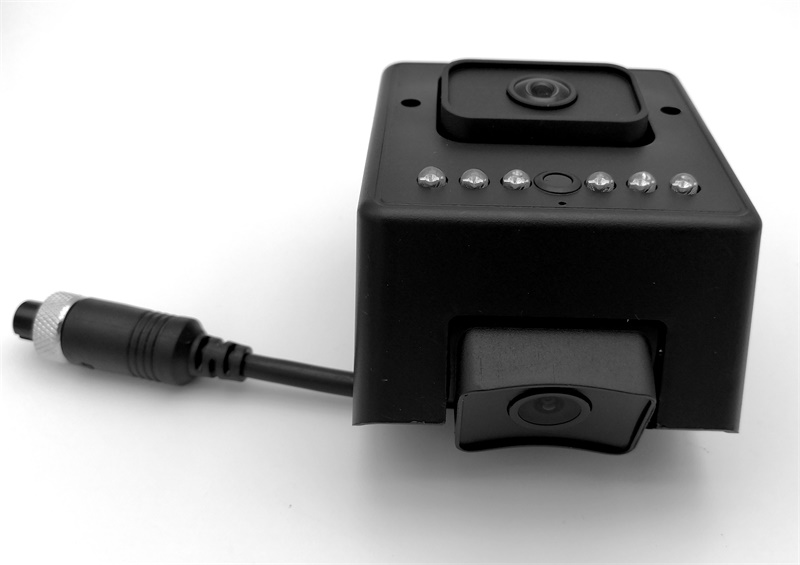

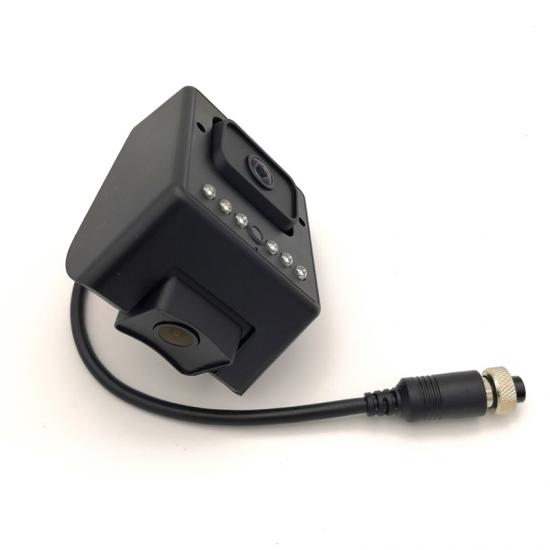

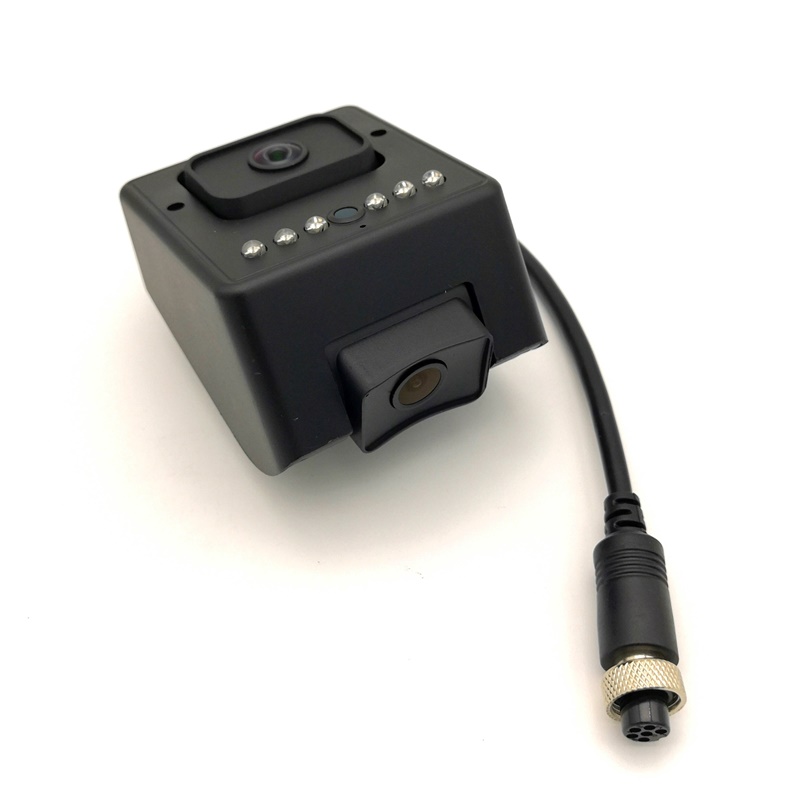

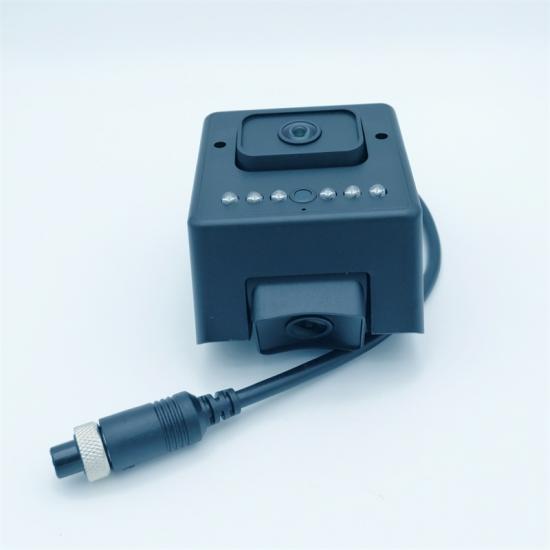

Product name: 2021 Own-Design Dual Dash Cam for Cars 1080P Front and Cabin Inside Cameras Wide Angle Dashboard Camera Taxi Recorder with G-Sensor and Loop Recording
Cabin View Camera with its ultra-wide lens records the interior as well as vehicles besides your car. This way it is ideal for taxi drivers and private rental car drivers
Product Features:
• Use imported CMOS to capture moving images
• Support coaxial high-definition output, the image is clear and delicate
• Support IR-CUT switch to realize day and night monitoring
• Adaptive digital noise reduction, 2D-DNR
• Illuminance, 0.01Lux@(F 1.2, AGCON), O LUX with IR
•Support digital wide dynamic, automatic protection against over-voltage;
•Using high temperature resistant plastic shell, one-line two-way installation is convenient and simple.
•Suitable for installation in a variety of vehicle models.
Product Specification of Dash Cam Front And Cabin
|
Item name |
Technical specification |
|
Product name |
Dual lens Two-way Cab Camera, 1080P taxi camera, car interior camera |
|
Imaging CMOS Sensor |
1/2.7” color CMOS
|
|
Chipset CPU |
F22+V30E(FH8536E) |
|
Effective Pixels |
1920(H)x1080(V) 2 Megapixels 1080P@25fps
|
|
signal system |
50HZ |
|
Minimum illumination
|
0.1Lux (color illuminance) F1.2, 0.05Lux (black and white illumination) F1.2 |
|
Shutter speed
|
1/50 sec-1/100000 sec
|
|
BLC
|
automatic |
|
Day and night conversion/switch mode
|
Single Color |
|
Wide dynamic WDR |
Electric WDR |
|
IR Distance |
Less than 8 meter ( 940 no red light) |
|
Day and night switch IR-cut |
Support |
|
Pickup audio |
Standard 4015 microphone |
|
M12 lens features |
2.1mm lens for cabin cam, 2.8mm lens for front camera |
|
Signal output |
AHD1080P |
|
Operating temperature/humidity |
-20℃~+70℃ 0%-95%
|
|
voltage |
12V output ( Wide voltage 9V-15V) |
|
Waterproof grade |
no |
|
Power (12V) |
<4w (infrared start-up) 2CH combined |
|
Video output interface |
1.0Vp-p composite video output, 75 ohms, 4pin air line |
|
Product size |
86*52*47mm |
|
Net Weight |
Less than 180 gram |
|
|
|
This 1080P Dual lens Dash Camera have good performance Good Night Vision in evening driving meanwhile daystime
Product Application
this compact Twin Lens camera vehicle DVR (Dash Cam Front And Cabin ) is widely used in Installed in vehicles such as official vehicles, online taxis, and taxis Built-in dual-channel high-definition AHD and CVBS modules as one design, compact and light weight, Paste and install on the rear glass of the rearview mirror, which is convenient and quick, and does not block the driver's sight. Meanwhile it can be perfectly applied in taxi, public bus, school bus, van, coach, truck, etc.
Our 1080P Dash Cam Front And Cabin can work and apply for the following taxi and online-call Internet Car as following:
Uber、Lyft，Didi, Grab, Ola, Uber, 99, Taxify, Careem,
Mytaxi, Cabify, Yandex Taxi, Kakao Taxi, Gocatch, Bitaks, Gett

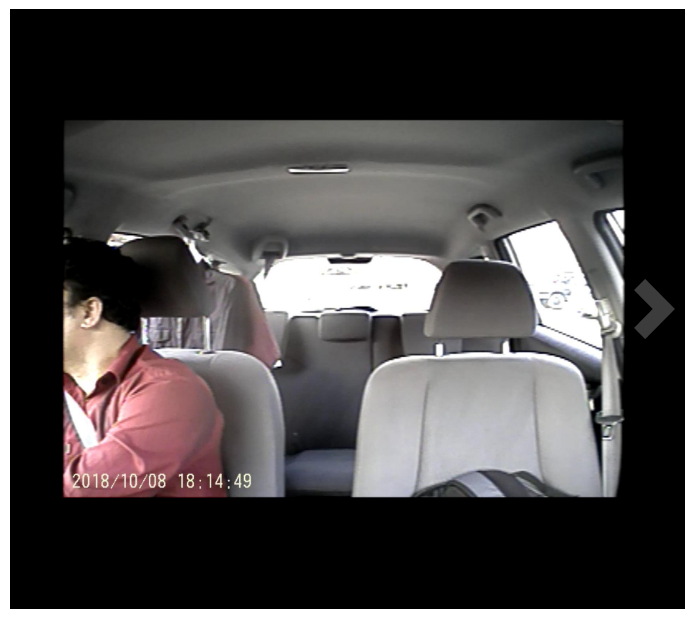

Video from Dual In-cab And Forward-facing Camera as following
The Taxi Camera can record Forward-facing condition and inside in-car cabin passenger video at same time
