Chinese 1080P Stainless Steel Explosion Proof Camera For Tanker Truck

304 Stainless Steel housing, 1080P resolution, night vision with 36pcs IR light, DC 12V power,Explostion proof camera

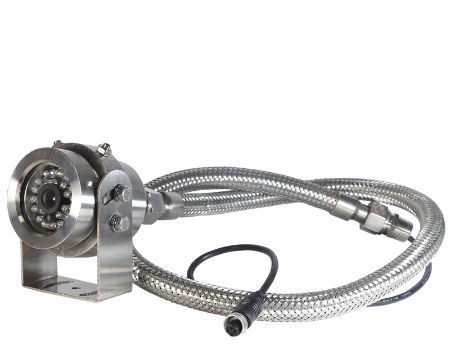

Waterproof IP69K,Explosion proof Fliexible Tube,For Oil Tank Truck

  • Item No.:

  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

  • Color:

  • Min order:

  • Product weight:

  • Shipping port:

  • Lead Time:

    7-10 days
  • Keying selling point:

    Fireproof+Waterproof+Explosion+ Dustproof Cameras
  • H.S.Code:

  • MTF Resolution:

    FHD 1080P

  • Product Detail

Product Name: China Shenzhen produced #304 Stainlenss Steel Anti Explosion Camera  For Truck and Oil Tanker and Dangerous Heavy Duty Trucks

Product Advantage:

1. Extremely strong housing. 304 stainless steel housing prevents camera from explosion. Inside parts and outside parts (harsh environment) will not affect each other.

2. 1080P AHD Resolution. 2MP resolution provide good view for the driver or the monitor to see clear. With clear "eye", they are more safety, as well as the passengers.

3. Full view for your vehicles, including front view, side view, and back view if need. Four cameras can work at the same time. No afraid of blind point. Keep the people around your vehicles safety, as well as your safety.

4. Waterproof cameras. This camera is IP68 waterproof. If you need higher level such as IP69K, we can change a heavier one for you. Excellent waterproof level can allow cameras working well outside, even in rainy or foggy days.

Fireproof+Waterproof+Explosion+Dustproof Cameras For Tanker Truck Vehicle

Explosion Proof Camera For Tanker

Product Material:

high quality Carbon steel(optional to select to use stainless-steel material in corrosion environment)

Explosion proof camera

Cgrade EX-proof, night vision, waterproof

Explosion proof mark: ExdIICT6

Ideal for oil tank truck

The explosion-proof performance accord with GB3836.1-2000 << Electrical apparatus use general requirements:Part1,which used under explosive gas atmospheres environment>>, GB3836.2-2000 << use explosion-proof electrical equipment under explosive gas environment : Part 2, Exd explosion proof "d" >> standard and make Exd explosion proof structure.

Explosion-proof level :

ExdⅡCT6 / ExdⅡBT6

Use unique special explosion proof glass, high light flux rate,avoid infrared light spot

Nanometer invisible features, rain wiper functions,non-stick water,non-stick oil,Exclusion of dust, High hardness and high quality carbon steel material, surface coated processing technology

explosion proof camera

Product Specification of Vehicle Explosion Proof camera

Item  Name

Technical specification

Product Name

Multifunctional FULL HD Fireproof Explosion-proof camera For Tanker

Imaging CMOS

½.7" color CMOS





Video resolution

1920H*1080V, 1080P@25fps

signal system


Minimum illumination

0Lux (night vision fill light) F 2.2

Shutter speed

1/50 sec-1/100000 sec

Day and night conversion mode

Switch IR-Cut day and night

Wide dynamic

Digital wide dynamic



Infrared distance IR

20 meters

Pickup audio


Switch IR-Cut day and night


Signal output


Lens feature

Standard3.6mm 2MP 1080P

temperature humidity

-20~+70 0%-95%

power supply

12V (wide voltage 9v-15v)

waterproof level


Power (12v)

<4w (infrared start)

Net weight

Less than 2.0kgs

product material

100% full Aluminum alloy, #304 stain steeless

Video output interface

1.0Vp-p composite video output, 75 ohm, 4pin aviation cable

Product Size


Truck explosion proof Camera

Fireproof Camera 1080P

Product Features:

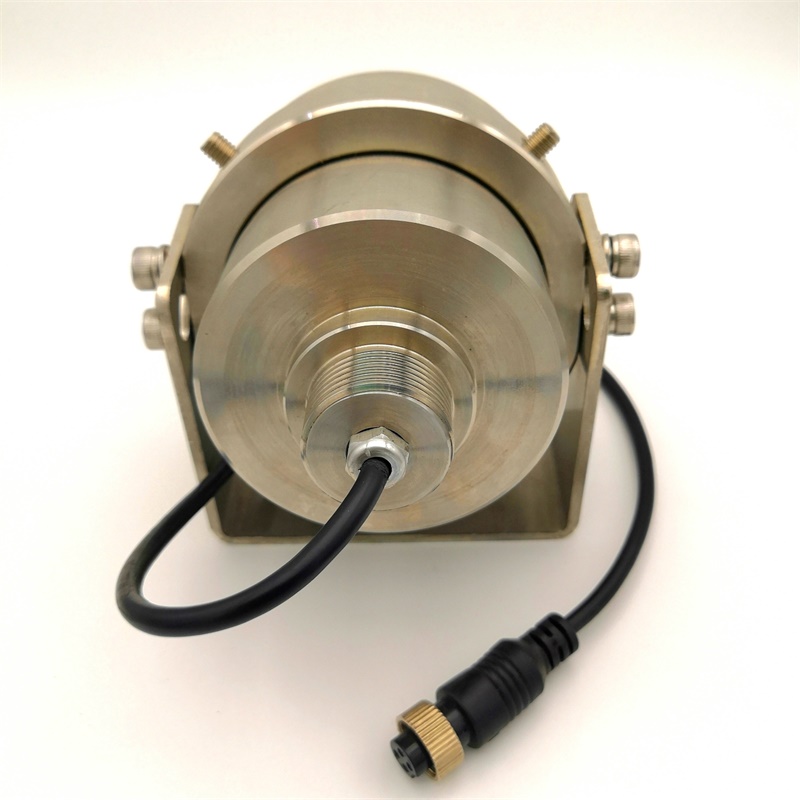

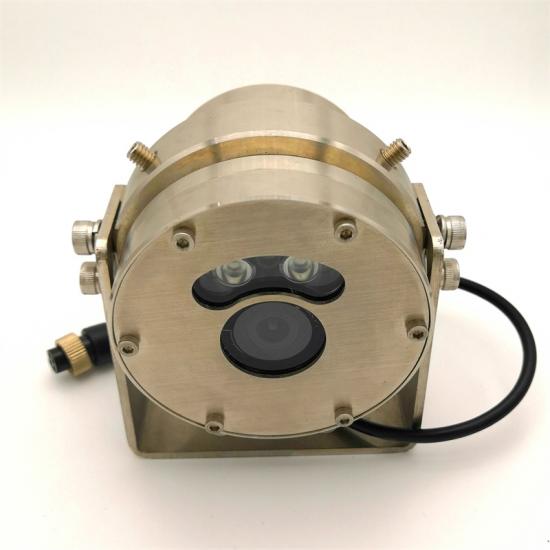

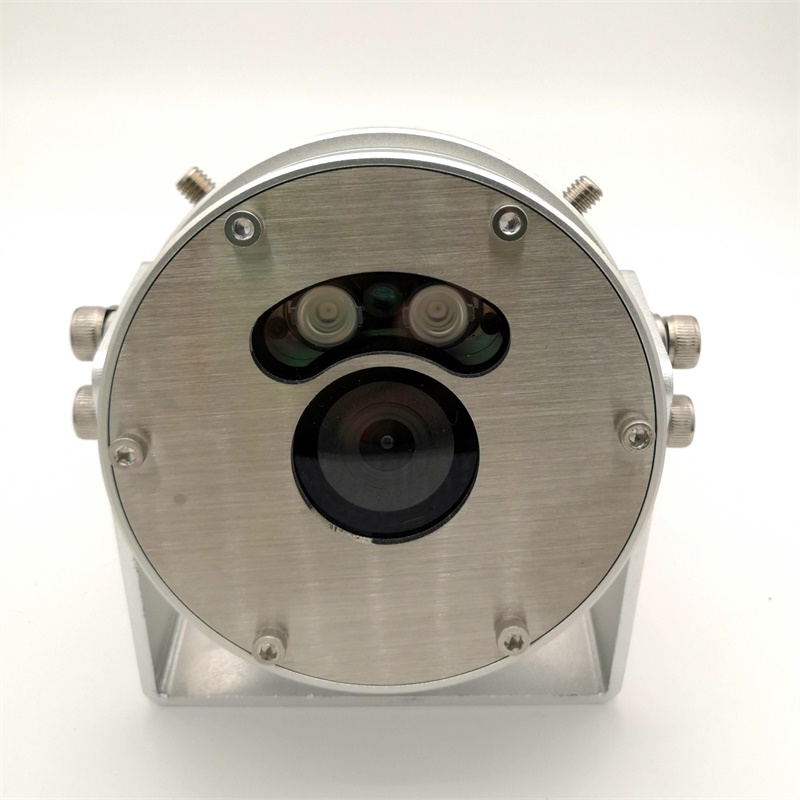

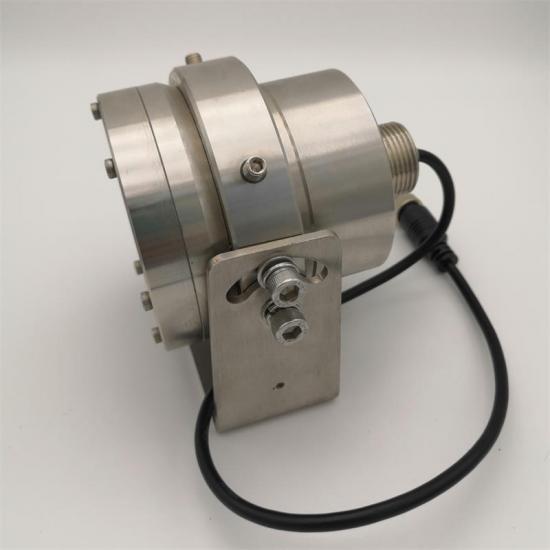

1, Stainless Steel  Explosion-proof camera and infrared light integrated intelligent design, infrared light will automatically turn on when visible light is insufficient, automatic IR CUT day and night conversion,

2, Clear and detailed colors, lifelike high-quality images, greatly improved sensitivity

The latest fourth-generation wide dynamic technology, the dynamic range is greater than 75dB, the effect is very obvious

3, 3D digital noise reduction technology, increase the noise reduction processing of the original signal, the night image is clean and bright

4, Infrared visible distance of 25 meters, high-quality images can be obtained even in poor light conditions. Optical-grade high-strength, high-transmittance, ultra-white explosion-proof glass, with a luminous flux rate higher than 96%, completely eliminating infrared light halo

5, Nano invisible wiper, non-sticky water, non-sticky oil, repel dust

6, Aviation aluminum electric polishing process, beautiful appearance, explosion-proof, dust-proof, waterproof, rust-proof

304 stainless steel electroplating and polishing process, beautiful appearance, explosion-proof, dust-proof, waterproof, rust-proof

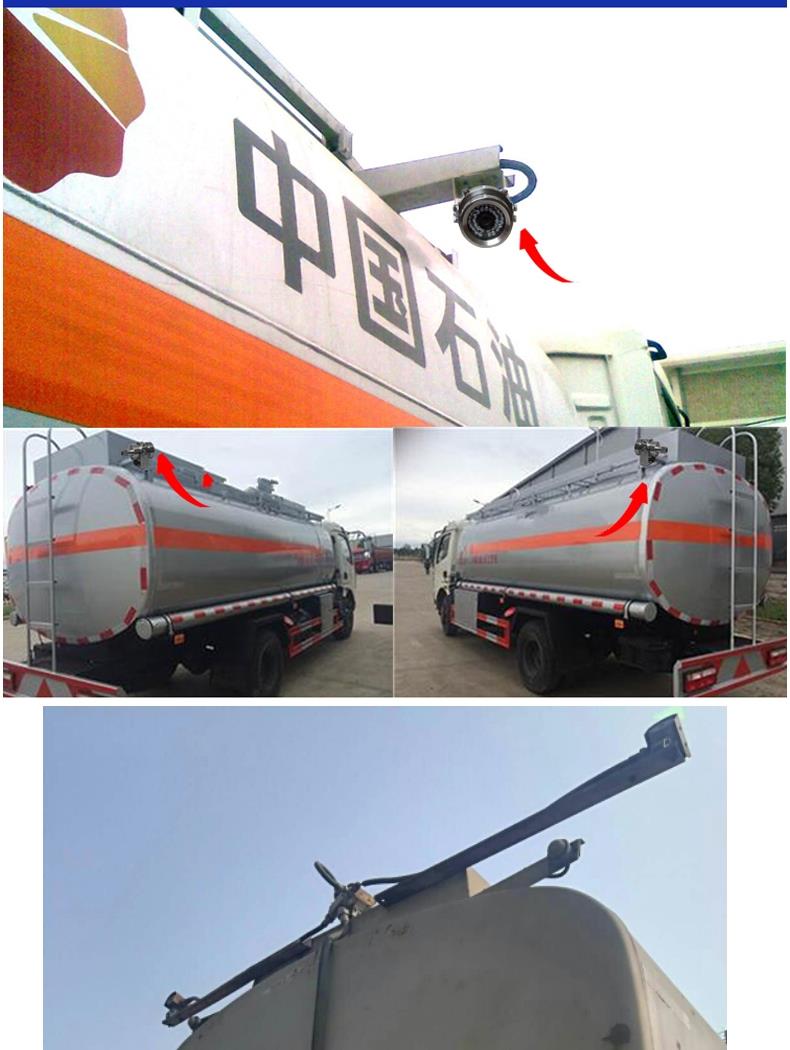

Chinese Explosion Proof camera installment

Product Application:

This 1080P Explosion-proof Camera is suitable for the factory with II A, IIB, IC grade T 1~T 6 groups of flammable gases, explosive mixtures formed by steam and air in Zone 1,Zone 2 locations and explosion hazard locations in Zone 20, Zone 21, and Zone 22 formed by the mixture of combustible dust and air. Such as petroleum, chemical, wharf, Oil depots, ships, drilling platforms, gas stations, mines, ports, aerospace, military industry, medicine, steel, fireworks production, machinery, food Places for processing and storage.

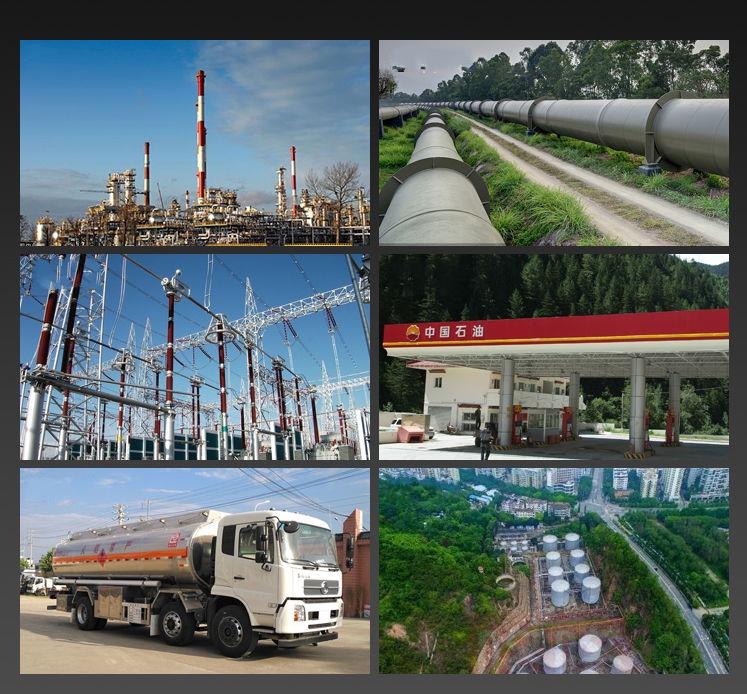

Chinese 1080P Explosion Proof Camera  are widely used in oilfield, petrochemical, coal, shipbuilding, offshore oil drilling platforms, military, oil refining, chemical, electric power, aerospace, pharmaceutical, textile and other related industries.

Applicable to the petroleum and petrochemical, chemical, aerospace, military industry, dock port, medicine, paint, textile, brewing, printing and dyeing, food processing and other dangerous explosive environment.

Explosion Proof Camera Application

Anti Explosion Camera Application
