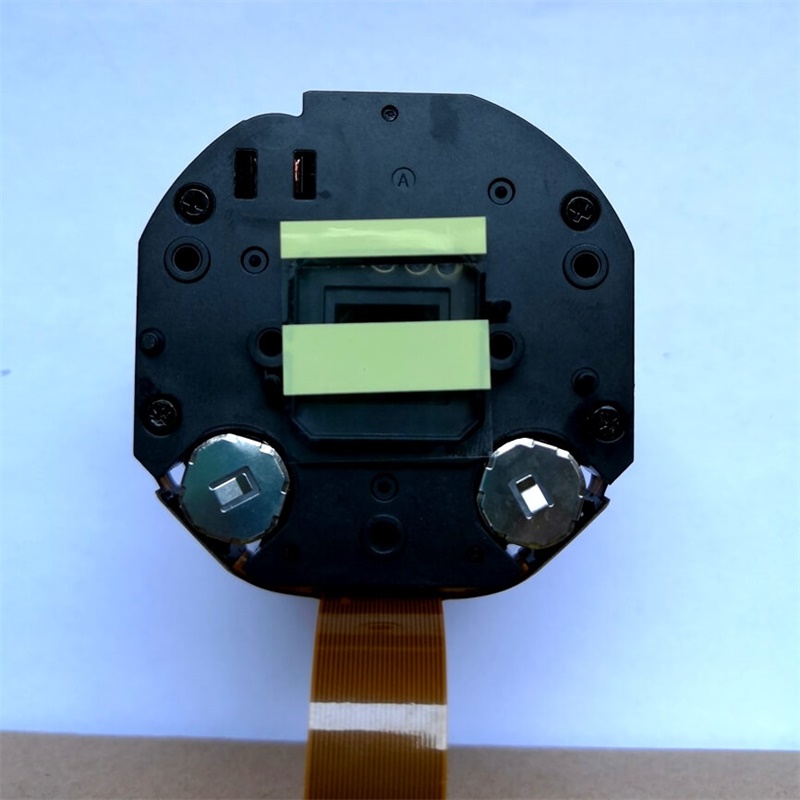

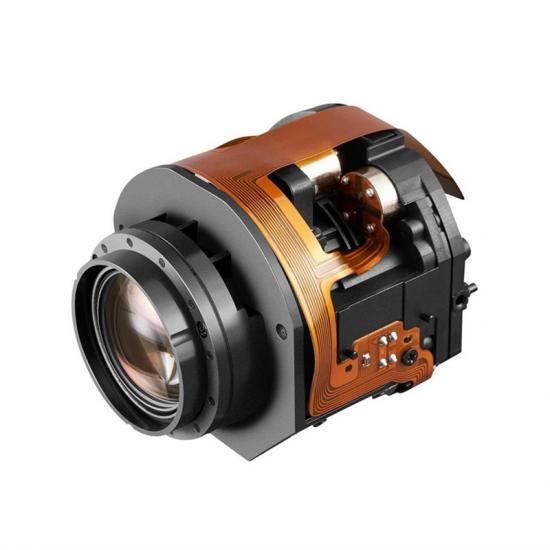

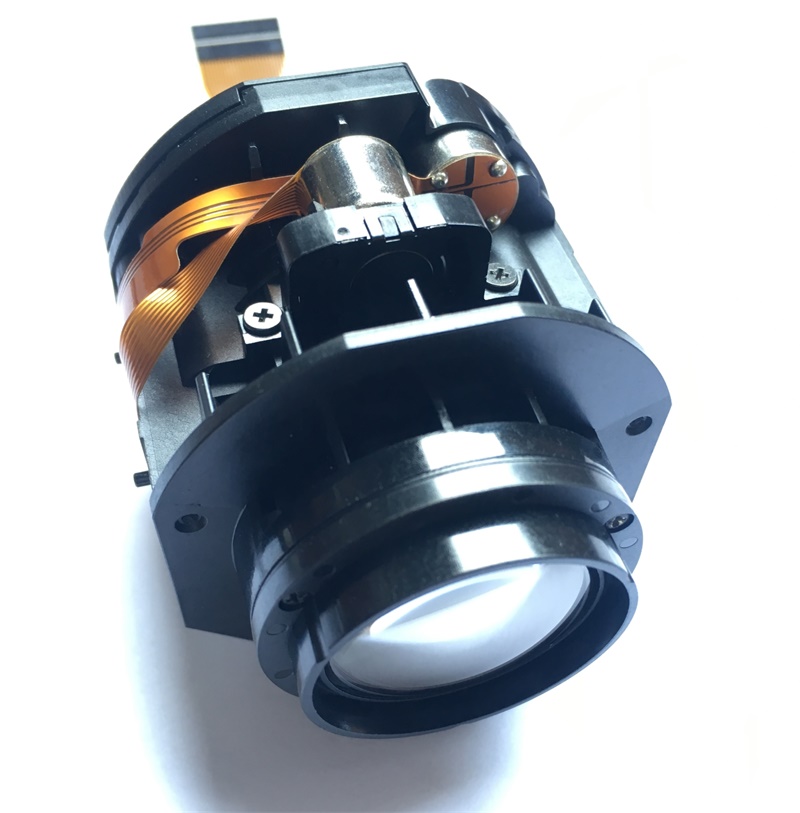

Product Name：8-32mm Zoom Lens camera module Vari-focal lens F1.3 8MP 4K 1/1.8'' cmos sensor
used for video conference camera and facial recognition camera lens module
Product Advantage:
1, 4X High Speed Motoried Optical Zoom 8-32mm
2, High Resolution 8MP 4K Zoom Module for High Speed IP Security Camera
3, High Speed AF Auto Focus Zoom Camera Module
4, Large Format to 1/1.8'' Cmos, excellent optical performance
Product Specification

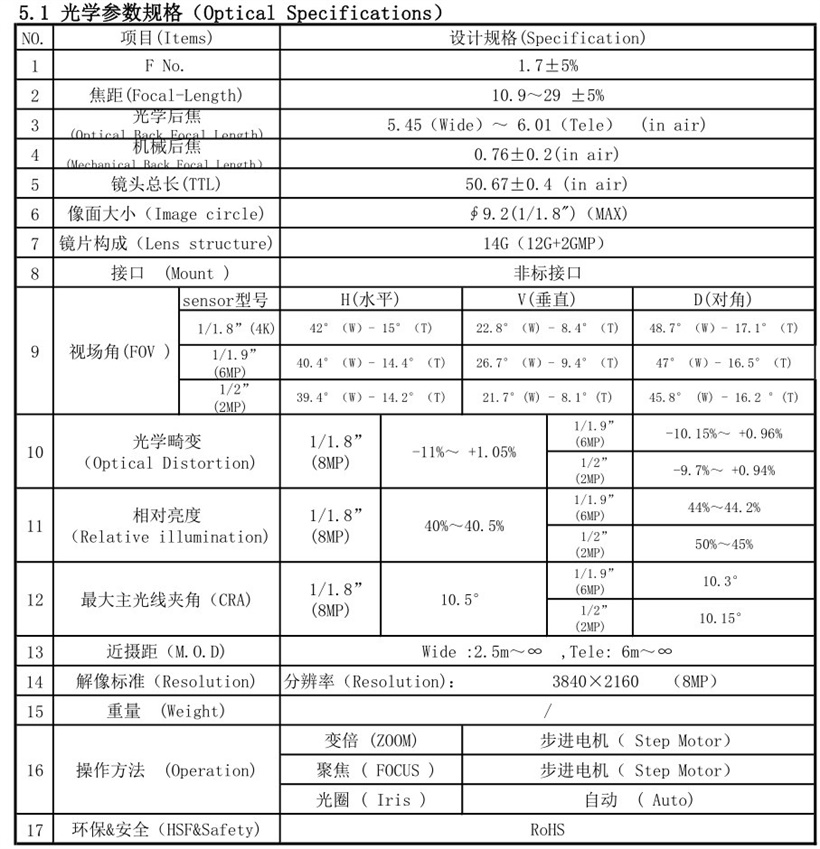

Main Optical technical Specification of 8-32mm zoom Camera Module
1A Zoom Ratio: 4X 8-32mm Varifocal Motorized
1) Aperture F/No. 1.7±5%
2) Effective Focal-Length: 10.9~29 ±5%
3) Mechanical Back Focal Length: 0.76±0.2(in air)
4) Optical Back Focal Length: 5.45(Wide)~ 6.01(Tele) (in air)
5) TTL 50.67±0.4 (in air)
6) Image circle ∮9.2(1/1.8")(MAX)
7) Lens structure: 14G(12G+2GMP)
8) Mount: not standard mount type
9) 1/1.8'' cmos sensor ( 8MP 4K)

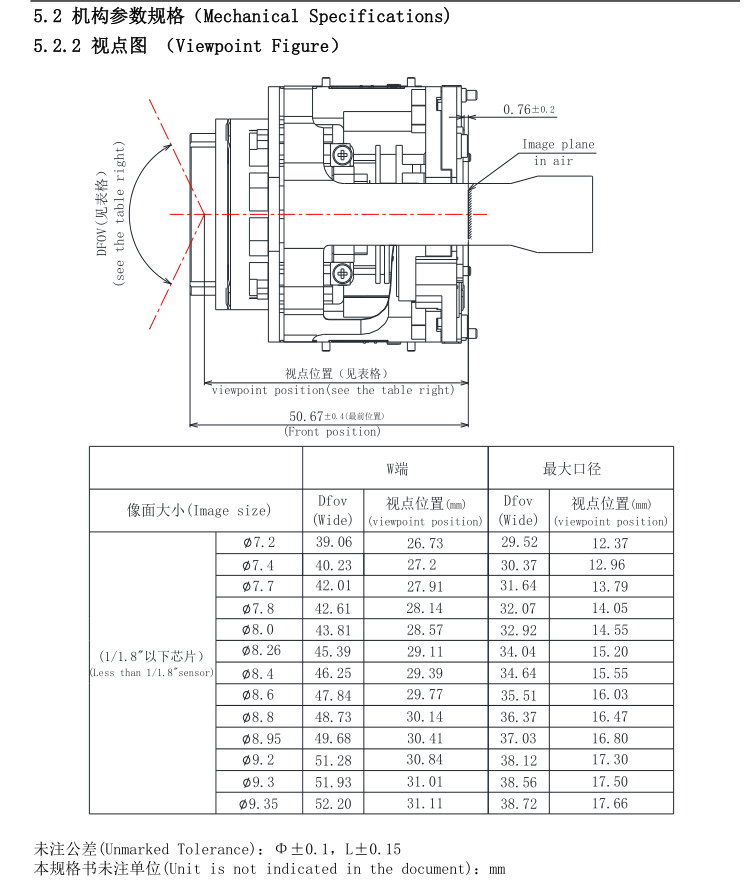

HFOV 42°(W)- 15° (T)
VFOV22.8°(W) - 8.4°(T)
DFOV 47°(W)- 16.5°(T)
10) Optical Distortion
1/1.8" (8MP): -11%~ +1.05%
11) Relative illumination
1/1.8"(8MP): 40%~40.5%
12) CRA 1/1.8" (8MP) 10.5°
13) M.O.D Wide : 2.5m~∞ , Tele: 6m~∞
14) Resolution: 3840×2160 (8MP)
15) operation
ZOOM: step motor
Focus step motor
Iris: Auto
16) (HSF&Safety) RoHS

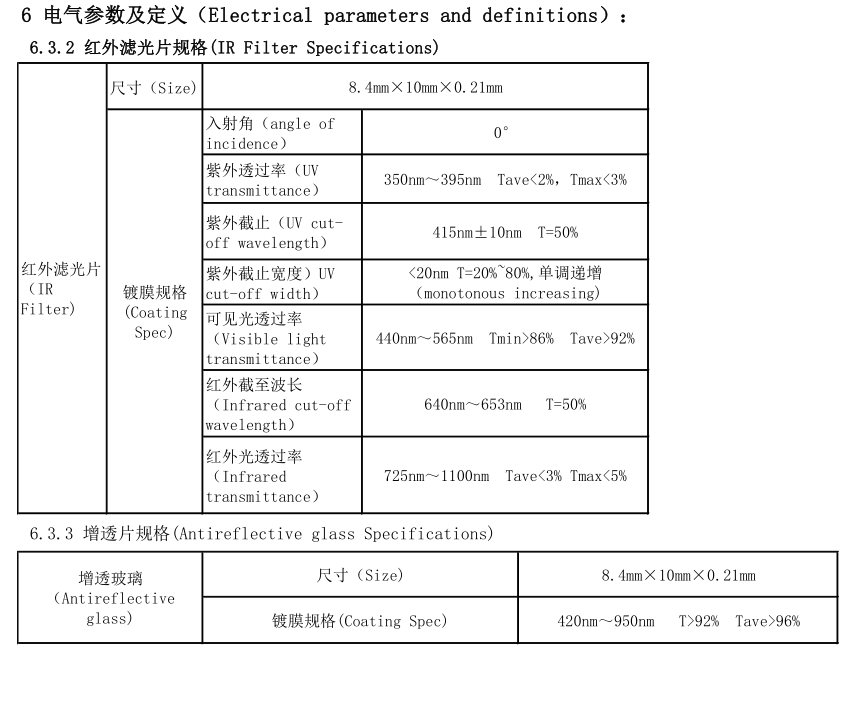

Technical Datasheet of 8-32mm Zoom Camera Module
Product Application
1，PTZ Camera
2, High Speed IP Security Camera
3, Video Conferencing Camera
4, CCTV Zoom Camera
5, Face recognition Camera
6, Forest Camera
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China.Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens,Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
