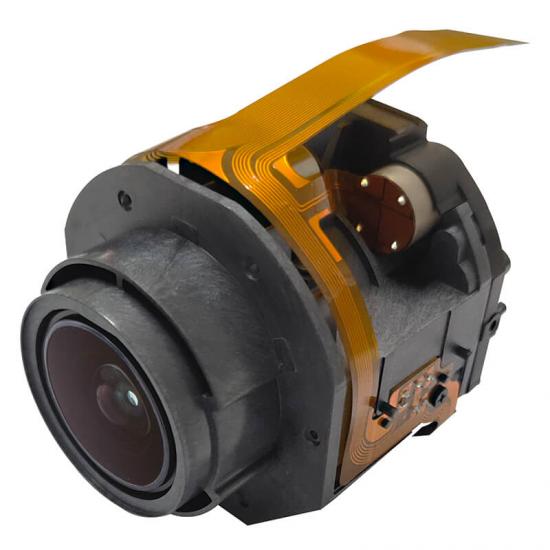

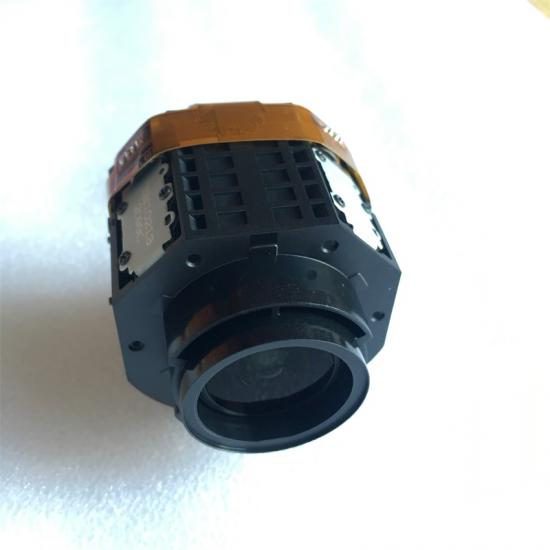

Product Name: High Speed Motorized zoom 3.6-11mm 3X Zoom Lens Support near-infrared Day &night zoom Camera Lens
Product Advantage:
1, Support 1/1.8’’ 4K Varifocal Camera
2, Work with High Speed Camera Lens CCTV
3, Compact Construction, Fast High Speed Auto Focus
4, 4K 8 Megapixel high resolution Lens, Auto Iris Lenses
5, F 1.2 Aperture Lens, starlight Lens
Product Specification

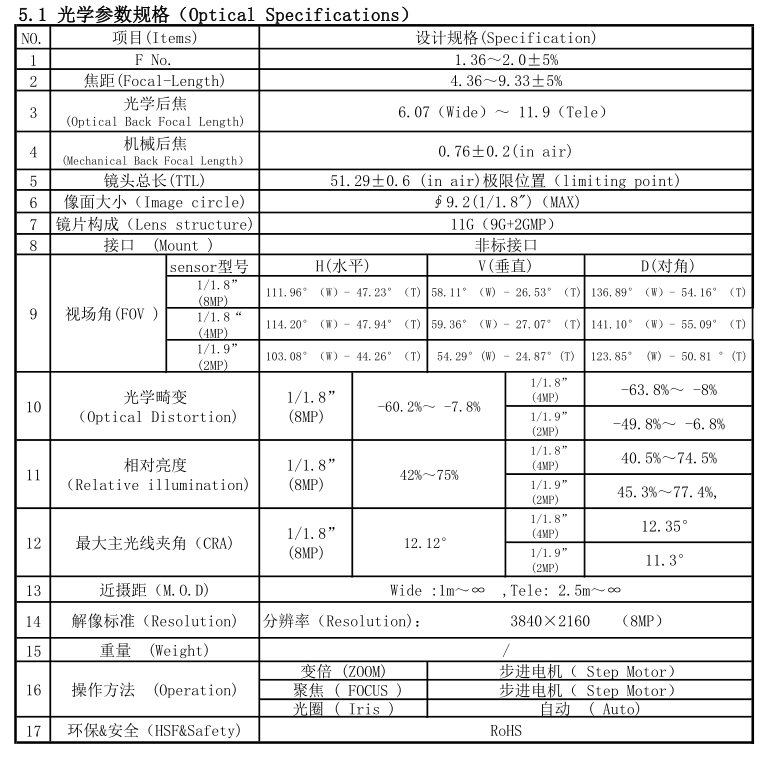

optical specification of 1/1.8'' 3.6-11mm zoom module lens
1, EffectFocal length: 4.36～9.33±5%
2, Aperture F/No: 1.36～2.0±5%
3, Optical back focal length (OBFL): 6.07（Wide）～ 11.9（Tele）
4. Mechanical back focal length (MBFL): 0.76±0.2(in air)

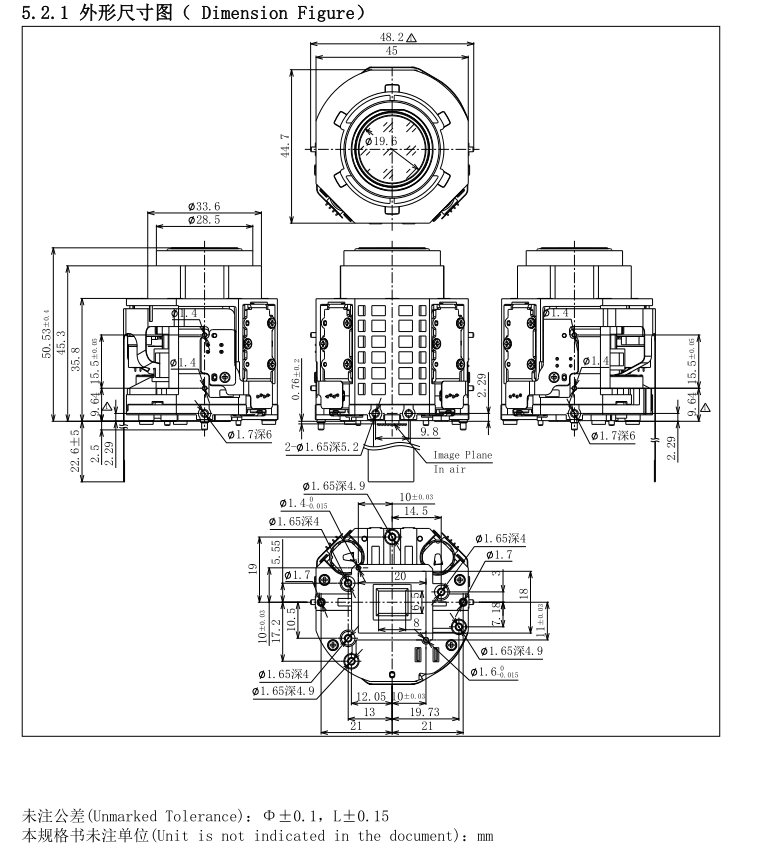

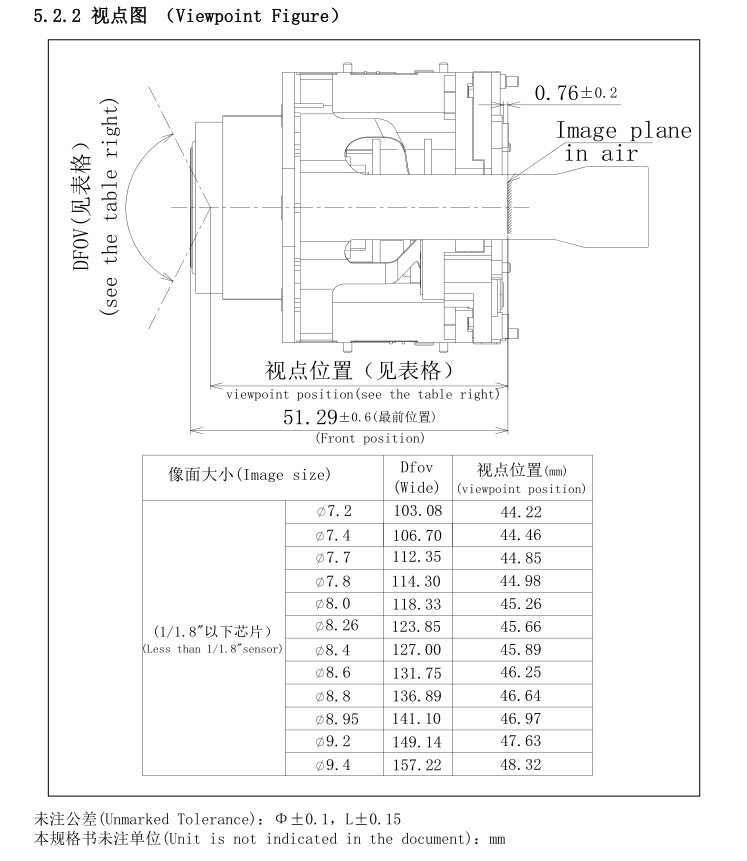

5. TTL: 51.29±0.6 (in air)（limiting point)
6, Max image circle: ∮9.2(1/1.8")（MAX)
7, Lens structure: 11G（9G+2GMP）
8, Mount type: not standard mount type
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V)1/1.8”(8MP) sensor
HFOV 111.96°（W）- 47.23°（T)
VFOV 58.11°（W) - 26.53°（T)
DFOV 136.89°（W）- 54.16°（T)
11, Optical Distortion: 1/1.8”(8MP)sensor -60.2%～ -7.8%
12, Relative illumination: 1/1.8”(8MP)sensor 42%～75%
13, CRA: 1/1.8”(8MP)12.12°
14, M.O,D.: Wide : 1m～∞ ,Tele: 2.5m～∞
15, MTF resolution: 3840×2160 （8MP）
16, Zoom operation: step motor,
Focus operation: step motor,
high speed AF Auto Focus
Iris operation: Auto
17, HSF&safety: RoHS
Product Application
1，PTZ Camera
2, High Speed IP Security Camera
3, Video Conferencing Camera
4, CCTV Zoom Camera
5, Face recognition Camera
About US
we are Chinese professional Plastic Lens, Glass Lens and other optical Lens suppliers where have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment. Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.
Main Lens cover Car camera Lens (Lens Automotive),CCTV Lens, Fisheye Lenses, Zero Distortion Lens, Pinhole Lens, Standard M12 camera Lens, Varifocal Lenses etc of course we provide Lens Shop Online here, Wholesale or retails or Agent and Custom Made Lense
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
