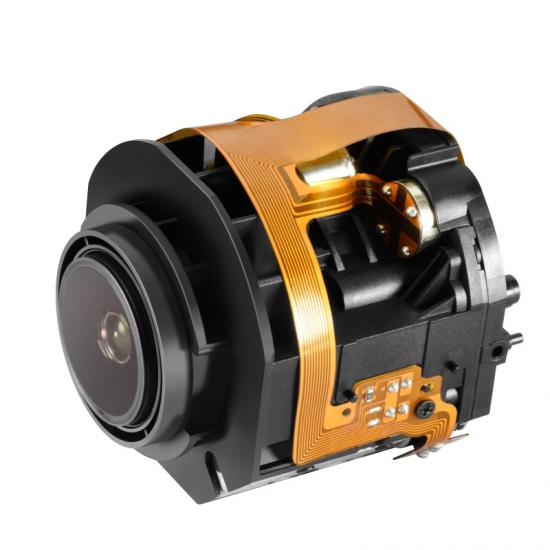

Product Name: 4K 5X Vari-Focal CCTV ZOOM LENS
Product Advantage:
1, 5X High speed AF Zoom Varifocal Lenses
2, 2.7-13.5mm Vari-Focal for IP Security Camera
3, 4K 8MP Zoom Lens Module bring excellent optical performance
4, Stepper motor drive, motorized zoom Lenses
Product Specification

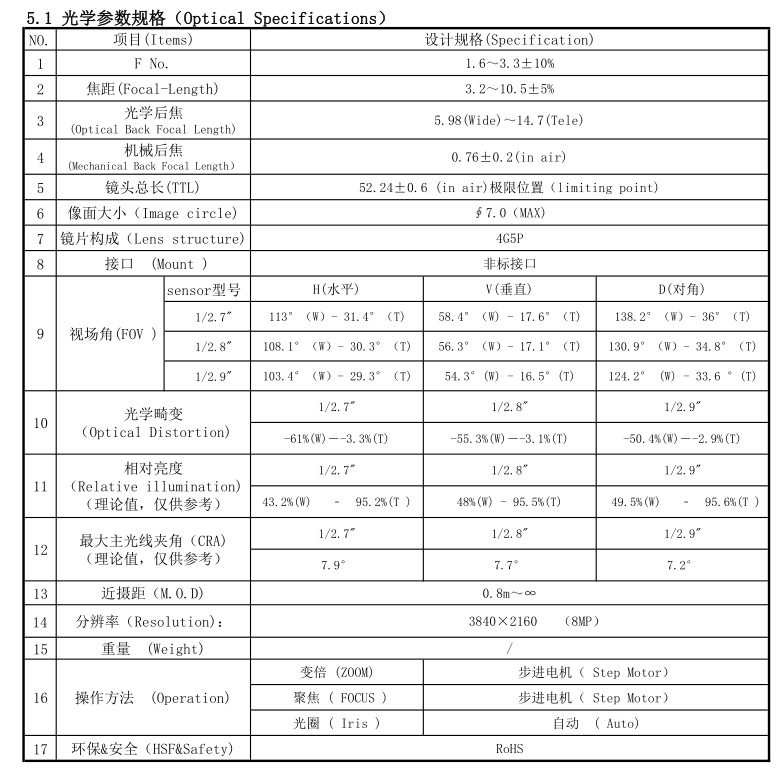

optical specification of 2.7-13.5mm Zoom Lens Module
1A, Zoom Ratio: 5X motorized Vari-focal
1, Focal length: 3.2～10.5±5%
2, Aperture F/No: 1.6～3.3±10%
3, Optical back focal length (OBFL): 5.98(Wide)～14.7(Tele)
4. Mechanical back focal length (MBFL): 0.76±0.2(in air)
5. TTL: 52.24±0.6 (in air)（limiting point)
6, Max image circle: ∮7.0（MAX)
7, Lens structure: 4G5P
8, Mount type: not standard mount type
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V) 1/2.7"
DFOV 138.2°（W）- 36°（T)
HFOV 113°（W）- 31.4°（T)
VFOV 58.4°（W) - 17.6°（T)
11, Optical Distortion 1/2.7"-61%(W)―-3.3%(T),
1/2.9"-50.4%(W)―-2.9%(T)
12, Relative illumination 1/2.7"43.2%(W) ﹣ 95.2%(T ),
1/2.9"49.5%(W) ﹣ 95.6%(T )
13, CRA: 1/2.7"7.9°, 1/2.9"7.2°
14, M.O,D.: 0.8m～∞
15, MTF resolution: 3840×2160 （8MP）

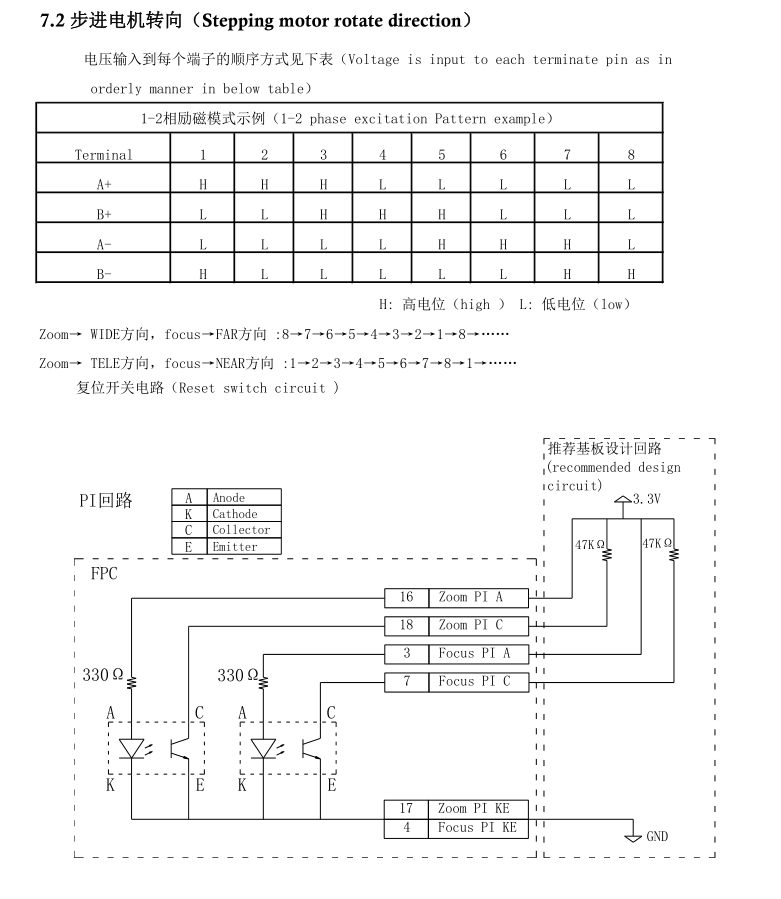

16, Zoom operation: step motor,
Focus operation: step motor, ( high speed AF Focus)
Iris operation: Auto
17, HSF&safety: RoHS
2.7-13.5mm Varifocal Lens Product Application
1，PTZ Camera
2, High Speed IP Security Camera
3, Video Conferencing Camera
4, CCTV Zoom Camera
5, Face recognition Camera
6, Video Surveillance camera
