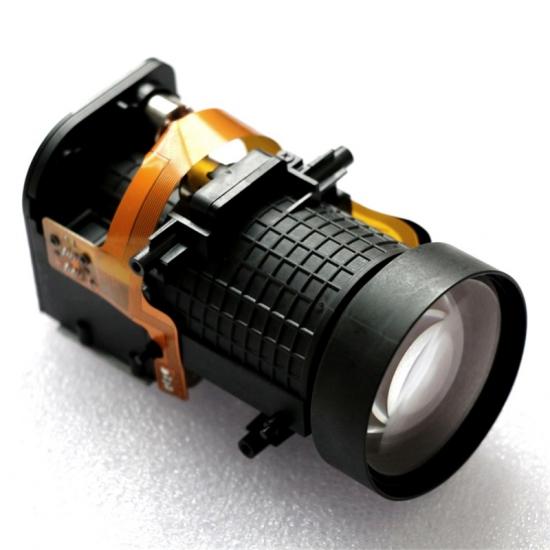

Product Name: 1/2.7'' 5.4-110mm 20X varifocal auto focus tele zoom motorized lens module
Product Advantage:
1, 20X Zoom Lens Module with AF Auto Focus
2, 20X High Speed Varifocal ( Optical Zoom), 5.4-110mm Super Zoom Lens
3, 110mm Telephoto Varifocal Lens, Auto Iris Zoom Module
4, 20X Motorized Focus Vari-Focal Lens for Video Conferencing Camera
Product Specification

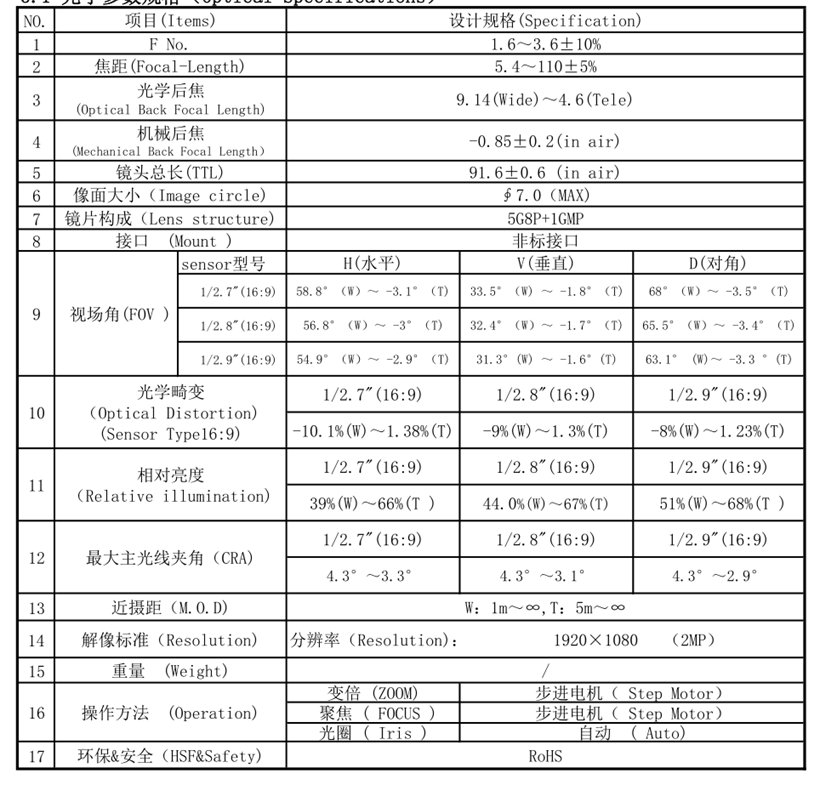

optical specification of 5.4-110mm 20X Varifocal Lens
1, Focal length: 5.4～110±5%
2, Aperture F/No: 1.6～3.6±10%
3, Optical back focal length (OBFL): 9.14(Wide)～4.6(Tele)
4. Mechanical back focal length (MBFL) :-0.85±0.2(in air)
5. TTL: 91.6±0.6 (in air)
6, Max image circle: ∮7.0（MAX)
7, Lens structure: 5G8P+1GMP
8, Mount type: not standard mount
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V)1/2.7"(16:9) sensor
HFOV 58.8°（W）～ -3.1°（T)
VFOV 33.5°（W) ～ -1.8°（T)
DFOV 68°（W）～ -3.5°（T)
11, Optical Distortion 1/2.7"(16:9) sensor -10.1%(W)～1.38%(T)
12, Relative illumination 1/2.7"(16:9) sensor 39%(W)～66%(T )
13, CRA 1/2.7"(16:9) sensor 4.3°～3.3°
14, M.O.D.W：1m～∞,T：5m～∞
15, MTF resolution: 1920×1080 （2MP）
16, Zoom operation: step motor,
Focus operation: step motor,
Iris operation: Auto
17, HSF&safety: RoHS
Product Application
1，PTZ Camera
2, High Speed IP Security Camera
3, Video Conferencing Camera
4, CCTV Zoom Camera
5, Face recognition Camera
6, Forest Camera
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China. Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
