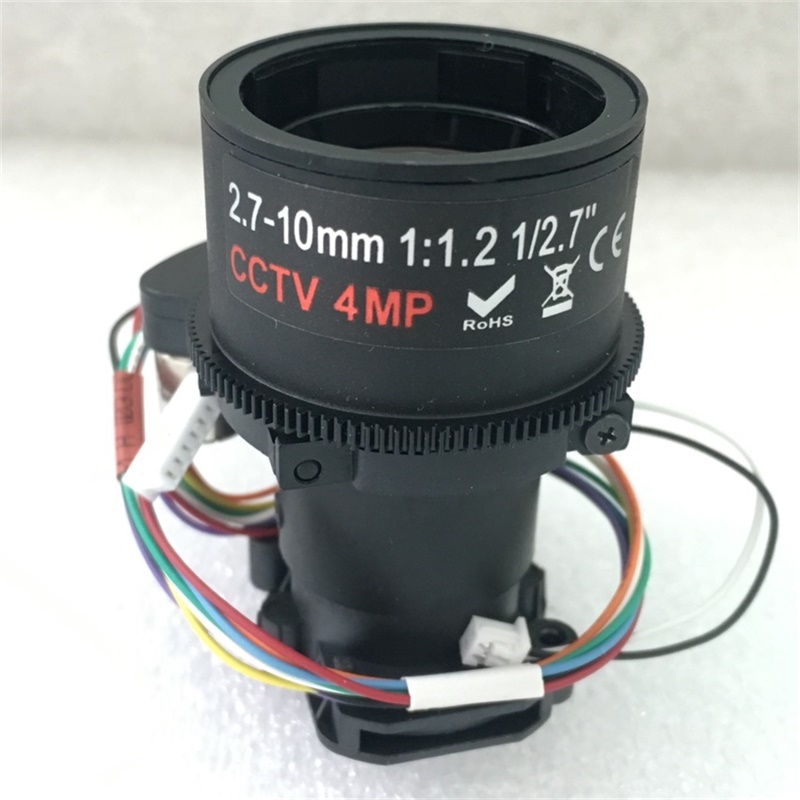

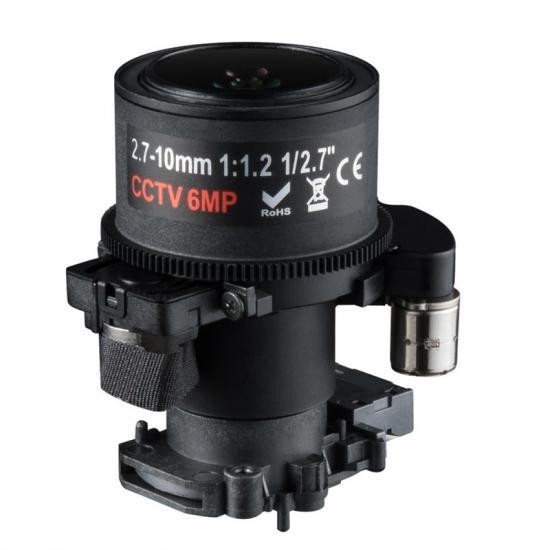

Product Name: 2.7-10mm stepper motor motorized zoom Lenses for CCTV Camera 4/5MP Available
Product Advantage:
1, 138.5 degree Wide Angle Motorized Motor Zoom Lens，Zoom Fisheye Lens
2, Remove and correct unexpected spherical aberration by using asperical Lenses

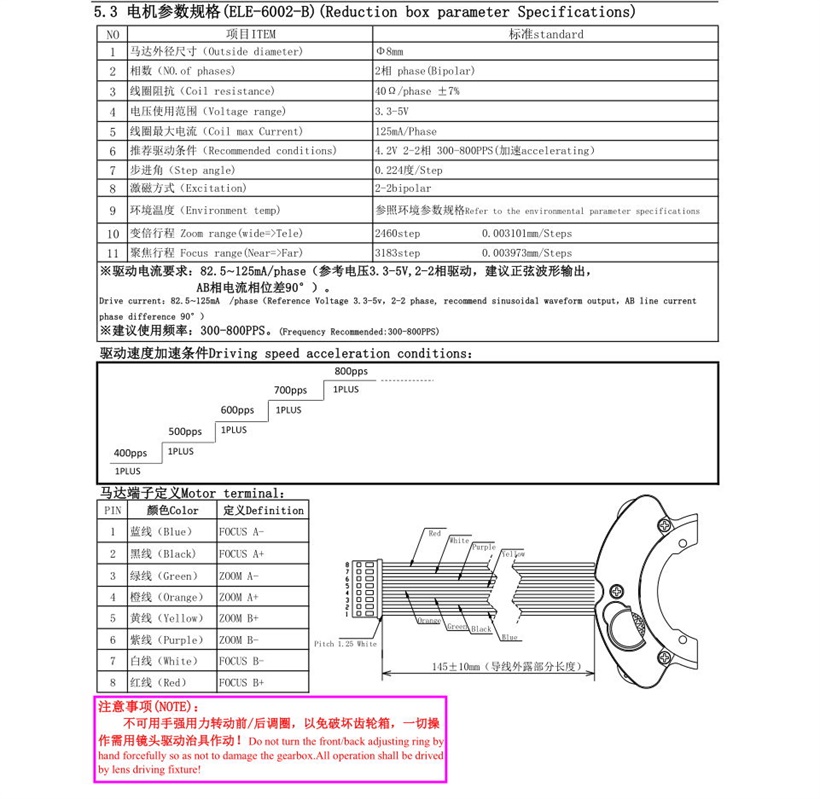

3, Auto Zoom by stepper Motor, High resolution 5 Mega Zoom Lens.
4, produced by Fully Automated Lens Assembly Machines in dust-free workroom
5, F1.3 Large Aperture Zoom Lens, Starlight Zoom Lens
Product Specification

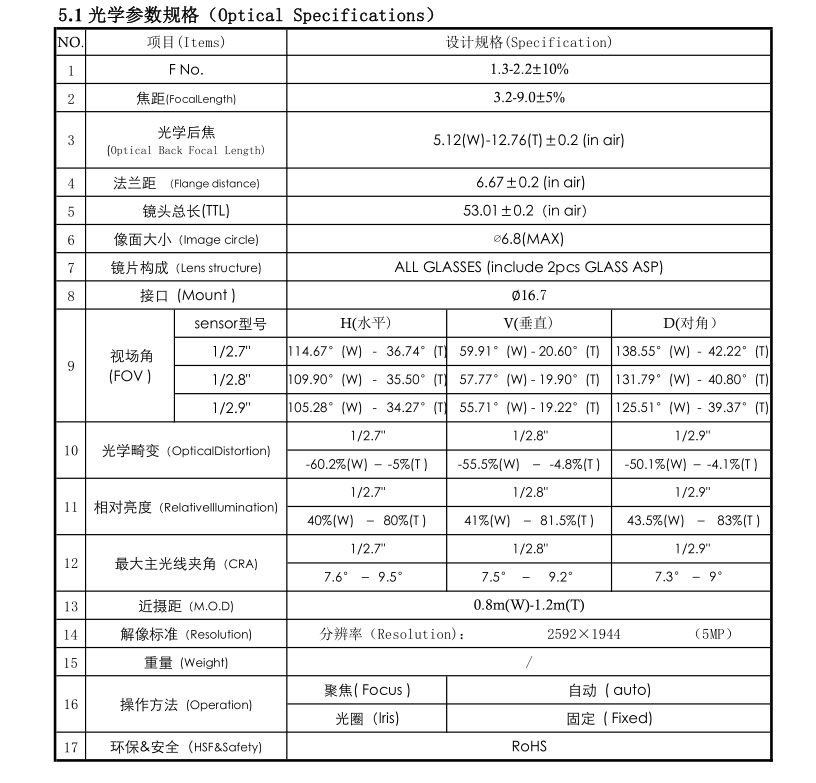

optical specification of 2.7-10mm auto zoom Fisheye lens D16/M16
1, EFFECT Focal length: 3.2-9.0±5%
2, Aperture F/No: 1.3-2.2±10%
3, Optical back focal length (OBFL): 5.12(W)-12.76(T)±0.2 (in air)
4. Flange back focal length (MBFL): 6.67±0.2 (in air)
5. TTL: 53.01±0.2（in air）
6, Max image circle: ∅6.8(MAX)
7, Lens structure: ALL GLASSES (include 2pcs GLASS ASP)
8, Mount type: ∅16.7/ D16
9, Clamp Force: 0.7-0.8kgf-cm
Torsion of Front Structure0.5-0.6kgf.cm
Torsion of Back Structure0.5-0.6kgf.cm
10, FOV (D/H/V)1/2.7"
HFOV 114.67°(W) - 36.74°(T)
VFOV 59.91°(W) - 20.60°(T)
DFOV 138.55°(W) - 42.22°(T)
11, Optical Distortion 1/2.7"-60.2%(W) ﹣ -5%(T ) ,
1/2.9", -50.1%(W) ﹣ -4.1%(T )
12, Relative illumination 1/2.7"40%(W) ﹣ 80%(T ) ,
1/2.9"43.5%(W) ﹣ 83%(T )
13, CRA: 1/2.7"7.6°﹣ 9.5° ,
1/2.9"7.3°﹣ 9°
14, M.O,D.: 0.8m(W)-1.2m(T)
15, MTF resolution：2592×1944 （5MP）
16, Zoom operation: Auto focus AF
Focus operation: Pre modulation, Motorized Lens
Post focus, Auto
Iris operation: Fixed
17, HSF&safety: RoHS
Technical Datasheet of 5 Mega Motor Zoom Lens
Product Application
1, Lens for Varifocal CCTV Camera
2, Lens for Mini High Speed Camera
3, Lens for Outdoor PTZ Camera
4, Lens for Varifocal IP Network Camera
5, Lens for CCTV Dome Zoom Camera
6,Lens for Vari-Focal Surveillance camera
7, Lens for Night Vision Camera, Lens for CCTV Night Cameras
8, Lens for Motorized AHD Camera
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers . that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China.Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens.Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera.their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
