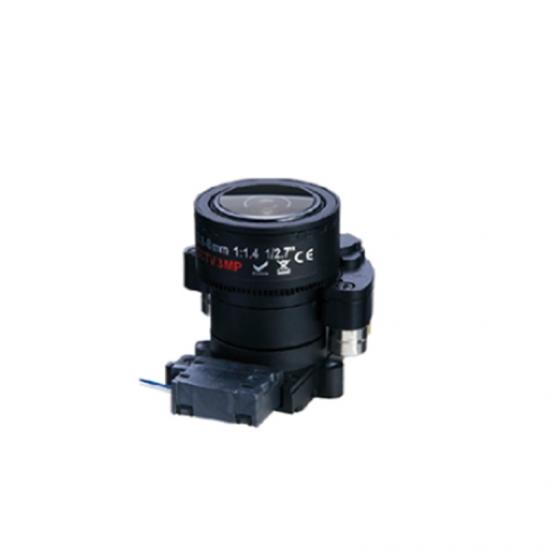

Product name: 1080P 2.8-8mm Compact Zoom motorized focus CCTV Board Lens D14
Product Advantage:
1, 1080P 2 Megapixel Motorized Zoom Lens，2.8X Small Zoom Lens
2, 2.8X Vari-Focal Motorized Focus Lens
3, 100% Made in China Zoom Lens, 2.8-8mm Short Zoom Lens
4, Starlight F1.6 Aperture for CCTV Night Cameras
Product Specification

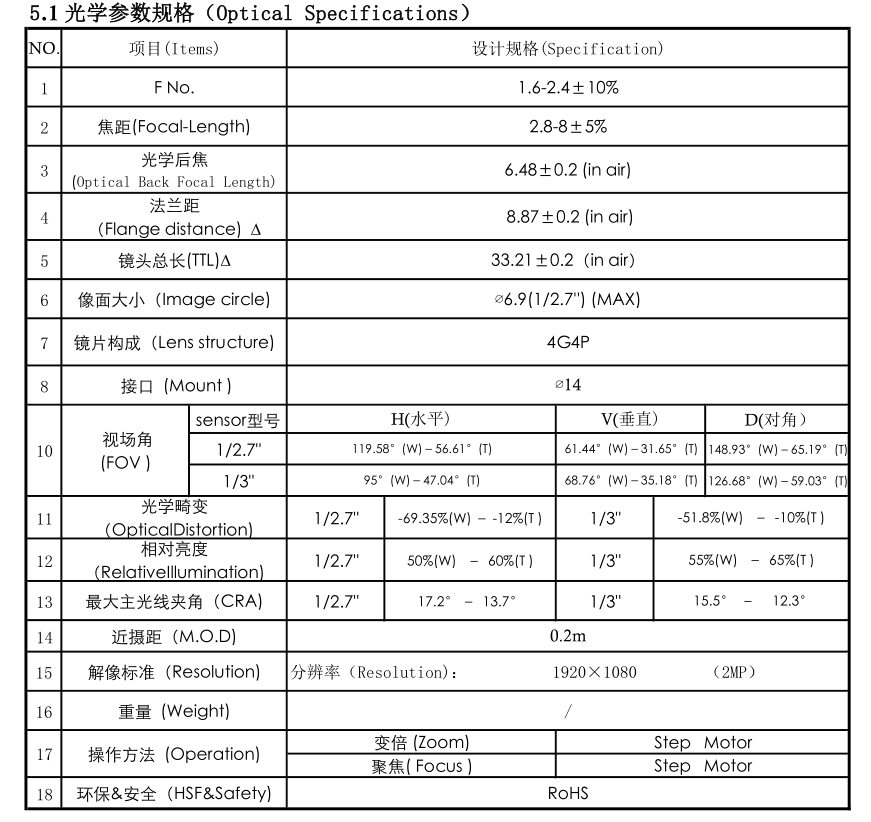

optical specification of 2.8-8mm Zoom vari-focal lens
1, Focal length: 2.8-8±5%
2, Aperture F/No: 1.6-2.4±10%
3, Optical back focal length (OBFL): 6.48±0.2 (in air)
4. Flange back focal length (MBFL): 8.87±0.2 (in air)
5. TTL: 33.21±0.2（in air）
6, Max image circle: ∅6.9(1/2.7'') (MAX)
7, Lens structure: 4G4P
8, Mount type: ∅14
9, Clamp Force 60-600gf-cm
10, FOV (D/H/V) 1/2.7" HFOV 119.58°(W)﹣56.61°(T),
VFOV 61.44°(W)﹣31.65°(T)
DFOV 148.93°(W)﹣65.19°(T)
11, Optical Distortion 1/2.7"-69.35%(W) ﹣ -12%(T ),
1/3"-51.8%(W) ﹣ -10%(T )
12, Relative illumination 1/2.7"50%(W) ﹣ 60%(T ),
1/3"55%(W) ﹣ 65%(T )
13, CRA: 1/2.7" 17.2°﹣ 13.7°
1/3" 15.5°﹣ 12.3°
14, M.O,D.: 0.2Meter
15, MTF resolution: 1920×1080 （2MP）

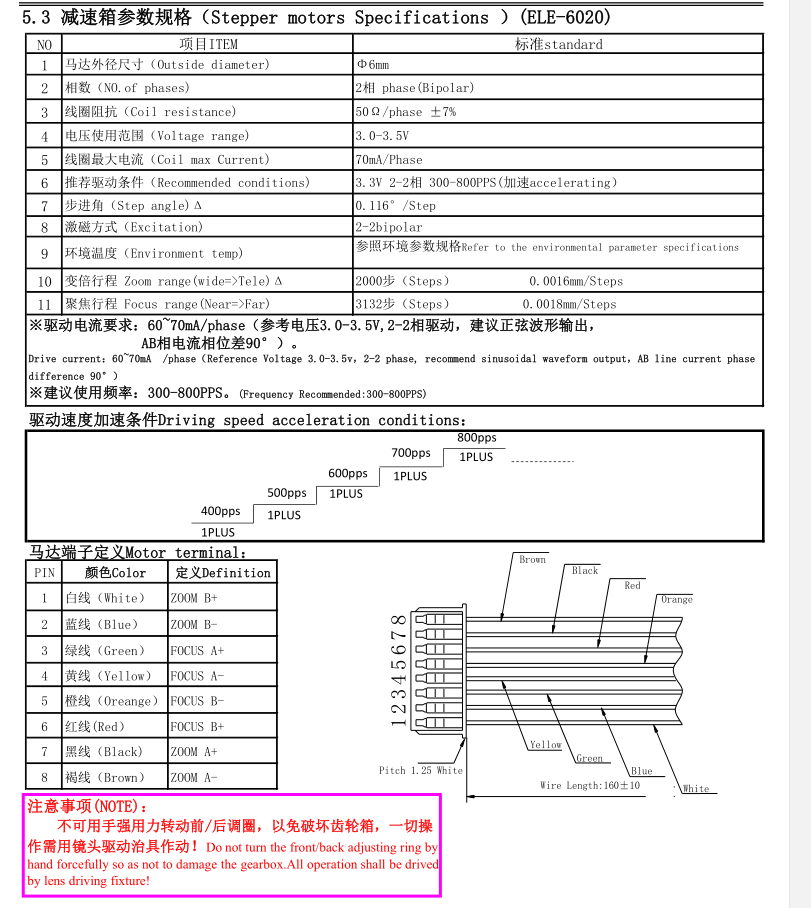

16, Zoom operation: step motor,
Focus operation: step motor,
Iris operation: Auto
17, HSF&safety: RoHS

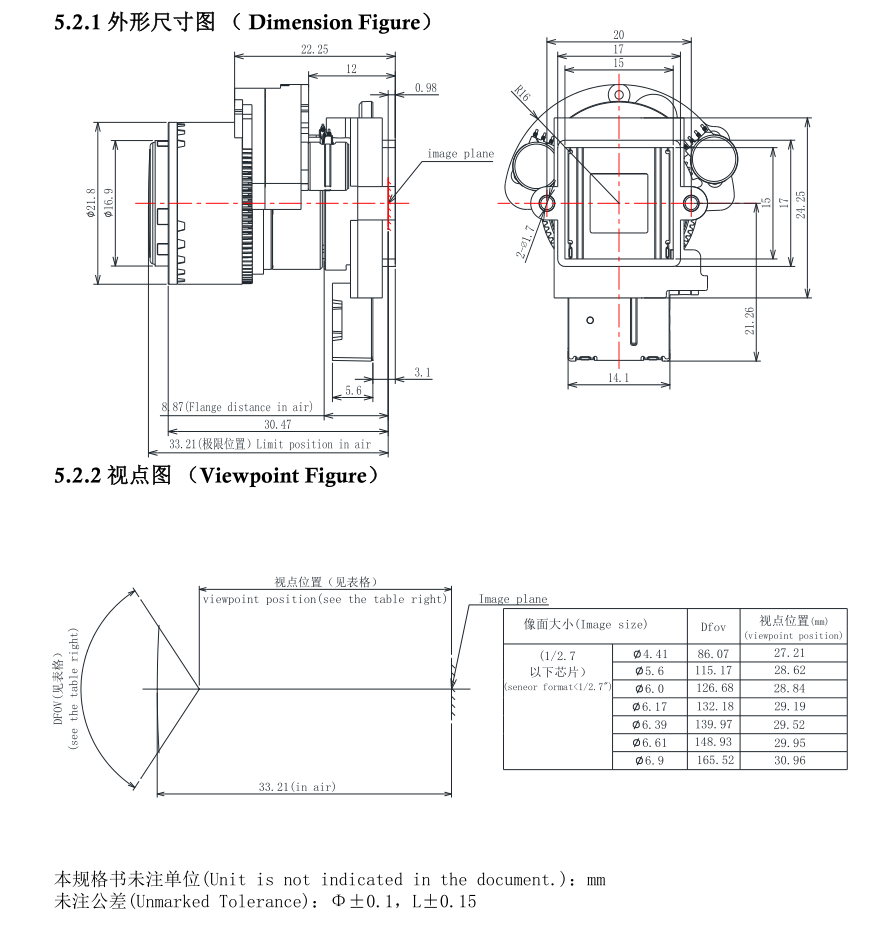

18，Product size: ∅22*33.2mm, Smallest Zoom Lens
Technical datasheet of 2.8-8mm Miniature Zoom Lens
Product Application
1, Varifocal CCTV Camera
2, Mini High Speed Camera
3, Outdoor PTZ Camera
4, Varifocal IP Network Camera
5, CCTV Dome Zoom Camera
6，Vari-Focal Surveillance camera
7, Night Vision Camera, CCTV Night Cameras
8, Motorized AHD Camera
Custom Varifocal Lenses
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China, Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
