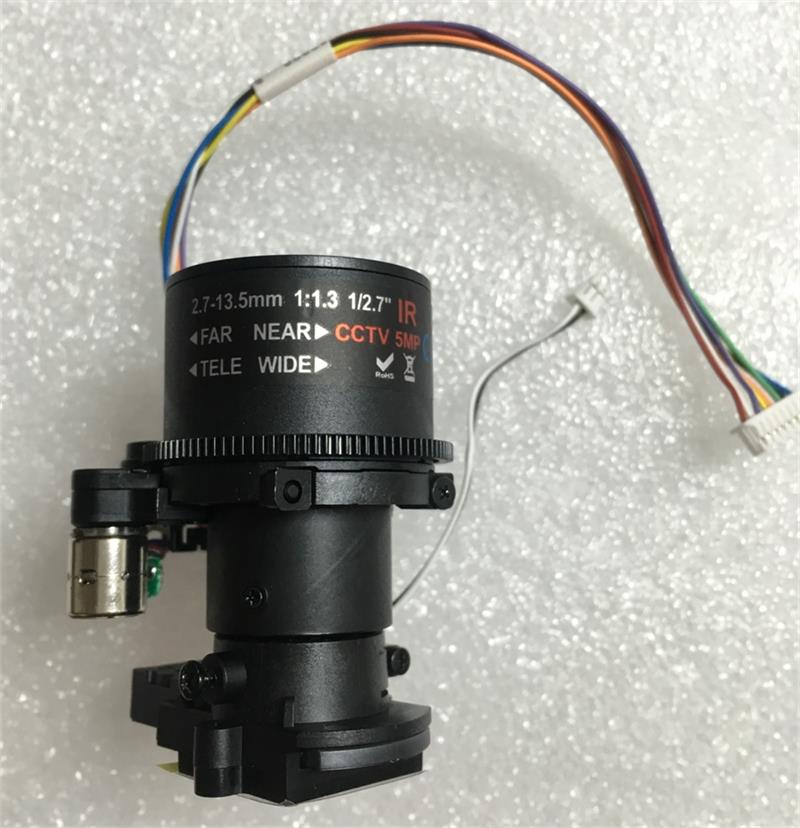

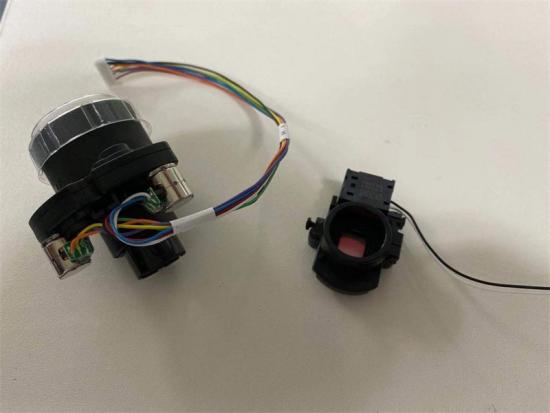

Product name: 2.7-13.5mm auto iris auto focus 5X stepper motor motorized board zoom cctv varifocal lens
6MP/5MP/2MP available D14 /M14 mount type
Product Advantage
1, 6MP, 5MP, 2MP 1080P different high resolution optional Available
2, Stepper Motor Motorized 5X Zoom D14/M14 Mount Board Zoom Lens
3, Auto Iris Auto Focus design for Outdoor PTZ Camera
4, 5 Megapixel Motorized Zoom Lens work with 1/2.7’’ cmos creat top optical image
Product specification

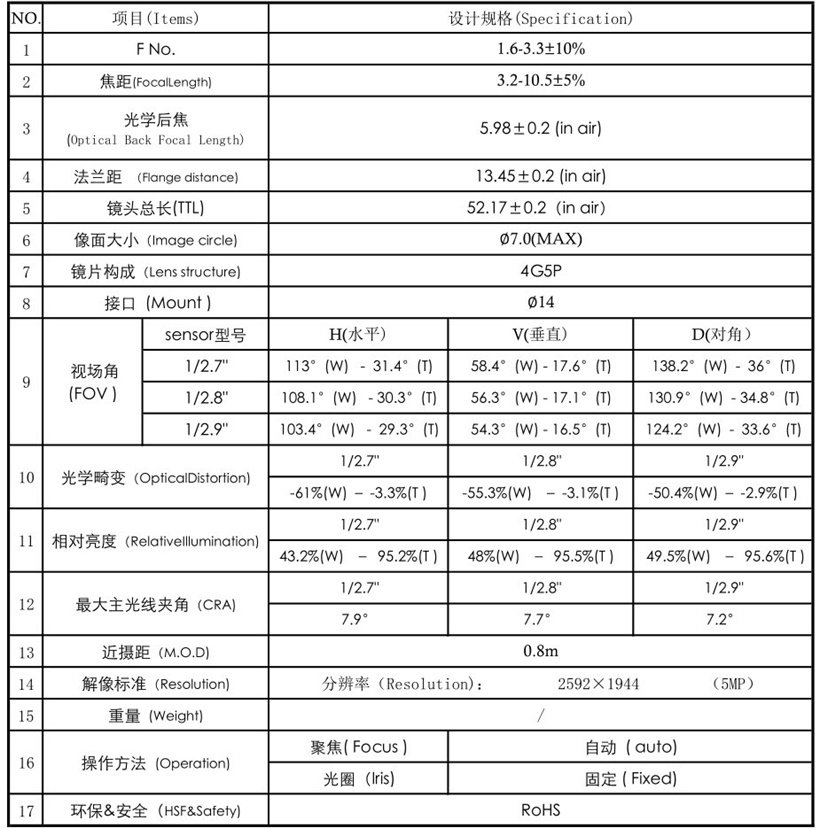

optical specification of 2.7-13.5mm D14 Automatic Zoom Lens
1, Focal length: 3.2-10.5±5%
2, Aperture F/No: 1.6-3.3±10%
3, Optical back focal length (OBFL): 5.98±0.2 (in air)
4. Flange back focal length (MBFL): 13.45±0.2 (in air)
5. TTL: 52.17±0.2（in air）
6, Max image circle: ∅7.0(MAX)
7, Lens structure: 4G5P
8, Mount type: ∅14
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V) 1/2.7" HFOV 113°(W) - 31.4°(T)
VFOV 58.4°(W) - 17.6°(T)
DFOV 138.2°(W) - 36°(T)
11, Optical Distortion 1/2.7"-61%(W) ﹣ -3.3%(T ),
1/2.9"-50.4%(W) ﹣ -2.9%(T )
12, Relative illumination 1/2.7"43.2%(W) ﹣ 95.2%(T ),
1/2.9"49.5%(W) ﹣ 95.6%(T )
13, CRA 1/2.7"7.9°, 1/2.9"7.2°
14, M.O,D. 0.8m
15, MTF resolution: 2592×1944 （5MP）

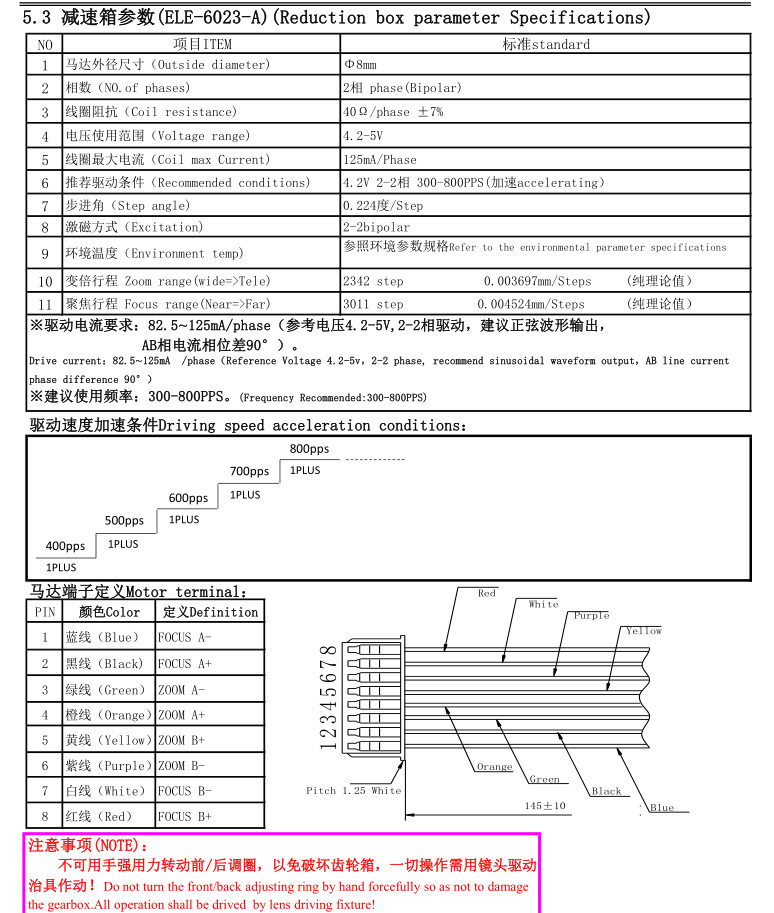

16, Zoom operation: step motor,
Focus operation: step motor,
Iris operation: Fixed
17, HSF&safety: RoHS

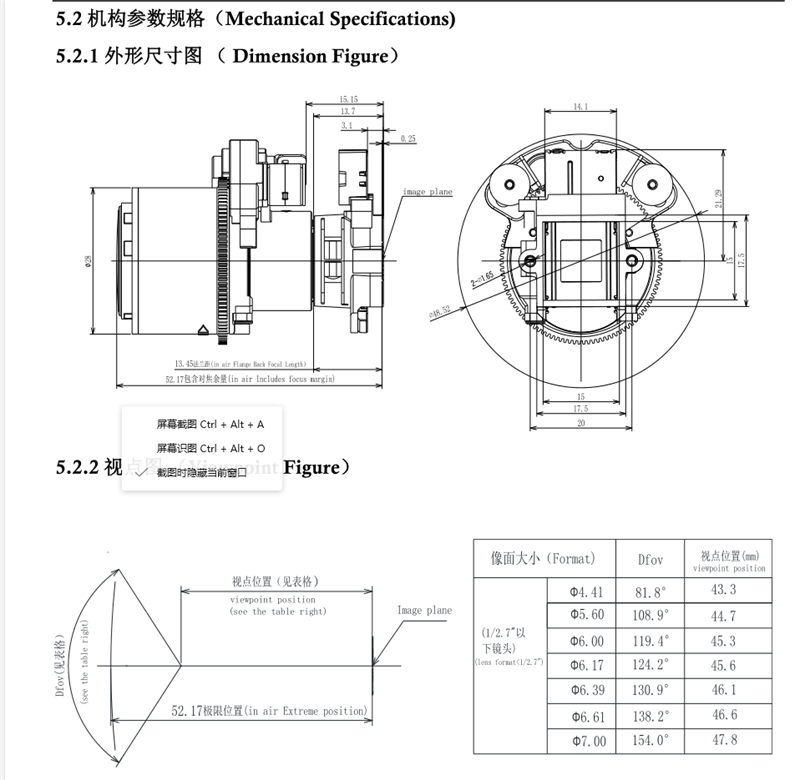

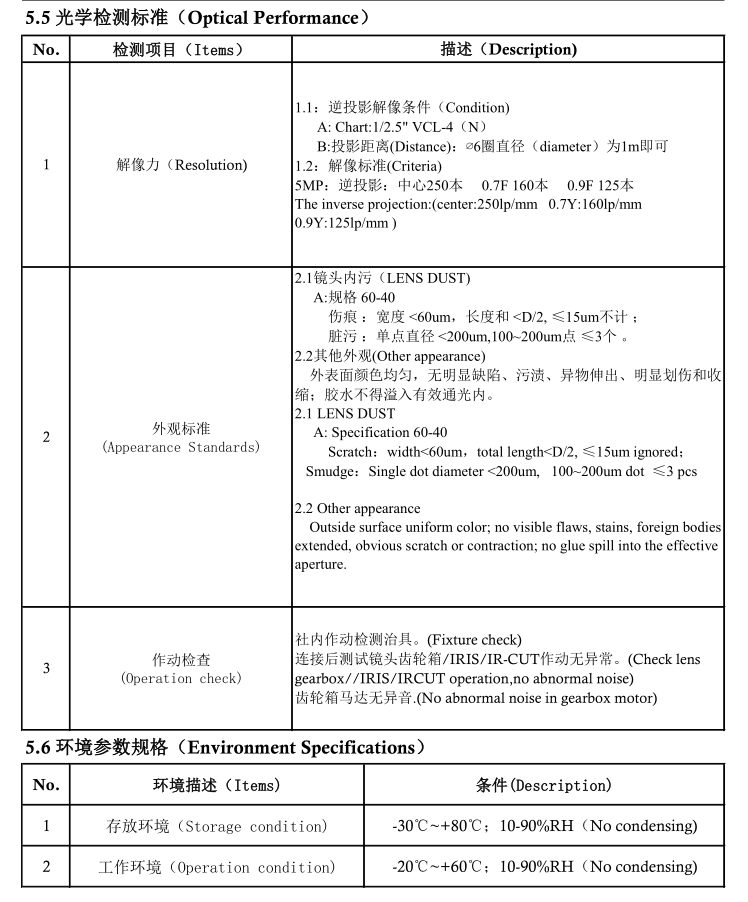

Technical Datasheet of 5 Megapixel Motorized Zoom Lens
Product Application
1, Varifocal CCTV Camera
2, Mini High Speed Camera
3, Outdoor PTZ Camera
4, Varifocal IP Network Camera
5, CCTV Dome Zoom Camera
6，Vari-Focal Surveillance camera
7, Night Vision Camera, CCTV Night Cameras
8, Motorized AHD Camera
